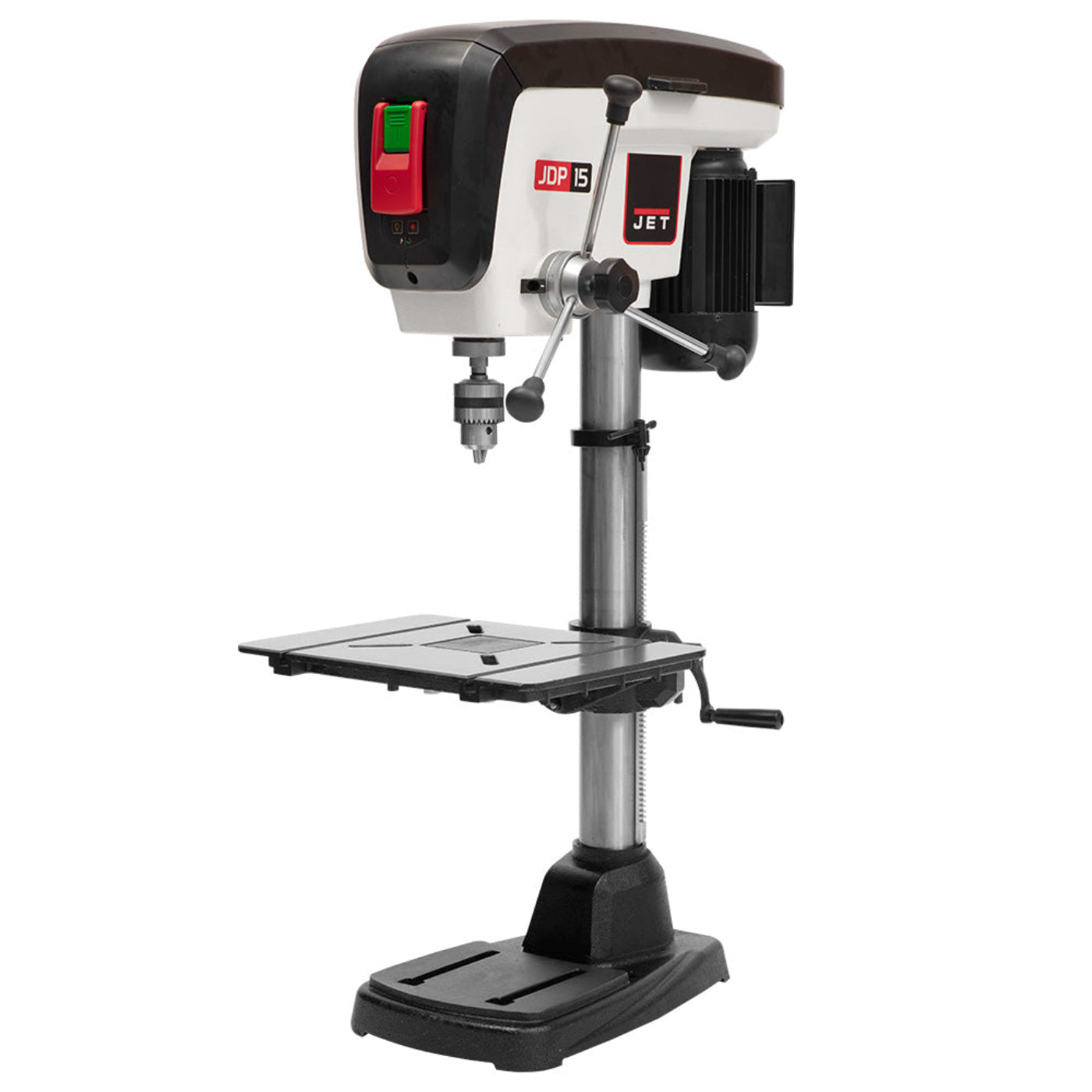

JET JDP-15B 15" Benchtop Drill Press - JT9-716200
From a full 3-1/8" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. It features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. Another feature includes the one-handed belt-tensioning system and a large 12-1/2" x 17" work table which are all CSA Certified.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Benchtop Machinery carry a 3-Year Warranty from date of purchase. Warranties are subject to JET's terms and conditions.

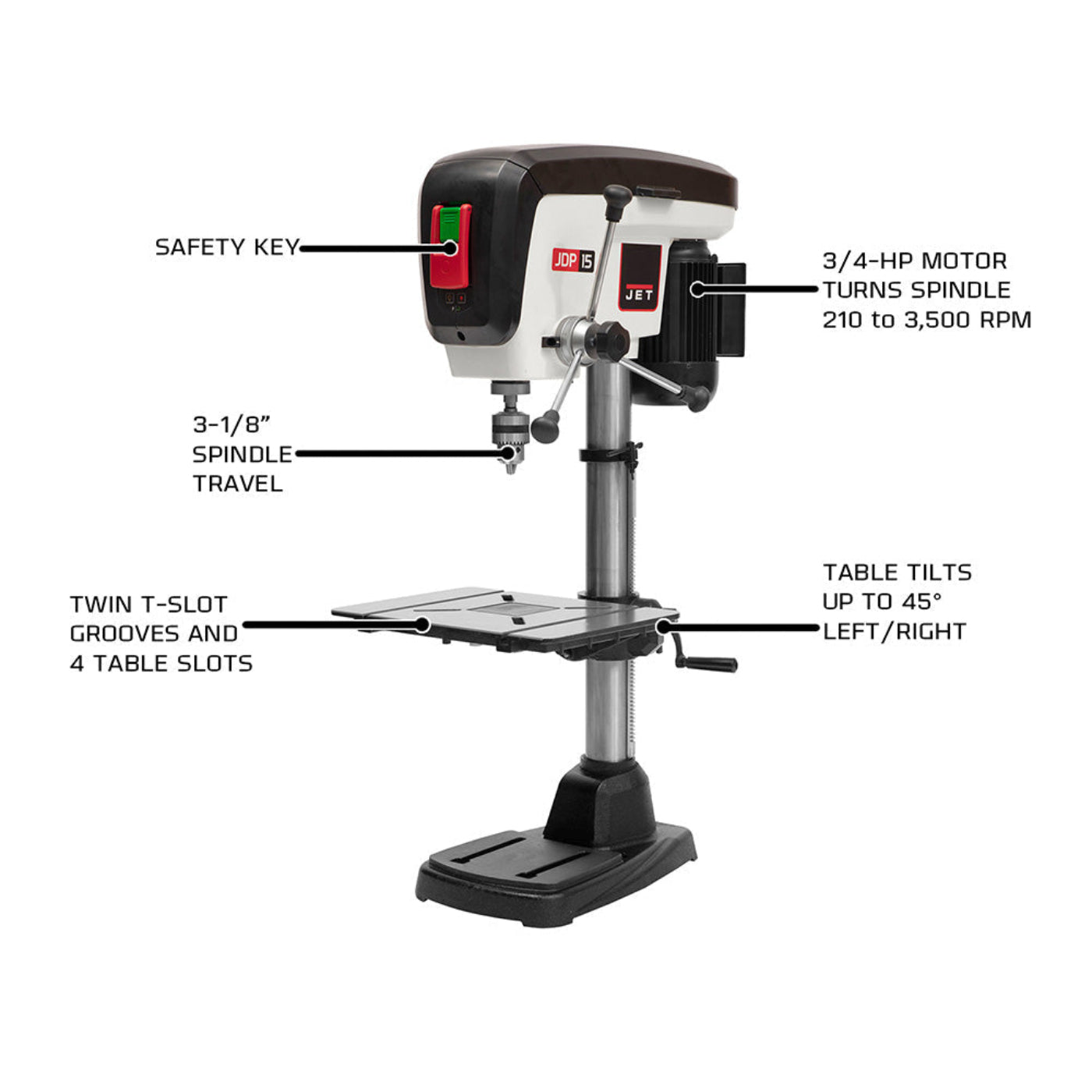

Features

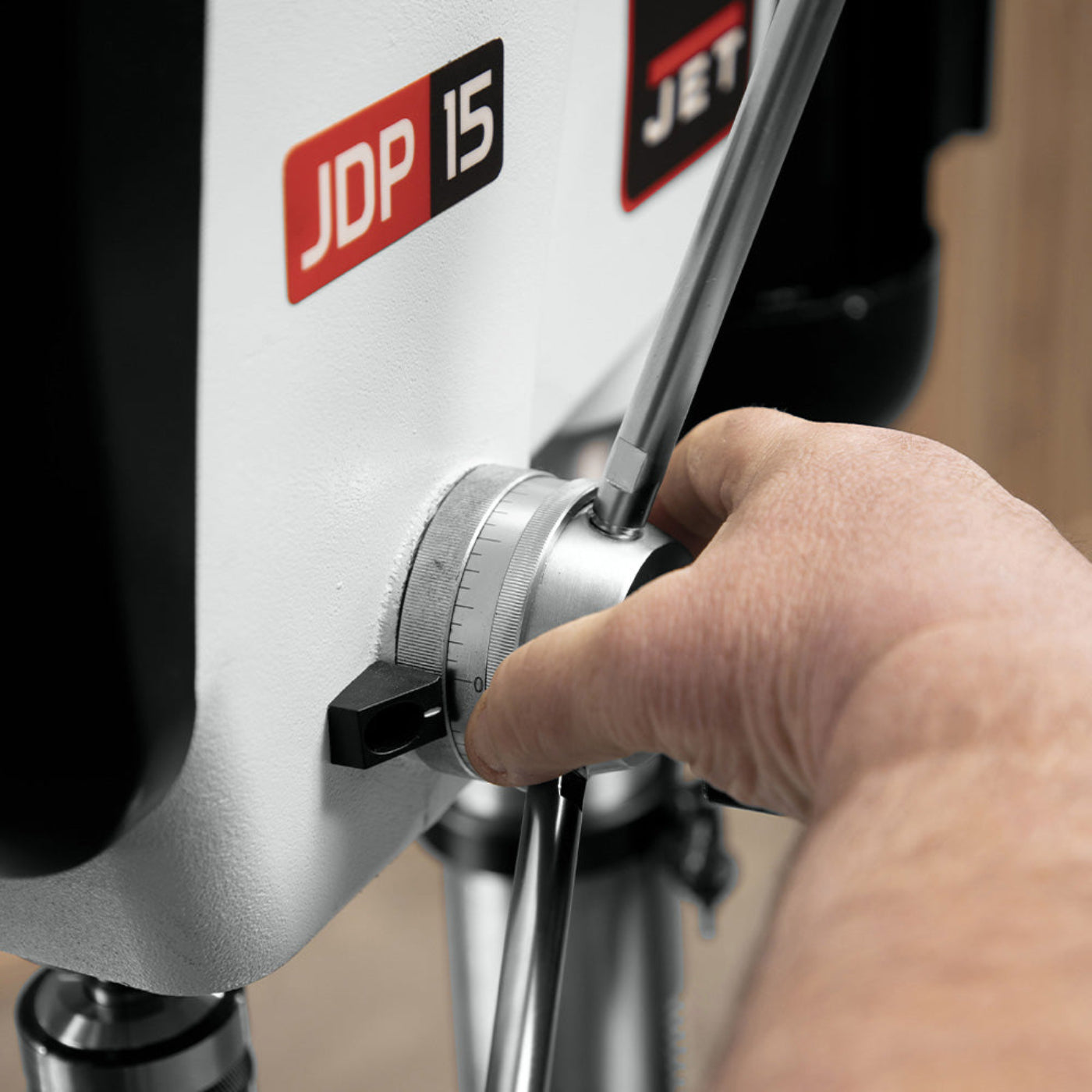

- Integrated depth stop makes repetitive drilling quick and easy
- Large cast iron base provides stability
- Keyed chuck
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
- Replaceable MDF table insert
- Table edge lip designed to make clamping easy
- Xacta-X laser system easily identifies the drill center
Specification
Assembled Machine Dimensions (L x W x H): 27" x 17" x 43-7/8"
Chuck Shank Capacity: 5/8"
Column Diameter: 2-3/4"
Motor Power: 3/4hp
Motor Voltage: 115V
Number of Spindle Speeds: 16
Spindle Distance to Base: 26-3/4"
Spindle Distance to Table (Max.): 18-5/16"
Spindle Travel: 3-1/8"
Style (Type): Benchtop
Swing: 15"
Table Size (LxW): 12-1/2" x 17"
Weight: 154 lbs.
What Our Experts Think
-
Powerful Performance: 3/4 HP motor delivers reliable drilling for wood, metal, and plastics.
-
15" Swing Capacity: Ideal size for benchtop use while handling a wide range of drilling tasks.
-
Adjustable Speeds: Variable speed settings for precision drilling across different materials.
-
User-Friendly Design: Features an LED work light, large cast iron base, and ergonomic controls.
-
Durable Construction: Heavy-duty build ensures long-lasting accuracy and stability.
Q&A
Q: What is the motor size on this drill press?
A: It comes with a 3/4 HP motor.
Q: Does it include a work light?
A: Yes, it has an integrated LED work light for visibility.
Q: Can this drill press handle metal?
A: Yes, with the right bit, it’s suitable for wood, metal, and plastics.
Q: Is this a floor model or benchtop?
A: It’s a benchtop model, designed to save shop space.
Maintenance Tips
-
Lubricate moving parts regularly for smooth operation.
-
Keep the drill table and base clean to avoid debris interference.
-
Check belt tension and alignment for consistent performance.
-
Inspect and replace bits as needed to maintain drilling accuracy.
-
Store in a dry, dust-free space to protect electrical and mechanical components.
