| Size |
12 x 36 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
12 |
| Swing Over Cross Slide (In.) |
7-5/16 |
| Swing Through Gap (In.) |
17-1/2 |
| Length of Gap (In.) |
9-1/2 |
| Spindle Bore (In.) |
1-9/16 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1212 |
| Amperage Draw @ 230V 1Ph |
27 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates |
50 |
| Range of Longitudinal Feeds (IPR) |
0.0016 – 0.046 |
| Range of Cross Feeds (IPR) |
0.0005 – 0.015 |
| Number of Inch Threads |
34 |
| Range of Inch Threads (TPI) |
2 – 56 |
| Number of Metric Threads |
33 |
| Range of Metric Threads |
0.5 – 12 |
| Max Tool Size (In.) |
1/2 x 1/2 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) |
4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-1/2 |
| Width of Bed (In.) |
7-1/2 |
| Overall Dimensions (L x W x H) (In.) |
71 x 30 x 60 |
| Drive |
EVS |
What our Experts Think
-
Precision Engineering: Variable speed lathe with ACU-RITE 303 DRO ensures highly accurate, repeatable machining.
-
Enhanced Productivity: Taper attachment and collet closer enable complex turning and fast, secure workholding.
-
Heavy-Duty Stability: Rugged cast-iron construction minimizes vibration and maximizes durability.
-
Operator-Friendly Design: Digital readout and ergonomic controls simplify setup and operation.
-
Industrial-Grade Reliability: Ideal for machine shops and professional workshops demanding precision and efficiency.
Q&A

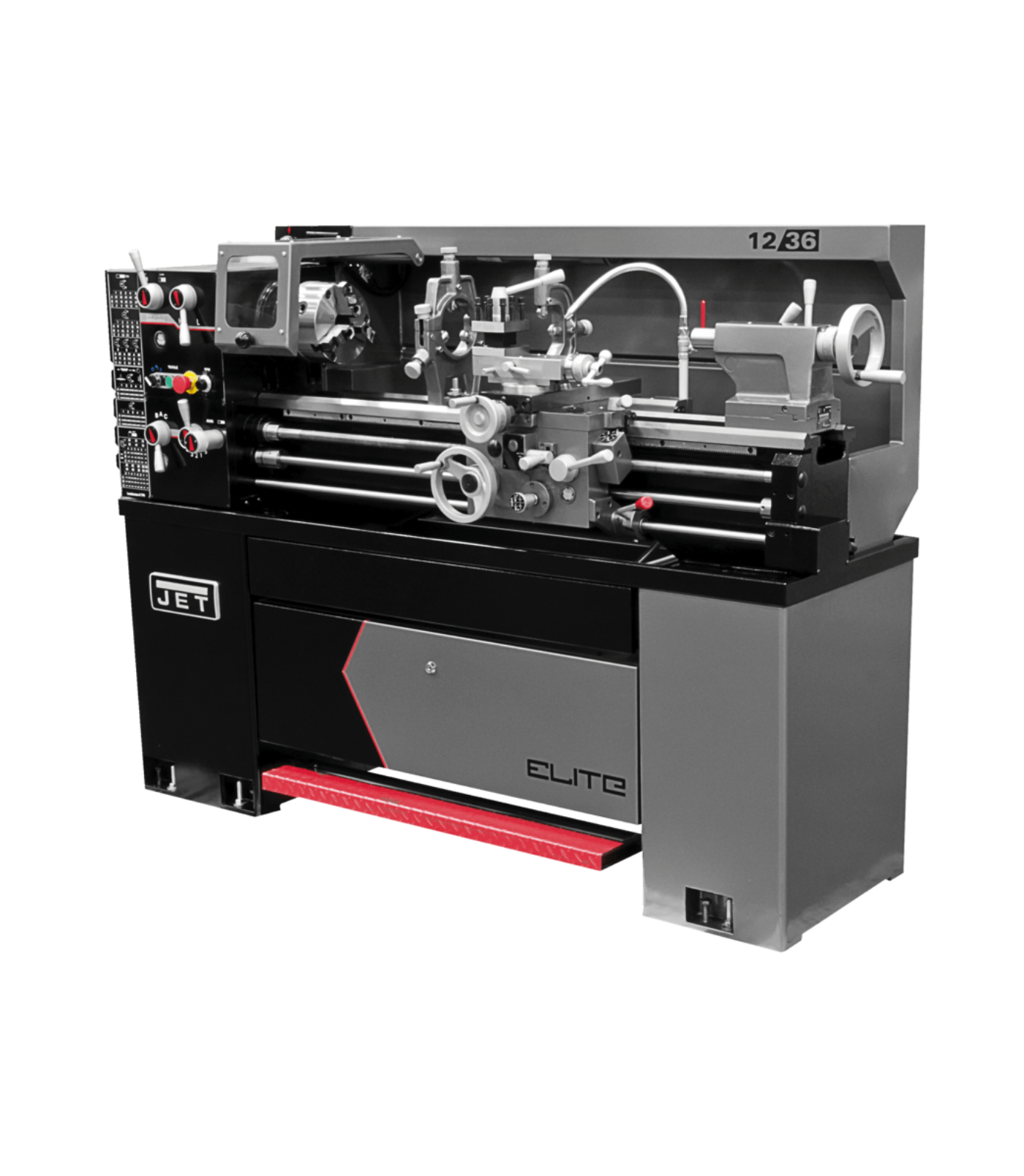

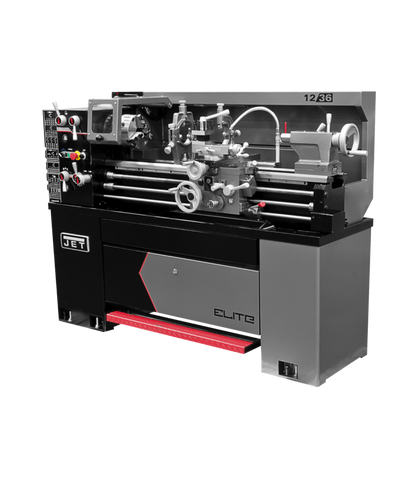

Q: What is the JET Elite E-1236VS Lathe?
A: A precision variable speed metal lathe equipped with the ACU-RITE 303 digital readout, taper attachment, and collet closer for professional machining versatility.
Q: What makes it unique?
A: Its electronic variable speed drive, precision-ground bedways, DRO for accurate digital measurement, taper attachment for precise angled cuts, and collet closer for efficient workholding provide maximum accuracy and productivity.
Q: Where can it be used?
A: Ideal for machine shops, tool rooms, fabrication facilities, and industrial manufacturing.
Q: What style of work does it suit?
A: Precision turning, threading, facing, boring, and taper cutting on metals and alloys.
Q: What materials is it made from?
A: Heavy-duty cast iron frame with hardened, ground components for long-term stability and vibration-free operation.
Maintenance Tips
-
Remove chips and debris from bedways, carriage, and leadscrews after each use.
-
Lubricate gears, bearings, and sliding components per manufacturer’s schedule.
-
Keep ACU-RITE 303 DRO sensors and display clean for accurate readings.
-
Inspect taper attachment and collet closer regularly for smooth, precise operation.
-
Check belts, gibs, and fasteners for wear; cover the lathe when idle to prevent dust accumulation.
