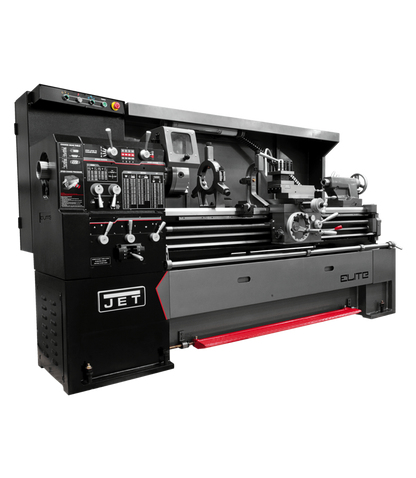

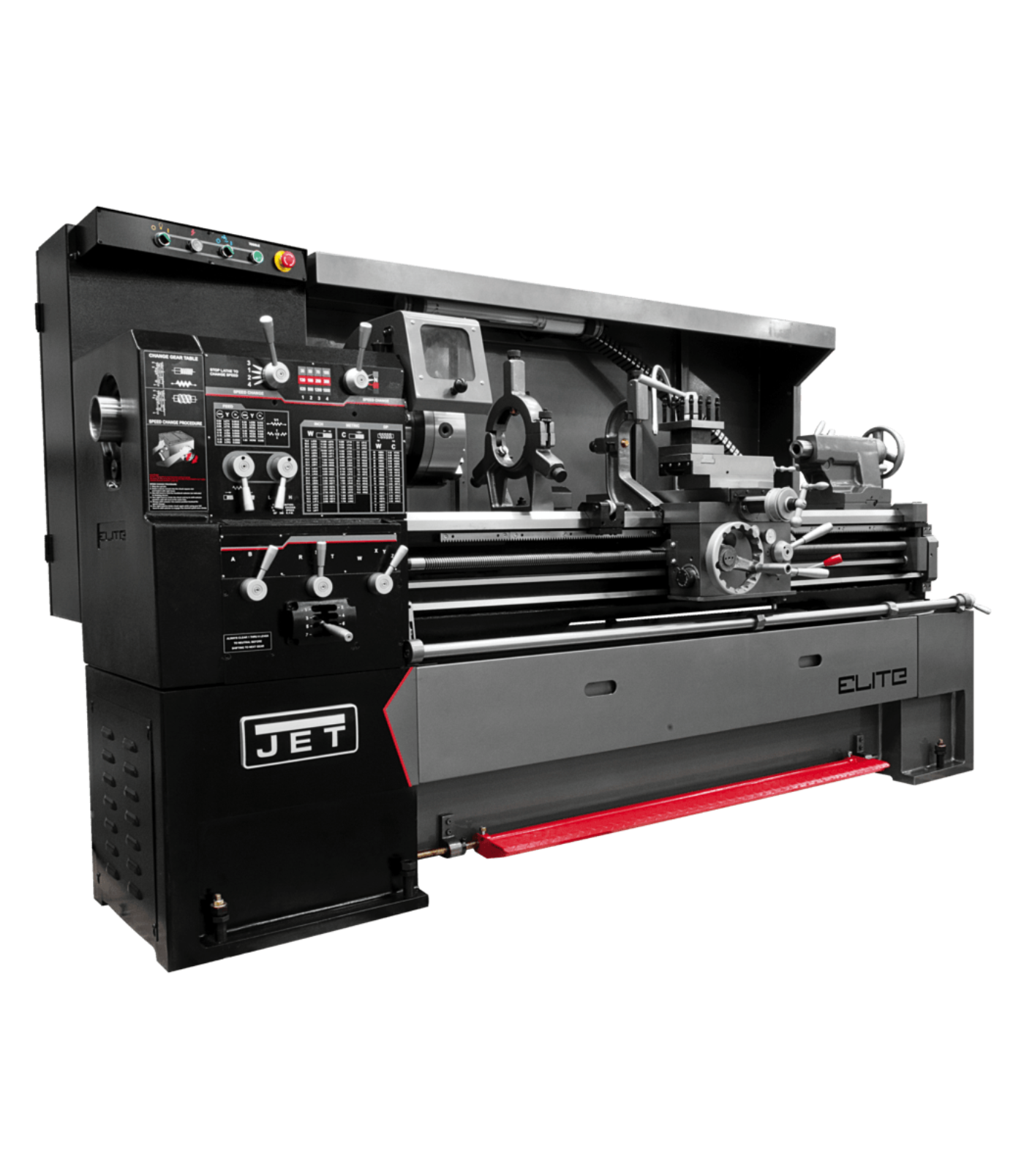

JET Elite Lathe EGH-1740 with Newall DP700 DRO - JT9-892511
Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.
Features
- 4-Position Carriage Stop
- Anti-Float design eliminates backlash in the cross slide
- Enclosed coolant system contains excess coolant for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

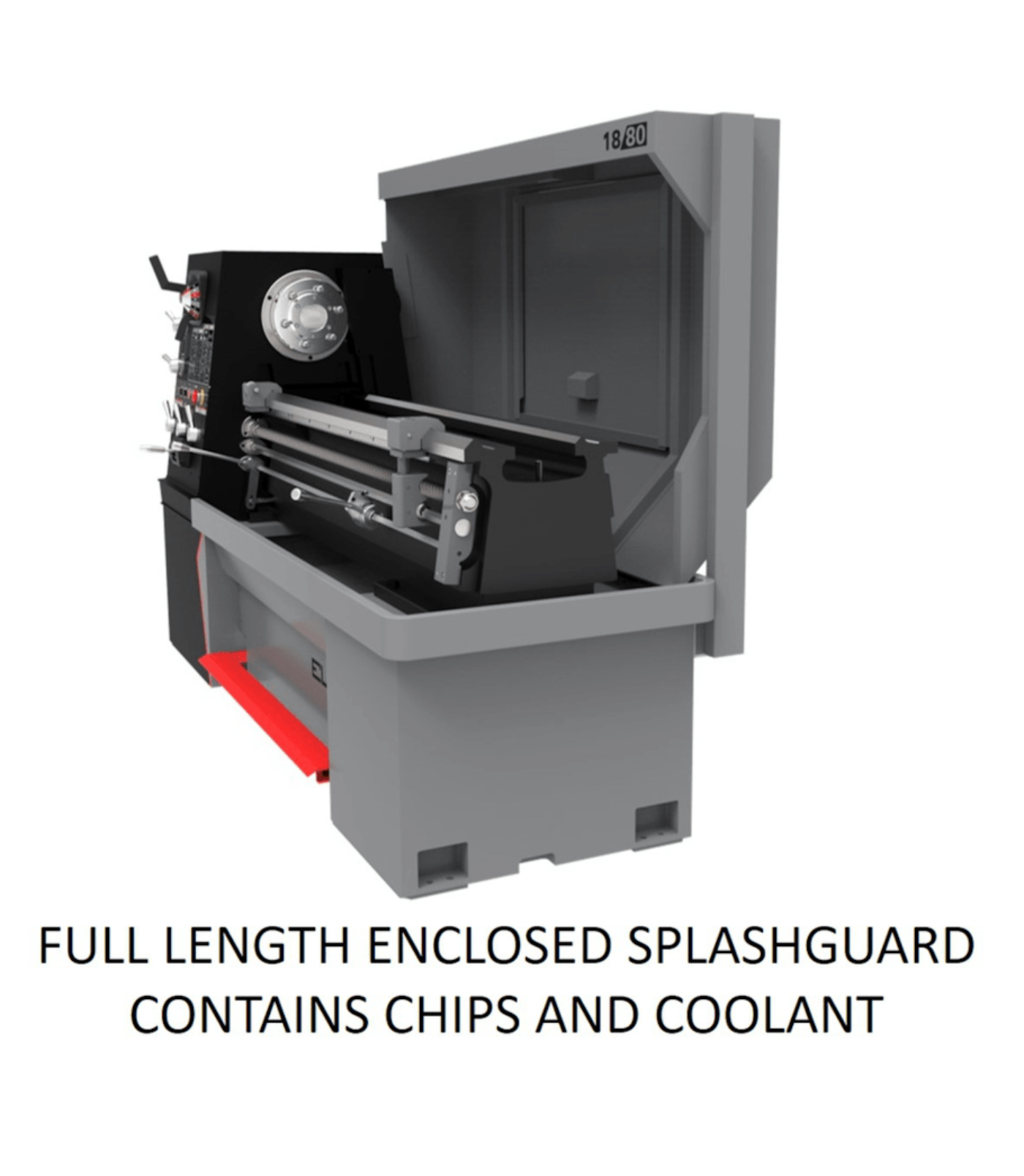

- Full Length Splash Guard

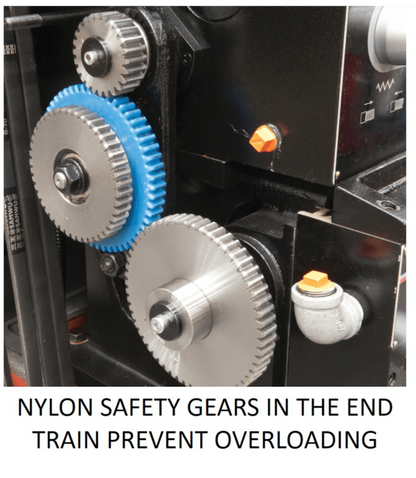

- Nylon safety gears in the end train prevent overloading, increasing safety
- One-Shot lubrication in the carriage reduces maintenance
- Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
- Steady rests feature ball bearing guides for smooth material movements
Specifications
| Size |
17 x 40 |
| Style (Type) |
Engine |
| Swing Over Bed (In.) |
17 |
| Swing Over Cross Slide (In.) |
11 |
| Swing in Gap (In.) |
7-2/3 |
| Spindle Bore (In.) |
3-1/8 |
| Spindle Mount |
D1-6 |
| Spindle Taper with Sleeve |
MT-5 |
| Number of Spindle Speeds |
12 |
| Range of Spindle Speeds (RPM) |
36 – 1,800 |
| Range of Longitudinal Feeds (IPR) |
0.0015 – 0.04 |
| Range of Cross Feeds (IPR) |
0.00075 – 0.02 |
| Number of Inch Threads |
45 |
| Range of Inch Threads (TPI) |
2 – 72 |
| Diametrial Pitch Threads Number |
21 |
| Modular Pitch Threads Number |
18 |
| Number of Metric Threads |
39 |
| Range of Metric Threads |
0.2 – 14 |
| Max Tool Size (In.) |
1 x 1 |
| Compound Slide Travel (In.) |
6-2/7 |
| Tailstock Spindle Travel (In.) |
5 |
| Steady Rest Capacity (In.) |
3/8 – 6-3/4 |
| Width of Bed (In.) |
12 |
| Weight (Lbs.) |
3,747 |
| Amperage Draw @ 230V 3Ph |
22 |
| Amperage Draw @ 460V 3Ph |
11 |
| Overall Dimensions (L x W x H) |
94 x 44 x 68 in. |
| Drive |
Geared Head |
What our Experts Think
-
17" swing and 40" center distance handle larger workpieces with ease.
-
Newall DP700 DRO offers clear, reliable digital readouts for enhanced precision.
-
Hardened, ground gears and bearings deliver long-lasting performance under heavy loads.
-
Sturdy cast-iron base minimizes vibration, ensuring smoother finishes.
-
A professional-grade lathe for machinists who need accuracy, durability, and efficiency.
Q&A
Q: What type of lathe is the JET Elite EGH-1740?
A: It’s a 17x40 gear head engine lathe built for heavy-duty precision machining.
Q: What does the Newall DP700 DRO provide?
A: The digital readout delivers highly accurate, reliable measurements with an easy-to-read interface.
Q: What is the swing and center distance?
A: This lathe offers a 17-inch swing over bed and a 40-inch distance between centers.
Q: How are spindle speeds controlled?
A: The gear head system allows a wide range of spindle speeds for versatility in turning operations.
Q: Where is this lathe best suited?
A: Ideal for machine shops, maintenance departments, and production facilities that require high accuracy and durability.
Maintenance Tips
-
Clean bedways, carriage, and tool areas after each use to prevent chip buildup.
-
Lubricate gears, bearings, and sliding parts regularly per the service schedule.
-
Keep the Newall DP700 DRO scales and sensors free of dust and debris for accuracy.
-
Inspect drive belts and feed screws for wear, tension, and alignment.
-
Tighten all fasteners, tool post, and tailstock connections to maintain precision.
-
Ensure cooling fans and electrical components remain clean and unobstructed.
-
Schedule periodic professional maintenance to extend accuracy and machine life.
