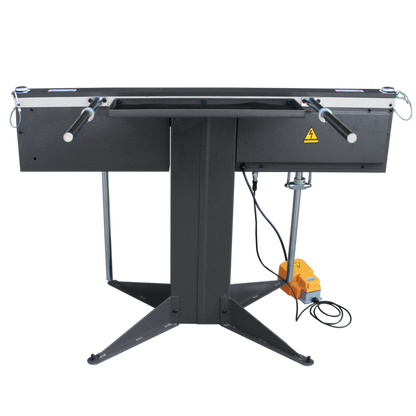

KAKA INDUSTRIAL Magnetic Pan and Box Brake, 52-Inch Electro Metal Brake Bender, 16-Gauge 6.5-Ton Box and Pan Brake, Bend Boxes or Pans to Any Depth Metal Bending Brake 220V-60HZ-1PH EB-5216 - 173410

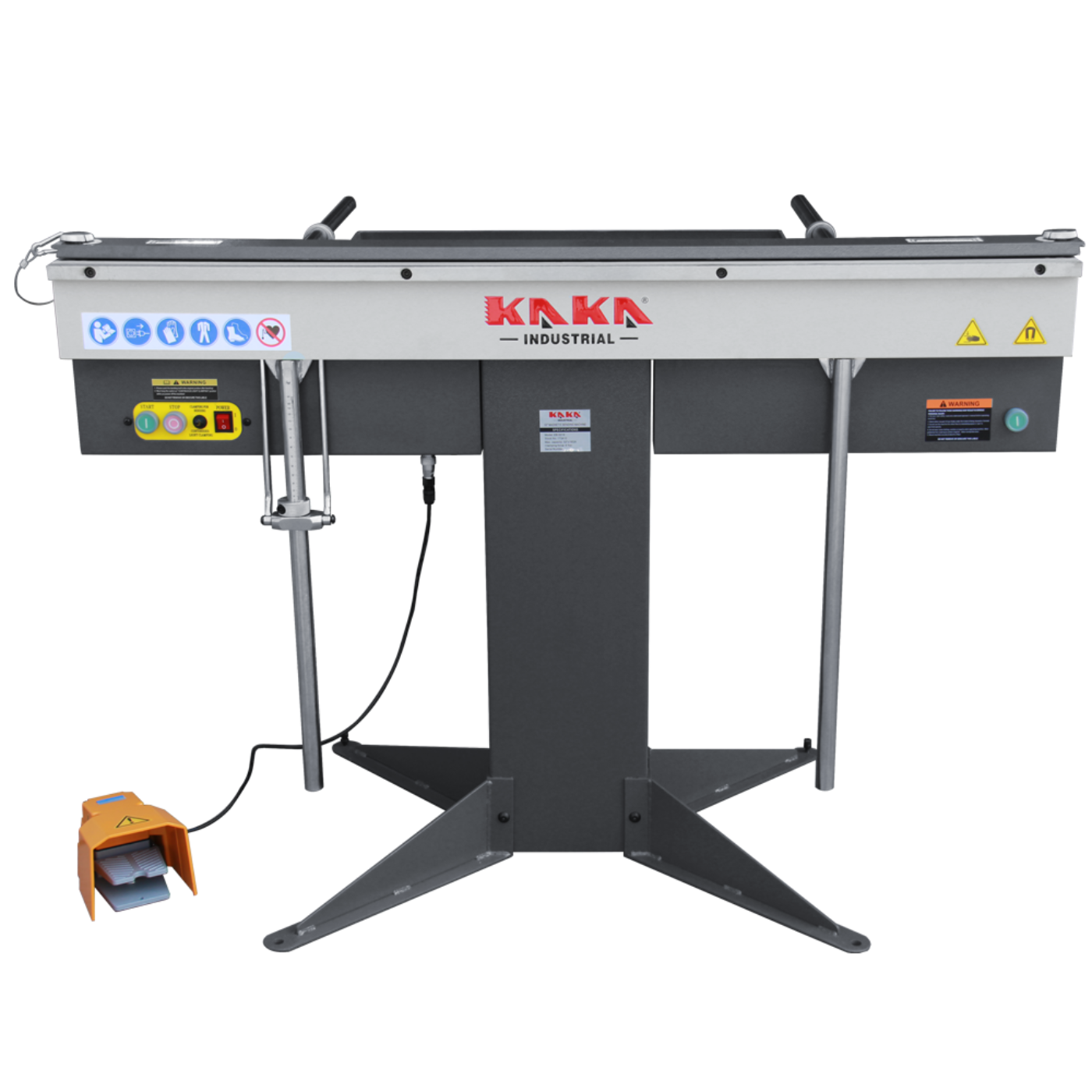

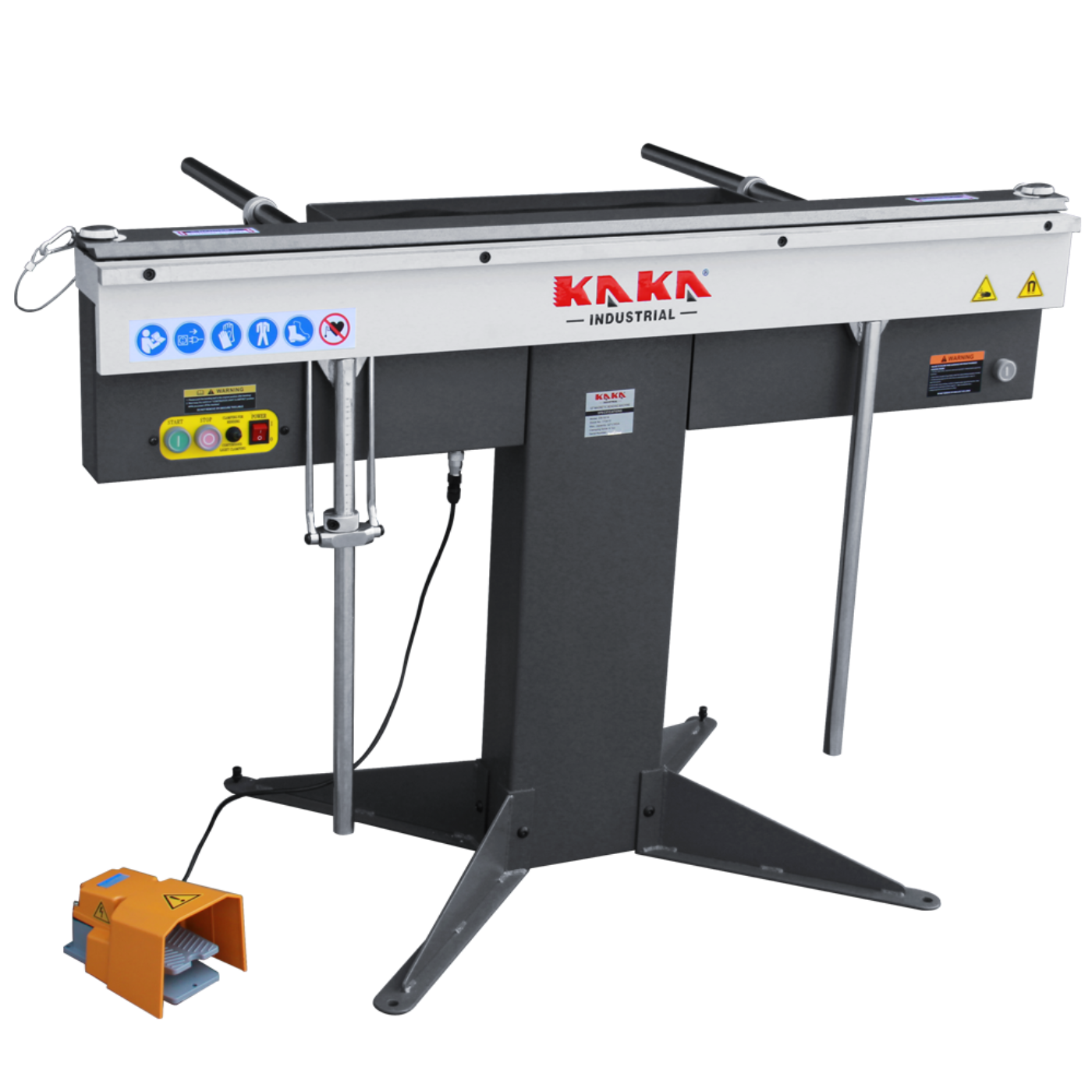

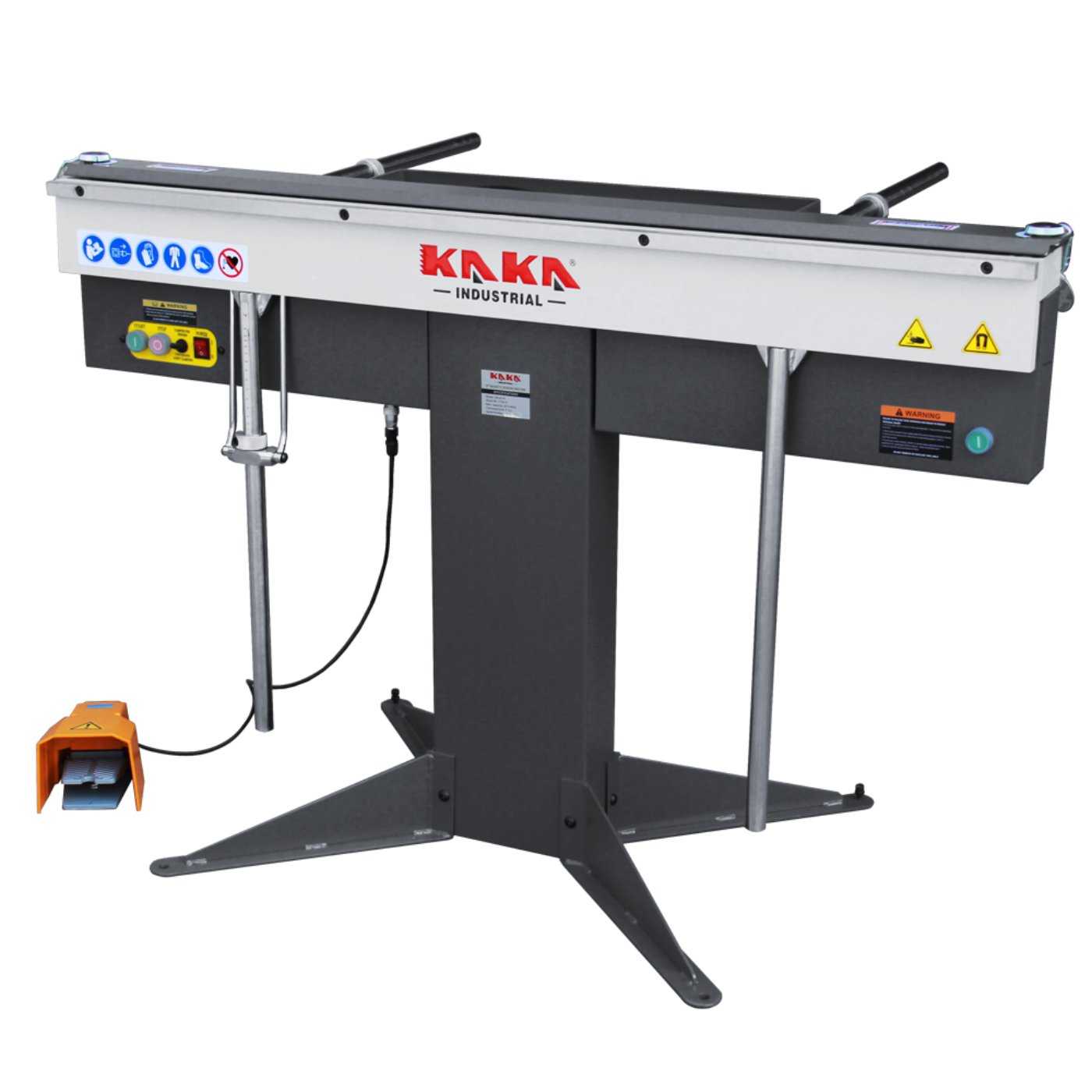

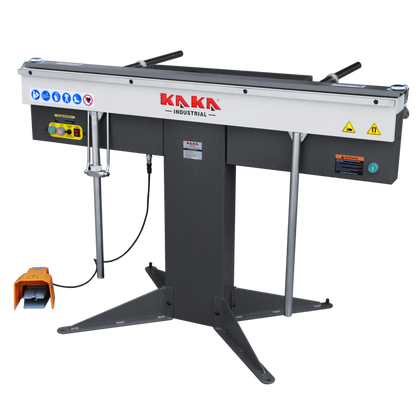

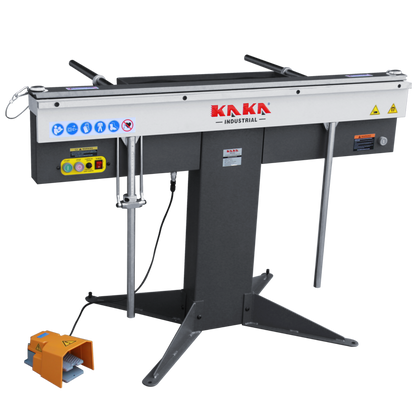

KAKA Industrial EB-5216 Manual Magnetic Sheet Metal Brake Overview
The fundamental principle of the Magnetic Bending Machine is that it uses electromagnetic, rather than mechanical clamping system The machine consists of a long electromagnet with a steel clamp bar located above it. The sheet metal is clamped between the two by an electromagnet capable of clamping with a force range of between 3-10 tons. Rotating the bending beam then forms the bend. The sheet is bent around the front edge of the clamping bar They have application in many ways with four various sets clamping bars.

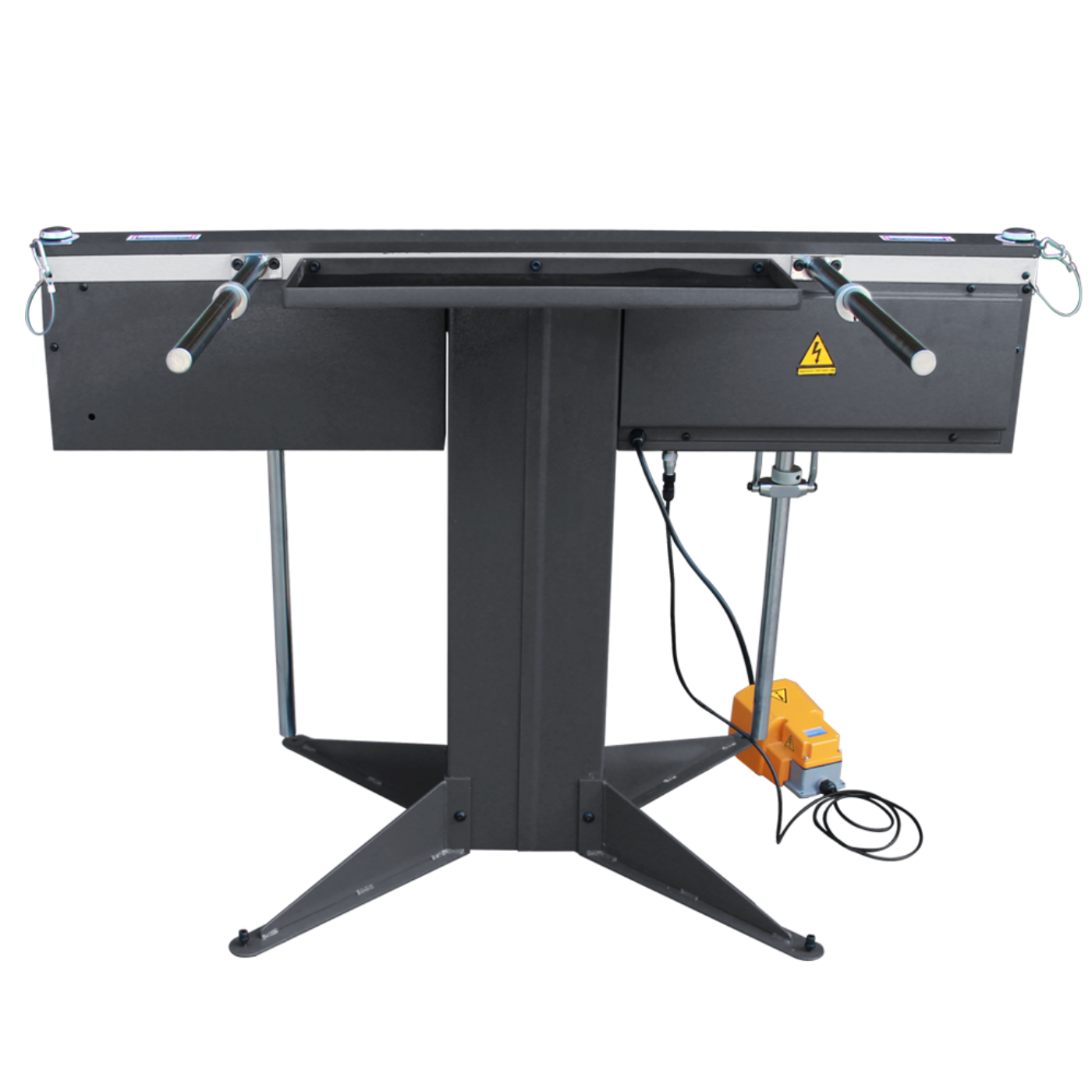

- A strong 6 ton magnet in the bed is activated by foot pedal or push button control to hold down a mild steel clamping bar of almost any configuration across the bed width or bed length.
- The sheet metal is pinned between the magnetic mild steel clamping bar. The bottom bending leaf is lifted to make the bend.

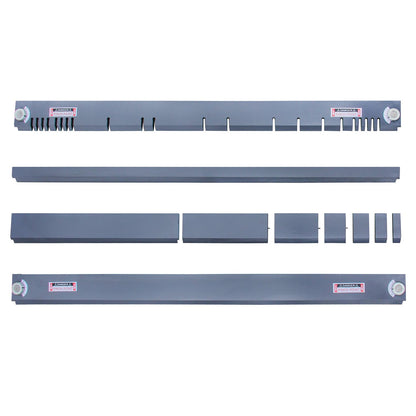

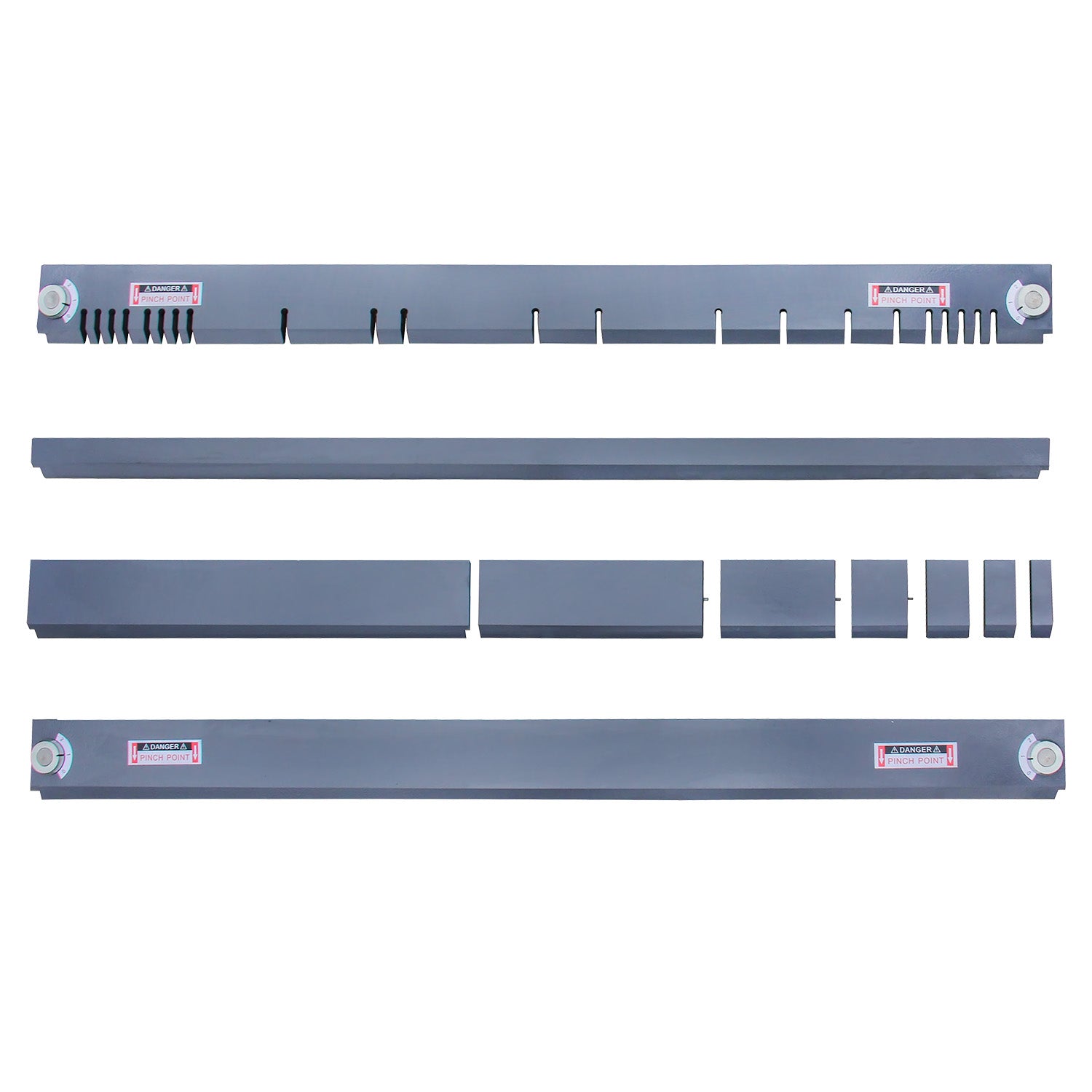

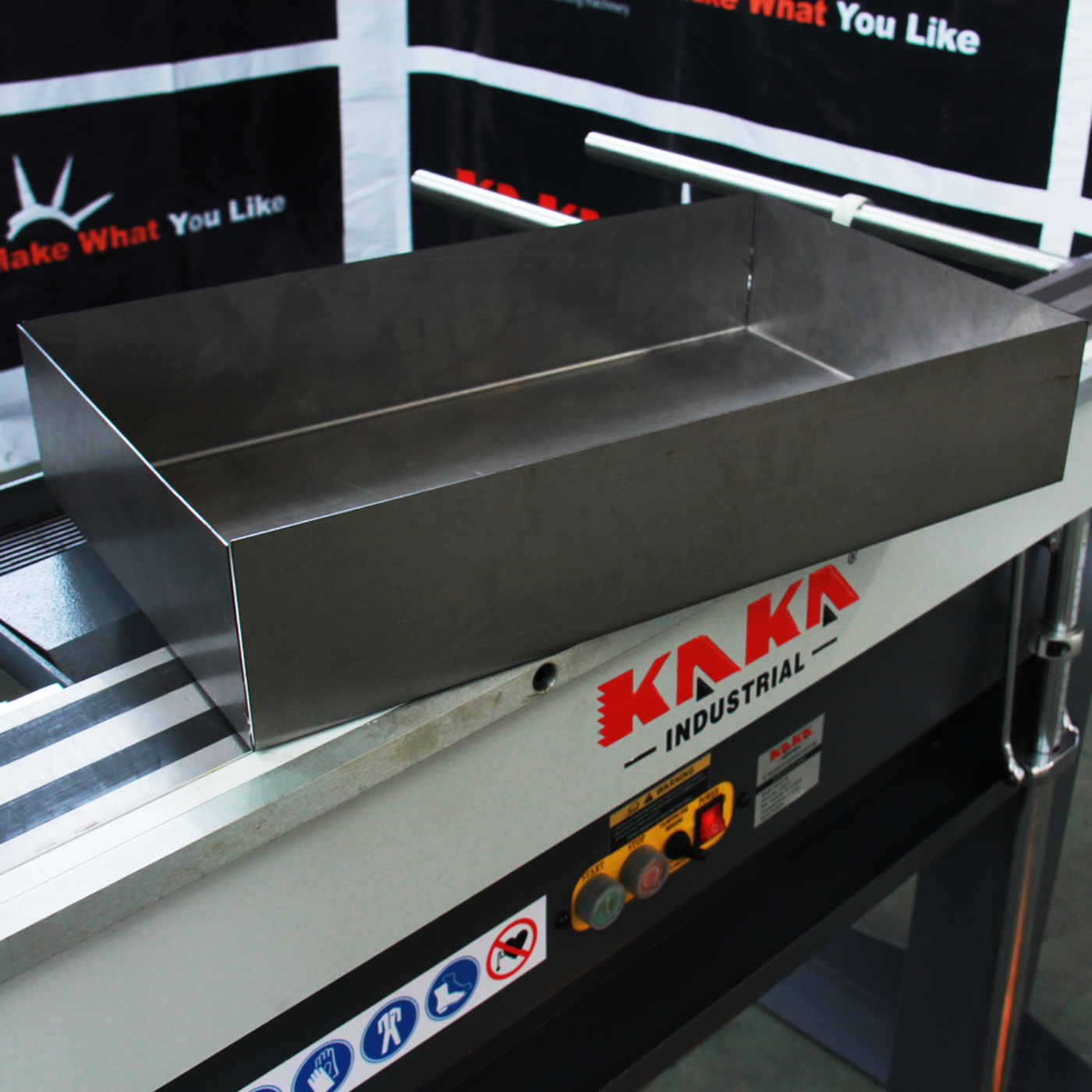

- The steel clamping bar can be made of straight bars (of various widths for tight boxes) for straight bends or segmented clamping bars for box and pan applications of any other configuration such as totally enclosed boxes, triangles, alternate bends on varying planes, round items such as scrolling applications, and much more.

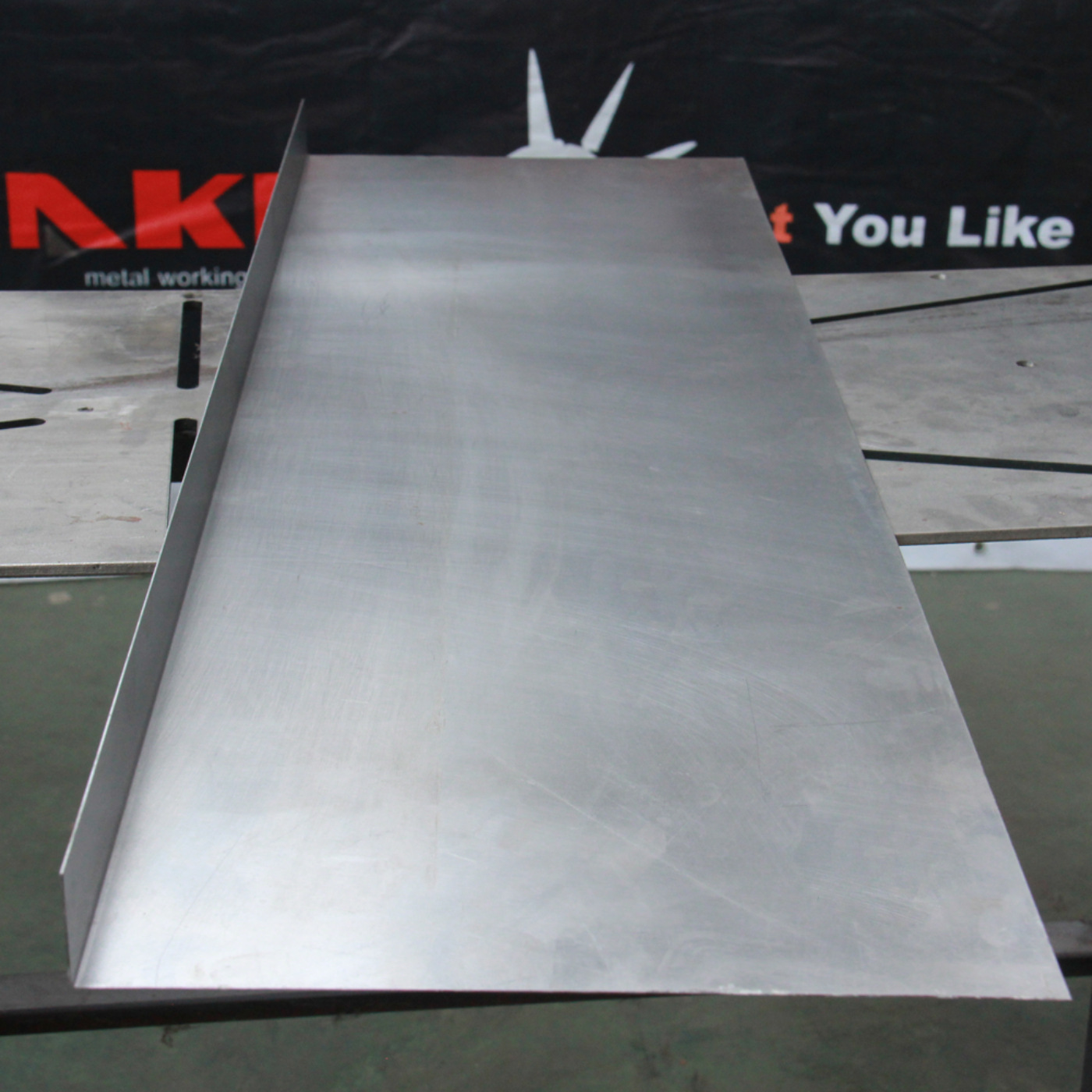

- Great for bending mild steel sheet metal, stainless steel, aluminum, coated materials, and heated plastics.

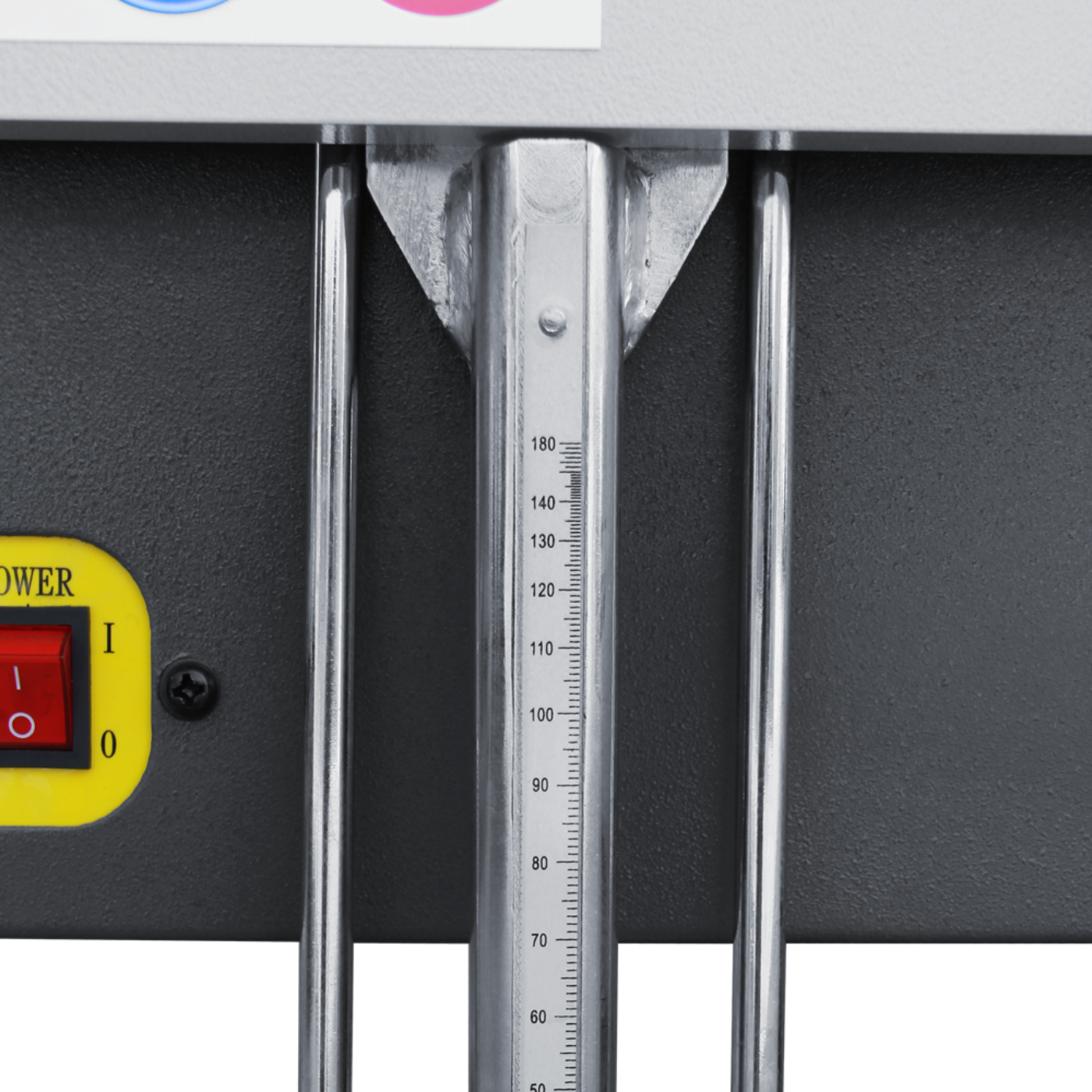

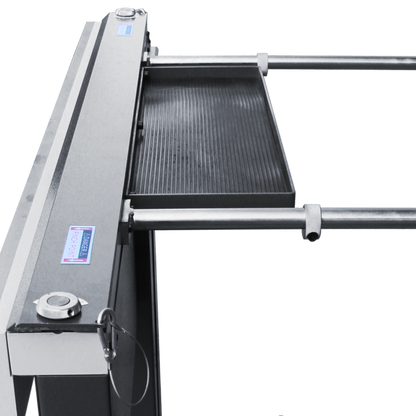

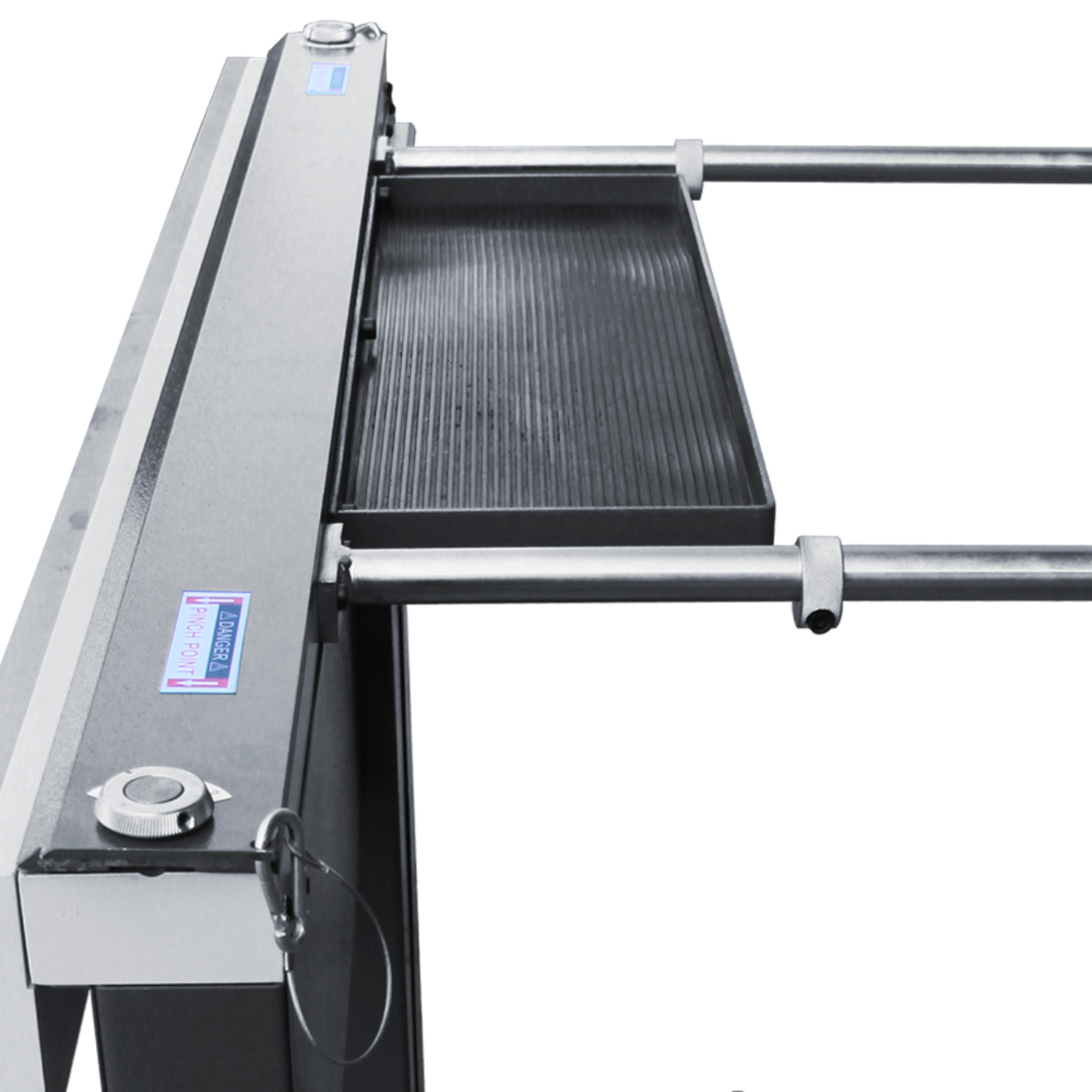

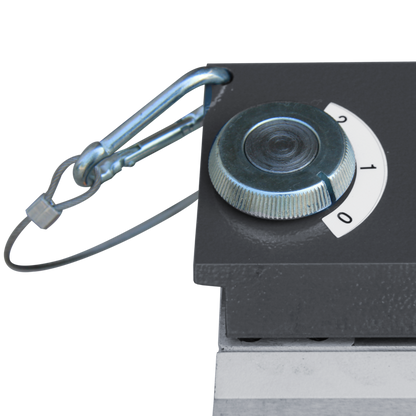

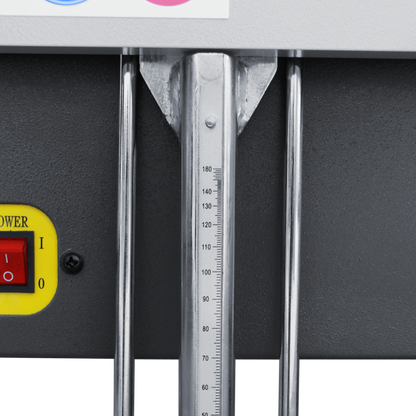

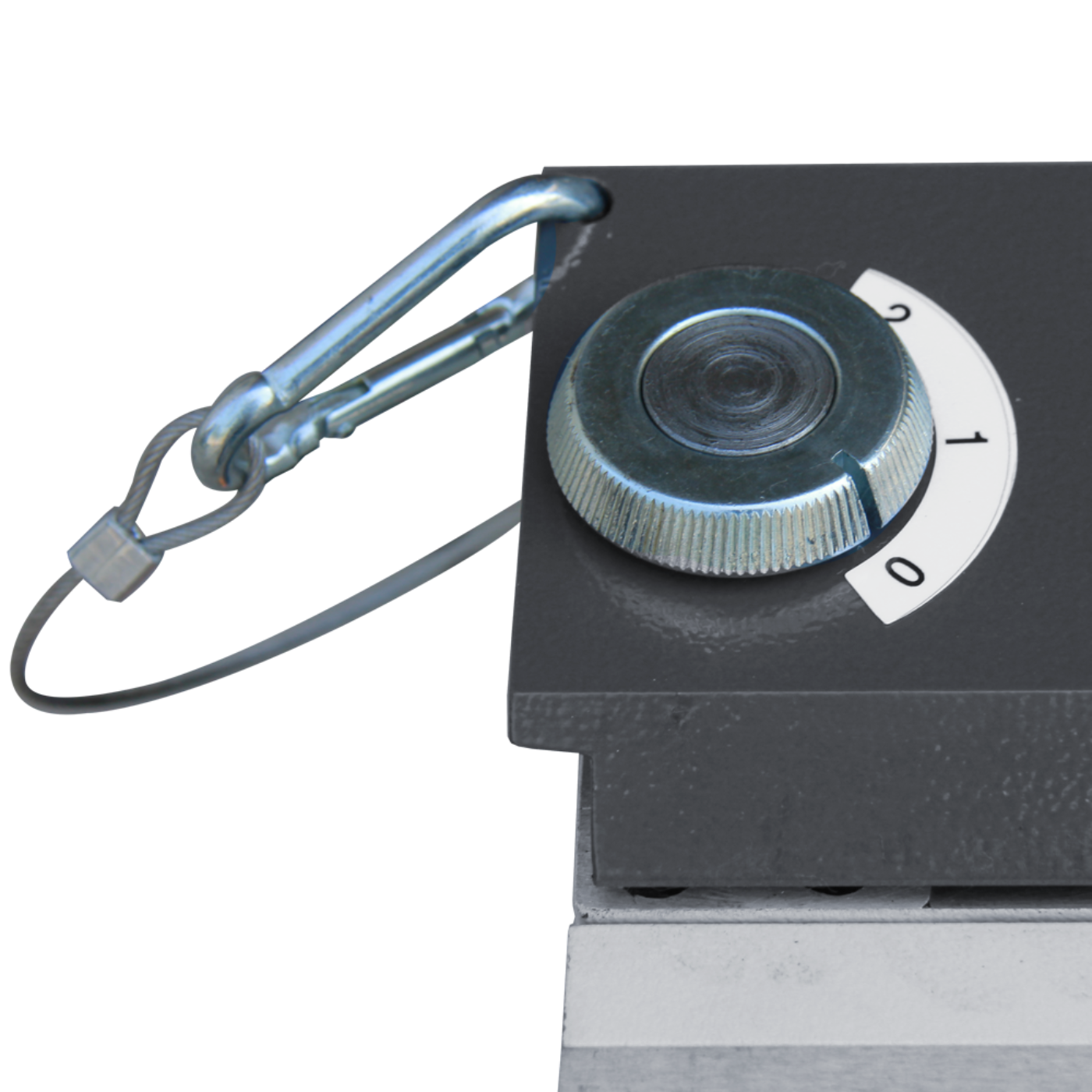

- The bottom leaf’s bending extension can be removed for the tightest bends. The scaled stroke angle control can be set for repeat bends. Parts supports and adjustable back gauge for production runs, easy to use gap adjustments on the clamping bars for different sheet metal thicknesses.
- Magnetic clamping brake
- Easy raise clamp bar
- Unlimited box depth
- Includes multiple finger lengths
- Bending stop included

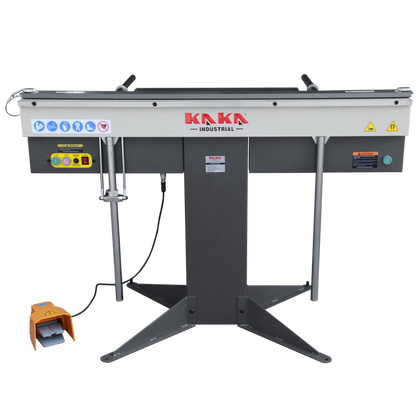

Specifications and Features
- Model: EB5216
- Nominal capacity (length x thickness): 1320x1.5mm 52"x16 Gauge
- Clamping force (tons): 6.5
- Electricity Supply: 1 phase, 220V, 11A
- Duty cycle (%): 30
- Protection (℃): Thermal cut-out 70℃
- Foot switch: Standard
- Bending-edge length (mm): 1370
- Distance between lifters (mm):1330
- U-channel bends, minimum spacing (mm): 16***
- Closed channel, minimum internal (mm): 99x27***
- Z-reverse bends, minimum spacing (mm): 36**/18*
- Mild steel (mm)：1.6**/1.2*
- Aluminum (medium-hard) (mm)：1.6**/1.2*
- Copper, Zinc, Brass (medium-hard) (mm) ：1.6**/1.2*
- Stainless steel (mm) ：1.0**/0.9*
- With standard full length clamp bar
- With bending beam extension bar removed extension bar
What Our Experts Think
-
The KAKA Industrial EB-5216 Magnetic Pan and Box Brake (173410) is a high-performance 52-inch electro-magnetic brake engineered for 16-gauge metal bending with exceptional precision and flexibility.
-
Delivers 6.5 tons of clamping force through its powerful 220V single-phase magnetic system, ensuring clean and consistent bends.
-
Allows users to bend boxes, pans, and complex shapes of any depth, making it ideal for custom fabrication and sheet metal work.
-
Includes removable clamp bars for maximum versatility and is built with a durable steel frame for industrial-grade stability.
Q&A
Q: What is the bending capacity?
A: The EB-5216 can bend up to 16-gauge mild steel and lighter materials such as aluminum or copper.
Q: How wide is the bending area?
A: It features a 52-inch bending length, ideal for larger panels and sheet work.
Q: What powers the magnetic clamping system?
A: It operates on 220V, 60Hz, single-phase power, generating 6.5 tons of clamping pressure.
Q: Can it bend boxes and irregular shapes?
A: Yes, its magnetic hold and removable clamp bars allow bending of boxes, channels, and custom profiles of any depth.
Maintenance Tips
-
Keep the magnetic surface clean to maintain full clamping strength.
-
Wipe the brake and clamp bars after each use to remove metal dust and residue.
-
Inspect electrical connections and foot pedal regularly for safe operation.
-
Store in a dry, dust-free area to prevent corrosion and ensure long-term reliability.
