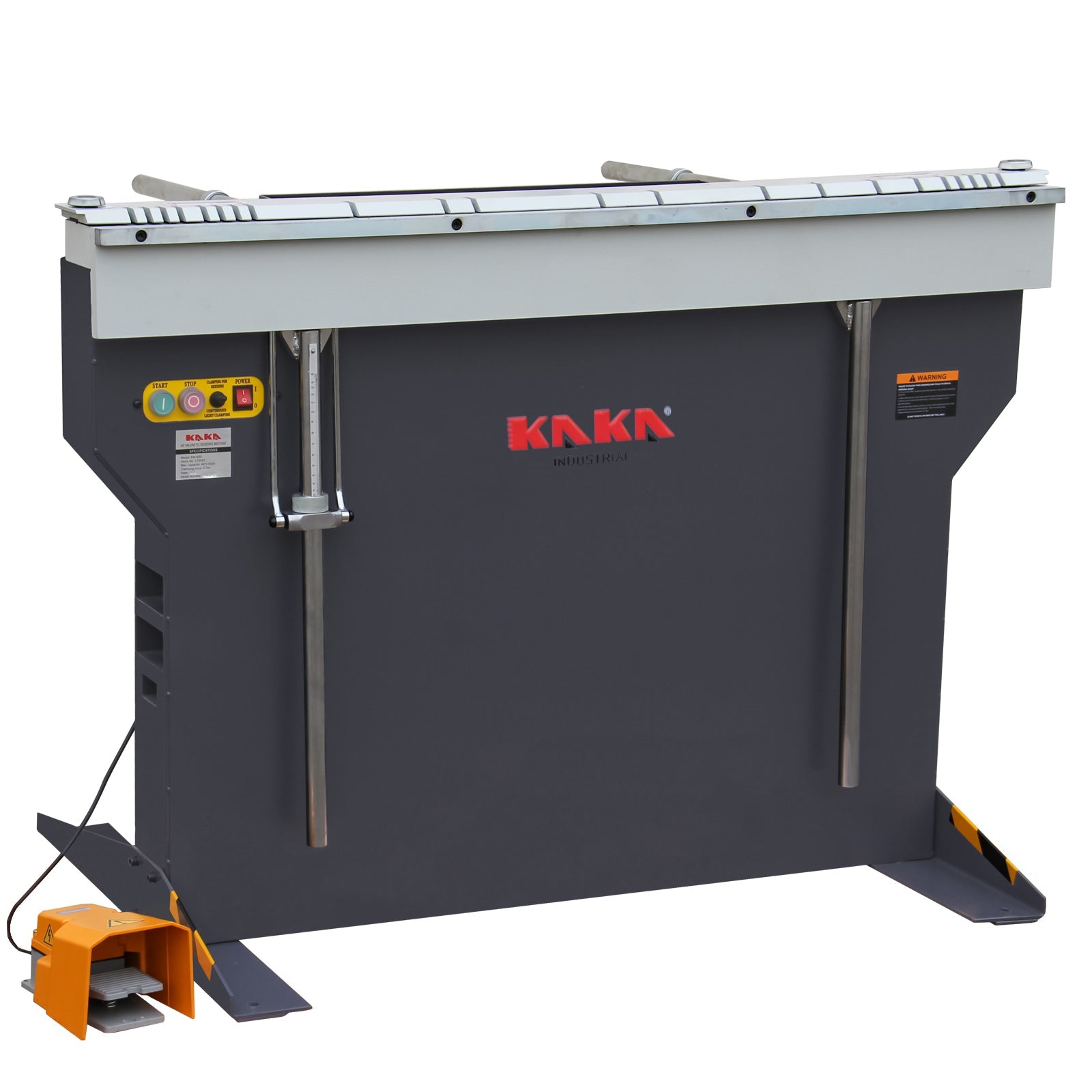

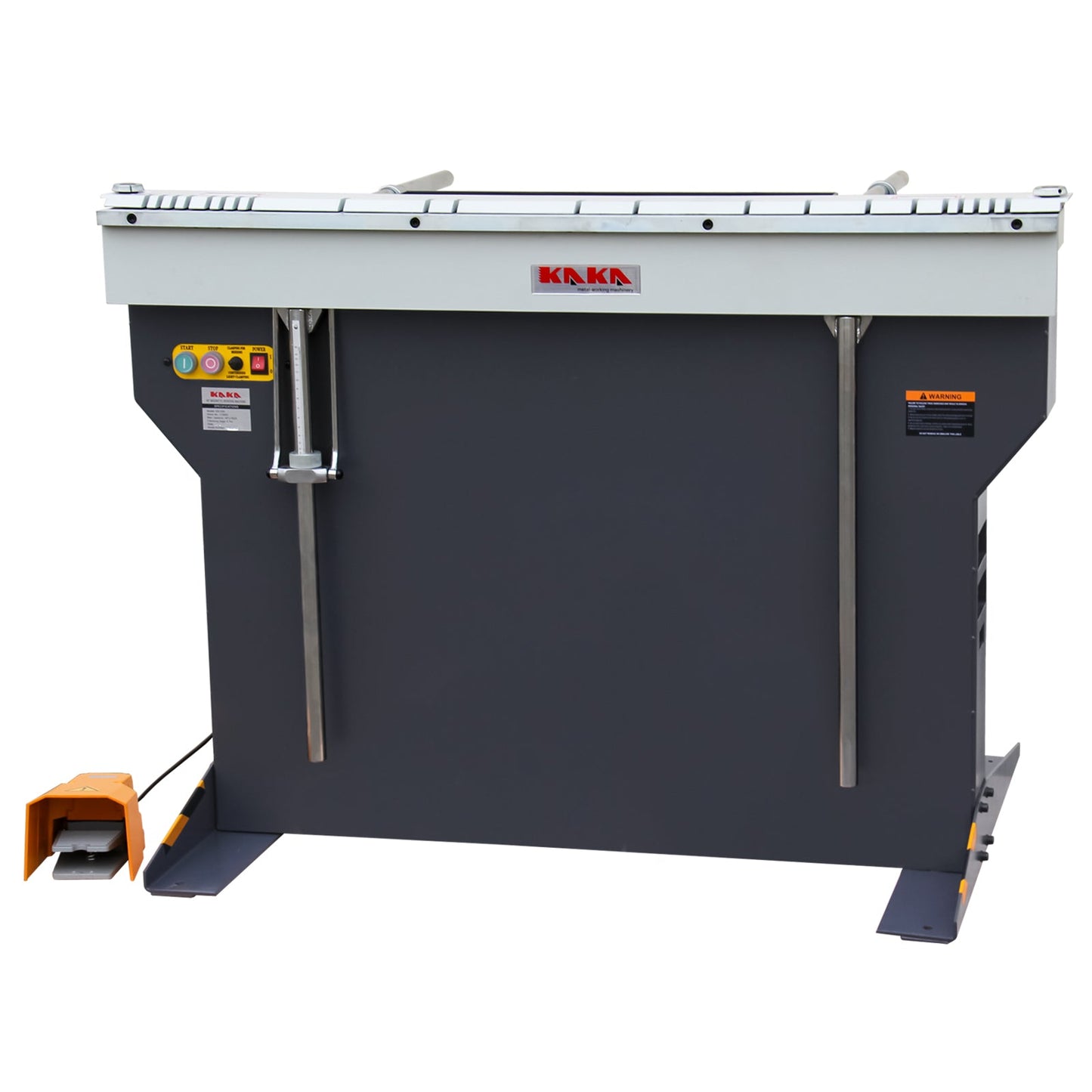

KAKA INDUSTRIAL Magnetic Pan and Box Brake, 48-Inch Electro Metal Brake Bender, 6-Ton 16-Gauge Box and Pan Brake, 220V Single Phase with Foot Pedal Control Siding Brake, Includes Clamp Bars EB-4816B - 173409
NOMINAL CAPACITY
1250 mm x 1.6 mm (4ft x 16g)
CLAMPING FORCE (with standard full-length clampbar)
6 Tonne
ELECTRICAL
Supply: 1 phase, 220/240 V ac
Nominal current: 8 Amp
Duty cycle: 30%
Protection: Thermal cut-out, 70°C
KAKA Industrial EB-4816B Manual Magnetic Sheet Metal Brake, Box and Pan Brake
- The KAKA EB-4816B 48-Inch Professional Magnetic Sheet Metal Brake is the ultimate tool for metalworking, automotive repair, HVAC, and DIY professionals. Unlike traditional bending machines, it features a powerful electromagnet to clamp the workpiece instead of using mechanical clamping methods. This unique design provides numerous advantages, including uniform clamping force per square centimeter and the ability to bend iron plates, aluminum plates, copper plates, coated sheets, and stainless steel sheets—especially for products that cannot have press marks.

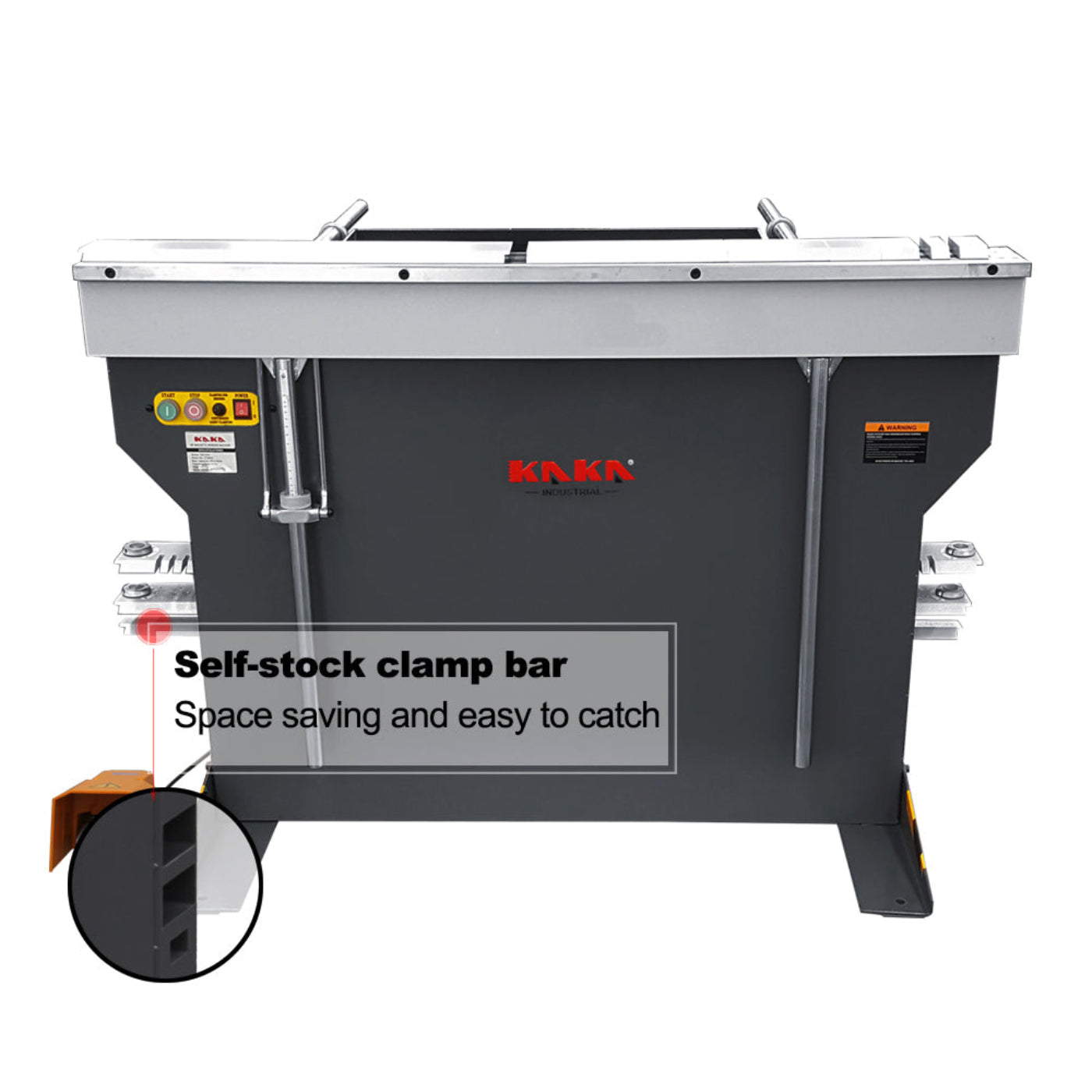

- The main difference between the EB-4816M and EB-4816B is that the EB-4816B features a storage base for clamp bars, offering space-saving convenience and easy to catch.
- Its innovative open-ended design allows you to bend enclosed ducts, boxes, and complex shapes with ease, breaking free from the limitations of traditional brakes. Without the need for molds, it can bend any shape, any size, and any angle without interference, eliminating the hassle and high cost of changing tools. With a powerful 6-ton magnetic force, it delivers uniform clamping across the entire beam, ensuring precise and consistent bends every time.

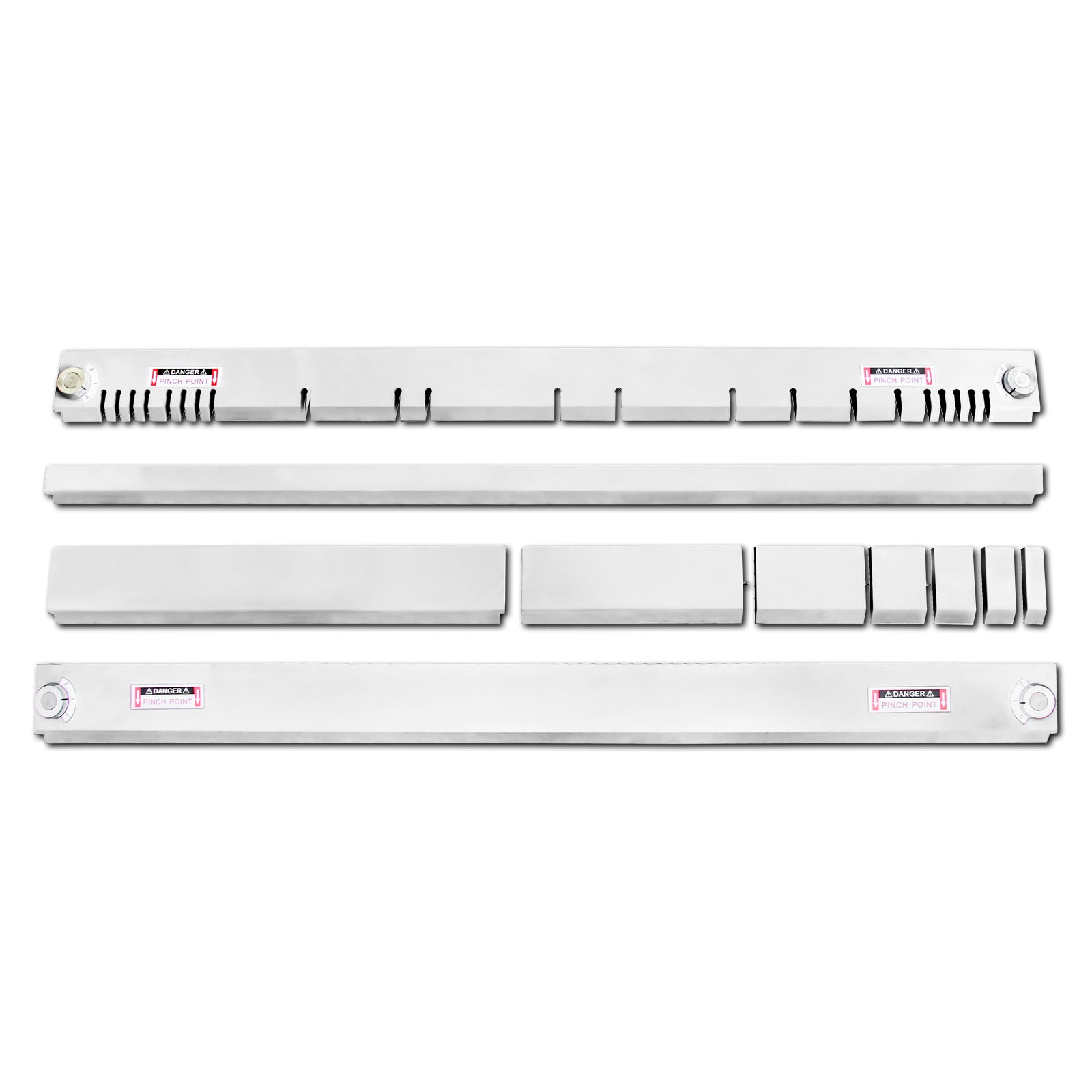

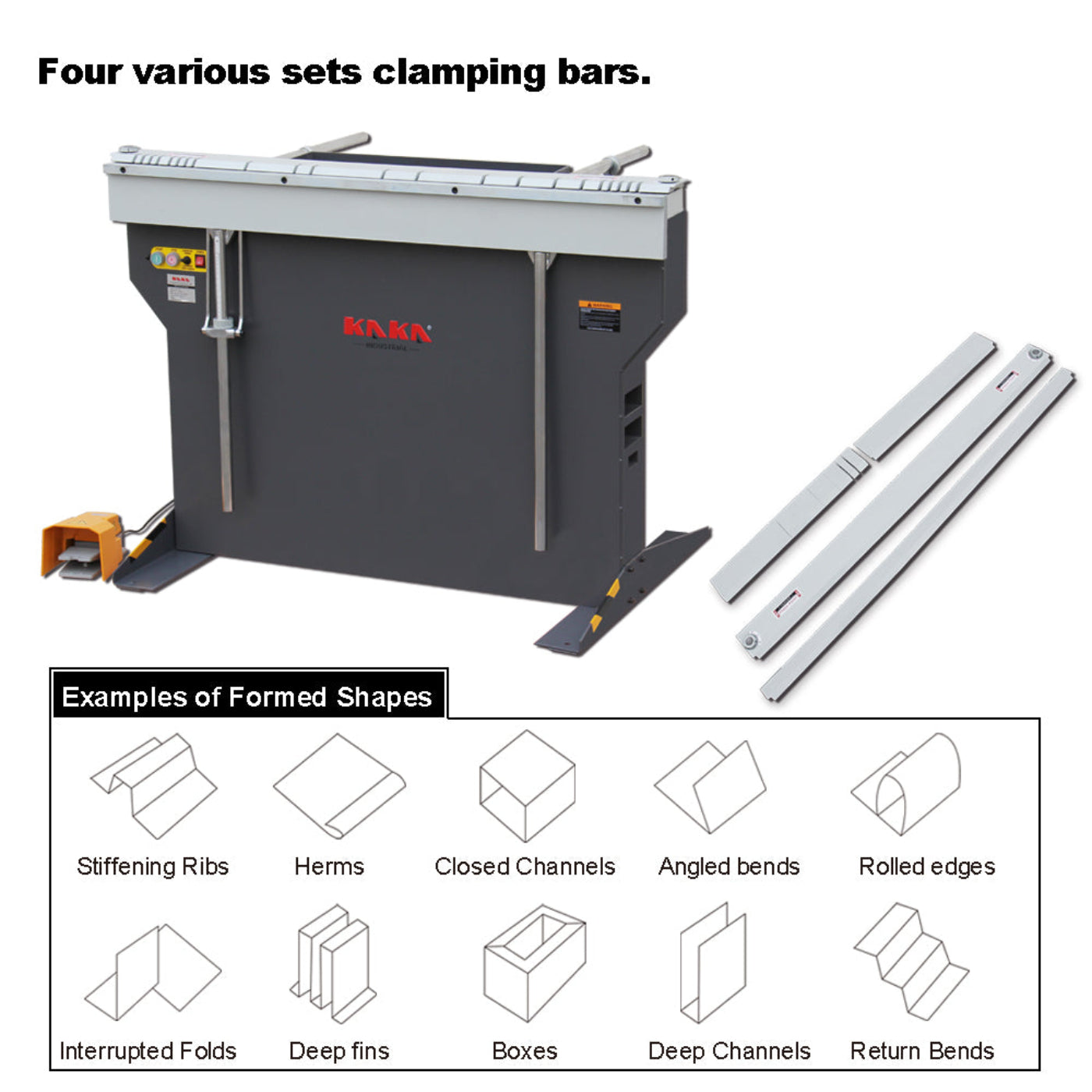

- Equipped with multiple clamp bars, the EB-4816B offers unmatched flexibility for various bending tasks, from straight bends to intricate box and pan applications. It is especially effective for bending irregularly shaped products. The compact and lightweight design, combined with a standard 220V household power supply, makes it easy to transport and independent of workshop location.

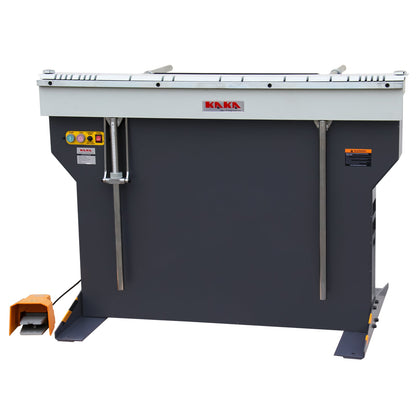

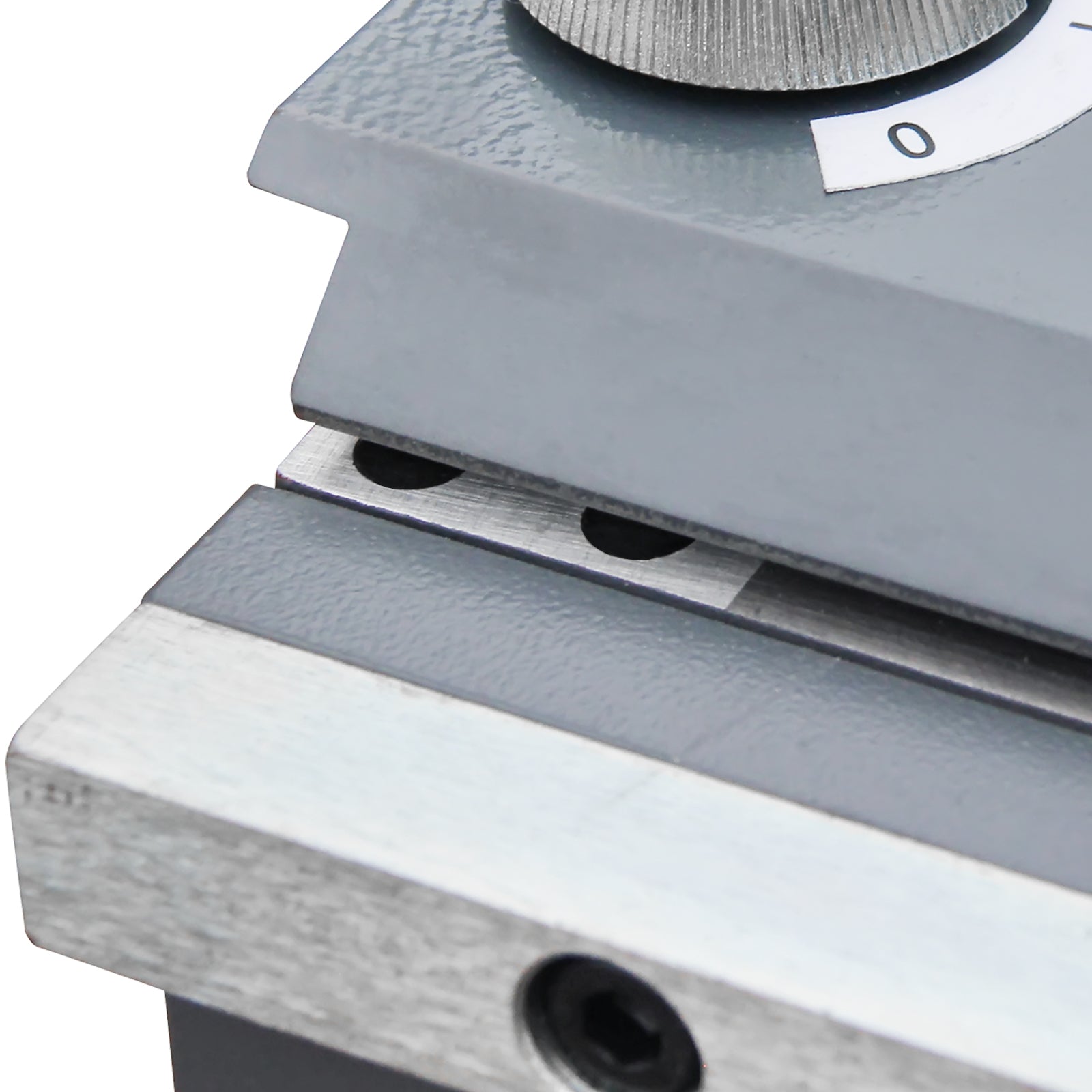

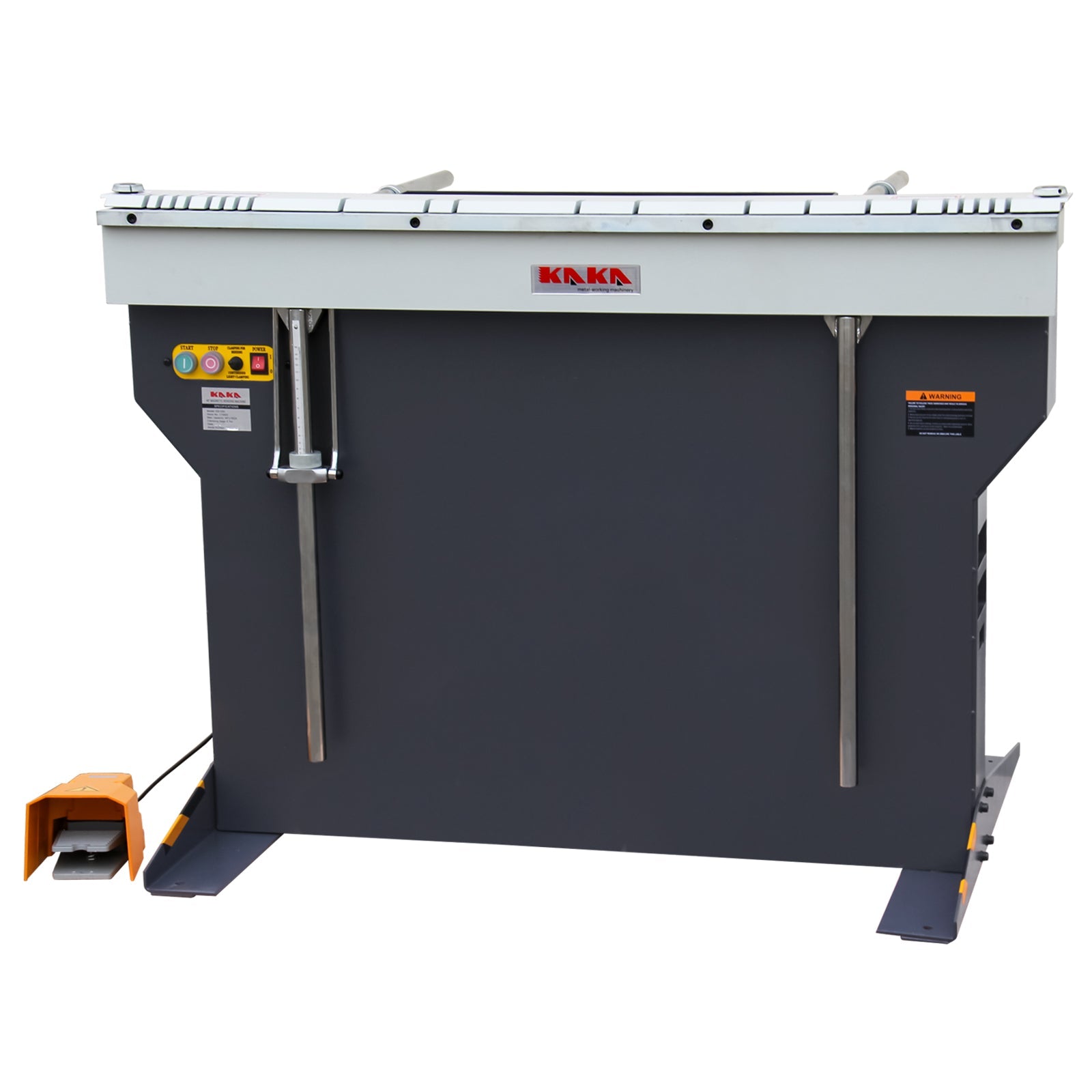

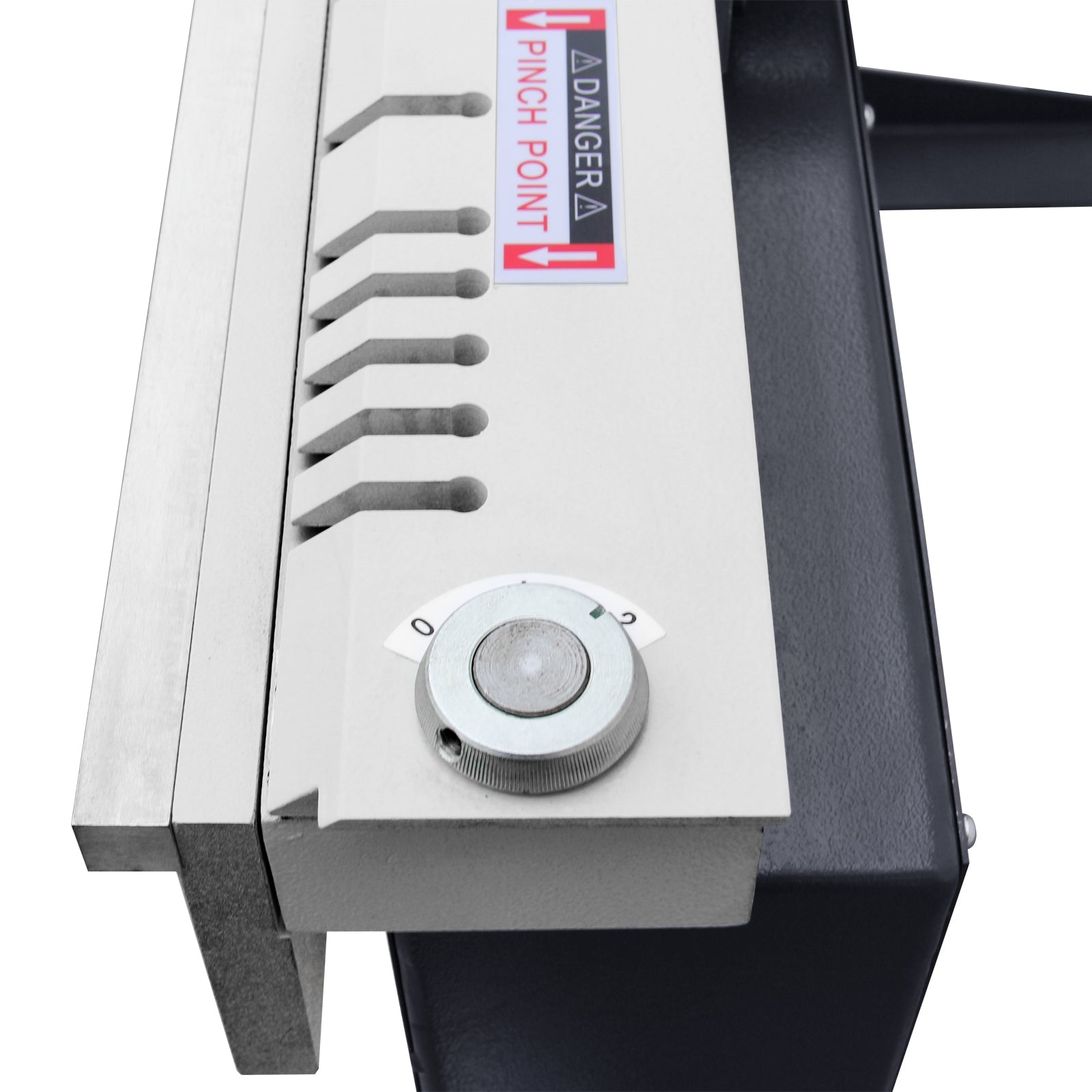

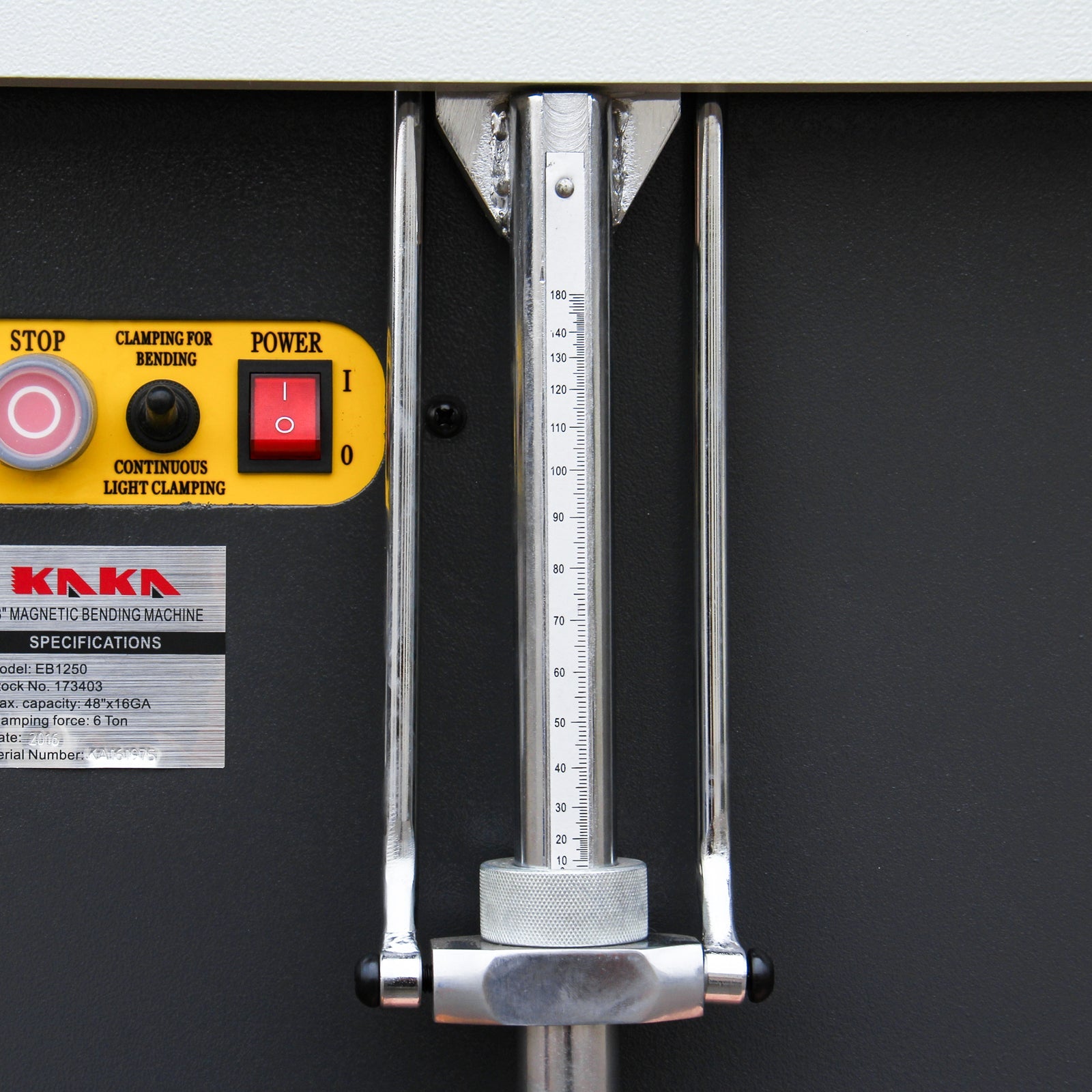

- The foot pedal control frees your hands, boosting safety and efficiency in busy workshops. Precision features like scaled stroke angle control and blade gap adjustment make it easy to achieve repeatable, high-quality results on 16-gauge mild steel and other materials. Additionally, it is incredibly user-friendly—anyone can learn to operate it within five minutes.
- Whether you're a professional fabricator or a serious DIY enthusiast, the KAKA EB-4816B is your go-to solution for superior bending performance!
Easy, hands-free operation:
Put a piece of material between the clamping bar to the depth required.
Engage the powerful magnet in the bending bed with push button control.
Hit the foot pedal that softly clamps the material. This foot control keeps your fingers safely out of the machine and you to reposition the material.
Lift the the bottom bending leaf to complete the bend.
Recommended for:
HVAC shops, industrial art shops, and general sheet metal fabrication shops.

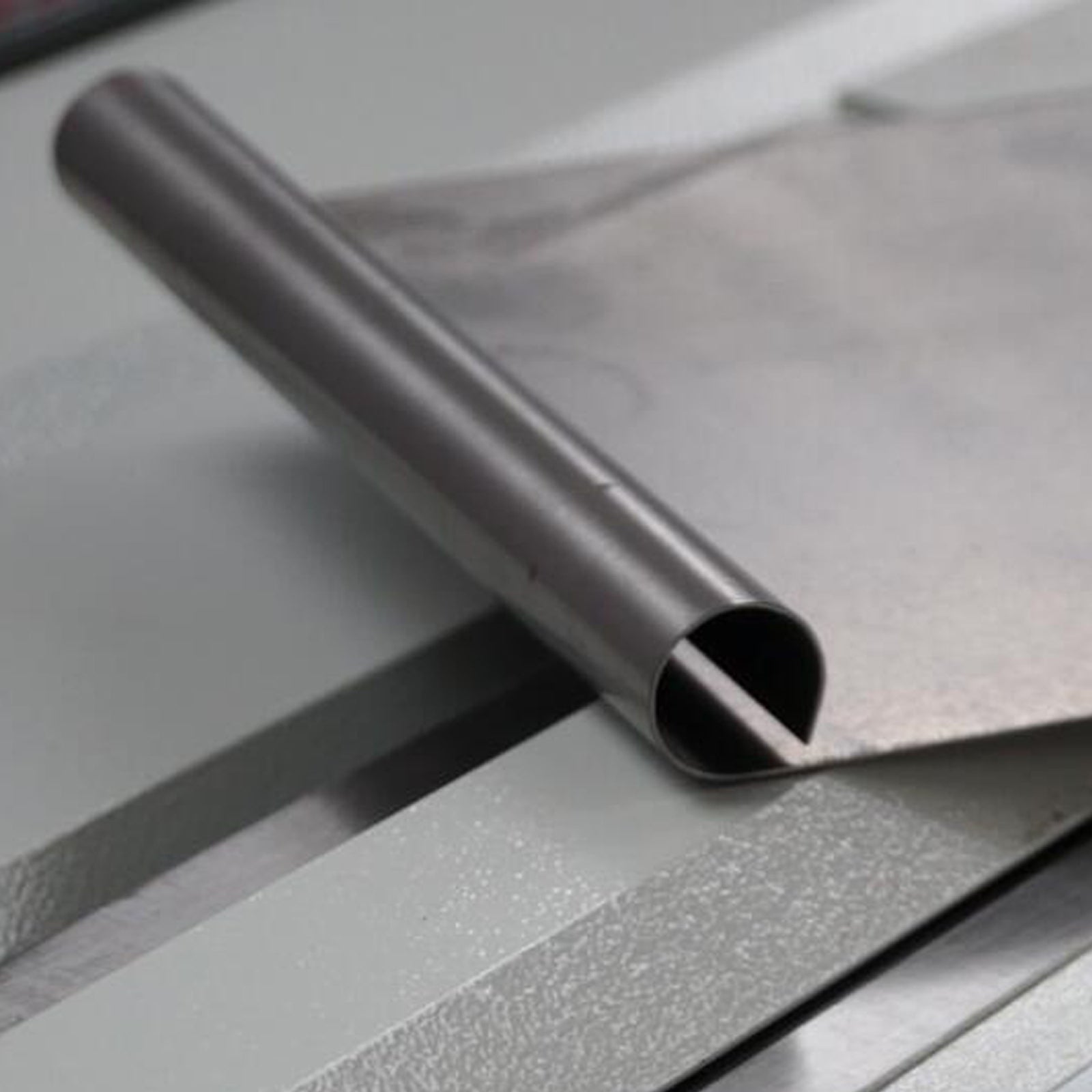

Making enclosed boxes, triangles, alternate bends on varying planes, and round items such as scrolling applications.
Bending a variety of materials, including sheets of mild steel, stainless steel, aluminum, coated materials, heated plastics, and more.
What Our Experts Think
-
The KAKA Industrial EB-4816B Magnetic Pan and Box Brake (173409) delivers advanced precision bending with its 48-inch, 6-ton magnetic clamping system, ideal for complex box, pan, and channel forming.
-
Powered by a 220V single-phase motor and foot pedal control, it ensures hands-free operation and superior control.
-
The electromagnetic design allows bending of 16-gauge mild steel with exceptional accuracy and repeatability.
-
Includes multiple clamp bars for versatile forming options, making it perfect for HVAC, fabrication, and custom metalwork applications.
Q&A
Q: What materials can this magnetic brake handle?
A: It’s designed for mild steel, aluminum, stainless steel, and other sheet metals up to 16-gauge thickness.
Q: How is the machine operated?
A: Operated via a foot pedal control, providing hands-free precision and safety during bending.
Q: What is the maximum bending length?
A: The brake offers a 48-inch working width, suitable for large panels and complex parts.
Q: Does it come with clamp bars?
A: Yes, it includes a set of magnetic clamp bars for flexible shaping and secure workholding.
Maintenance Tips
-

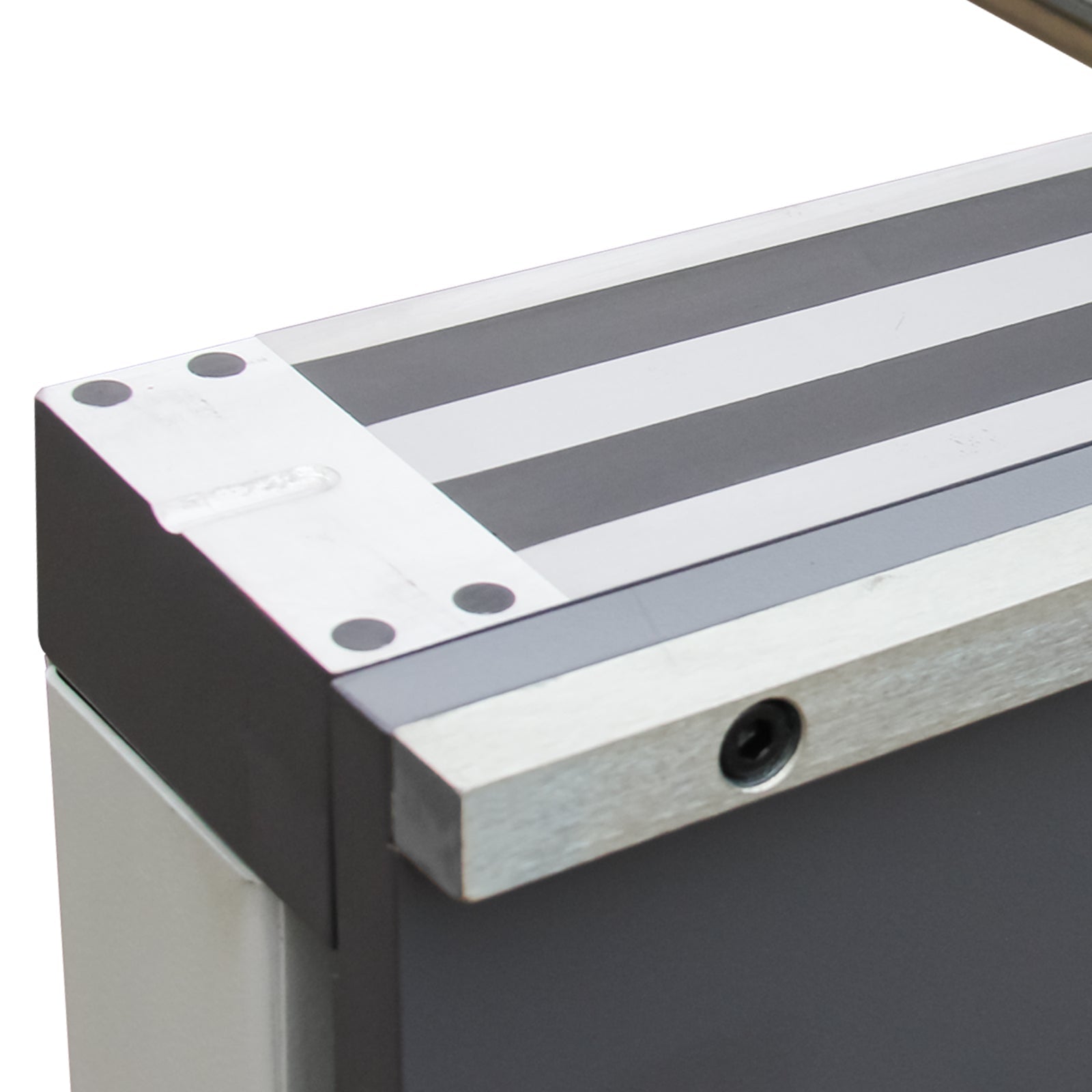

Clean the magnetic surface after each use to ensure maximum clamping efficiency.
-
Inspect wiring and foot pedal connections periodically for safety and reliability.
-
Lubricate hinges and moving joints as recommended to maintain smooth operation.
-
Store in a clean, dry environment to protect electrical components and extend service life.
