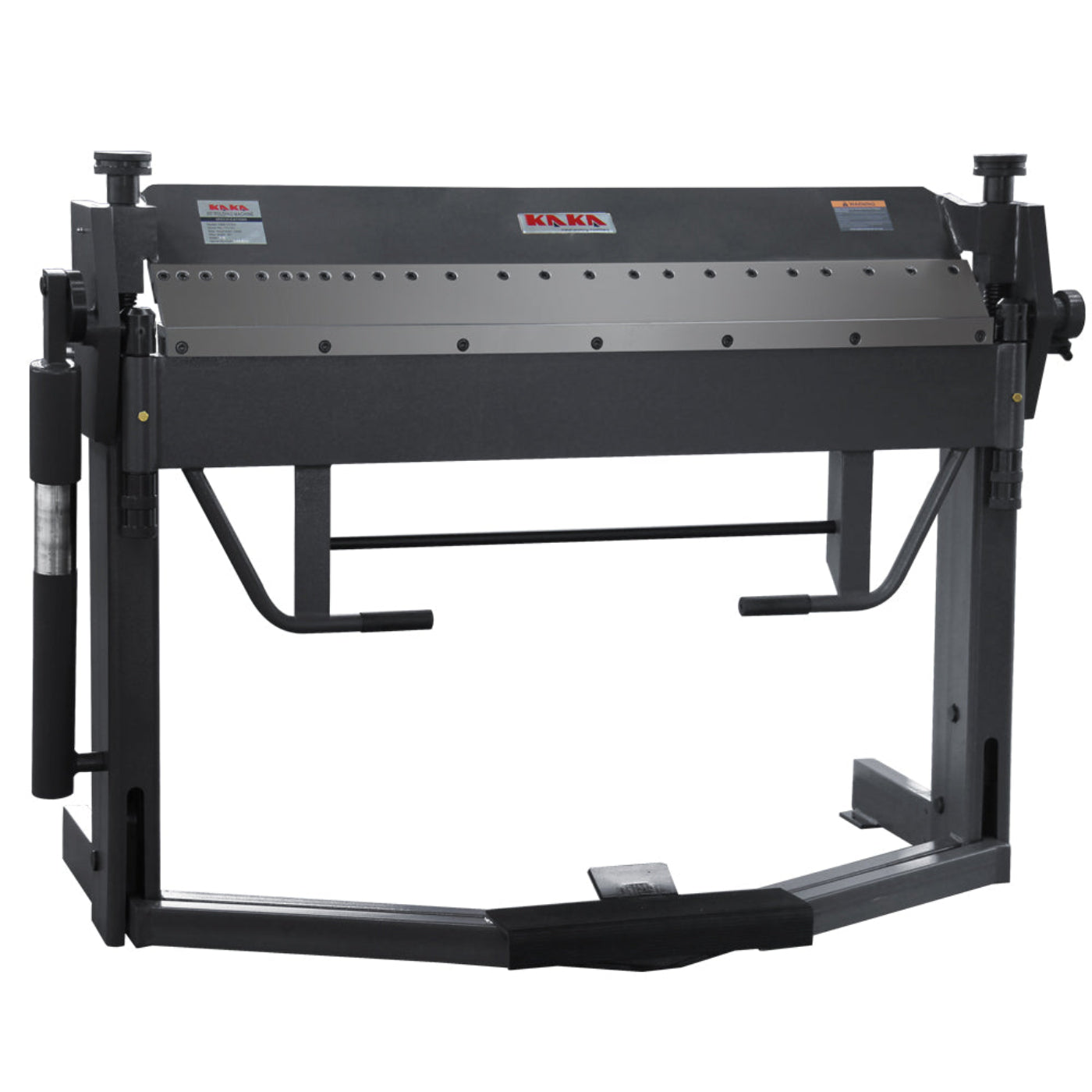

KAKA Industrial PBB-5014,50-Inch Pan and Box Brake Foot Clamp, Max Clamping Bar Lift 1-7/8 Inch, Max Box Depth 2 Inch, Folding Angle 135 Degree, Sheet Metal Folding Machine - 173151
The PBB-5014 is designed to handle up to 14-gauge mild steel and provides a 50-inch bending width, making it ideal for creating boxes, pans, and custom metal parts with high accuracy. Whether you’re working with stainless steel, aluminum, or other metals, this machine ensures smooth and precise bends for complex projects.
Flexible Folding Angle:

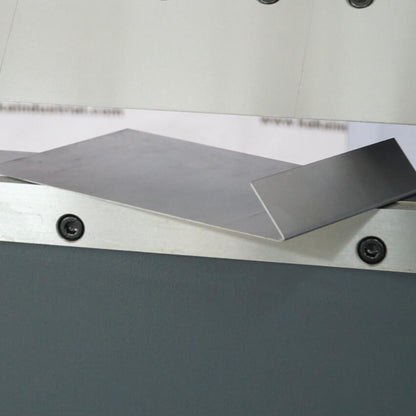

Offering a bending angle from 0° to 135°, the PBB-5014 provides a wide range of bending capabilities, making it suitable for a variety of applications. This adjustable flexibility allows you to easily create intricate bends in metal sheets, enhancing your ability to produce complex shapes in one setup.
Effortless Control and Adjustments:

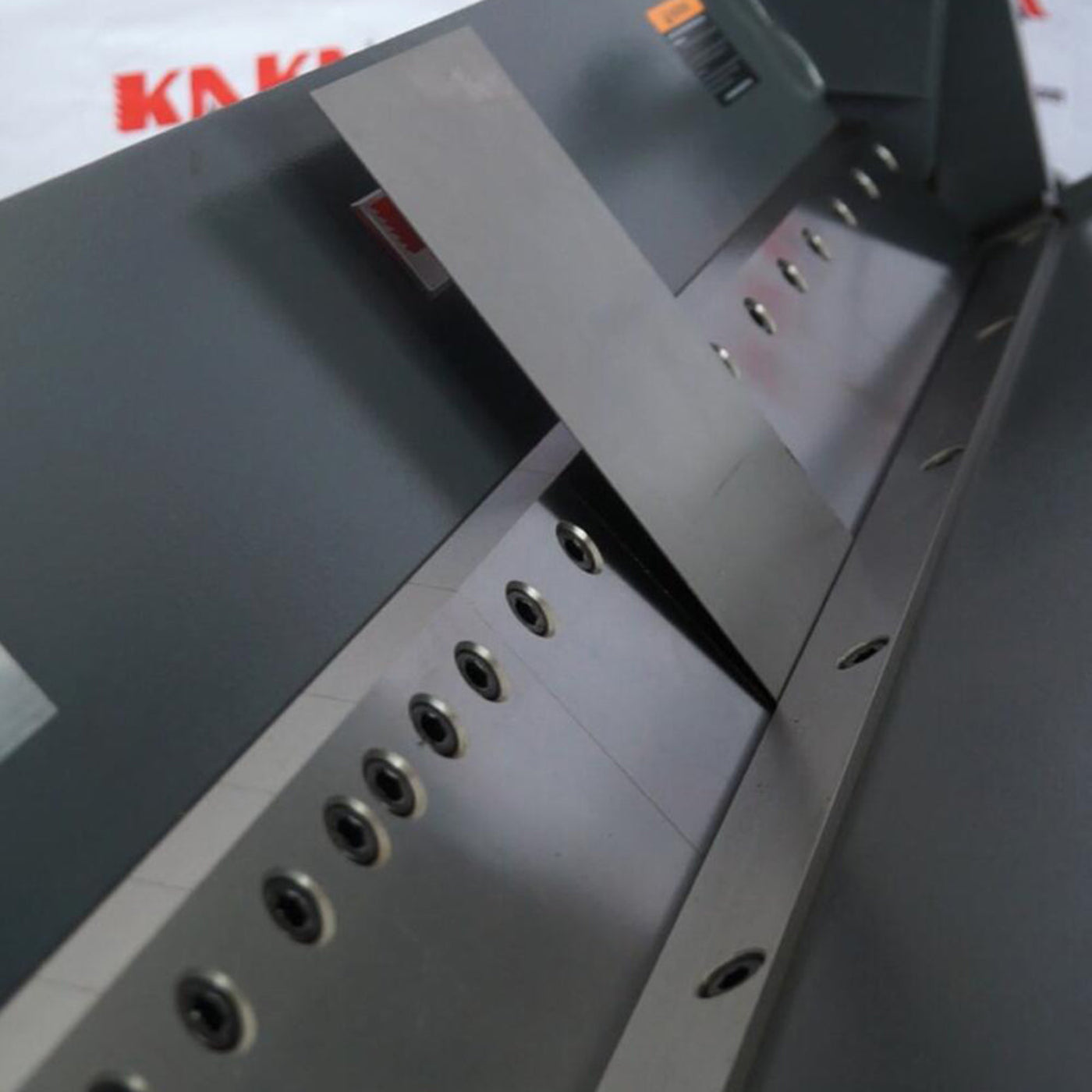

The folding machine's upper blades can be dismantled for use, and you can choose the blade combination according to the workpiece's characteristics. Blade gaps adjustment can be done by easily holding knobs.This adjustable flexibility allows you to easily create intricate bends in metal sheets.
The integrated spring-loaded cylinder helps lift the bending beam, reducing operator effort and ensuring smooth, accurate bends.

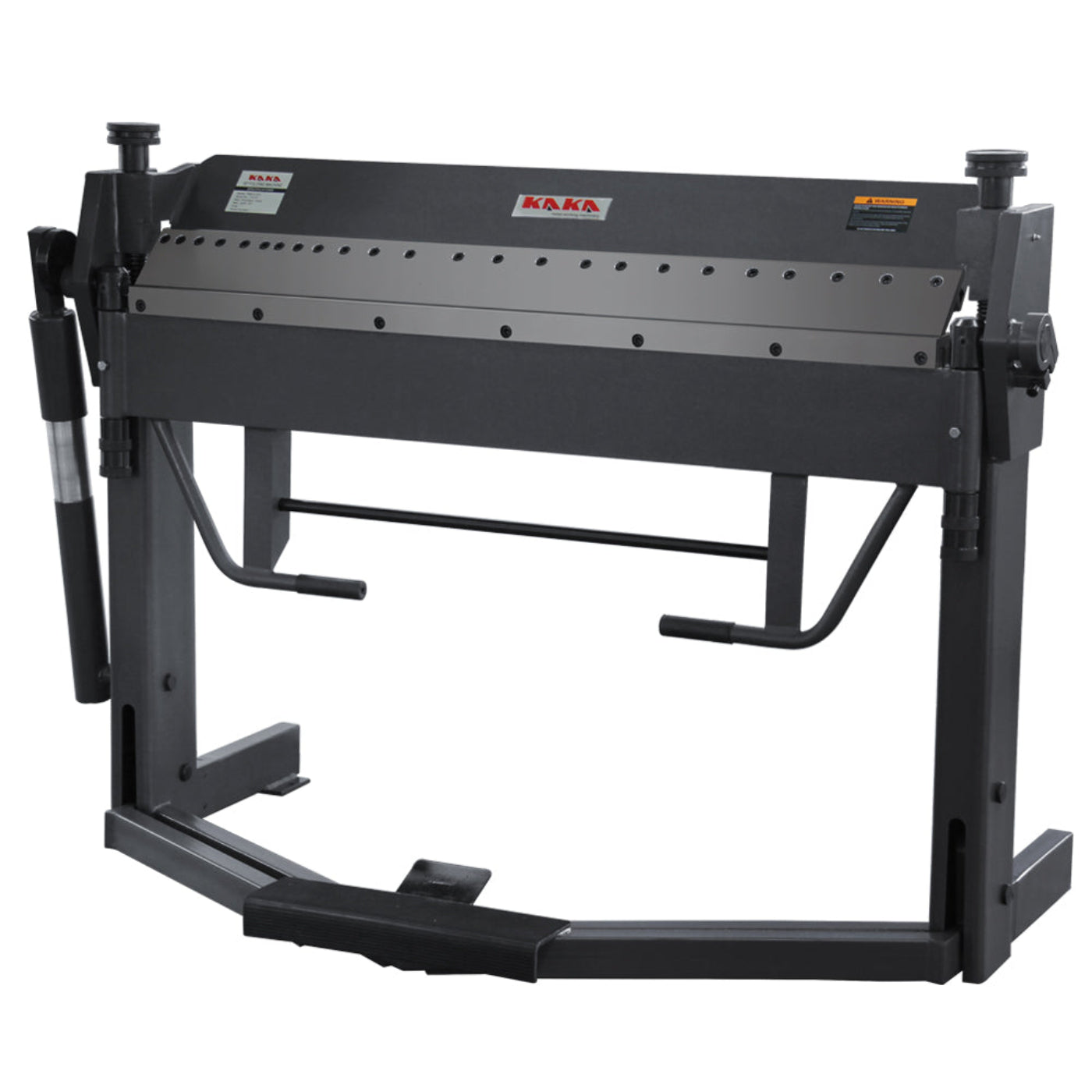

Convenient Foot Pedal Control:
The integrated foot pedal control allows for hands-free clamping, freeing your hands to position and adjust the metal sheet before bending. This feature increases your efficiency and makes operation more comfortable, especially during long working hours.
Heavy-Duty Build & Durability:

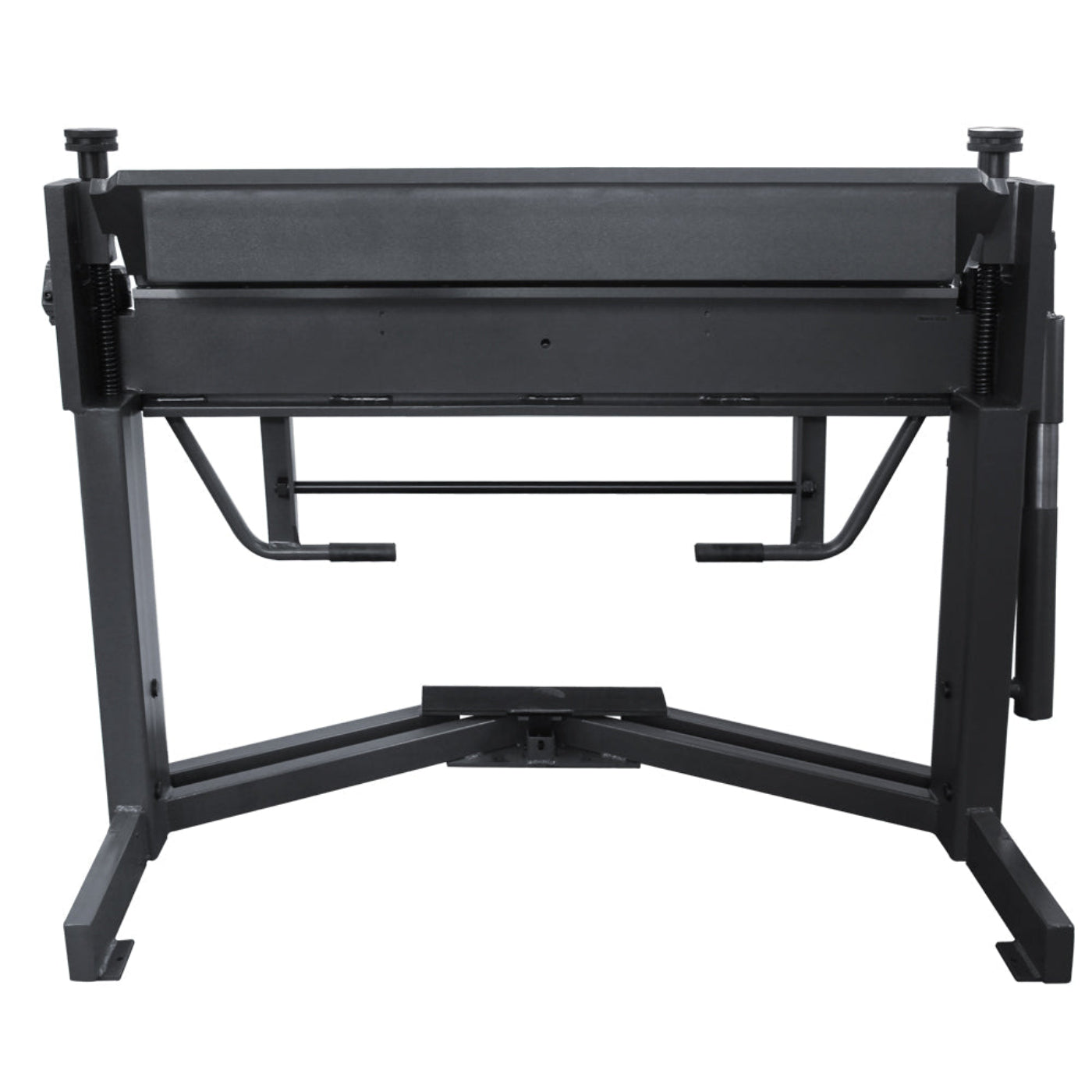

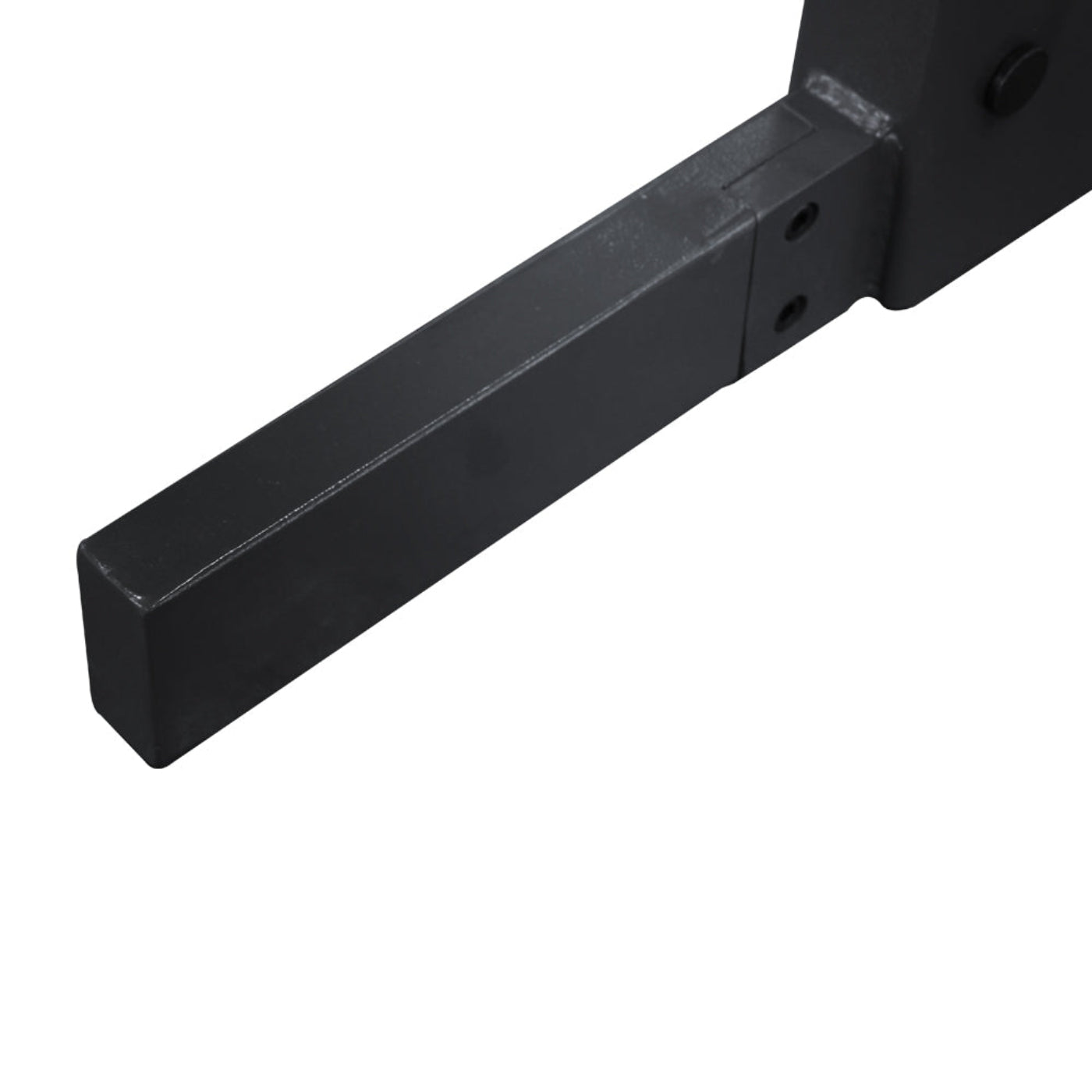

Constructed with a fully welded steel body, this machine provides robust support for heavy-duty work. The durable structure minimizes flex and deformation, ensuring reliable operation over the long term, even in high-demand environments.
Optional Back Gauge:
The PBB-5014 includes an optional back gauge that can be easily mounted using pre-drilled fixing points, ensuring precise positioning for repeatable bends and enhanced work efficiency in production runs.
Versatile Applications:
Ideal for a wide variety of applications, the PBB-5014 is used in metalworking industries, fabrication shops, maintenance facilities, and even home workshops. From creating complex parts to simple bends, this machine adapts to all your bending needs with ease.
Specification
- Item No.: 173151
- Model PBB-5014
- Max. working length 50 in
- Max. sheet thickness 14 Ga.
- Max. clamping bar lift 1.9 in
- Folding angle 0-135°
- Packing size 67x28x51 in
- N.W./G.W. 748/924 lbs
What Our Experts Think
-
The KAKA Industrial PBB-5014 Pan and Box Brake (173151) offers precision, power, and versatility for sheet metal fabrication up to 50 inches wide.
-
Features a foot clamp system that allows hands-free operation, improving accuracy and efficiency during bending.
-
Provides a maximum clamping bar lift of 1-7/8" and a 2" box depth, ideal for forming pans, boxes, and complex components.
-
The 135° folding angle capacity ensures smooth, precise bends in a variety of materials, making it perfect for both professional shops and serious hobbyists.
Q&A
Q: What is the maximum material capacity?
A: It can bend sheet metal up to 14-gauge mild steel with precision and consistency.
Q: Does it include a foot clamp?
A: Yes, it features a foot-operated clamping system for secure, hands-free workholding.
Q: What is the maximum bending angle?
A: The brake allows for bends up to 135 degrees, ideal for forming various profiles.

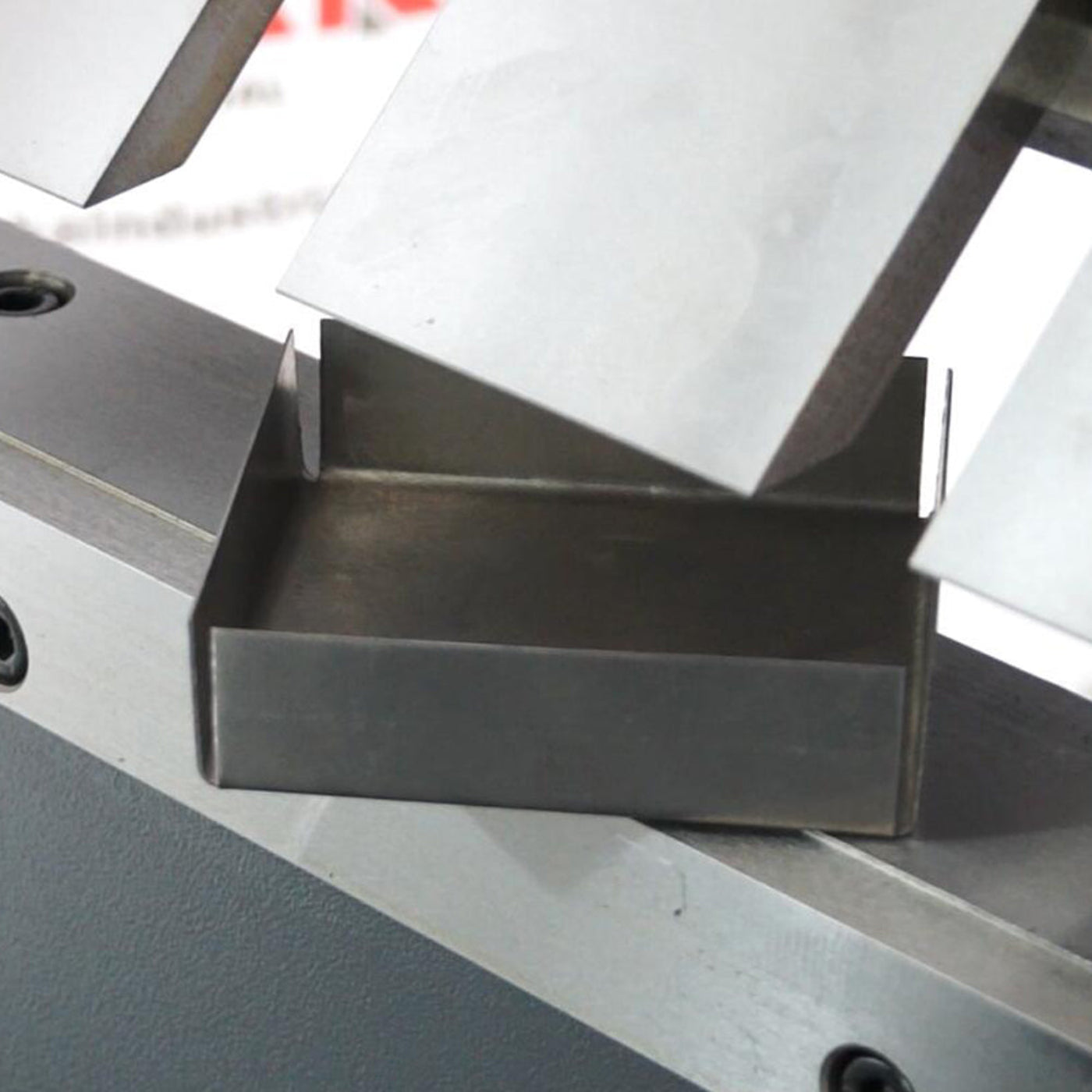

Q: Can it form boxes and pans of different sizes?
A: Yes, it includes removable fingers to accommodate custom widths and shapes.
Maintenance Tips
-
Clean the clamping bar and hinges regularly to prevent debris buildup.
-
Lubricate all moving joints for smooth operation and reduced wear.
-
Check alignment and finger bolts periodically for accurate, consistent bends.
-
Store in a dry, clean environment to protect the machine from rust and corrosion.
