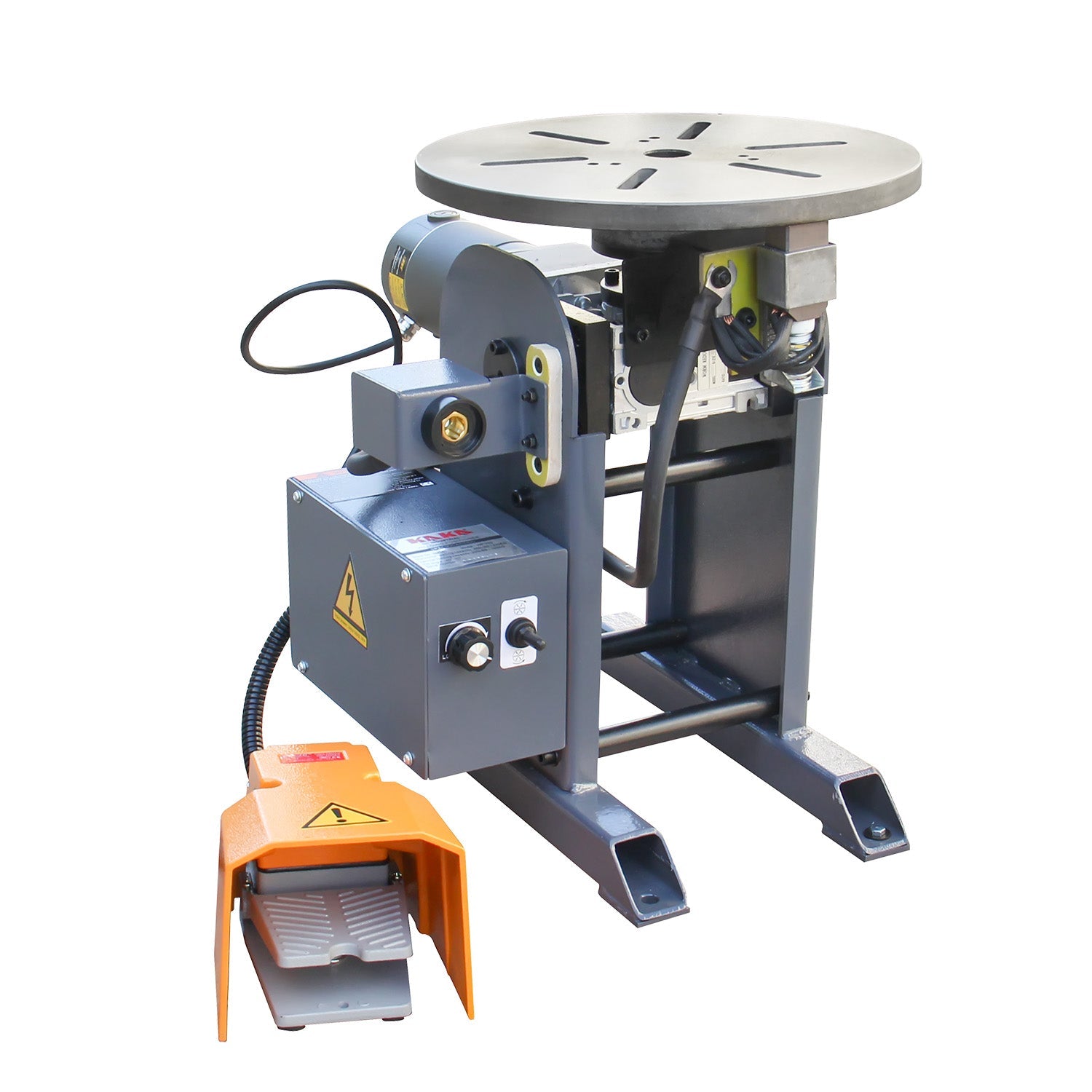

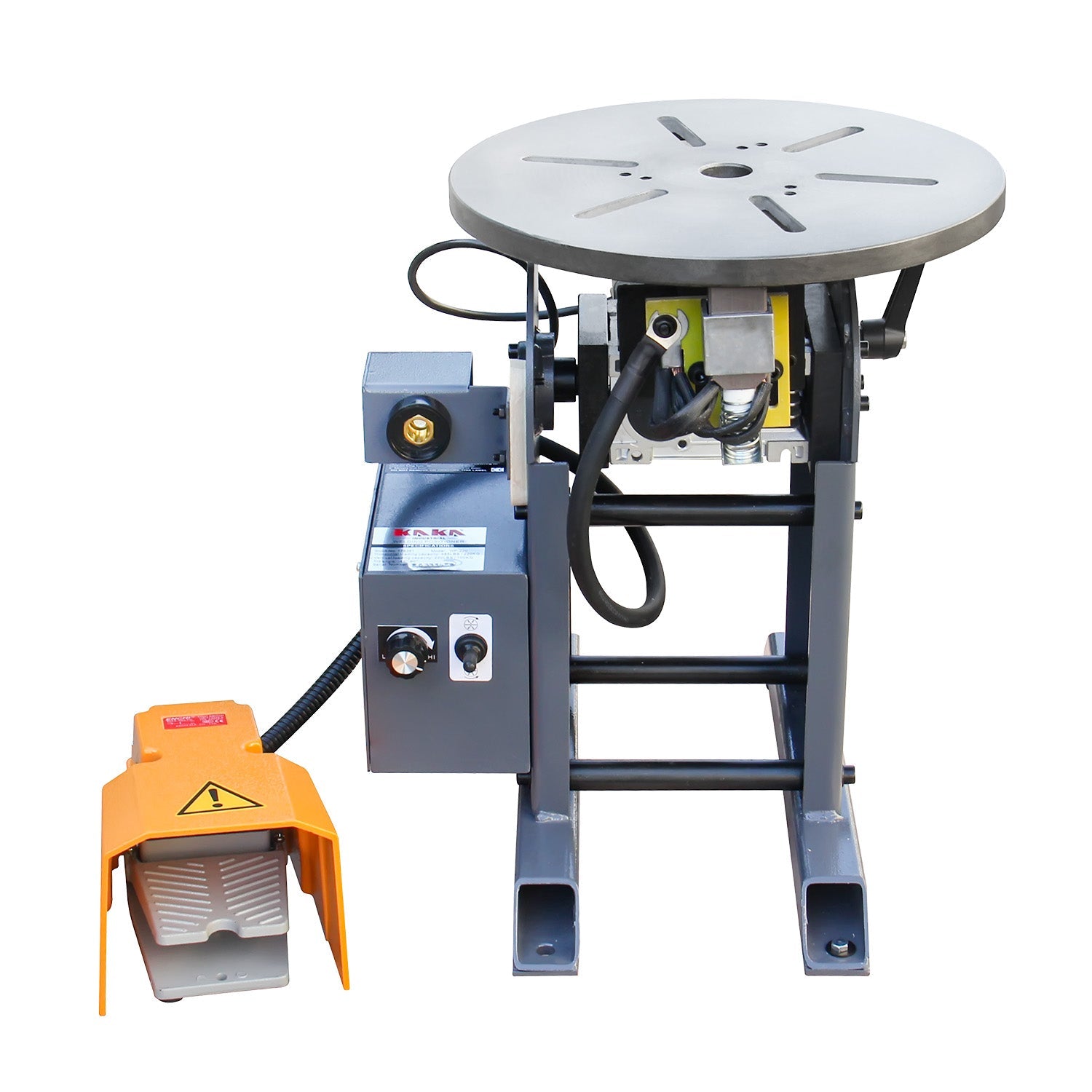

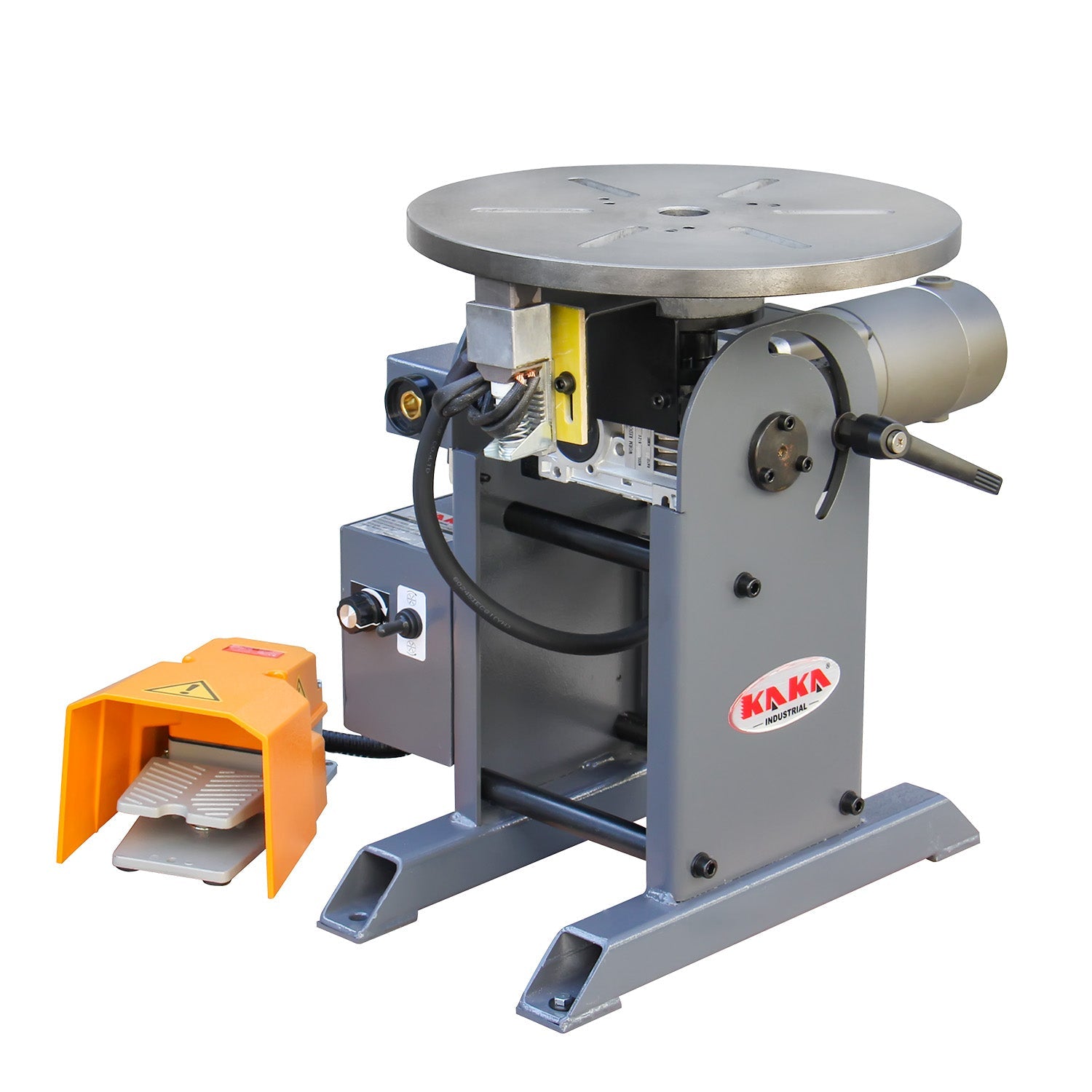

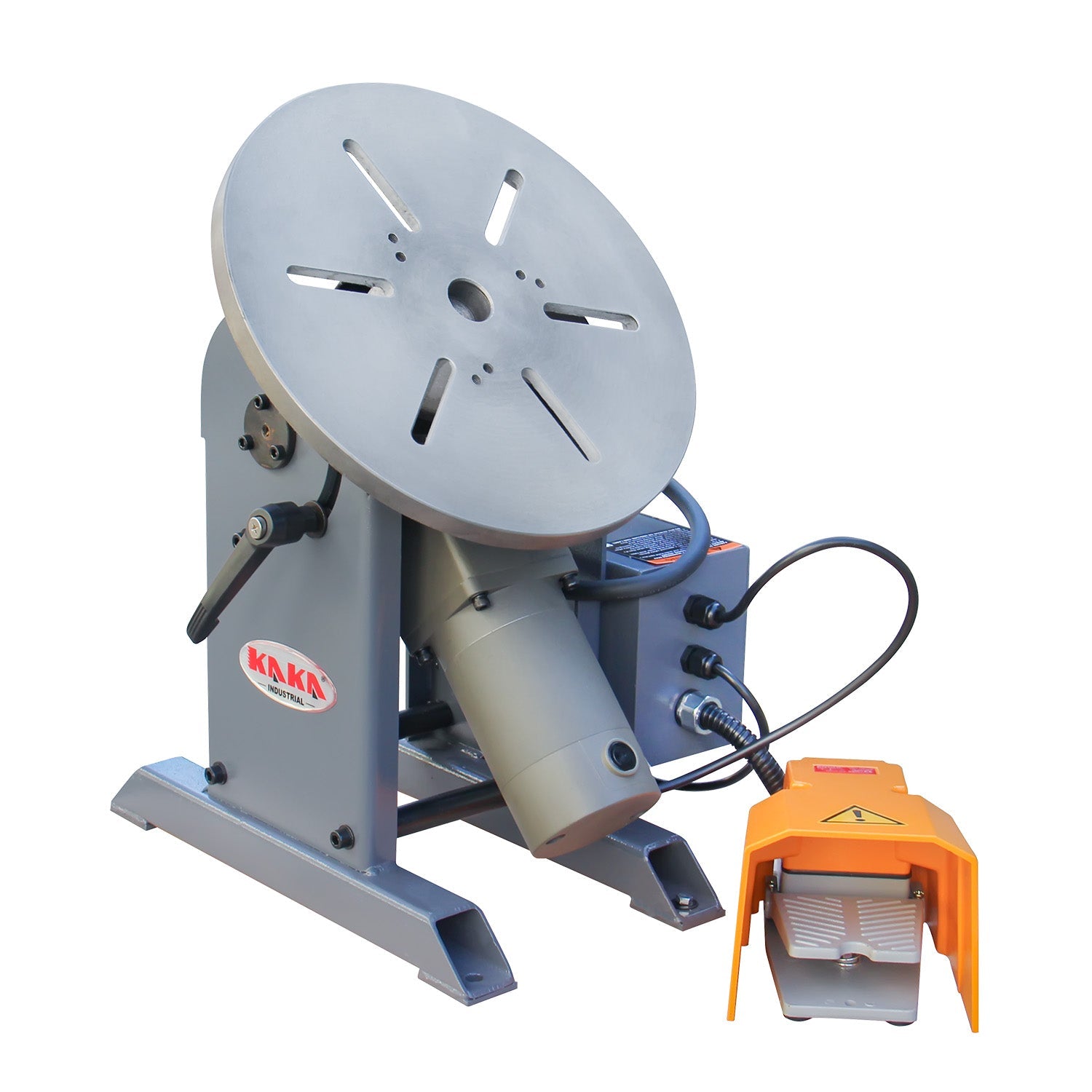

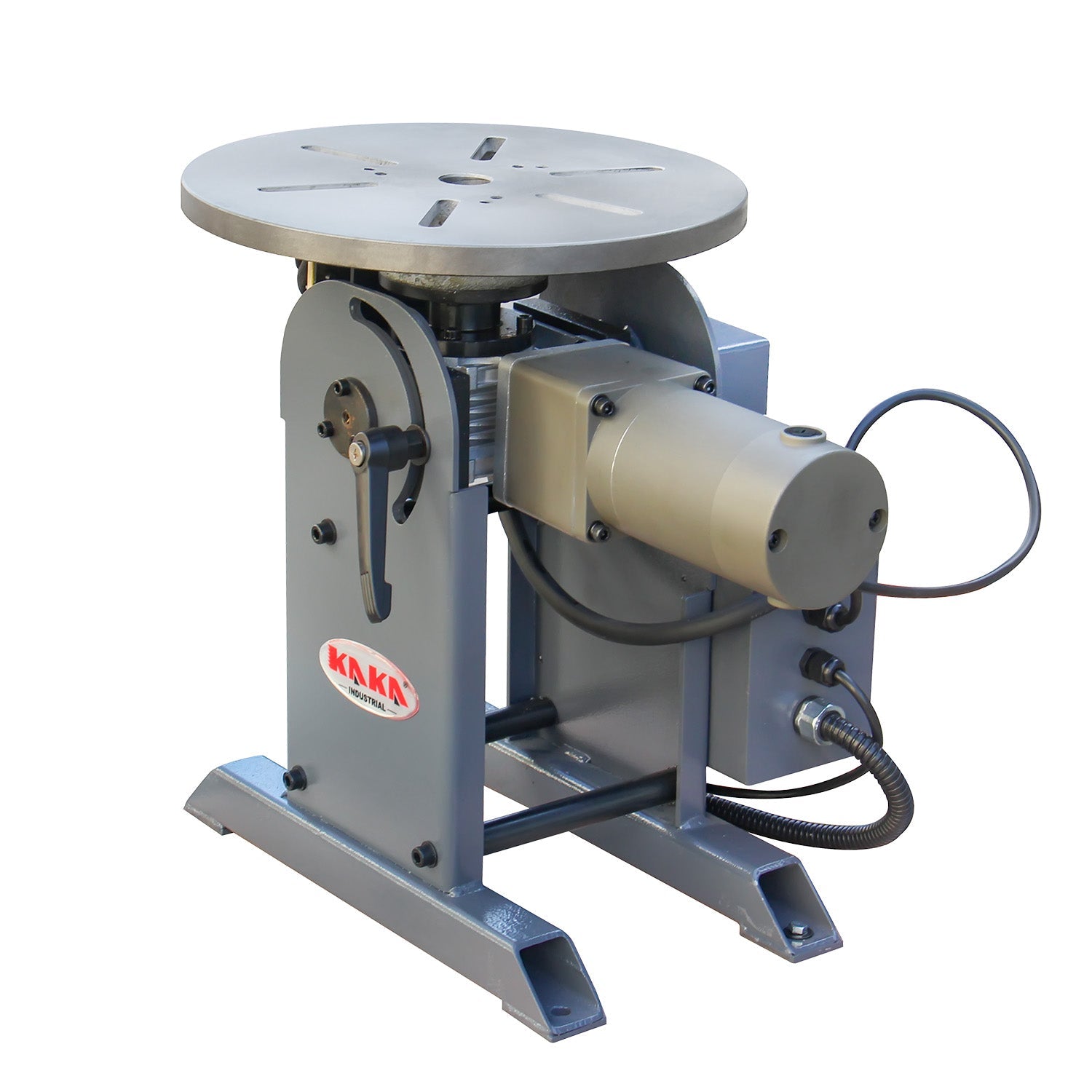

Kaka Industrial WP-220 Welding Positioner Rotating table for welding
1. Loading capacity up to 485 lbs
2. Rotating 360°
3. Variable rotating speed
4. Foot pedal control
5. Table tilt up to 135° (manual)
6. Slow rotating speed to ensure perfect welding
7. Different sizes available, the model WP-350 & WP-500
8. Single-phase motor
High Performance
- It runs on 110V power, 125W rotation motor, and a Rotation speed of 0-5 rpm. It is a single-phase motor, and the safety earth current from the welder is 120A (contact the carbon brush).

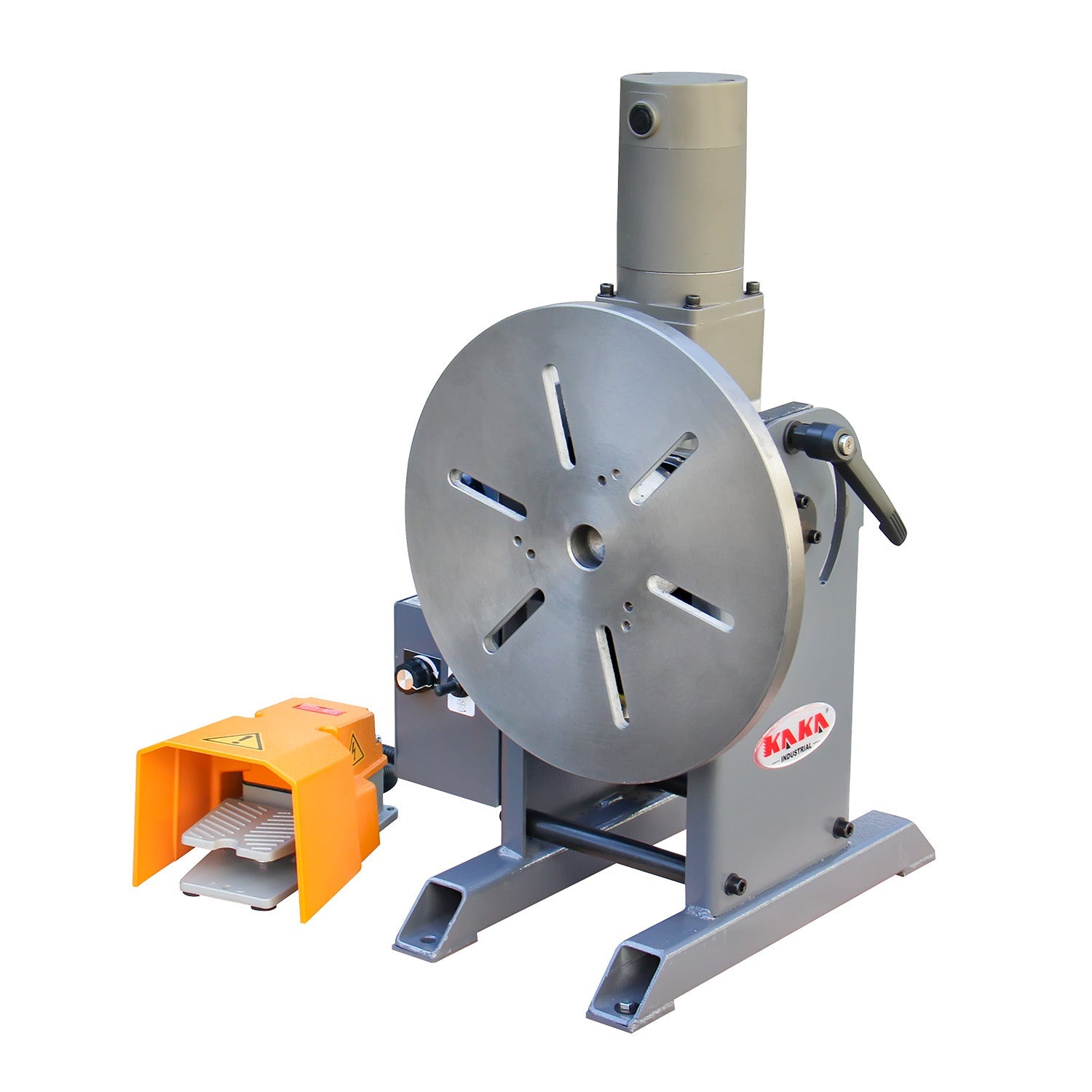

- The worm and gear's turning structure has the function of self-locking, and the worktable can be turned between 0-90°. It can also be fixed at any angle you want. The table tilts up to 135° (manual).
Variable Speed Control

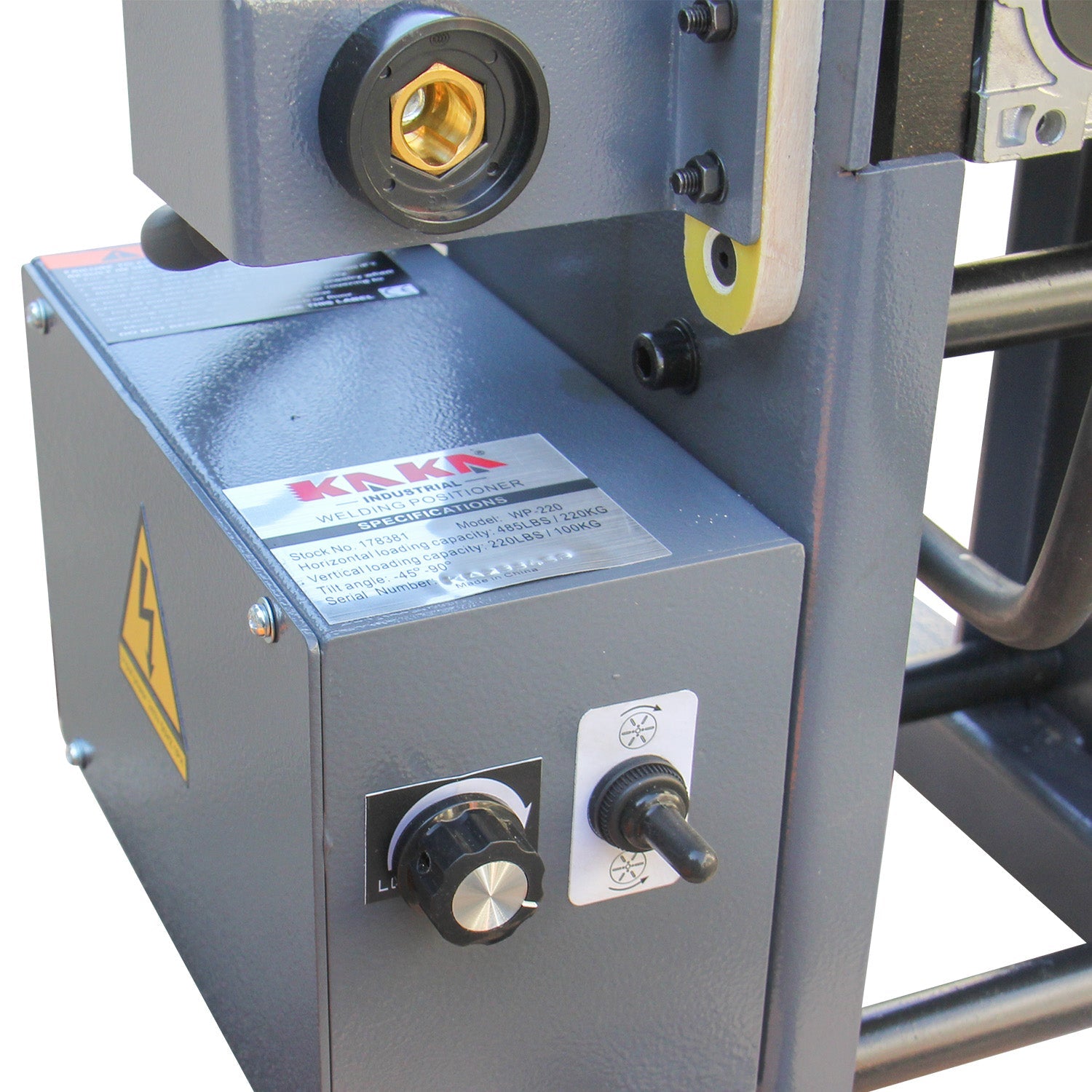

- It uses a foot switch to control table rotation; the speed is regulated by the knob on the machine(0.5-5r/min step-less speed regulation). The table speed is regulated by a knob on the machine (0.5-5r/min step-less speed regulation)—slow rotating speed to ensure perfect welding.
- A time controller can be furnished to control the working conditions and working time, achieving the linkage of the positioner and welder.
Wide Applications
- The welding positioner is a versatile tool that can be used in various industries and tasks, including pipe welding, heavy fabrication, circular welds, multi-axis welding, high-volume production, welding of assemblies, tilt and rotate welding, and others.
Specifications:
SKU |
178381 |
Model |
WP-220 |
Horizontal loading capacity |
485 lbs
|
Vertical loading capacity |
220lbs
|

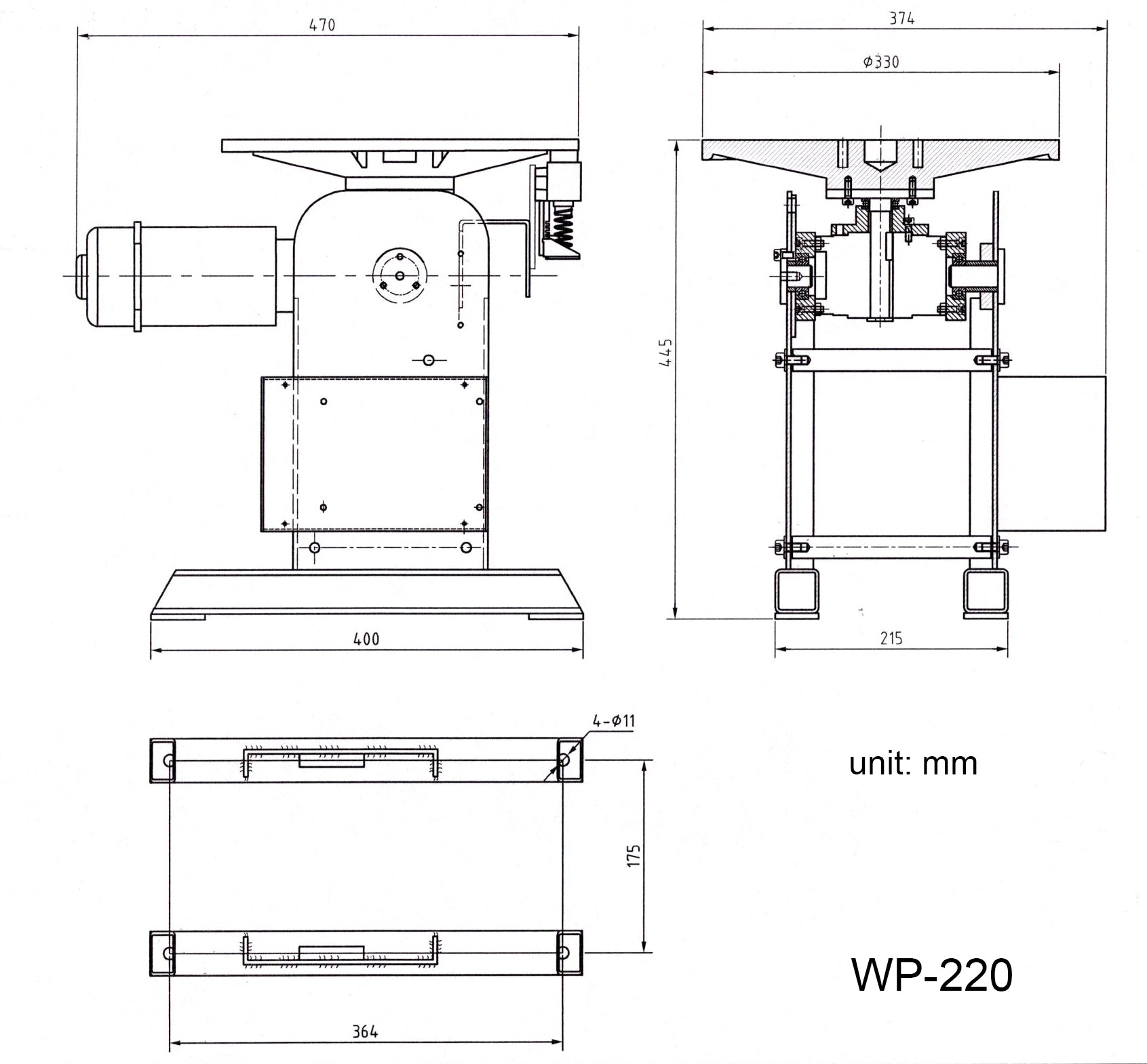

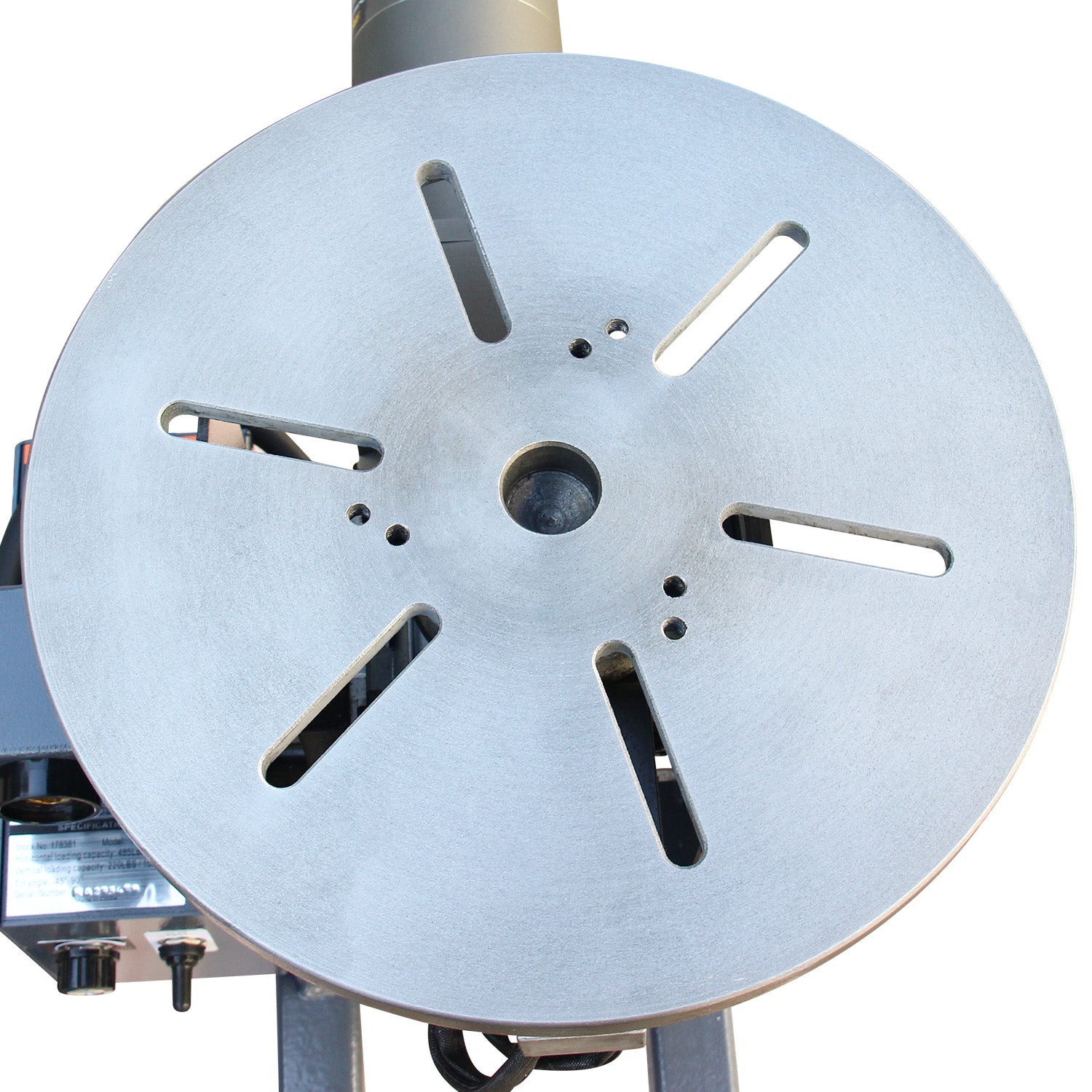

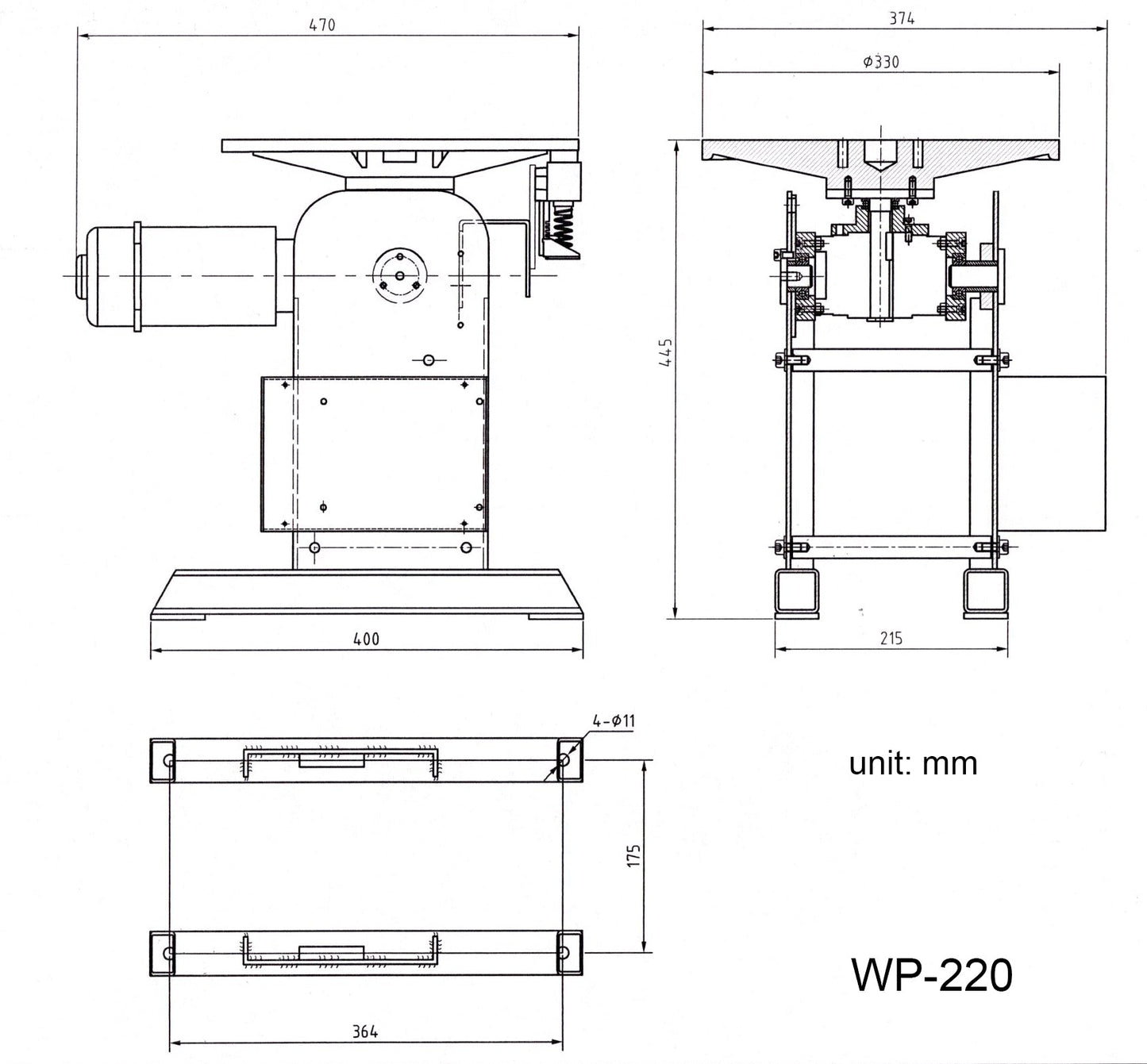

Table dia. |
13"
|
Table height |
17.7"
|
Rotation speed |
0-5 rpm |
Tilt angle |
0°-135° |
Tilt by |
Manual |
Rotation motor |
125W |
Packing size |
25"x20"x25" |
N.W./G.W. |
75/106 lbs |
