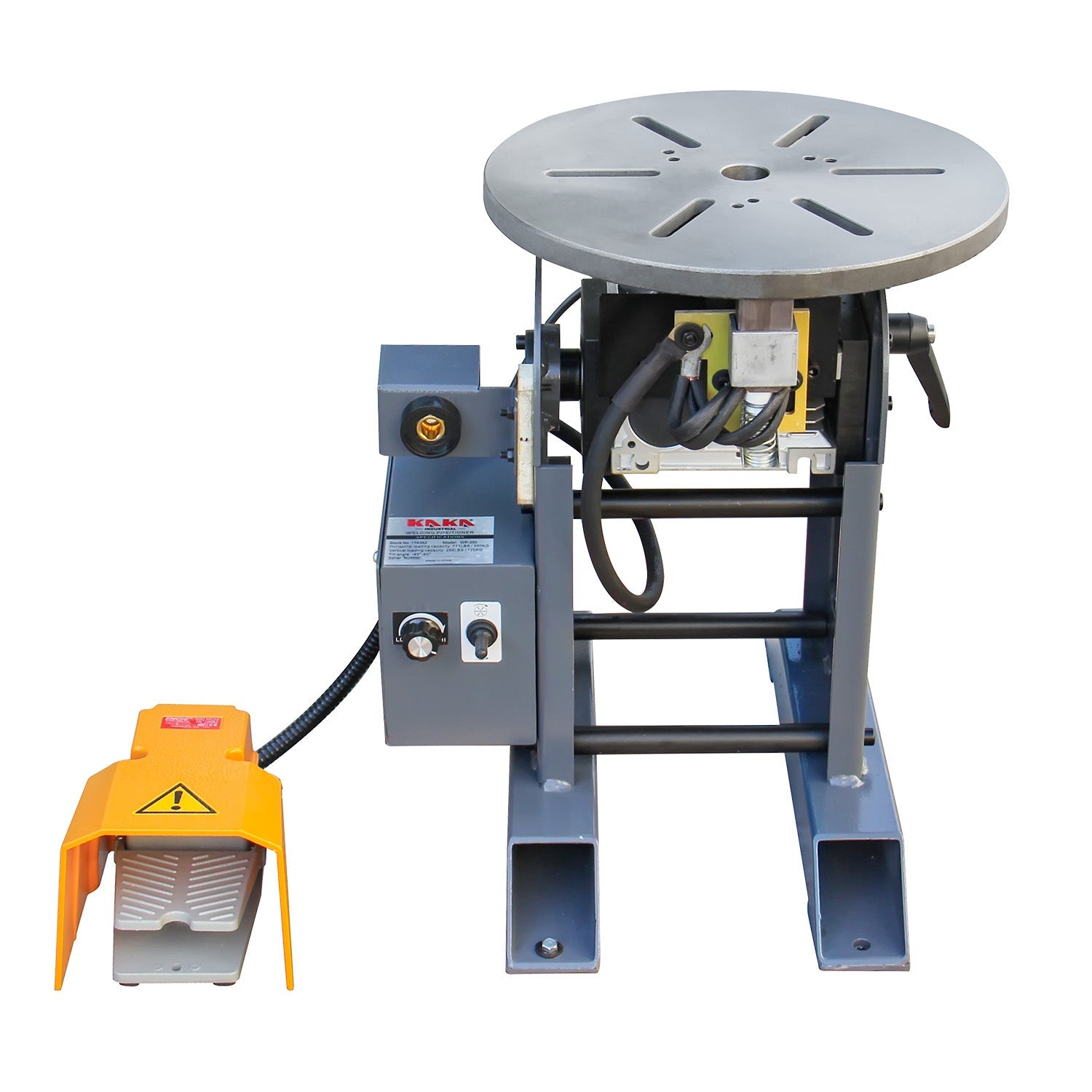

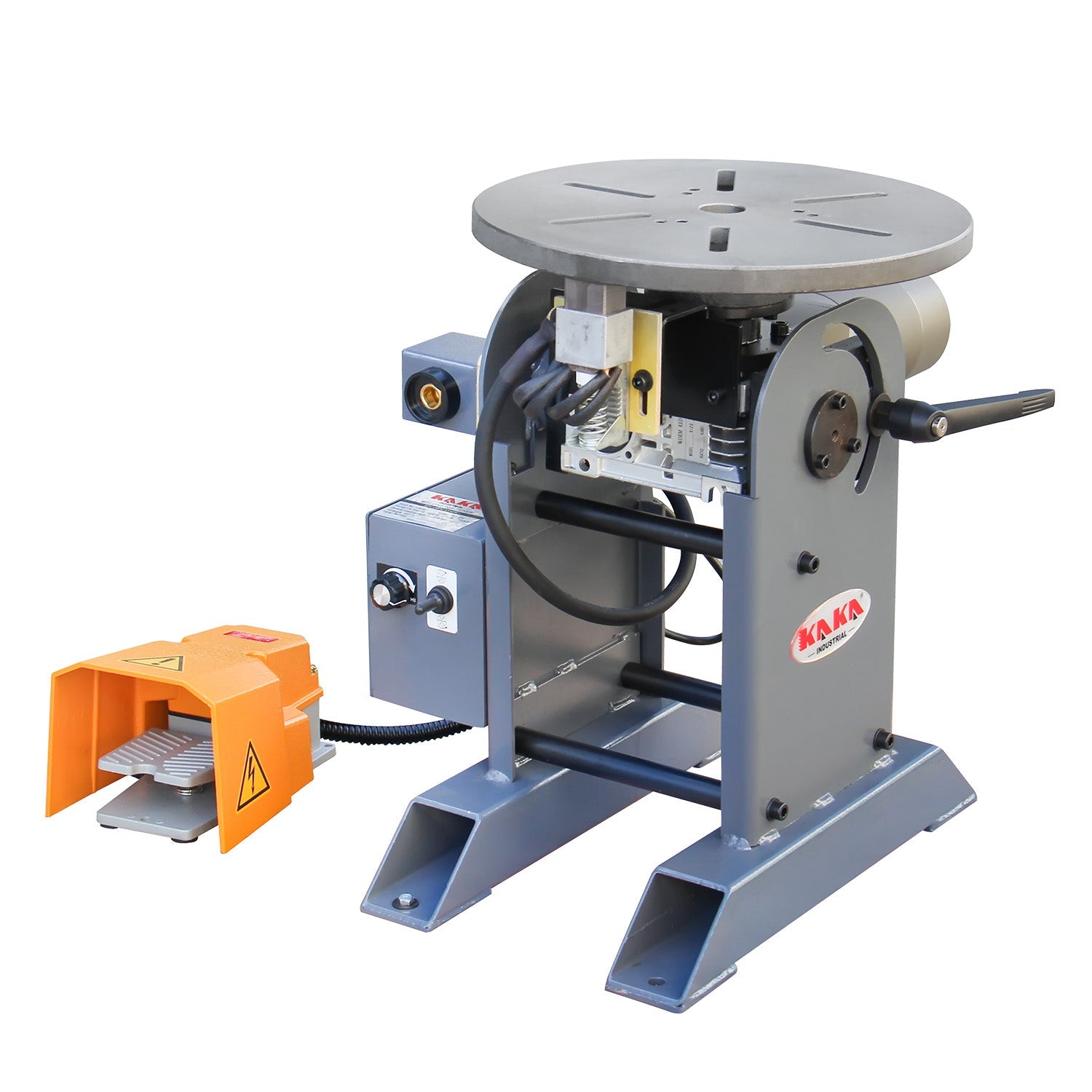

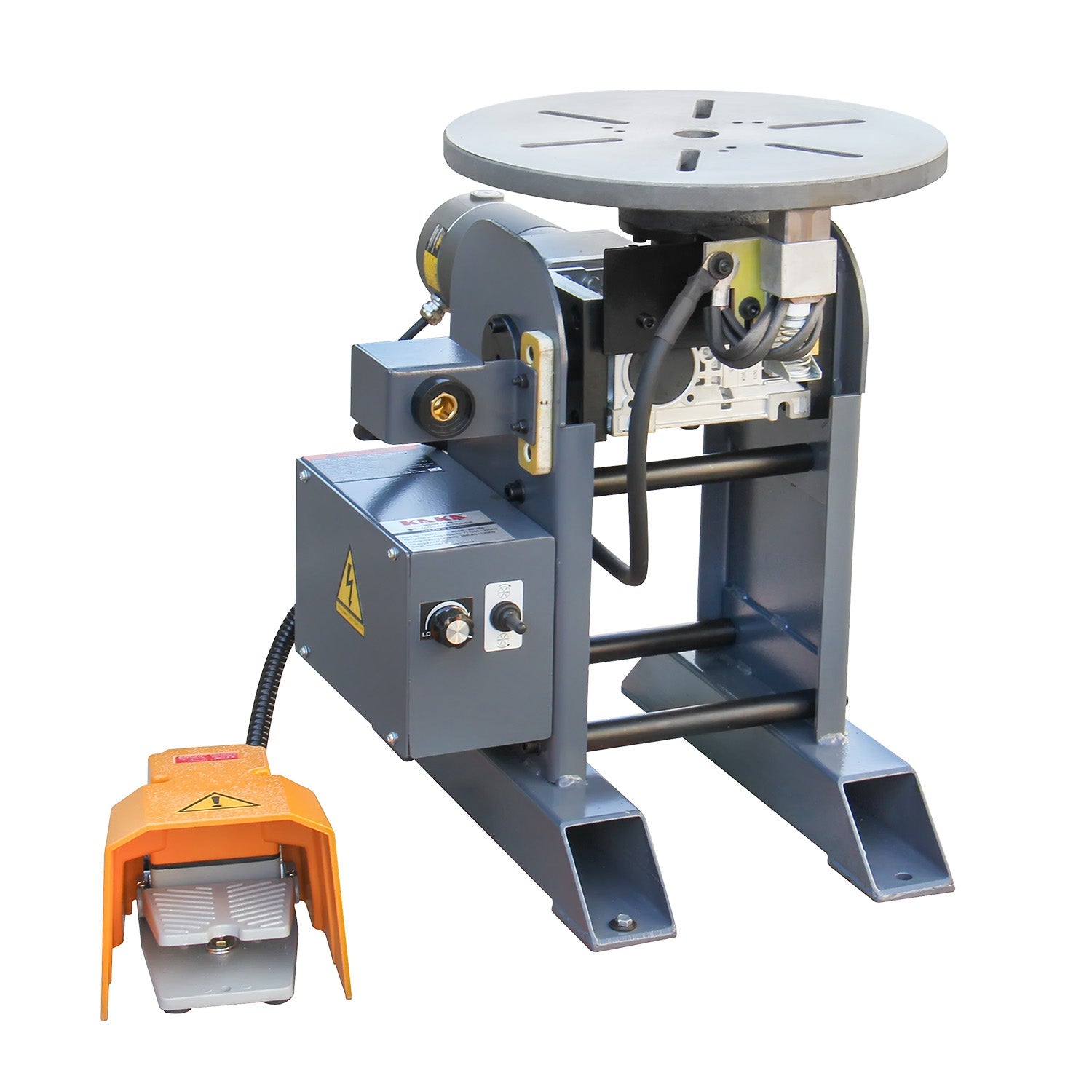

Kaka Industrial WP-350 Welding Positioner Rotating table for welding
1. Loading capacity up to 771 lbs
2. Rotating 360°
3. Variable rotating speed
4. Foot pedal control
5. Table tilt up to 135° (manual)
6. Slow rotating speed to ensure perfect welding
7. Different sizes available, the model WP-500 & WP-220
8. Single-phase motor
High Performance

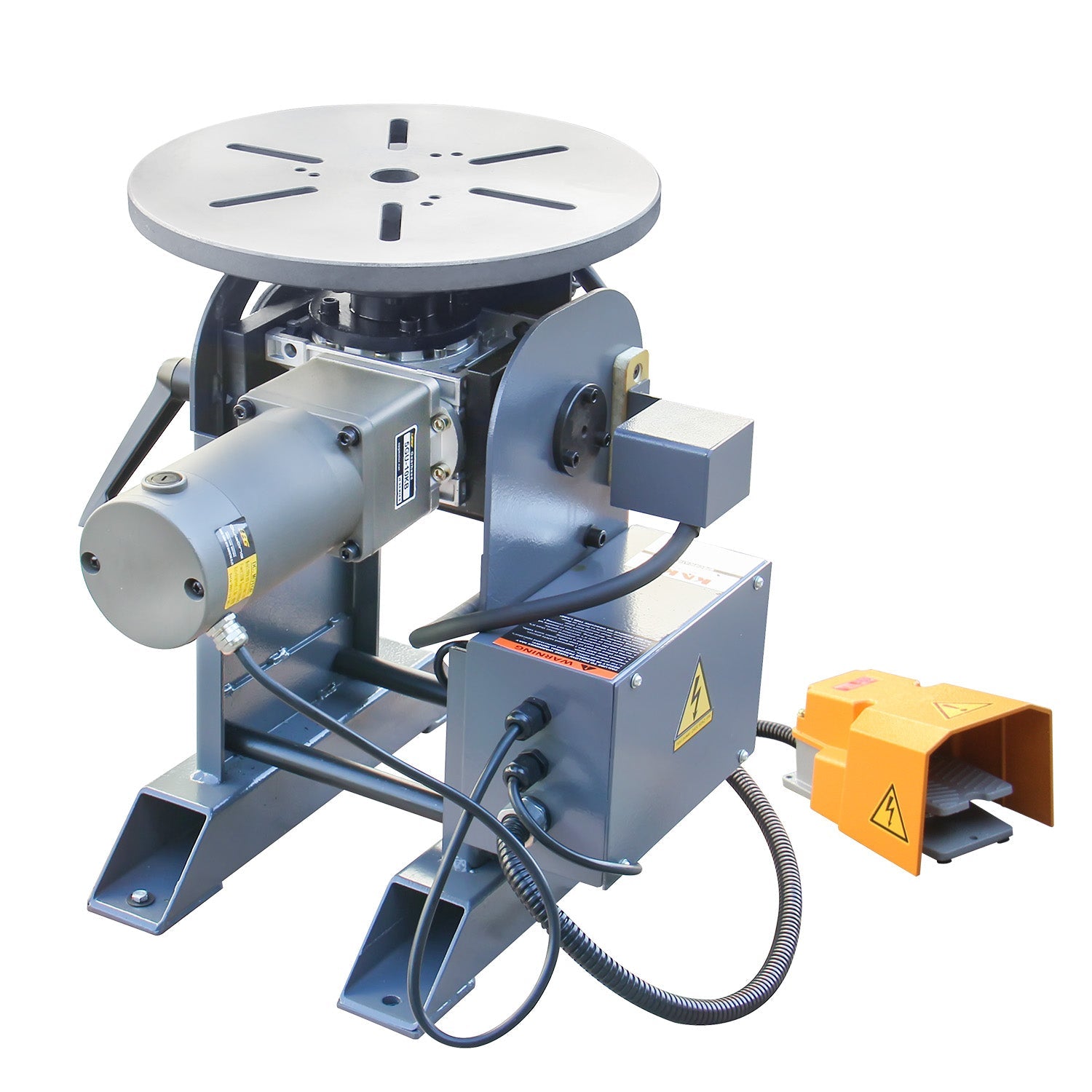

- It runs on a 150W rotation motor with a rotation speed of 0-5 rpm. It has a rugged construction and a high load capacity of up to 771 lbs. horizontally.

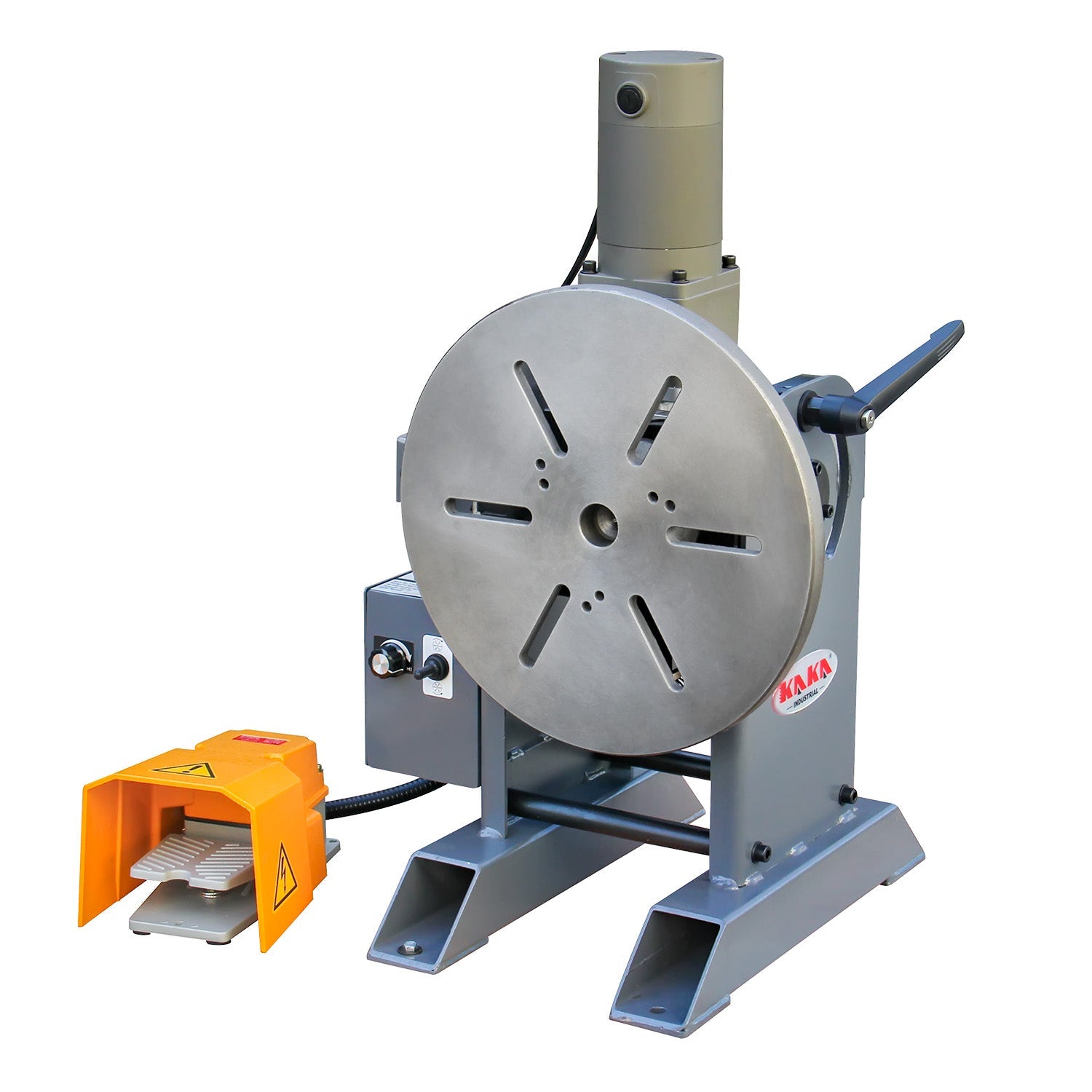

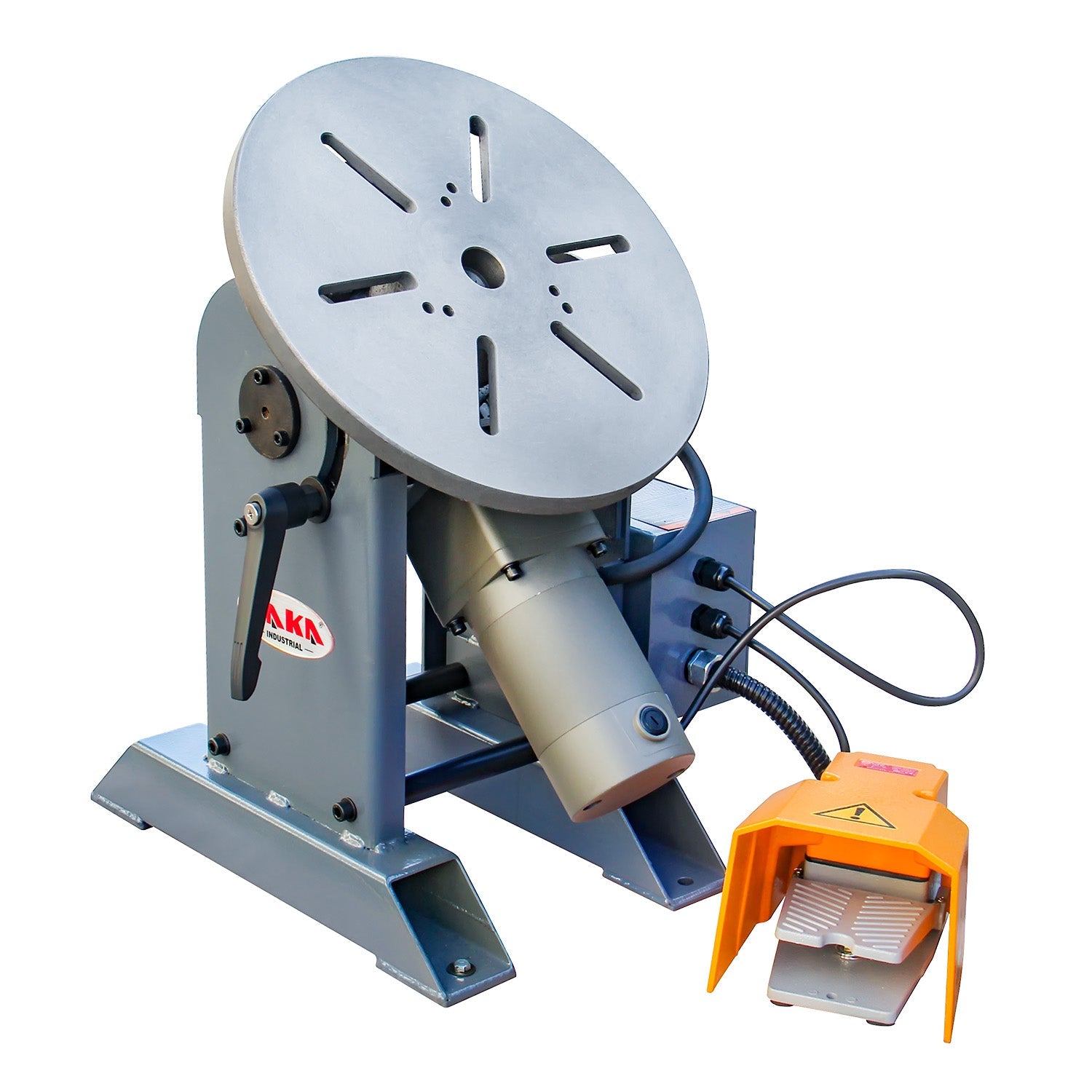

- The tilt angle of -45° to 90° ensures optimal welding position of the workpiece.
- Table rotation up to 360°. It enables the workpiece to rotate, providing access to different welding positions and making it easier to weld complex shapes.
Variable Speed Control
- Offers control over the rotation and tilting speeds, allowing for precise positioning and improved welding efficiency.

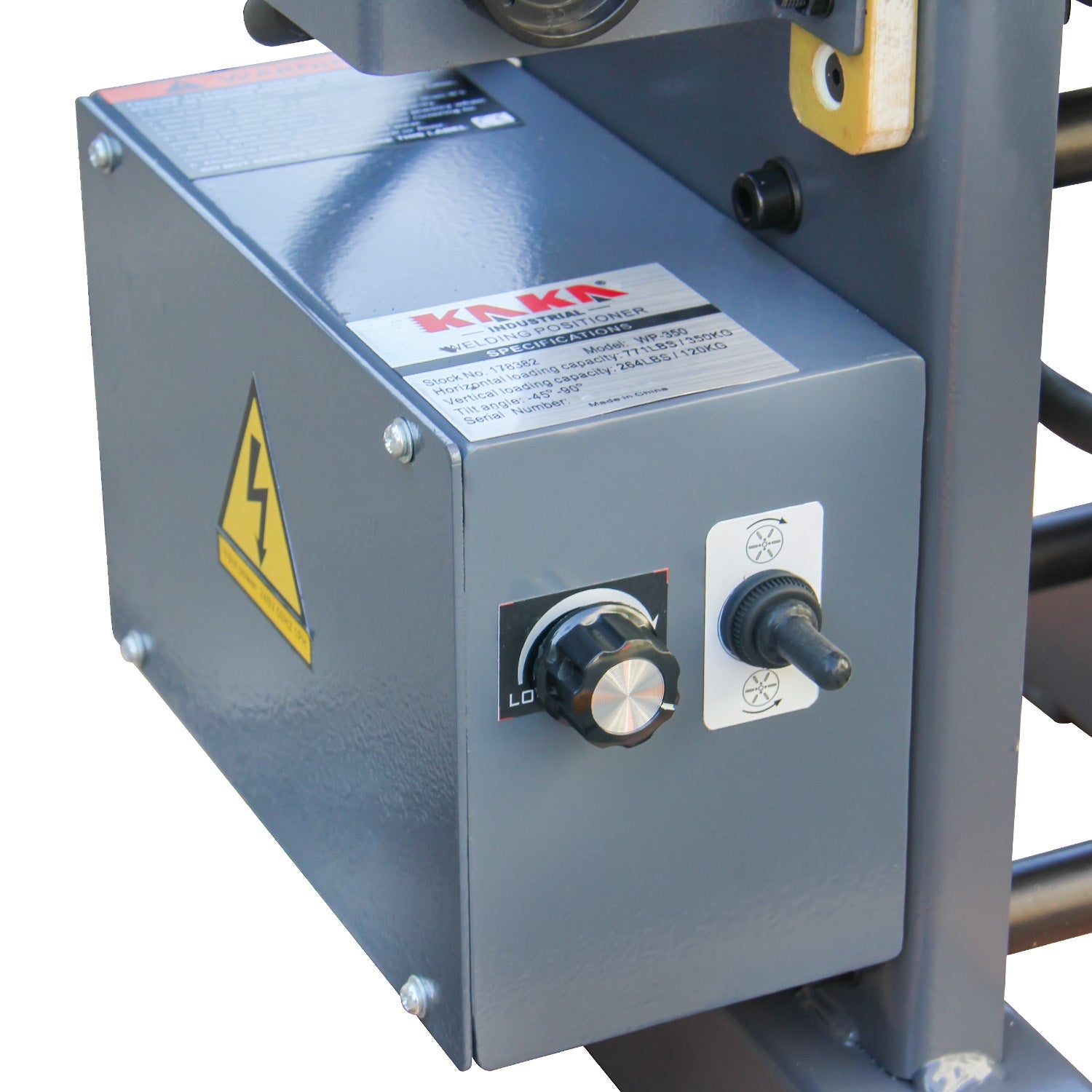

- It uses a foot switch to control table rotation; the speed is regulated by the knob on the machine(0.5-5 r/min step-less speed regulation). The table speed is regulated by a knob on the machine (0.5-5 r/min step-less speed regulation)—slow rotating speed to ensure perfect welding.

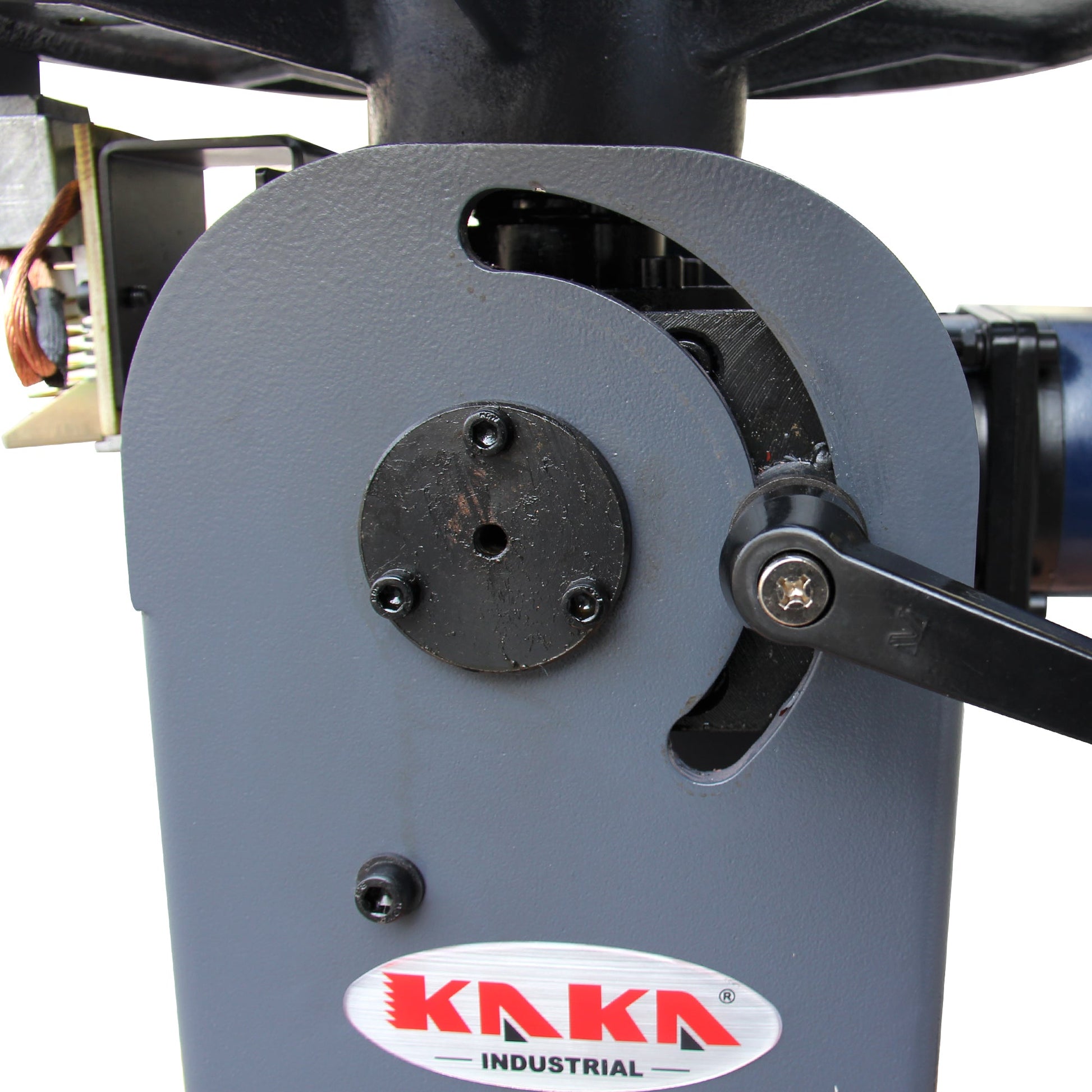

- The worm and gear turning structure has the function of self-lock, and the worktable can be turned steplessly between 0-90°. It also can be fixed at any angle you want.
- A time controller can be furnished to control the working conditions and working time, achieving the linkage of the positioner and welder. The welding chuck can be furnished to self-hold the workpiece.
Wide Applications
- The welding positioner is a versatile tool that can be used in various industries and tasks, including pipe welding, heavy fabrication, circular welds, multi-axis welding, welding of assemblies, tilt and rotate welding, and others.
Specifications:
SKU |
178382 |
Model |
WP-350 |
Horizontal loading capacity |
771 lbs
|
Vertical loading capacity |
265 lbs
|

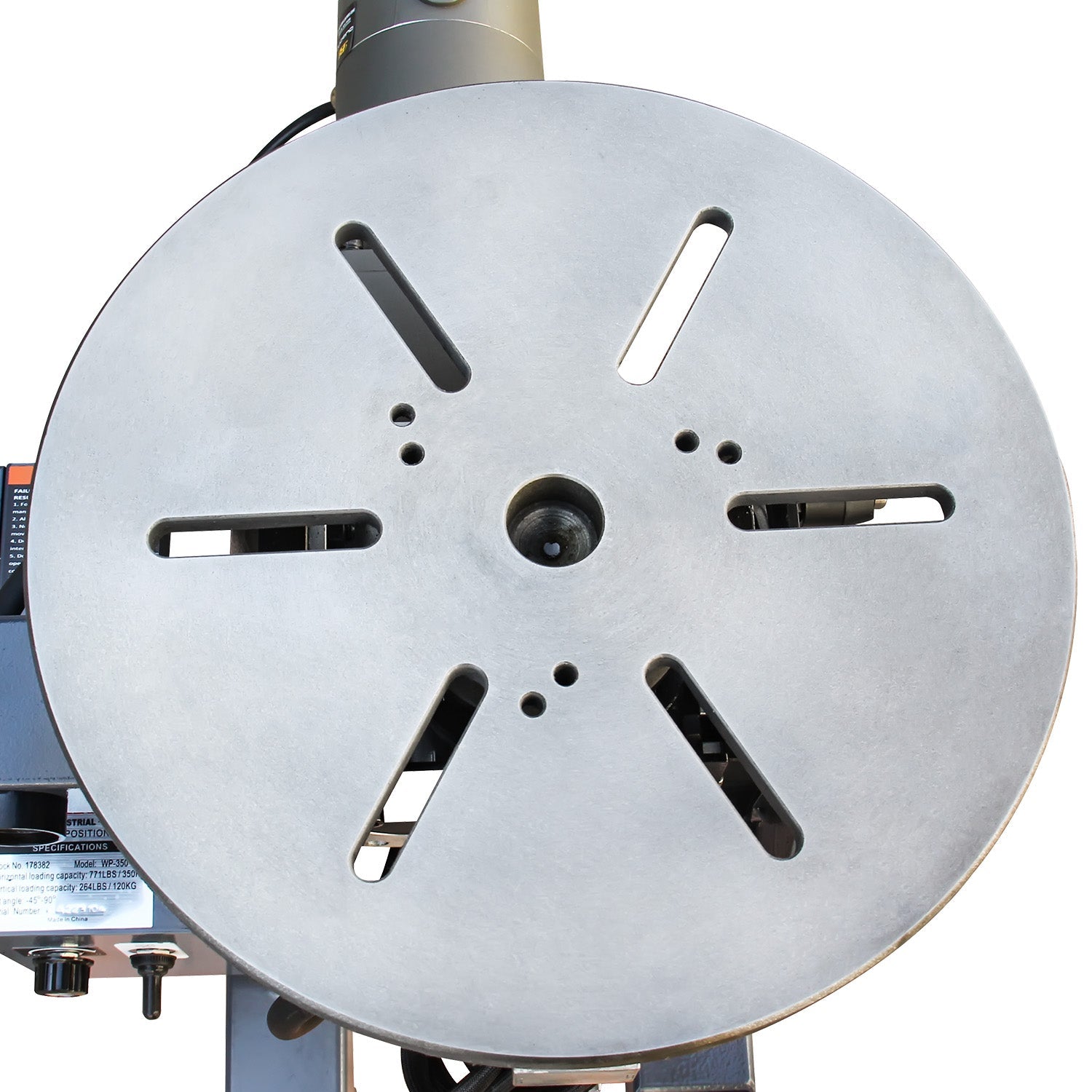

Table dia. |
13"
|
Table height |
19" |
Rotation speed |
0-5 rpm |
Tilt angle |
0°-135° |
Tilt by |
Manual |
Rotation motor |
125W |
Packing size |
25"x17"x25" |
N.W./G.W. |
84/115 lbs |
