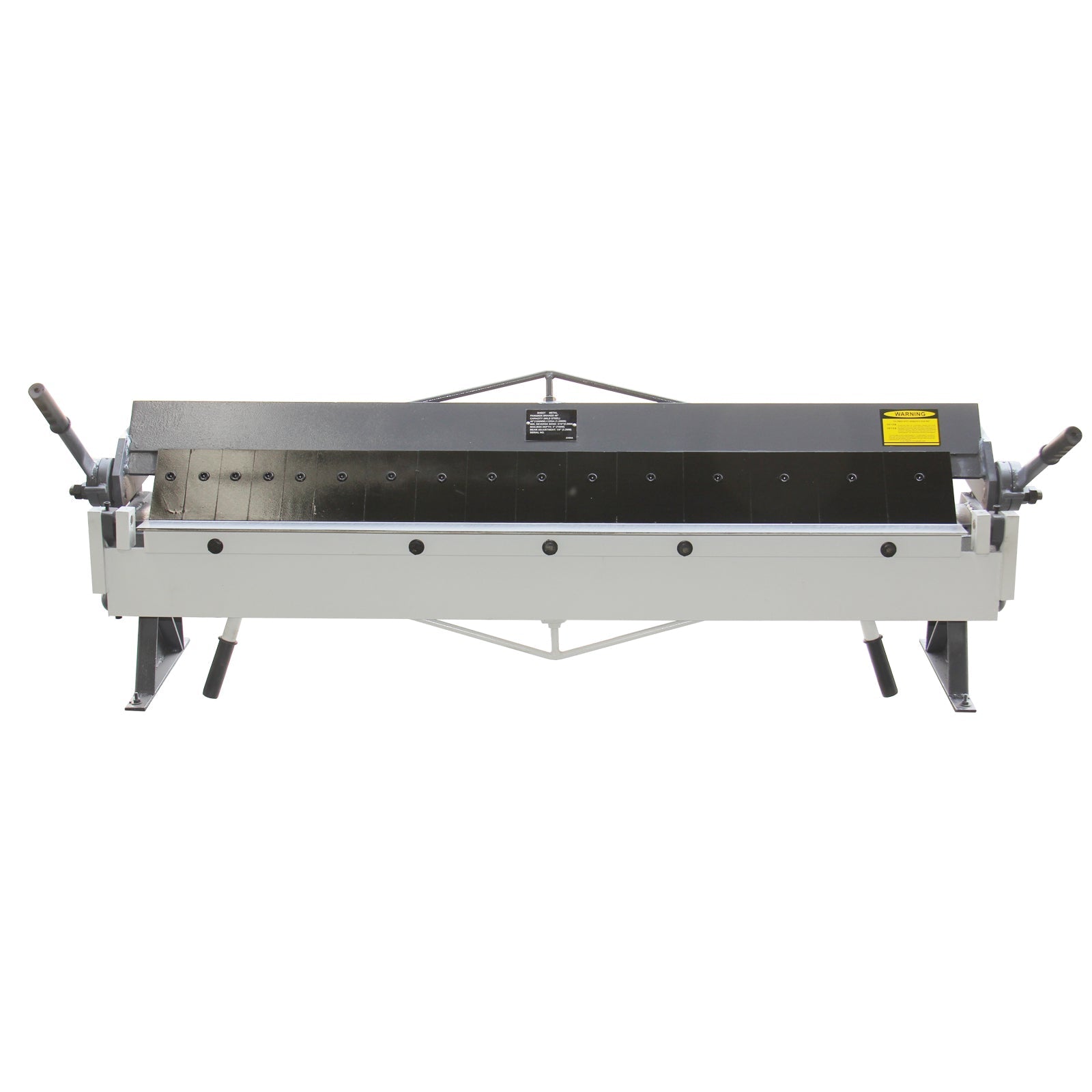

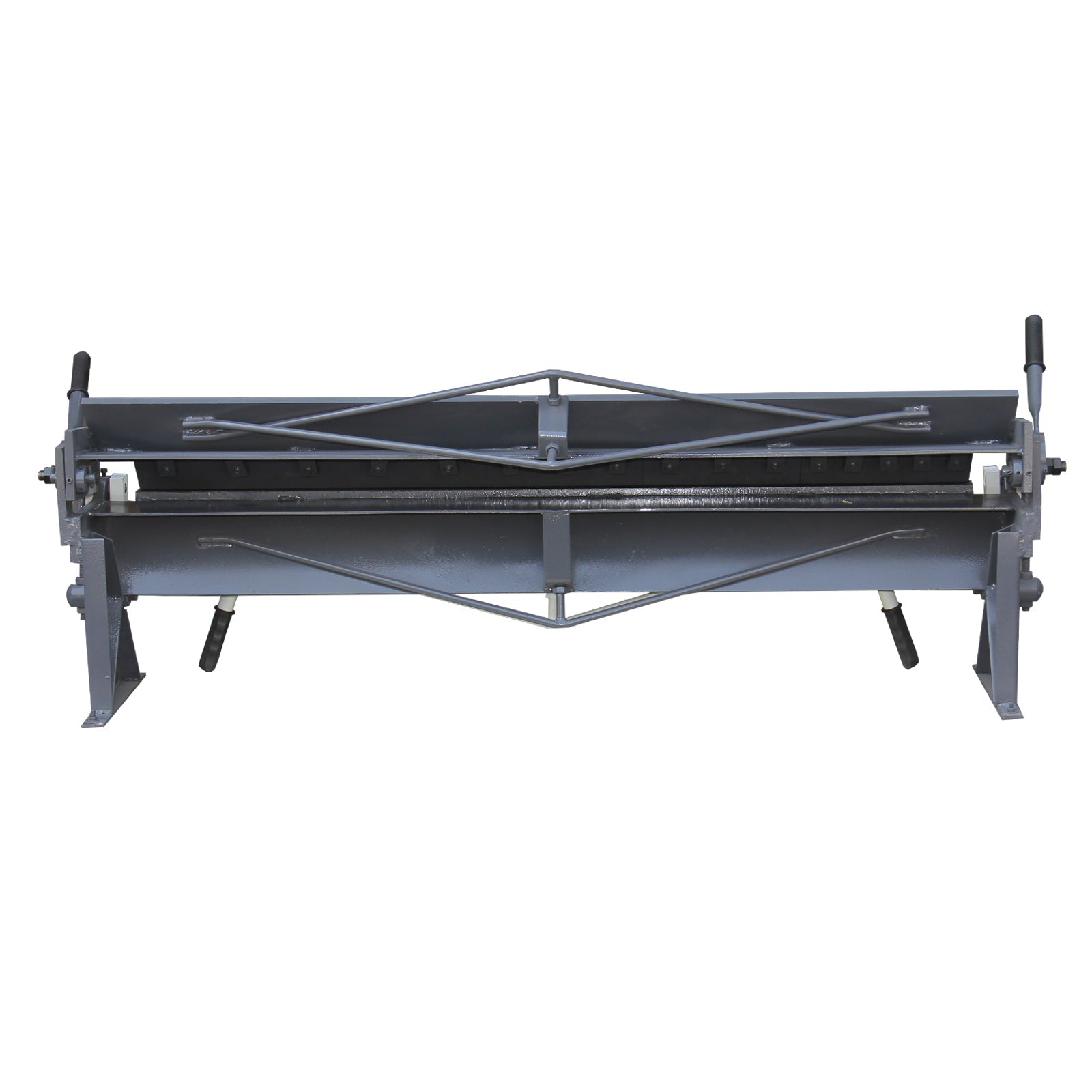

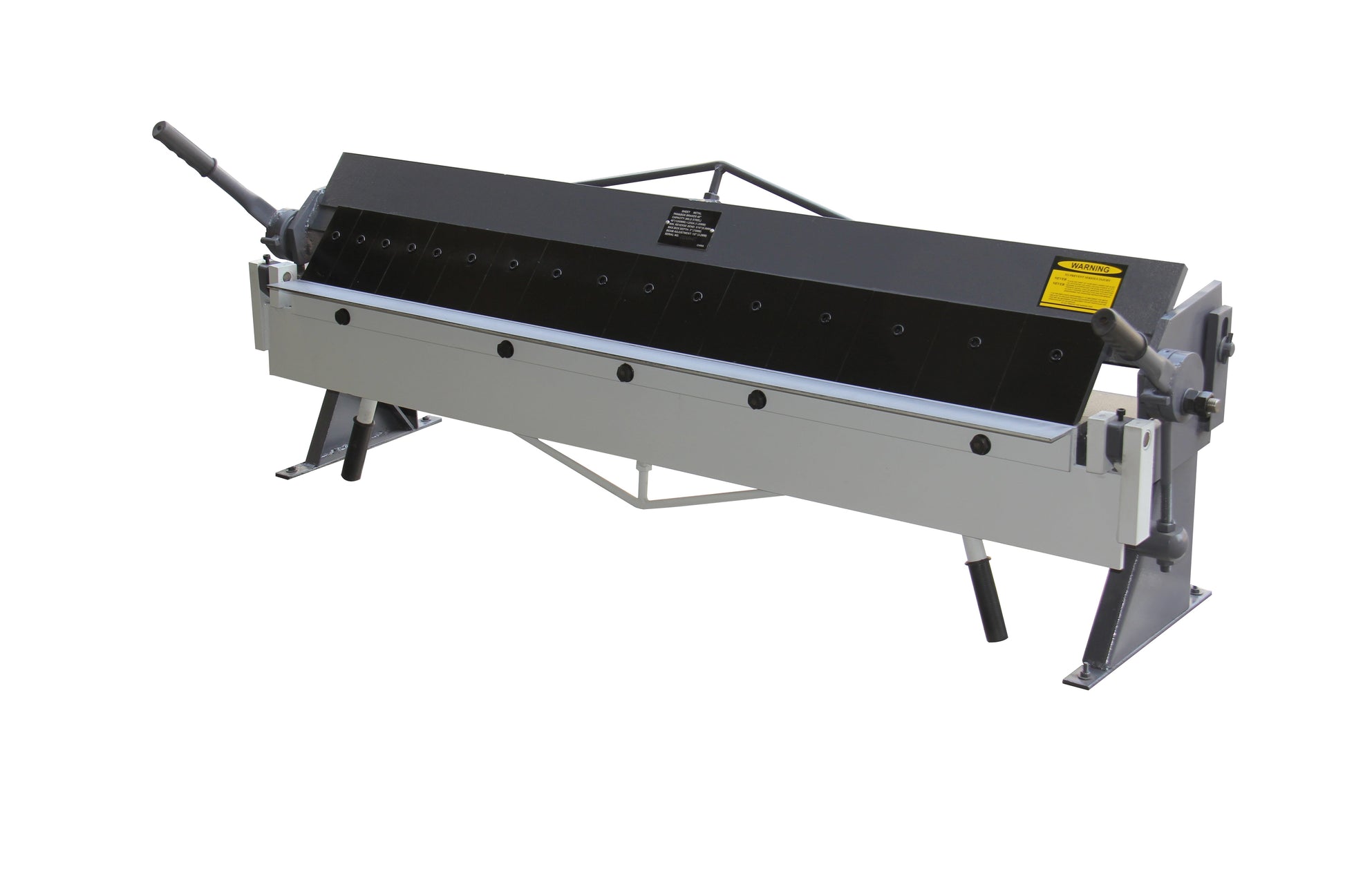

KAKA Industrial LW-4822,Pan and Box Brake 48"x22", includes total of 16 fingers in 2", 3", and 4" sizes Max Thickness 22 Gauge Mild Steel Capacity, Angle 1-135 Degree, Pan and Box Brake Machine - 162433
- Hardened steel box fingers

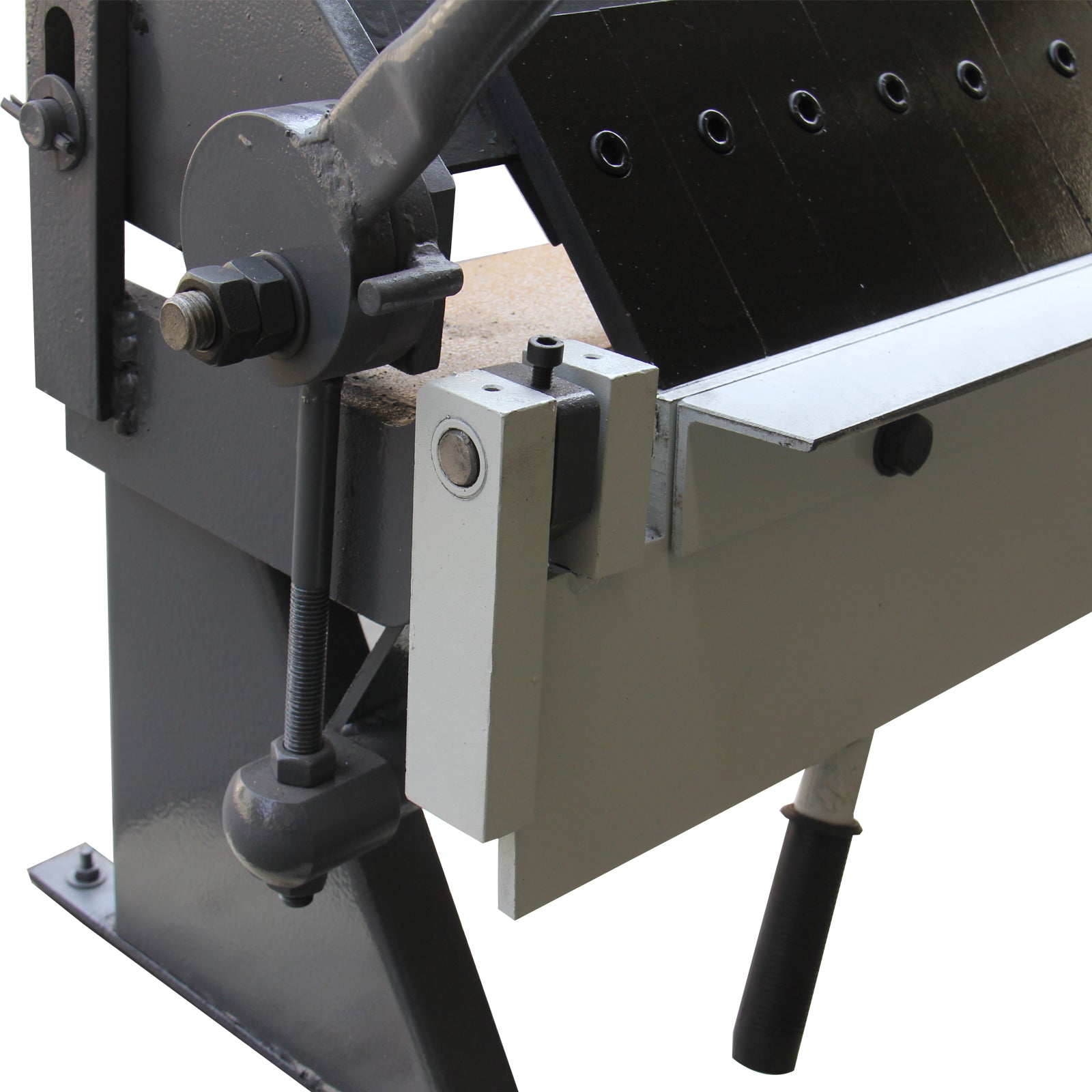

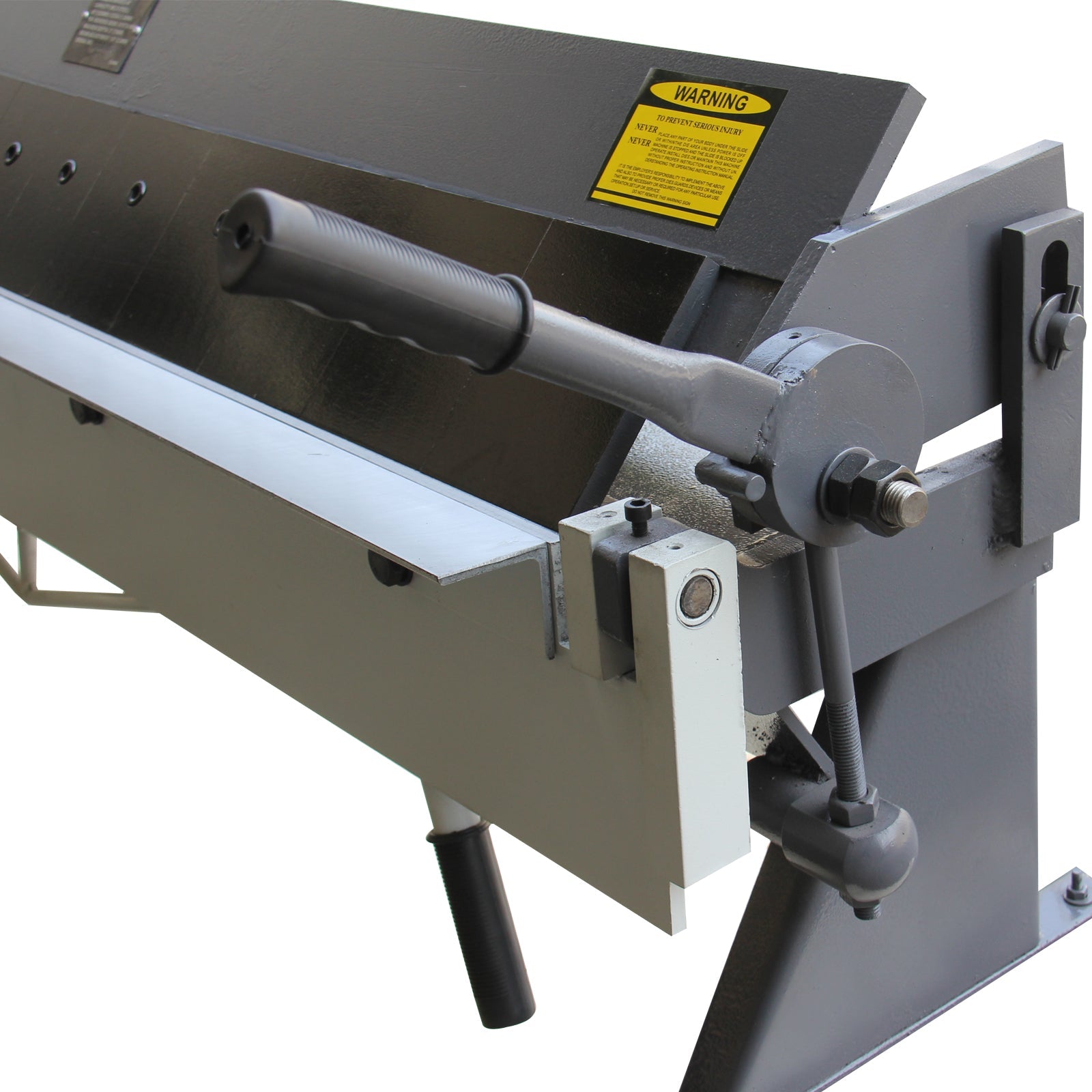

- Left & right beam control levers
- Brakes from 0° - 135°
- Finger segments size: 2" x 5pcs，3" x 6pcs，4" x 5pcs
- Fully trussed for strength & precision
Item No.:162433
Model: LW-4822
Capacity(in.): Length: 48”(1200mm)x Thickness: 22Ga(0.76mm)
MINIMUM REVERSE BEND: 5/16"(8.0mm)
Max. box depth: 3 "(75mm)
Beam Adjustment: 1/8"(3.2mm)
Packing size(in.)：62x16x26
N.W./G.W.(lbs)： 220/217
What Our Experts Think
-
The KAKA Industrial LW-4822 Pan and Box Brake (162433) delivers professional-grade precision for bending and forming sheet metal up to 22-gauge mild steel.
-
Features a 48-inch working width and includes 16 interchangeable fingers (2", 3", and 4") for maximum flexibility in creating boxes, pans, and custom parts.
-
The adjustable bending angle (1–135°) allows for accurate and repeatable results across various applications.
-
Built with a heavy-duty steel frame, ensuring stability, durability, and long-term reliability for workshop or industrial use.
Q&A
Q: What is the maximum material thickness it can handle?
A: It’s rated for 22-gauge mild steel with consistent bending precision.
Q: How many fingers are included, and what sizes?
A: Comes with 16 fingers in 2", 3", and 4" sizes for flexible box and pan forming.
Q: Can the bending angle be adjusted?
A: Yes, it offers a 1–135° adjustable bending range for various metal forming needs.
Q: Is it suitable for stainless steel or aluminum?
A: Yes, it can handle aluminum and light-gauge stainless steel, within rated thickness.
Maintenance Tips
-
Keep all finger dies clean and lightly oiled to prevent corrosion and maintain accuracy.
-
Lubricate hinges and moving parts regularly for smooth bending action.
-
Inspect alignment and fasteners before use to ensure even, precise bends.
-
Store in a dry area to protect from rust and extend the brake’s service life.
