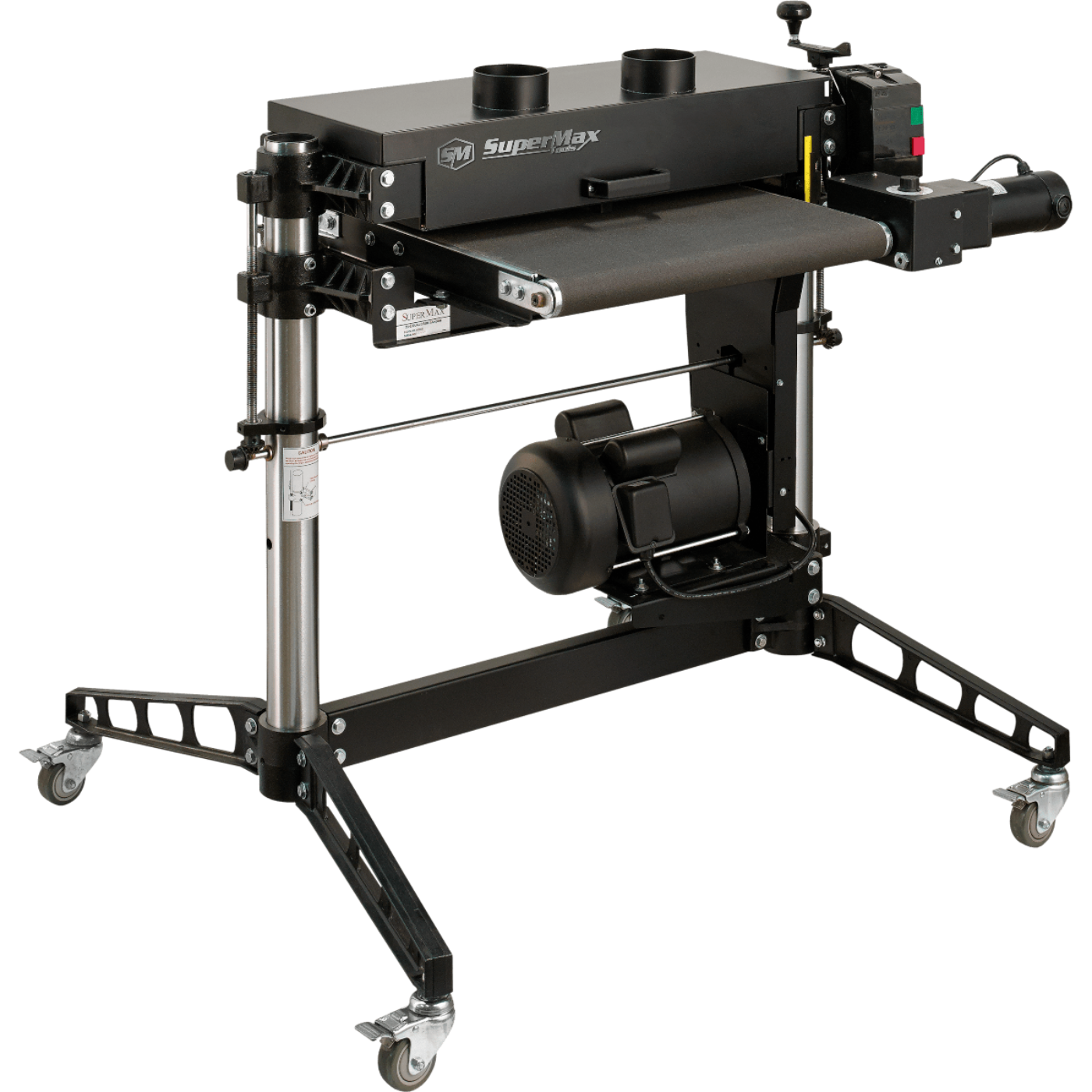

Laguna Tools Classic Double Drum Sander 25x2 - SUPMX-913002

Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.

Need a larger machine? Check out our 37×2 Drum Sander.

Features

INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load
- Prevents gouging, damaging or burning stock
- Provides consistent finish even with varying grain pattern and density
- Greatly increases abrasive planing and dimensioning speed
Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools
Self-cooling drum prevents overheating and extends abrasive life
Tension rollers are adjustable in height and hold down pressure, eliminating snipe
Excellent dust extraction as dust cover is formed to shape of drum
- Metal, not plastic, is formed to maximize air flow and dust extraction
Heavy-duty cast iron construction for strength, rigidity and reduced vibration
Mobile base allows for stand and machine to be to moved easily

Specifications

The 25×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor.

Sanding Capacity

Maximum Width (in): 25″
Minimum Length (in): 3-½″
Maximum Thickness (in): 6″
Minimum Thickness (in): 1/32″
Dimensions (H x W x D): 43″ x 46″ x 31″
Drum (Extruded Aluminum): 5″ x 25″
Drum Speed: 1740 RPM
Dust Hood (Steel Hood, Hinged At Back): (2) 4″ Vacuum Ports, Min CFM: 1000 Recommended
Ball Bearing (1″): 4 sealed and permanently lubricated
Conveyor Motor: 100 in. -lb. torque, direct drive D.C. motor, ranged variable, 0-15 FPM
Drive Motor (TEFC): 5 HP, 1 Phase
Power Requirements: 208-230V, 60Hz; 1 Phase, 30 Amp Service; 3 Phase 20 Amp Service
Shipping Weight: 475 lbs
Shipping Dimensions (L x W x H): 50″ x 44-½″ x 44

Manuals

Dimensions

Video

What Our Experts Think

High-Throughput Performance: The 25″ wide double-drum setup lets you sand rough stock and finish in one pass, saving time and improving efficiency.
Smart Conveyor Control: The IntelliSand® system automatically adjusts feed rate to prevent gouging, burning, or uneven sanding.
Precision Flat Results: Reinforced steel conveyor bed ensures exceptional flatness with minimal variation across the surface.
Heavy-Duty Build & Dust Management: Cast-iron frame and dual 4″ dust ports keep vibration low and the workspace clean.
Perfect for Mid-Size Shops: Compact yet powerful, it handles material up to 25″ wide and 6″ thick — ideal for professional workshops.

Q&A

Q: What is the maximum sanding width?
A: It can sand up to 25″ wide material.

Q: What’s the maximum thickness capacity?
A: Handles stock up to 6″ thick efficiently.

Q: What motor does it use?
A: Powered by a robust 5 HP motor designed for 220 V single-phase operation.

Q: How fast do the drums spin?
A: Each drum runs at approximately 1,740 RPM for smooth and even results.

Maintenance Tips

Clean Regularly: Remove dust and resin buildup from conveyor and drums after each use.
Adjust Tension Rollers: Keep roller pressure even to prevent snipe and ensure smooth feeding.
Lubricate Bearings: Check and oil bearings periodically to maintain long-term reliability.
Inspect Belts & Conveyor: Ensure correct alignment and tension for consistent feed rate.
Keep Dust Ports Clear: Maintain open airflow through both 4″ ports to prevent clogging and ensure optimal sanding performance.
