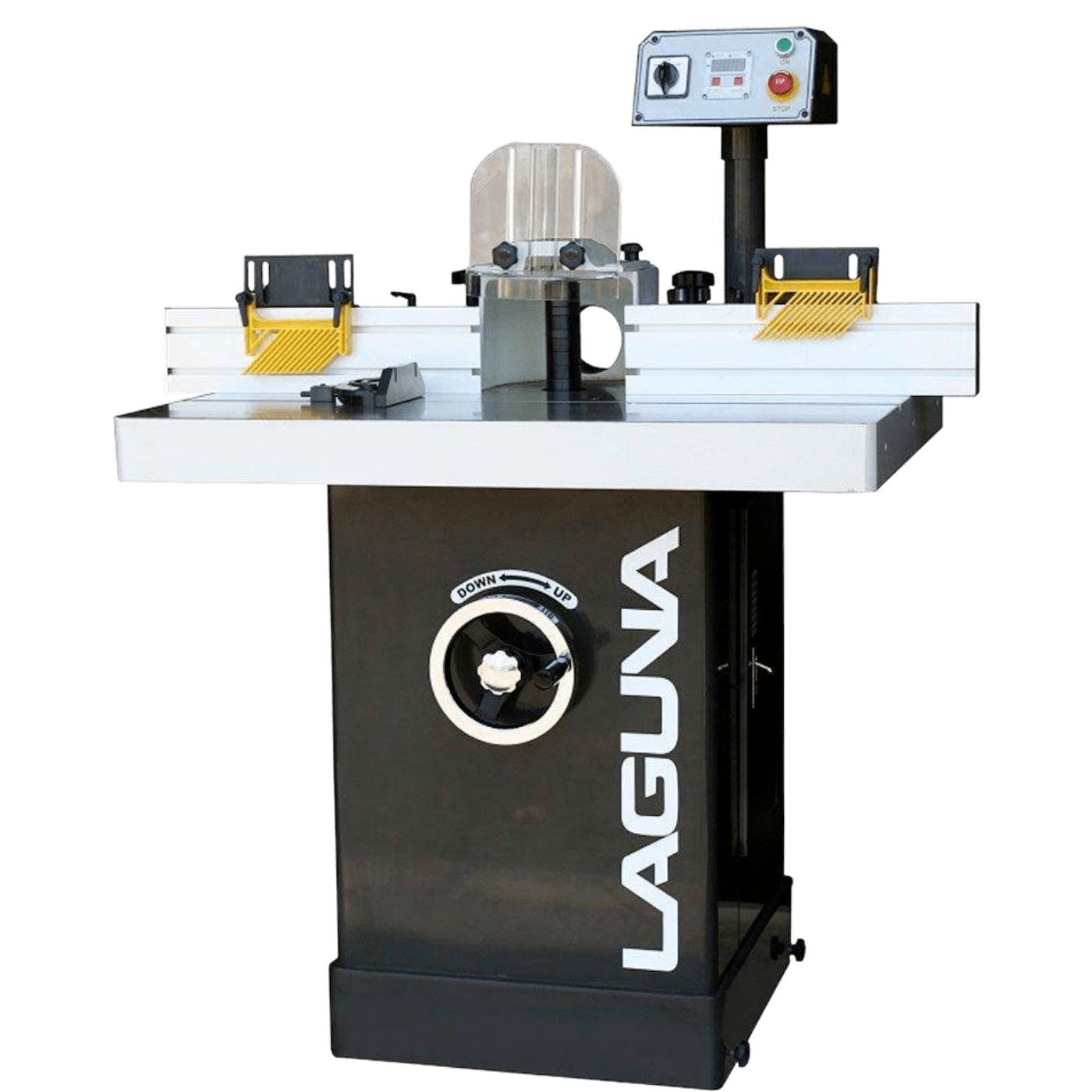

Laguna Tools Classic Shaper, Compact Pro - MSHAP5010-0130

Manual

•  Pro Shaper Manual

Video

What Our Experts Think

• Powerful & Precise: The Laguna Tools Classic Shaper, Compact Pro - MSHAP5010-0130 offers a strong 5 HP, 220V single-phase motor for consistent shaping performance.

• Large Work Surface: A 39-5/16" x 31-7/16" cast iron table provides excellent stability and control for professional results.

• Versatile Spindle Speeds: Operates at 5,000 / 7,000 / 10,000 RPM for various cutter sizes and materials.

• Accurate Adjustments: Micro-adjust fence and digital readout ensure precise shaping every time.

• Built for Pros: Durable build and easy belt changes make it ideal for cabinetmakers and woodworking shops.

Q&A

Q: What motor does it use?
A: It comes with a 5 HP, 220V single-phase motor for powerful shaping.
Q: What is the table size?
A: The table measures 39-5/16" x 31-7/16" x 3-1/2", giving you ample workspace.
Q: What spindle sizes are supported?
A: Accepts 3/4" and 1-1/4" spindles for tool flexibility.
Q: What are the spindle speeds?
A: Offers 5,000 / 7,000 / 10,000 RPM speeds to match different materials and cutters.

Maintenance Tips

• Clean regularly: Wipe the table and spindle area after each use to prevent buildup.

• Lubricate moving parts: Apply light oil to height screws and fence adjustments.

• Check belts: Inspect and tension belts regularly for smooth speed changes.

• Inspect spindle: Ensure the spindle runs true and stays debris-free.

• Maintain dust collection: Keep the dust port clean for efficient operation.
