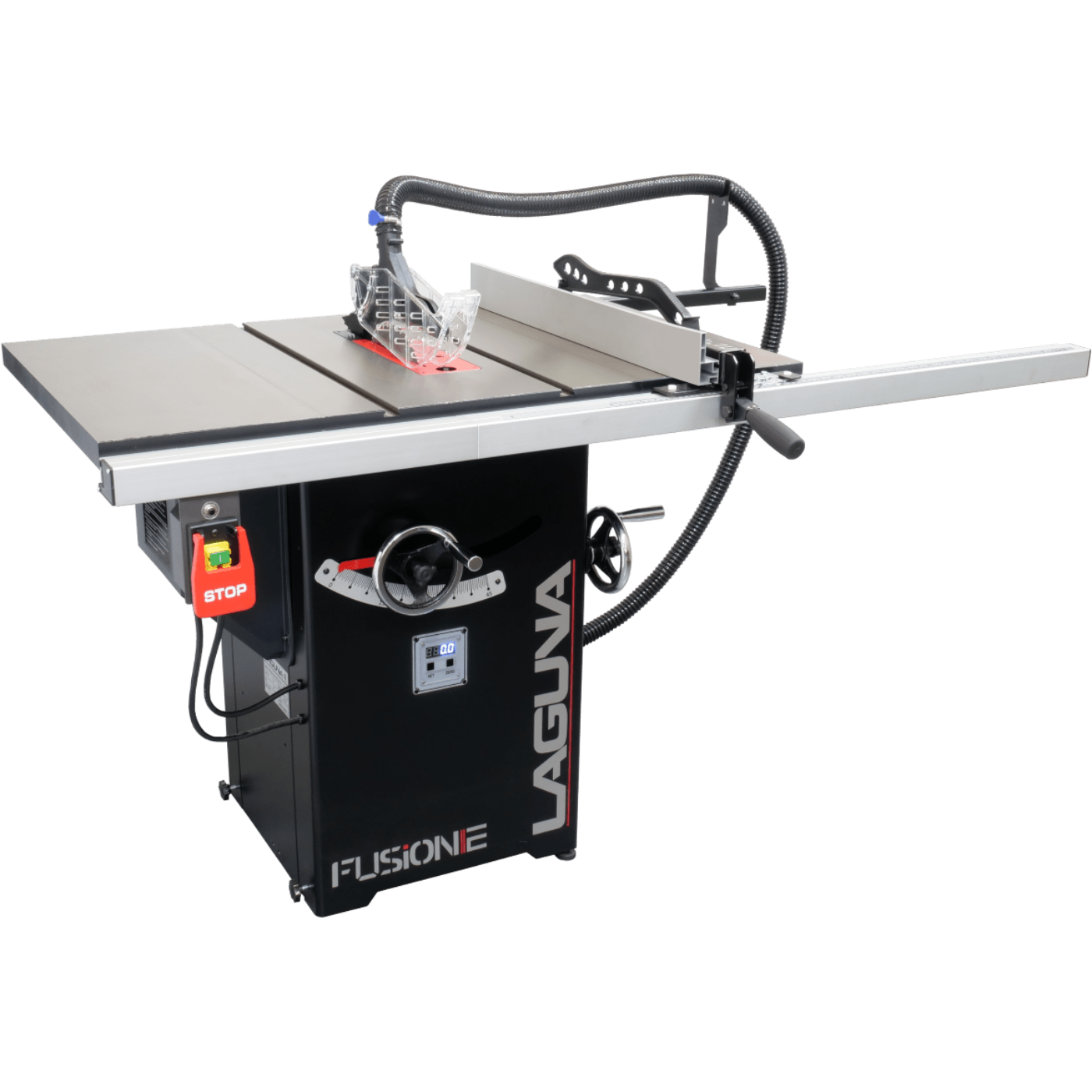

Laguna Tools Classic Machinery F2 Fusion Tablesaw - MTSF236110175-0130

Name: Laguna Tools Classic Machinery F2 Fusion Tablesaw - MTSF236110175-0130
Brand: Laguna Tools
SKU: MTSF236110175-0130
Price: 1839.99 USD
Availability: InStock

Laguna Tools Classic Machinery F2 Fusion Tablesaw - MTSF236110175-0130

1 Review

8% Sale

Only left!

Free Delivary

Limited Stocks

~~$1,999.00~~ $1,839.99

Taxes included. Shipping calculated at checkout.

Quantity

Quantity

View full details

SALE ENDS IN

07 HRS

23 MINS

28 SECS

DON'T MISS IT!

Popular Add on

Offer Price

$0.00

$100.00

Laguna Tools Classic Machinery F2 Fusion Tablesaw - MTSF236110175-0130

The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.

Features

1.75HP TEFC Motor
110V, Single-Phase, 60Hz Power Requirement
Fusion Dust Collection System
Cabinet Mounted Design
Included Tools & Integrated Tool Storage
Included 10 x 60T Carbide-Tipped Blade

F2 Fusion Tablesaw

Digital Readout

Laguna has added DRO for the tilt on the Fusion F2 & F3 as standard equipment

European Hi/Low Fence

The Rip fence on Fusion F2 & F3 now features a Hi/Low window to work with the European style Hi/Low fence.

Optional 220V Upgrade

Contact Laguna Service For Details

On-Board Tool Storage

Have your rip fence and other Fusion accessories out of the way but easily accessible

Additional Details

F2 Features

Full Cabinet Body
Trunion Mounted To Body Not Table
Cast Iron Table & Wings
European Hi-Lo Fence
Overhead Dust Collection
Quick-Release Blade Guard & Splitter
Riving Knife Included
Fence Mounted Push Stick
Miter Gauge Included
Tool less Blade Lock
Integrated Tool Storage
Polished Handles
10″ x 60T Blade Included
Premium Arbor & Motor Bearings

Specifications

Dust Port Size: 4 in.
Blade Guard Dust Port Size: 1-½″
Table Saw Type: Cabinet
Maximum Blade Diameter: 10″
Arbor Size: ⅝″
Arbor Speed: 4500 RPM
Maximum Width Of Dado: ¾″
Blade Tilt Direction: Left
Max Blade Tilt: 45°
Maximum Depth Of Cut At 90°: 3-⅛″
Maximum Depth Of Cut At 45°: 2-⅛″

Max Rip Right Of Blade With Included Fence & Rails: 37″ *

* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.

Blade Table & Fence

Blade Information

Included Blade Information: 10″ x 60T
Riving Knife/Spreader Thickness: 3/32″
Required Blade Body Thickness: > ⅛″
Required Blade Kerf Thickness: < 5/64″

Table Information

Floor To Table Height: 35″
Table Size With Extension Wing Width: 44″
Table Size With Extension Wings Depth: 27″
Distance – Front Of Table To Center Of Blade: 13-⅜″
Distance – Front Of Table To Blade At Maximum Cut: 8-21/32″
Main Table Size Thickness: 1-½″

Fence Information

Fence Type: Camlock T-Shape With Aluminum European Hi-Lo Fence
Fence Size Length: 33-7/16″
Fence Size Width: 9-13/16″
Fence Size Height: 3″
Fence Rail Type: Aluminum Extrusion/Angle Steel
Fence Rail Length: 66-9/16″
Fence Rail Width: 3″
Fence Rail Height: 2

Dimension

Weight (Net): 276 lbs
Overall Width (Side-To-Side): 66-13/16″
Overall Depth (Front-To-Back): 39-⅜″
Overall Height: 42-⅞″
Footprint Width: 19-¼″
Footprint Length: 42-½″
Space Required For Full Range Of Movement Width (Side-To-Side): 66-13/16″
Space Required For Full Range Of Movement Depth (Front-To-Back): 39-⅜″
Shipping Weight: 435 lbs
Shipping Dimensions (W x L x H): 30″ x 48″ x 43

Construction Information

Table: Precision-Ground Cast Iron
Wings: Precision Cast Iron
Cabinet: Pre-Formed Steel
Trunnions: Cast Alloy
Body Assembly: Pre-Formed Steel
Fence Assembly: Aluminum Extruded Body
Rails: Steel
Miter Gauge Construction: Aluminum Body With Steel Bar
Guard: Steel And Clear Plastic
Body/Cabinet Paint Type/Finish: Powder Coated
Arbor Bearings: Sealed & Permanently Lubricated

Video

Manuals

F2 Fusion Manual
DRO Manual

What Our Experts Think

Precision & Power: The Laguna Tools Classic Machinery F2 Fusion Tablesaw - MTSF236110175-0130 combines accuracy and performance with its 1.75 HP, 110V motor, perfect for both professional and serious hobbyist woodworkers.
Smooth, Accurate Cuts: Features a precision-ground cast iron top and T-style rip fence for stability and repeatable accuracy.
Compact yet Strong: Its hybrid cabinet design offers the strength of a full cabinet saw in a smaller footprint.
Safety Focused: Comes equipped with a riving knife, blade guard, and quick-stop function for safer operation.
Dust-Free Performance: The built-in dust shroud and cabinet collection port ensure a clean workspace.

Q&A

Q: What motor power does it have?
A: The saw runs on a 1.75 HP, 110V TEFC motor for reliable cutting power.
Q: What is the rip capacity?
A: Offers up to 36” rip capacity, ideal for sheet goods and large projects.
Q: Is it suitable for fine woodworking?
A: Yes, its precision alignment system and flat cast iron table deliver cabinet-grade cuts.
Q: Does it have mobility options?
A: Yes, it includes built-in mobility wheels for easy shop movement.

Maintenance Tips

Clean the tabletop regularly: Wipe with a rust-preventive wax to maintain a smooth surface.
Check blade alignment: Keep the blade parallel to the miter slot for accurate cuts.
Inspect belts and pulleys: Ensure proper tension and replace if worn.
Lubricate trunnions and gears: Apply light oil for smooth height and tilt adjustments.
Maintain dust collection: Empty the dust port and clean filters for efficient performance.
