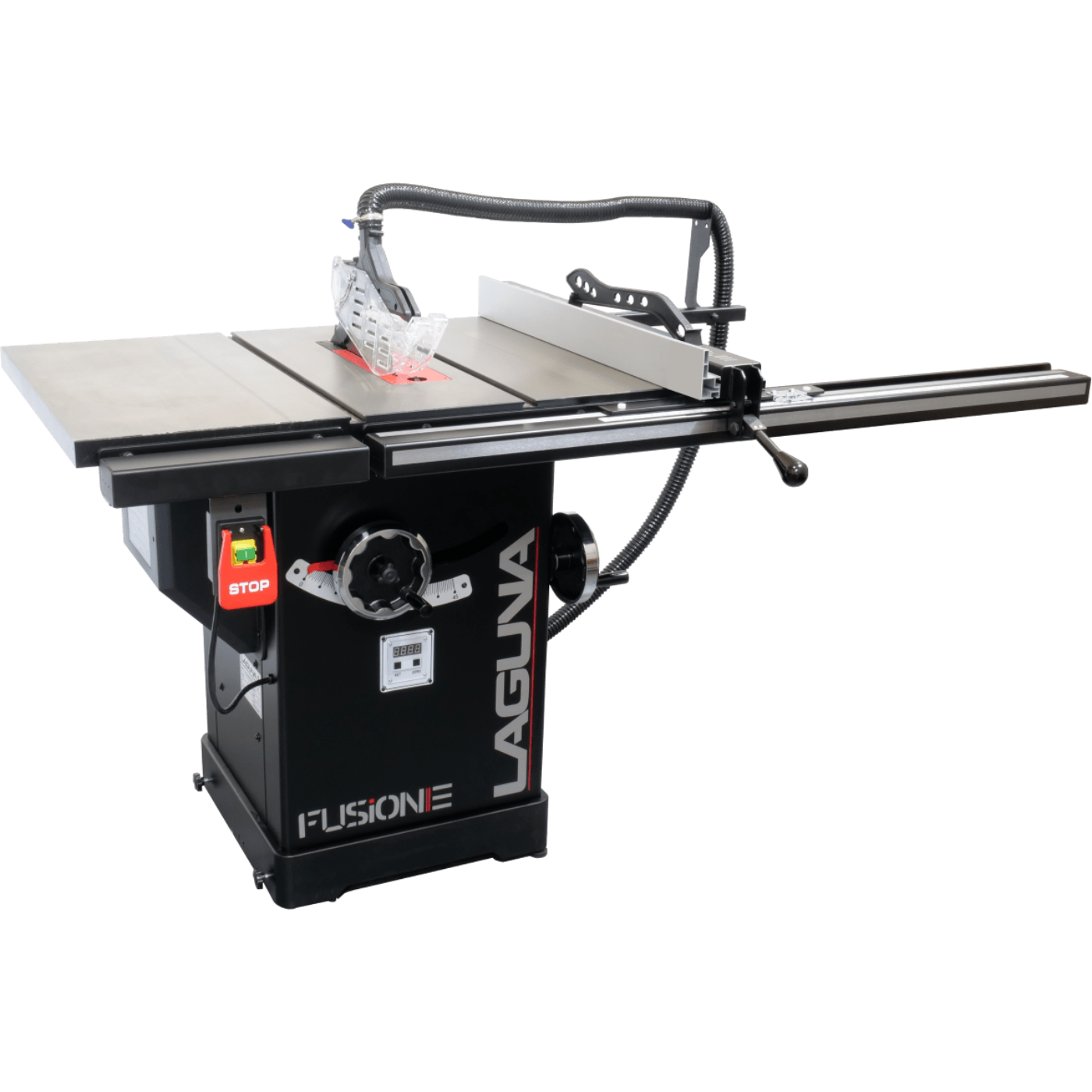

Laguna Tools Classic Machinery F3 Fusion Tablesaw - MTSF3362203-0130

Name: Laguna Tools Classic Machinery F3 Fusion Tablesaw - MTSF3362203-0130
Brand: Laguna Tools
SKU: MTSF3362203-0130
Price: 2897.99 USD
Availability: InStock

Laguna Tools Classic Machinery F3 Fusion Tablesaw - MTSF3362203-0130

1 Review

8% Sale

Only left!

Free Delivary

Limited Stocks

~~$3,149.00~~ $2,897.99

Taxes included. Shipping calculated at checkout.

Quantity

Quantity

View full details

SALE ENDS IN

07 HRS

23 MINS

28 SECS

DON'T MISS IT!

Popular Add on

Offer Price

$0.00

$100.00

Laguna Tools Classic Machinery F3 Fusion Tablesaw - MTSF3362203-0130

The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 3 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.

Features

3HP TEFC Motor
220V, Single-Phase, 60Hz Power Requirement
Fusion Dust Collection System
Industrial Cabinet, Fence & Trunnions
Included Tools, Tables & Integrated Tool Storage
Included 10 x 60T Carbide-Tipped Blade

F3 Fusion Tablesaw

Digital Readout

Laguna has added DRO for the tilt on the Fusion F2 & F3 as standard equipment

European Hi/Low Fence

The Rip fence on Fusion F2 & F3 now features a Hi/Low window to work with the European style Hi/Low fence.

Outfeed Table

Coming standard with the Fusion F3, the outfeed table features dual miter slots and 2 supporting legs

Cabinet Mounted Trunion

Adjusting the table to line up the miter guage has never been easier

Industrial Fence & Rails

The fence glides effortlessly on the industrial strength steel fence rails

F3 Features

Industrial 14 Gauge Cabinet
Accessory Tables (Outfeed & Rip)
Industrial Fence Rail
Industrial Fusion Fence
Premium Electrical & Hardware Components
Premium Miter Gauge
Cast Iron Fusion Trunnions
Cabinet Mounted Arbor
Cast Iron Table & Wings
European Hi-Lo Fence
Premium Zero Clearance Throat Plate

Fusion Hi-Lo Dust Collection
Magnetic Contractor Switch
Quick-Release Blade Guard and Spreader
Riving Knife Included
Push Stick Included
Miter Gauge Included
Blade Changing Tool Included
Integrated Tool Storage
10 x 60T Carbide-Tipped Blade Included
Premium Arbor & Motor Bearing

Specifications

Dust Port Size: 4″
Blade Guard Dust Port Size: 1-½″
Table Saw Type: Cabinet
Maximum Blade Diameter: 10″
Arbor Size: ⅝″
Arbor Speed: 4500 RPM
Maximum Width Of Dado: ¾″
Blade Tilt Direction: Left
Max Blade Tilt: 45°
Maximum Depth Of Cut At 90°: 3-⅛″
Maximum Depth Of Cut At 45°: 2-⅛″
Max Rip Right Of Blade With Included Fence & Rails: 37″ *

* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.

Blade Table & Fence

Blade Information

Included Blade Information: 10″ x 60T
Riving Knife/Spreader Thickness: 3/32″
Required Blade Body Thickness: > ⅛″
Required Blade Kerf Thickness: < 5/64″

Table Information

Floor To Table Height: 35″
Table Size With Extension Wing Width: 61″
Table Size With Extension Wings Depth: 27″
Distance – Front Of Table To Center Of Blade: 13-7/16″
Distance – Front Of Table To Blade At Maximum Cut: 8-⅝″
Main Table Size Thickness: 1-½″

Fence Information

Fence Type: Camlock T-Shape With Aluminum European Hi-Lo Face
Fence Size Length: 33-7/16″
Fence Size Width: 16″
Fence Size Height: 3″
Fence Rail Type: Aluminum Extrusion/Angle Steel
Fence Rail Length: 67-⅞″
Fence Rail Width: 3″
Fence Rail Height: 2″

Dimensions

Weight (Net): 385 lbs
Overall Width (Side-To-Side): 69″
Overall Depth (Front-To-Back): 56″
Overall Height: 43″
Footprint Width: 20-½″
Footprint Length: 42-½″
Space Required For Full Range Of Movement Width (Side-To-Side): 69″
Space Required For Full Range Of Movement Depth (Front-To-Back): 56″

Construction Information

Table: Precision-Ground Cast Iron
Wings: Precision-Ground Cast Iron
Cabinet: 14 Gauge Steel
Trunnions: Cast Iron
Body Assembly: 14 Gauge Steel
Fence Assembly: Steel Body
Rails: Industrial Steel
Miter Gauge Construction: Cast Iron With Steel Bar
Guard: Steel And Clear Plastic
Body/Cabinet Paint Type/Finish: Powder Coated
Arbor Bearings: Sealed & Permanently Lubricated

Video

Manuals

F3 Fusion Manual
DRO Manual

What Our Experts Think

Precision & Power Combined: The F3 Fusion Tablesaw is engineered for serious woodworkers, offering industrial accuracy with a compact, shop-friendly footprint.
Smooth, Accurate Cutting: A precision-ground cast-iron table and trunnion-mounted motor deliver stable, vibration-free performance.
High Efficiency Motor: Powered by a 3 HP motor, it cuts hardwoods and sheet goods effortlessly with consistent torque.
Premium Fence System: The polished aluminum fence glides smoothly and locks firmly for precise, repeatable cuts.
Professional Build Quality: Cabinet-style base, enclosed dust collection, and advanced safety features make it ideal for long-term reliability.

Q&A

Q: What motor power does the F3 Fusion Tablesaw have?
A: It features a 3 HP motor for powerful, consistent cutting through hardwood and thick materials.

Q: What type of fence system is included?
A: It comes with a premium aluminum rip fence for smooth movement and accurate alignment.

Q: Does it support dado blades?
A: Yes, the arbor accommodates dado sets for versatile joinery and cutting options.

Q: What is the table made of?
A: The table is cast iron, precision-ground for stability and reduced vibration.

Maintenance Tips

Clean Table Surface: Wipe with a non-silicone protectant after each use to prevent rust and buildup.
Check Blade Alignment: Regularly ensure blade-to-fence and blade-to-miter slot alignment for accuracy.
Lubricate Trunnion & Gears: Apply light lubrication to elevation and tilt mechanisms monthly.
Inspect Drive Belt: Check belt tension and wear periodically to maintain cutting power.
Maintain Dust System: Keep the cabinet and dust port clear to improve airflow and machine life.
