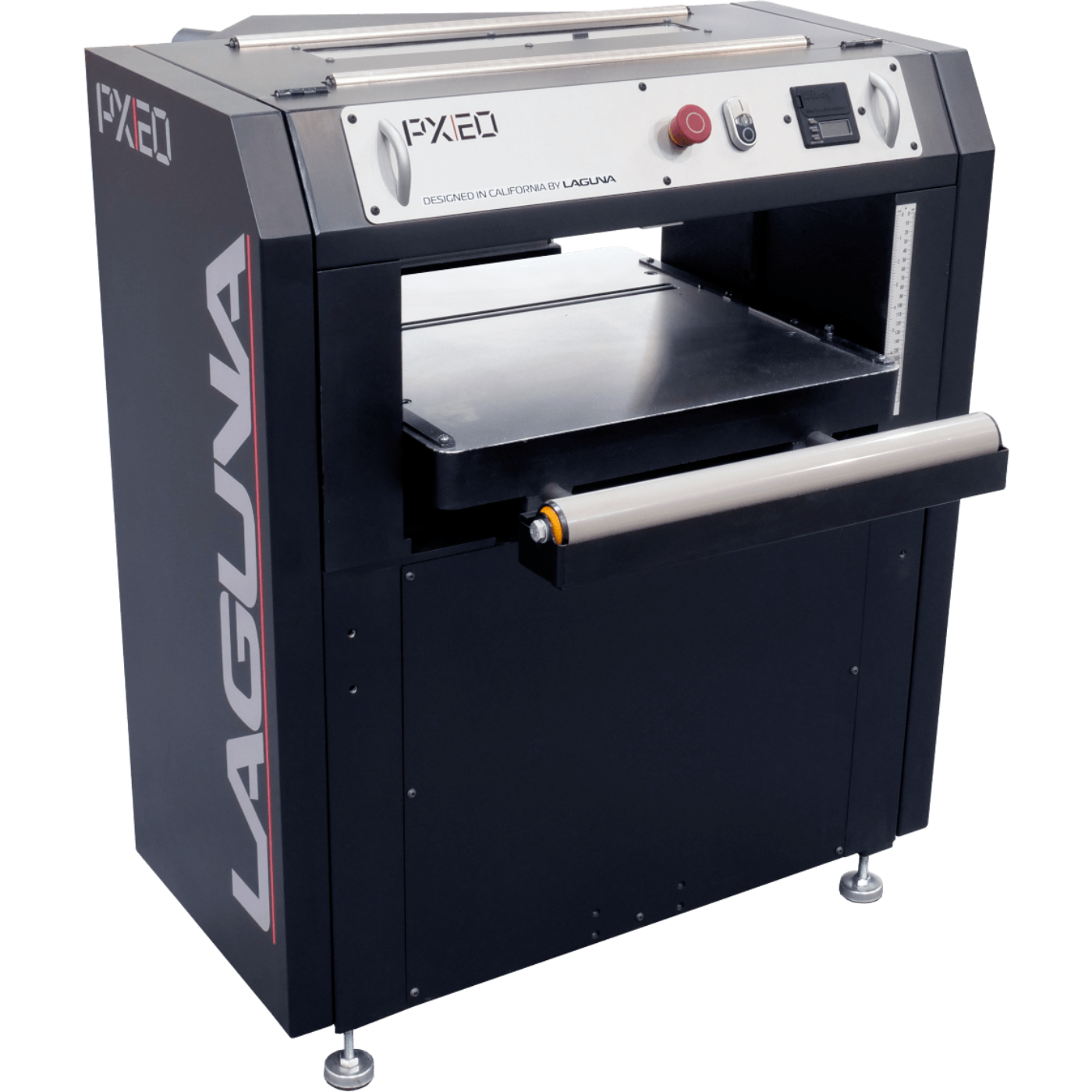

Laguna Tools Classic Planer - PX|20 - MPLANPX20-0130

The all-new PX|20 planer signals an innovative new design for Laguna planers. The Laguna PX|20 is loaded with new ergonomic features to make woodworking safer and more enjoyable.

The ShearTec: II features 4-sided solid carbide inserts with a T-shoulder rather than a cone-shaped design, which helps prevent cracking of the inserts.

The ShearTec II cuttherhead comes as standard equipment on PX|20 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without need for a knife setting jig.

Features

Infeed and Outfeed Rollers – The PX|20 features infeed and outfeed rollers to assist with material loading and feeding while keeping a compact footprint
Digital Readout – The DRO has been moved to the control panel to provide better ergonomics and make precision settings easier
Ergonomic Control Panel – Machine controls have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility. Combined with the new cabinet, the PX|20 sports a sleek, modern design
Improved Dust Collection – The 4″ diameter dust chute offers the option to point to right or left to optimize dust collection system layout
4-Post Bed Support – Provides precise and consistent performance with every cut
ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
Serrated Infeed Roller – The serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe

Specifications

Motor: 220v 5HP 1 Phase 60hz/23 Amp.
CSA: Yes
Bed Size: 20″ x 21-½″
Pull-Out Extension: 4″
Max. Depth Of Cut: ¼″
Max. Stock Thickness: 8″
Min. Stock Thickness: ¼″
Min. Stock Length: 8″
Max. Stock Width: 20″
Feed Speed: 16 & 28 FPM
Dust Port Diameter: 4″ Left & Right
Cutterhead RPM: 5000
Cutterhead Diameter: 3″
Cutterhead Insert #: 138 x 4-Sided Carbide, 6 Row
Plug (NEMA 5-15P): No
Thickness Readout: Wixey DRO
Noise (1m away): 83dB
Dimensions Set Up Approx. 36″ x 36″
Dimensions Shipping: 42″ x 30″ x 46″
Net/Ship Weight: 535/638 Lbs.

Manual

PX|20 Planer Manual

Video

What Our Experts Think

Professional Accuracy: The JX|8 ShearTec II delivers exceptional jointing precision with a solid cast-iron construction and ShearTec II helical cutterhead.
Quiet, Clean Performance: The 54 carbide inserts provide whisper-smooth cuts and extended edge life while minimizing tear-out.
Powerful 3 HP Motor: Consistent torque and cutting strength make it ideal for hardwoods and long stock.
Enhanced User Control: Features parallelogram table adjustment for easy, precise height control and consistent depth of cut.
Built for Stability: Heavy-duty base and long infeed/outfeed tables ensure vibration-free operation and perfect alignment.

Q&A

Q: What cutterhead does the JX|8 use?
A: It features the ShearTec II helical cutterhead with 54 carbide inserts for superior finish quality.

Q: What is the motor power?
A: The jointer is powered by a 3 HP motor, designed for steady and powerful performance.

Q: What is the maximum cutting width?
A: The machine handles boards up to 8 inches wide.

Q: What kind of table system does it have?
A: It uses a parallelogram table system for precise and stable height adjustments.

Maintenance Tips

Clean Tables After Use: Wipe with a rust-preventive protectant to maintain a smooth surface.
Rotate Cutter Inserts: Turn inserts 90° when dull for consistent cutting results.
Check Fence Alignment: Verify squareness regularly to ensure accurate jointing.
Lubricate Table Adjustments: Lightly oil the parallelogram pivots and elevation screws monthly.
Inspect Belts and Guarding: Ensure belts are tensioned properly and the cutterhead guard moves freely for safety.
