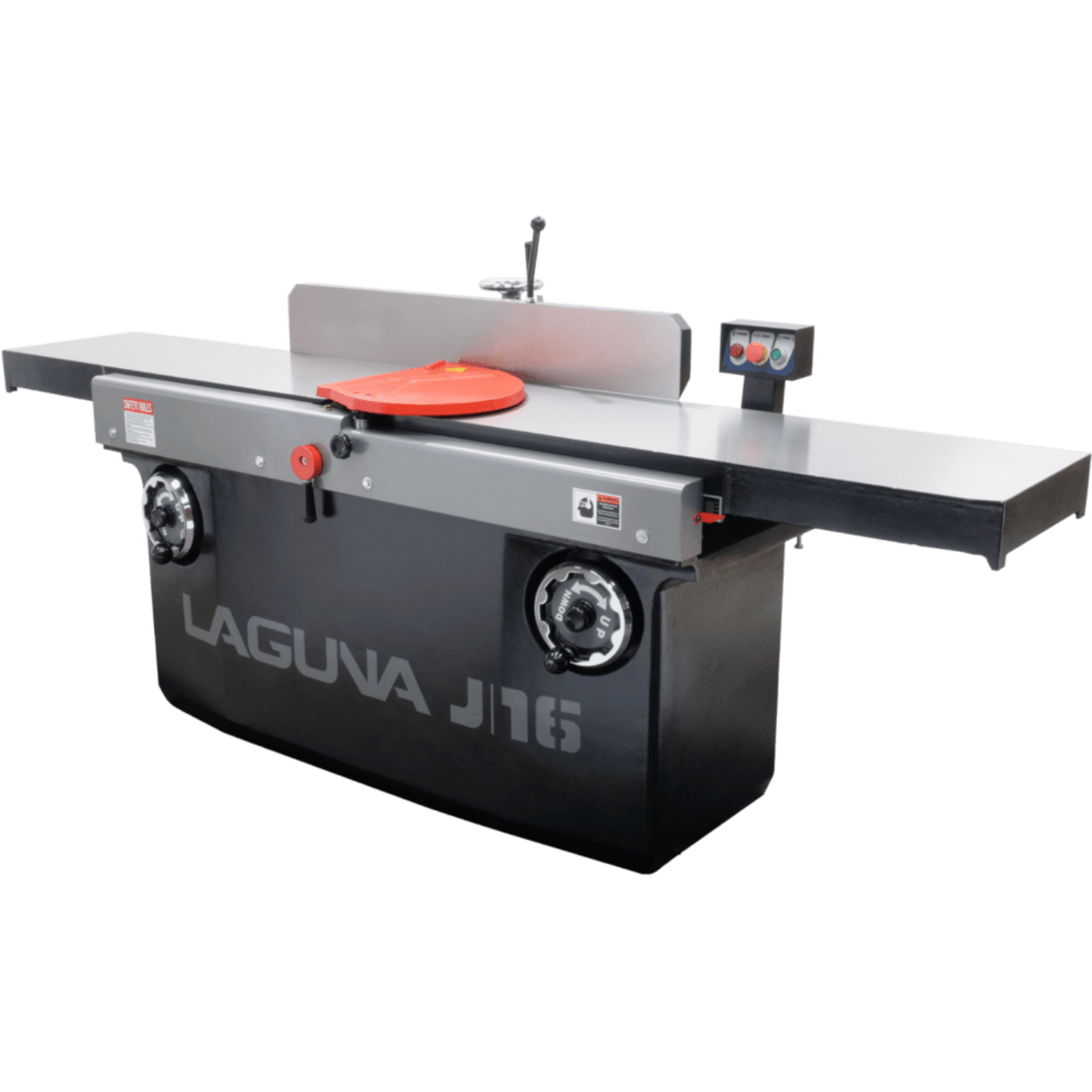

Laguna Tools Industrial Jointer, 16" J|16 - MJO6405-5HP-1PH-0800 16" Jointer HD 1PH

What Our Experts Think

• Robust industrial design: 16″ width and over 8 ft long cast-iron tables provide serious capacity and rigidity for heavy shop use.

• Precision cutterhead: Features a ShearTec cutterhead with carbide insert knives, enabling cleaner cuts and longer tool life.

• Smooth fence & adjustment system: Heavy-duty rack & pinion fence with parallelogram table adjustment offers accurate and repeatable setup.

• High-performance motor: 5 HP single-phase drive gives strong cutting capability while remaining accessible for most shop power.

• Professional workflow ready: Large tables, overhead control panel and sound build quality mean this machine is designed for steady production.

Q&A

Q: What width of material can it handle?
A: Up to 16″ width capacity, designed for wide stock and large panels.
Q: How long are the tables?
A: Approximately 98″ long cast-iron tables support extended workpieces.
Q: What motor and phase does this model use?
A: 5 HP single-phase configuration (with options for other configurations).
Q: What cutterhead speed and diameter?
A: Cutterhead runs at ~5000 RPM, with roughly 110 mm (≈4.33″) diameter insert type.
Q: What tilt or fence adjustment does it provide?
A: Fence tilts from 90° to 45°, enabling angled work and flexible jointing setups.

Maintenance Tips

• Clean tables & cutterhead area regularly: Wipe off dust, chips and resin after each use to maintain smooth feed and flat surfaces.

• Check insert knives: Inspect carbide bits for wear or chipping and rotate or replace before finish quality suffers.

• Lubricate adjustment mechanisms: Apply light oil or grease to parallelogram screws, hand-wheels, and fence shaft for smooth motion.

• Verify table alignment & fence accuracy: Periodically check that in-feed and out-feed tables are flush and that the fence is square for consistent jointing.

• Maintain dust extraction & guards: Ensure the dust port remains clear and safety guards are functioning—good extraction reduces wear and improves shop air quality.
