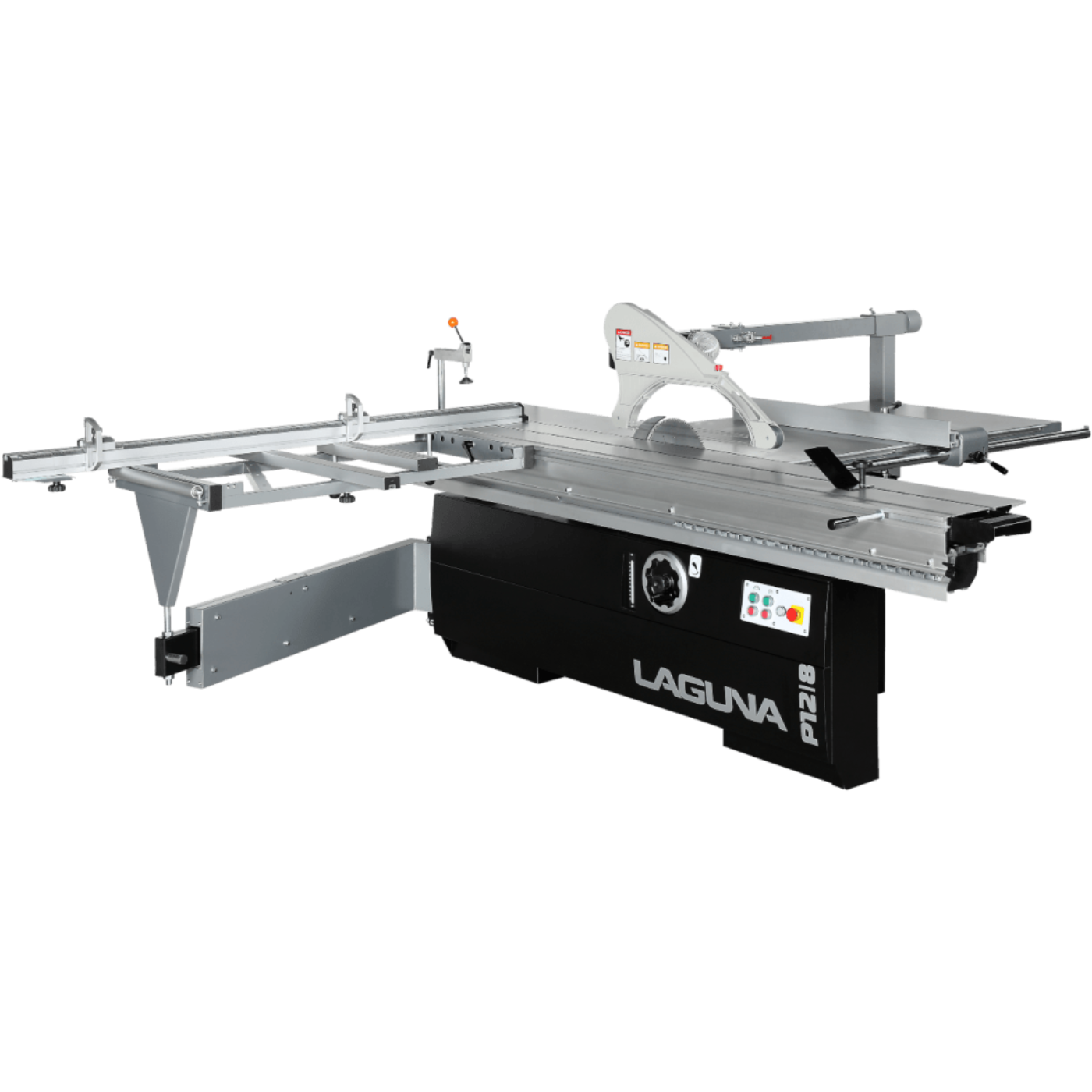

Laguna Tools Industrial Sliding Panel Saw P12|8 - MPSP12-8-7.5hp-3PH-0135

The P12|8 was designed to clear 8′. material using a 12″ blade. This means that when you finish your stroke, the back end of your sheet will just have cleared the blade, causing no friction as the blade is spinning down. The 102? sliding table is constructed of anodized aluminum. Our dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly.

The European style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally.

The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way. Dust collection hookup is out of the way at the end of gantry (5″).

The heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 108″), 45° miter and is ergonomically designed to make it easier to read the tape.

Inside the P12|8 you will find heavy castings, solid gears and precision-machined trunnions mounted onto the solid steel frame.

The heavy-duty motor is equipped with soft start to minimize initial amperage draw.

The P12/8 comes standard with hold-down clamp, rip shoe, and push handle.

Features

Motor: 7.5HP 3ph or 5 HP 1ph
Voltage: 220v 60 HZ
Blade Capacity: 12″, 14″/300mm, 355mm
Max. Blade: 16″/400mm (minimum height when lowered: 1″/25mm)
Max Scoring Blade: 4-3/4″/120mm
Scoring Adjustment: T-Handle through Cast Top

Specifications

Arbor: 30mm (Main), 20mm (Scoring)
Max Cutting Height 90° 14″/355mm Blade: 4-½″/115mm
Max Cutting Height 90° 16″/400mm Blade: 5-⅛″/130mm
Max Cutting Height 45° 14″/355mm Blade: 2-¾″/70mm
Max Cutting Height 45° 16″/400mm Blade: 3-½″/90mm
Main Blade Speed: 4000 RPM
Dust Collection Port Saw: 4-¾″ (120mm)
Dust Collection Port Guard: 4″ (100mm)
Sliding Table: 102.36″ (2600mm)
Sliding Table Width: 14.88″ (387mm)
Main Cast Table: 21-½″ x 35-¼″
Rip Fence: 51″ (1300mm)
Rip Fence Micro Adjust: Included
Rip Fence Bar: 1-⅝″ (40mm) Solid Steel Micro Polished
Overhead Guard With Swing Away
Push Handle: Included
Rip Shoe: Included
Hold Down Clamp: Included
32″ x 12″ Steel Extension Table: Included
Cross Fence: 2 x Flip-Stop
Cross Fence Readout: Inch/Metric
Crosscut Fence Max Collapsed: 77″
Crosscut Fence Max Extended: 140″
Table Lock Positions: 2 Tabs, 20 Notches = 40 Total
Ship Dimensions Body: 83″ x 47″ x 46″
Ship Dimensions Table: 137″ x 20″ x 15″
Weight (Net/Ship): 1815/2112 lbs

Manual

P12|8 Panelsaw Manual

What Our Experts Think

Precision Engineering: The P12|8 Sliding Panel Saw delivers flawless accuracy and smooth cutting, built for professional cabinet and furniture production.
Heavy-Duty Construction: Cast-iron main table and massive steel frame ensure stability, rigidity, and long-term reliability under heavy workloads.
Powerful Performance: Equipped with a 7.5 HP, 3-phase motor, it handles thick panels and composite materials with ease.
Smooth Sliding Table: The anodized aluminum carriage glides effortlessly for consistent, chip-free cuts up to 10′ panels.
Advanced Features: Includes scoring blade, digital readouts, and precision fence systems for repeatable, production-level accuracy.

Q&A

Q: What is the maximum rip and crosscut capacity?
A: The P12|8 offers a full 10′ sliding table with generous crosscut and rip capacities for large sheet goods.

Q: What motor does it use?
A: It’s powered by a 7.5 HP, 3-phase motor delivering industrial-grade cutting performance.

Q: Does it have a scoring blade?
A: Yes, a built-in scoring unit ensures perfect edges when cutting laminated or veneered panels.

Q: Is the table adjustable or extendable?
A: Yes, it includes adjustable and extendable tables for full support of large panels.

Maintenance Tips

Clean the Sliding Table & Guides: Wipe down rails and carriages regularly to maintain smooth motion.
Lubricate Bearings & Pivots: Apply light machine oil to all moving joints for optimal performance.
Check Belt & Blade Alignment: Inspect tension and alignment monthly for precise, straight cuts.
Keep Dust Collection Active: Ensure the dust ports and extraction system are clear to protect components and accuracy.
Inspect Electrical & Safety Systems: Test emergency stop, guards, and digital displays regularly for proper function.
