- Motor, Cutterhead: 15HP 3 Phase, 220 Volt, 37A
- Motor, Feed: 3/4 HP, DC Electronically Variable speed
- Motor, Vertical: 3/4 HP, AC
- DRO (Digital Read Out)
- PLC Programmable Height Setting
Specifications

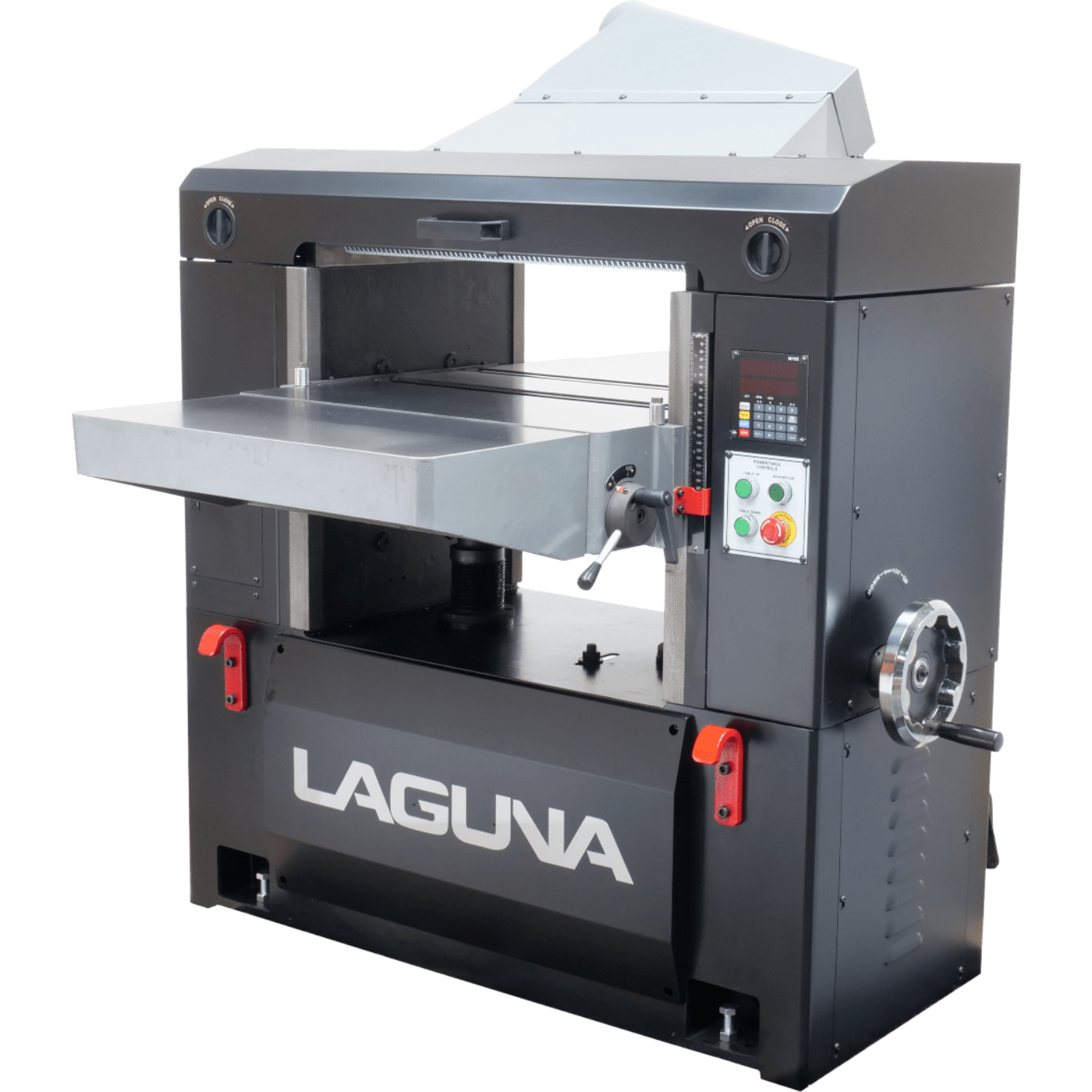

Oversized bearing housings ensure ultra-smooth, quiet performance and long life. Most thickness- planers in this class have only 2 or 4 speeds and it seems they never have the right speed for the job. The Laguna 25” comes standard with Electronic Variable Speed meaning you will ALWAYS have the exact speed required.
Another feature not normally found in this class is the standard PLC control which allows you to simply enter in the desired height and the bed moves automatically to that setting. You’ll never want to go back to turning a hand wheel to find your thickness (or even holding down a button for that matter!). The PLC in the Laguna Industrial 25″ planer also has automatic backlash compensation ensuring exact thicknesses.
Of course no world class planer would be complete without our incredible ShearTec II cutter head, which boasts 6 rows of 4 sided German carbide inserts for a total of 174 knives!
- Push Button Height Setting
- Manual Back Up Height Setting
-
Maximum Stock Width: 25″
-
Maximum Stock Thickness: 9″
-
Minimum Stock Thickness: ⅛″
-
Maximum Stock Removal 1-12″ Wide: 6mm (¼″)
-
Maximum Stock Removal 12-25″ Wide: 3mm (⅛″)
-
Electronic Variable Speed: 10-30FPM
-
Table Size (L x W): 52″ x 26″ (Including Extensions)
-
ShearTec II Cutterhead: 6 Row 174 Insert Knives
-
Cutter Head Diameter: 3-½″
-
Cutter Head Speed: 4800 RPM
-
Knives: 174 ShearTec II, 4 Sided, Solid Carbide
-
Segmented In Feed Roller: 3″
- Segmented Pressure Bar
-
2 Polished Out Feed Rollers: 3″
-
Retractable Table Rollers: Adjustable
-
In/Out Feed Cast Extensions Included (L x W): 10″ x 26″
-
Dust Port: 5″
- CSA Components
-
Weight: 1500 lbs
-
Shipping Dimensions (L x W x H): 35″ x 53″ x 60″
