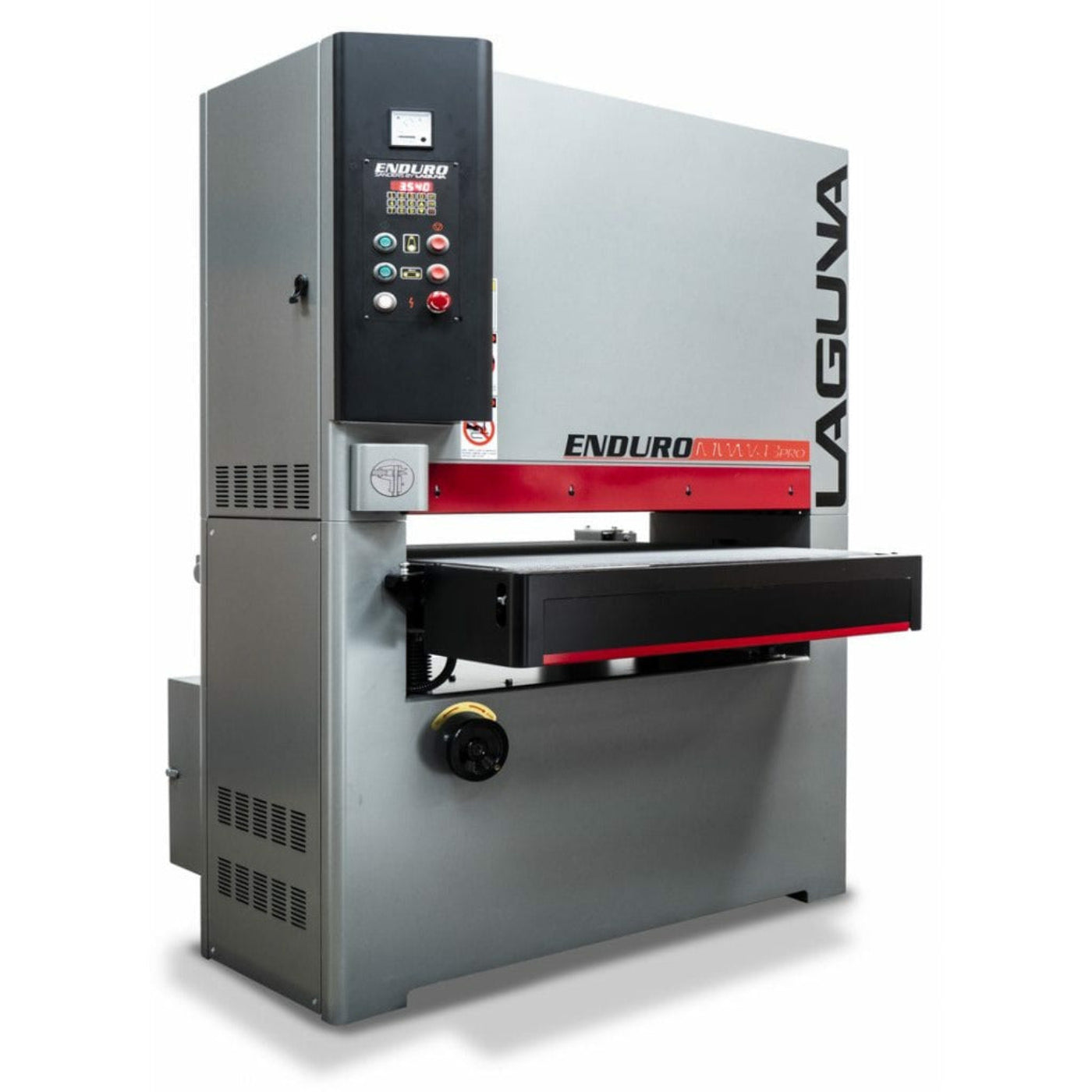

Laguna Tools Industrial 37" Metal Wide Belt Sander, MW37 Pro - MSANWB37X75-1K-20-0197-1

Specifications

• Machine Width: 37"

• Max Sanding Width: 36.5"

• Sanding Belt Size: 37" x 75"

• Net Weight: 2430 lbs

• Voltage: 220V, 3 Phase, 60hz

• Foot Print: 48 3/8" x 51"

• Conveyor Height at Lowest Setting: 31.1" (Table Height 37.6")

• Cabinet Steel: YES

• Operating Air Pressure: 60 PSI

• Fully CSA: YES

Motors:

• Main Motor: 20HP (3 Phase)

• Feed Speed: 1HP (3 Phase)

• Table Lifting Motor: 0.25HP (3 Phase)

Sanding:

• Sanding Drum Diameter: 8"

• Length of Sanding Drum: 37.9"

• Sanding Drum RPM: 1720

• Variable Speed: 12 - 60 fpm

• Sanding Belt Oscillation: YES

• Sanding Belt Motor Break: YES

Dust Collection:

• Dust Port Size: 4"

• Number of Dust Ports: 3

Additional Features:

• Programmable Logic Control (PLC): YES (Digital Readout)

• Automatic Thickness Control: YES (Thicknessor)

• Max Sanding Height: 6"

• Min Sanding Height: 1/16"

• Auto-Height Adjustment: YES

Additional Notes:

• This sander also features a conveyor motor with variable speed control.

• The main motor comes equipped with overload protection.

• The machine has 3 cast iron platens for even sanding pressure.

• It includes an emergency stop button for safety.
