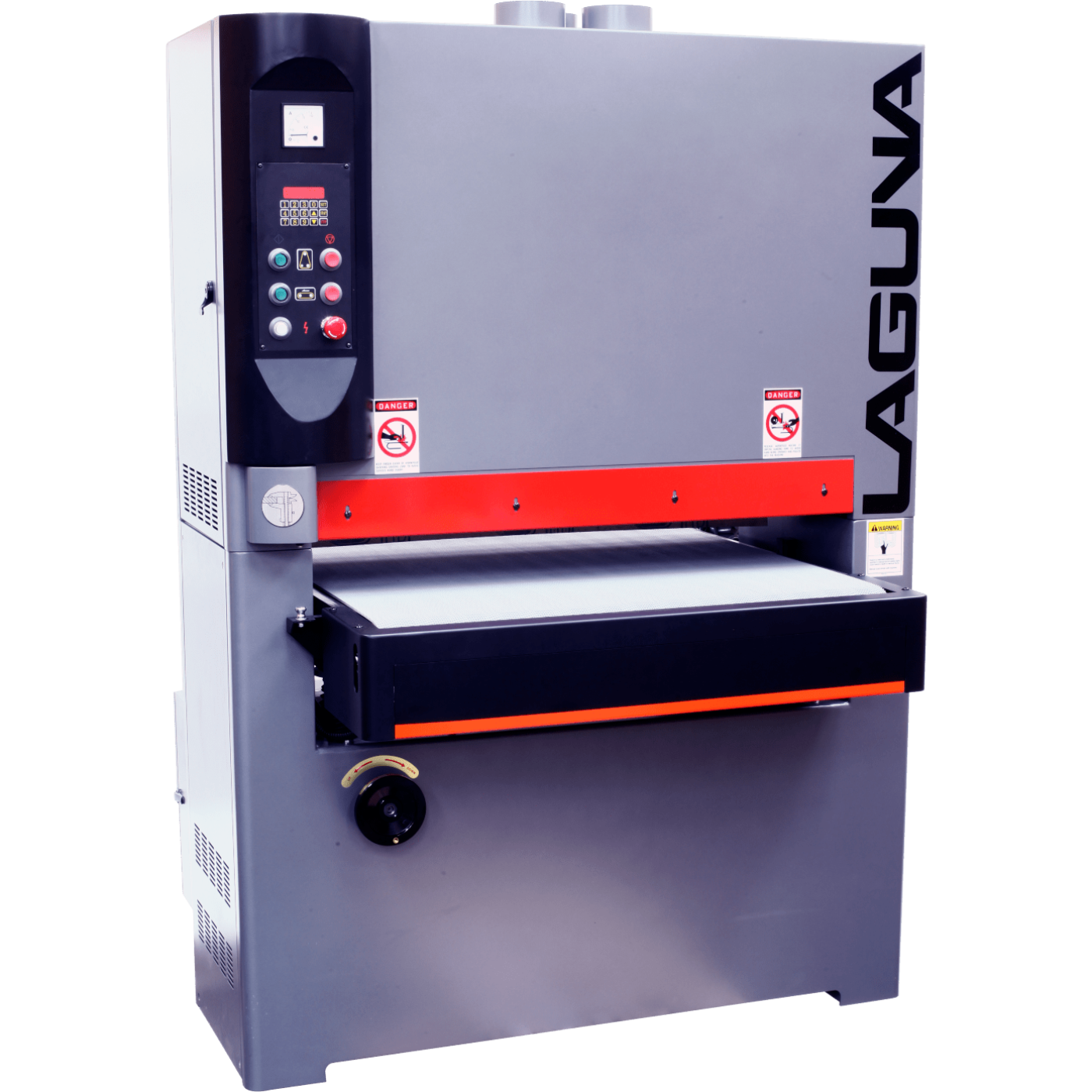

Laguna Tools Industrial Wood Widebelt Sander, Pro 43" - MSANWB43X75-2RK-25-0197

Name: Laguna Tools Industrial Wood Widebelt Sander, Pro 43" - MSANWB43X75-2RK-25-0197
Brand: Laguna Tools
SKU: MSANWB43X75-2RK-25-0197
Price: 33210.99 USD
Availability: InStock

Laguna Tools Industrial Wood Widebelt Sander, Pro 43" - MSANWB43X75-2RK-25-0197

1 Review

8% Sale

Only left!

Free Delivary

Limited Stocks

~~$36,098.00~~ $33,210.99

Taxes included. Shipping calculated at checkout.

Quantity

Quantity

View full details

SALE ENDS IN

07 HRS

23 MINS

28 SECS

DON'T MISS IT!

Popular Add on

Offer Price

$0.00

$100.00

Laguna Tools Industrial Wood Widebelt Sander, Pro 43" - MSANWB43X75-2RK-25-0197

The Laguna Tools 43″ 2RK (Roller + Combo head) wide belt sander is a perfect fit for woodworking shops of all sizes. The belt length is 75″ which is the same length as several larger machines. The longer belt means it will not only last longer due to more abrasive material it will also run cooler.

This machine is equipped with 1 ( 8”) roller and a second (4”) roller followed by a wide platen for fine finish. This allows you to use a rougher grit on first roller (8”) that will absorb most of the impact and do the dimensioning while the second roller (4”) with the Platen can have a finer grit. This will save time over having to run your production through the machine 2 times & change belt grit. Due to the large HP motor (25 HP) the machine is capable of dimensioning even wide boards. This is important for customers who do not own a thickness planer. When you use the machine to dimension your work only very aggressive paper 60 or 80 grit should be used. The heavy carpet feed belt is powered by a separate 2HP motor and the feed speed is adjustable from 12 to 60 fpm.

Features

Double Drum
Main motor: 25HP
Variable feed speed: 2HP
Table lifting motor: 0.25HP
Voltage: 220, 3 Phase, 60 Hz.
Programmable Logic Control
Automatic Thickness Control
Max sanding height: 150mm/5-9/10″

You can adjust the thickness in 4 ways:

Manual hand-wheel on the bottom of the machine.
By pressing the up or down arrow the table will move in desired direction
Input a set dimension on the key pad and machine will go to that dimension
The auto thickness gauge will measure your wood piece and automatically set the table to the thickness of the piece of wood inserted

Specifications

Min Sanding Height: ¼” (6.4mm)
Max Sanding Width: 43″ (1100mm)
Sanding Belt Size: 43″ x 75″ (1100mm x 1905mm)
Adjustable Sanding Platen: 1¾” (45mm)
Diameter of Sanding Drum: 8″
Length of Sanding Drum: 43″
Sanding Drum RPM: 1725 RPM
Variable Conveyor Speed: 12 – 60 fpm
Dust Port Size: 4″ (101mm)
Number of Ports: 3
Footprint (L x W x H): 63″ x 65″ x 87″
Conveyor Height At Lowest Setting: 32″ (813mm)
Cabinet: Steel
Operating Air Pressure: 6 Bar
Sanding Belt Oscillation: Pneumatic/Adjustable
Sanding Belt Motor Brake: Yes. Air Operated Disc Brake
CSA: Fully Certified
Net Weight: 3630 lbs
Ship Weight: 4200 lbs

What Our Experts Think

High-capacity 43″ sanding width and 75″ belt length make it ideal for large panels and wide boards.
Powerful 25 HP main motor plus 2 HP variable feed motor deliver aggressive material removal and smooth finish control.
Two-head system (roller + combo head) allows one roller to dimension stock while the second roller/ platen delivers fine finish in one pass.
Variable conveyor feed speed (12-60 fpm) and automatic thickness control enhance workflow efficiency and consistency.
Industrial build quality with steel cabinet, heavy-duty components, and suited for continuous production use.

Q&A

Q: What is the maximum sanding width?
A: Up to 43″ wide stock can be processed.

Q: What belt size does it use?
A: 43″ × 75″ belt length for extended abrasive life and cooler operation.

Q: What are the motor specifications?
A: Main 25 HP motor plus 2 HP feed motor; 220 V / 3-phase operation.

Q: What minimum and maximum sanding heights are supported?
A: Minimum sanding thickness around ¼″ (6.4 mm) and maximum height approx. 150 mm (≈5.9″).

Q: Does it handle dimensioning and finishing in one pass?
A: Yes — the two-head roller + platen configuration allows rough and fine sanding in sequence, reducing passes and saving time.

Maintenance Tips

Clean conveyor belt and platen after each use: Remove resin, dust and debris to maintain consistent feed and finish quality.
Check roller and platen surfaces regularly: Ensure rollers are true and platen is flat for even sanding across the width.
Inspect feed motor and conveyor drive: Adjust belt tension and check for wear in the feed drive components to maintain smooth feed action.
Lubricate moving parts and lift system: Apply light oil to the table lift mechanism and feed bearings to ensure accurate height adjustment and longevity.
Maintain dust extraction system: Keep dust ports and hoses clear to prevent load buildup, overheating and ensure safe shop environment.
