Laguna Tools Industrial Wood Widebelt Sander, Pro 51" - MSANWB51X75-2RK-30-0197

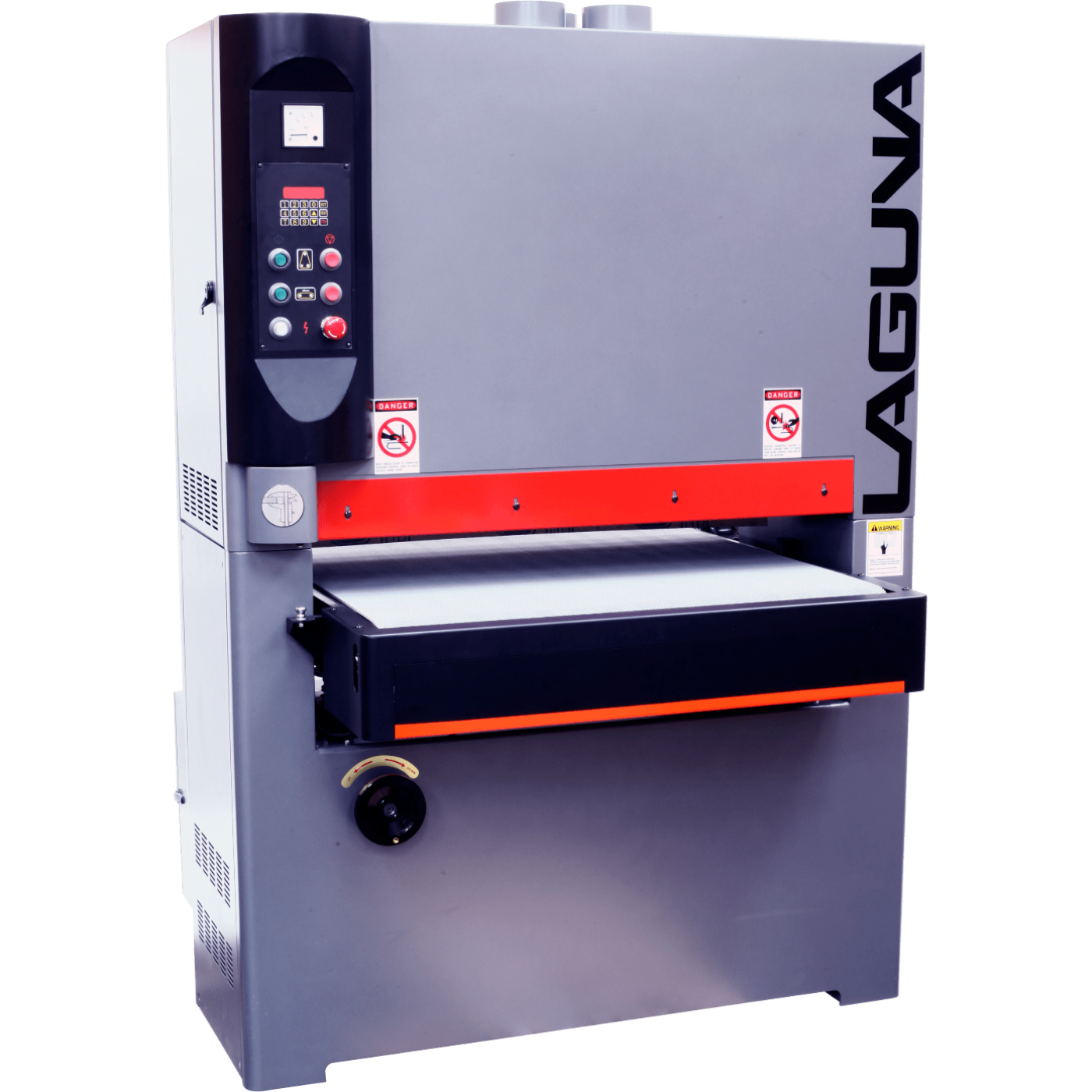

The Laguna Tools 51″ 2RK (Roller + Combo head) wide belt sander is the perfect machine for any woodworking shop. The belt length is 75″ which is the same length as several larger machines. The longer belt means it will not only last longer due to more abrasive material it will also run cooler.

This machine is equipped with 1 ( 8”) roller and a second (4”) roller followed by a wide platen for fine finish. This allows you to use a rougher grit on first roller (8”) that will absorb most of the impact and do the dimensioning while the second roller (4”) with the Platen can have a finer grit. This will save time over having to run your production through the machine 2 times & change belt grit. Due to the large HP motor (30 HP) the machine is capable of dimensioning even wide boards. This is important for customers who do not own a thickness planer. When you use the machine to dimension your work only very aggressive paper 60 or 80 grit should be used.The heavy carpet feed belt is powered by a separate 2HP motor and the feed speed is adjustable from 12 to 60 fpm.

Features

Double Drum
Main motor: 30HP
Variable feed speed: 2HP
Table lifting motor: 0.25HP
Voltage: 220/3 PHASE
(PLC) Programmable Logic Control
Automatic Thickness Control

You can adjust the thickness in 4 ways:

Manual hand-wheel on the bottom of the machine
By pressing the up or down arrow the table will move in desired direction
Input a set dimension on the key pad and machine will go to that dimension
The auto thickness gauge will measure your wood piece and automatically set the table to the thickness of the piece of wood inserted

Specifications

Max Sanding Height: 5.9″ (150mm)
Min Sanding Height: ¼” (6.4mm)
Max Sanding Width: 51″ (1300mm)
Sanding Belt Size: 51″ x 75″ (940mm x 1905mm)
Adjustable Sanding Platen: 1¾” (45mm)
Diameter: of Sanding Drum: 8″ + 4″
Length of Sanding Drum: 51″
Sanding Drum RPM: 1725
Variable Conveyor Speed: 12 – 60 fpm
Dust Port Size: 4 (101mm)
Number of Dust Ports: 3
Footprint (L x W x H): 63″ x 65″ x 98″
Conveyor Height At Lowest Setting: 32″ (813mm)
Cabinet: Steel
Operating Air Pressure: 6 Bar
Sanding Belt Oscillation: Pneumatic/Adjustable
Sanding Belt Motor Brake: Yes. Air Operated Disc Brake
CSA: Fully Certified
Net Weight: 4200 lbs
Ship Weight: 4450 lbs

What Our Experts Think

High Production Power: The Laguna Tools Industrial Wood Widebelt Sander, Pro 51" - MSANWB51X75-2RK-30-0197 delivers professional sanding with a powerful 30 HP motor built for continuous industrial use.
Large Capacity: Handles up to 51 inches wide materials—ideal for panels, doors, and tabletops.
Dual-Head Precision: Features a roller and platen combination for rough sanding and fine finishing in a single pass.
Smart Controls: Digital thickness display and automatic table adjustment ensure repeatable accuracy.
Built to Last: Heavy steel frame, reliable belt tracking, and multiple dust ports for efficient operation.

Q&A

Q: What is the maximum sanding width?
A: It can sand workpieces up to 51 inches wide.
Q: What motor does it use?
A: Equipped with a 30 HP, 220V, 3-phase motor for industrial performance.
Q: What belt size is used?
A: The belt measures 51" x 75", ideal for wide surface sanding.
Q: Is table height adjustment automatic?
A: Yes, it includes digital control for quick, precise adjustments.

Maintenance Tips

Clean daily: Remove sanding dust from belts, rollers, and housing.
Check belt alignment: Keep belts centered for smooth operation.
Lubricate lift and roller parts: Maintain consistent motion and accuracy.
Inspect dust ports: Ensure ports are clear for maximum suction.
Monitor conveyor speed: Adjust as needed for material type and finish quality.
