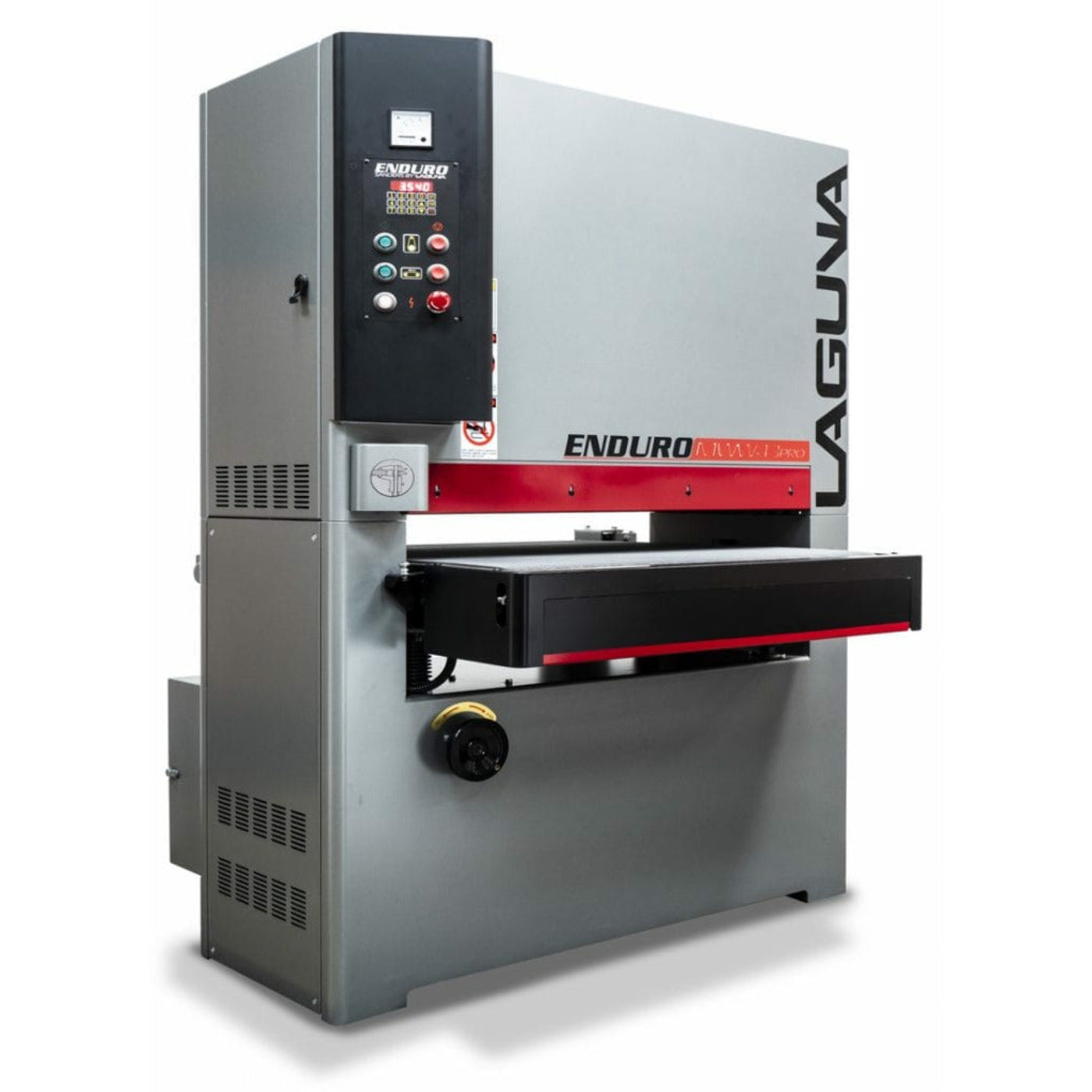

Laguna Tools Industrial 51" Metal Wide Belt Sander, MW51 Pro

Specifications

• Machine Width: 51"

• Max Sanding Width: 50"

• Sanding Belt Size: 51" x 75"

• Net Weight: 3420 lbs

• Ship Weight: 4098 lbs

• Voltage: 220V, 3 Phase, 60hz

• Foot Print: 68 3/8" x 51"

• Conveyor Height at Lowest Setting: 31.1" (Table Height 37.6")

• Cabinet Steel: YES

• Operating Air Pressure: 60 PSI

• Fully CSA: YES

Motors:

• Main Motor: 30HP (3 Phase)

• Feed Speed: 2HP (3 Phase)

• Table Lifting Motor: 0.25HP (3 Phase)

Sanding:

• Number of Sanding Heads: 2

• Sanding Drum Diameter: 8" + 4"

• Length of Sanding Head: 51"

• Sanding Drum RPM: 1725

• Variable Speed: 12 - 60 fpm

• Sanding Belt Oscillation: YES

• Sanding Belt Motor Break: YES

Dust Collection:

• Dust Port Size: 5" x 8"

• Number of Dust Ports: 2

Additional Features:

• Programmable Logic Control (PLC): YES (Digital Readout)

• Automatic Thickness Control: YES (Thicknessor)

• Max Sanding Height: 6"

• Min Sanding Height: 1/4"

• Auto-Height Adjustment: YES

Additional Notes:

• This sander features two independently controlled sanding heads, offering versatility for various applications.

• The variable speed control allows for precise adjustment to match material and desired finish.

• The auto-height adjustment ensures consistent material thickness for optimal results.

• The machine includes an emergency stop button for safety.
