Key Features
-
Protect Around the Clock – Continuous 4K recording
-

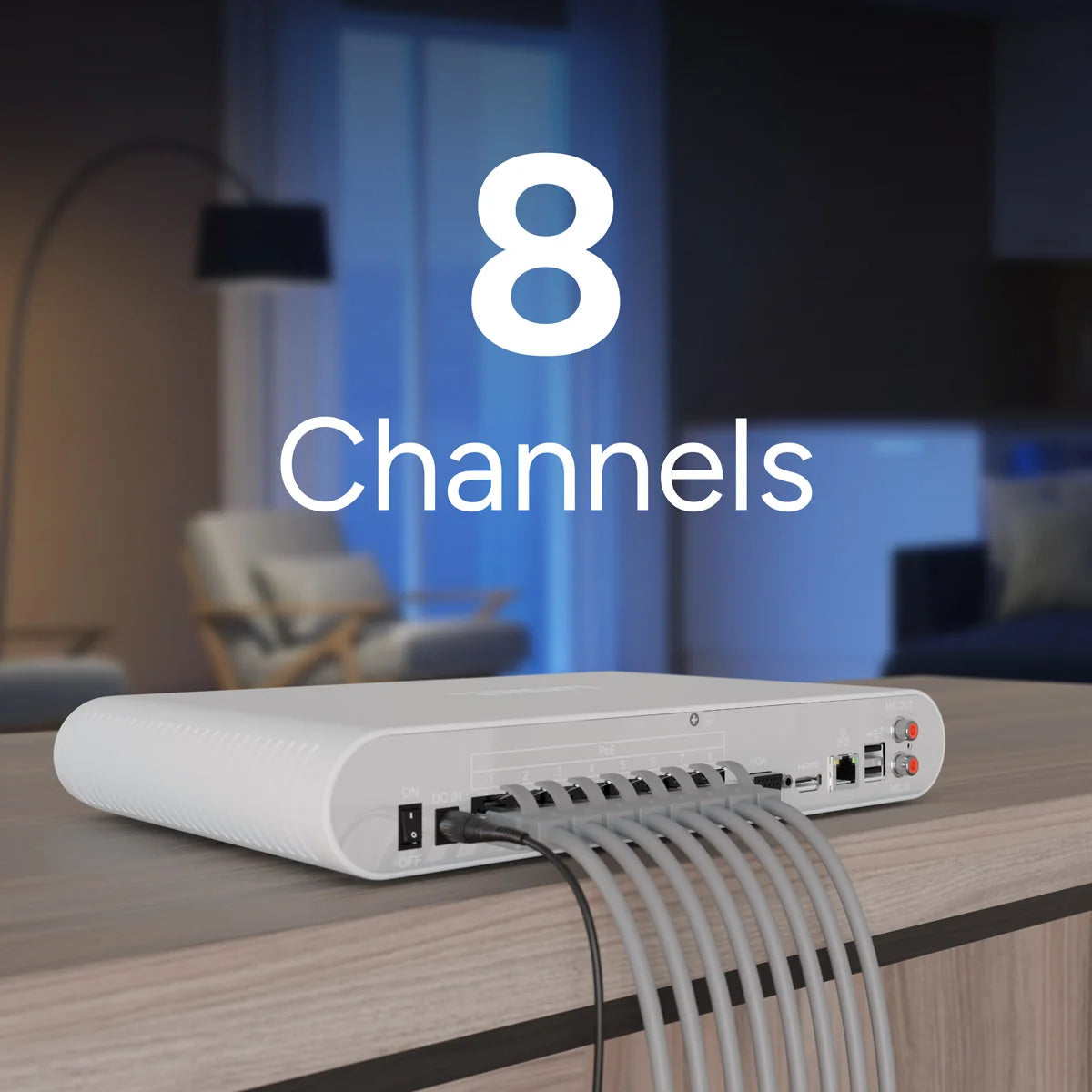

Monitor Key Areas – Connect up to 8 cameras
-
See Every Detail – 4K video at 15 FPS
-
See More at Night – Color Night Vision plus IR in total darkness
-

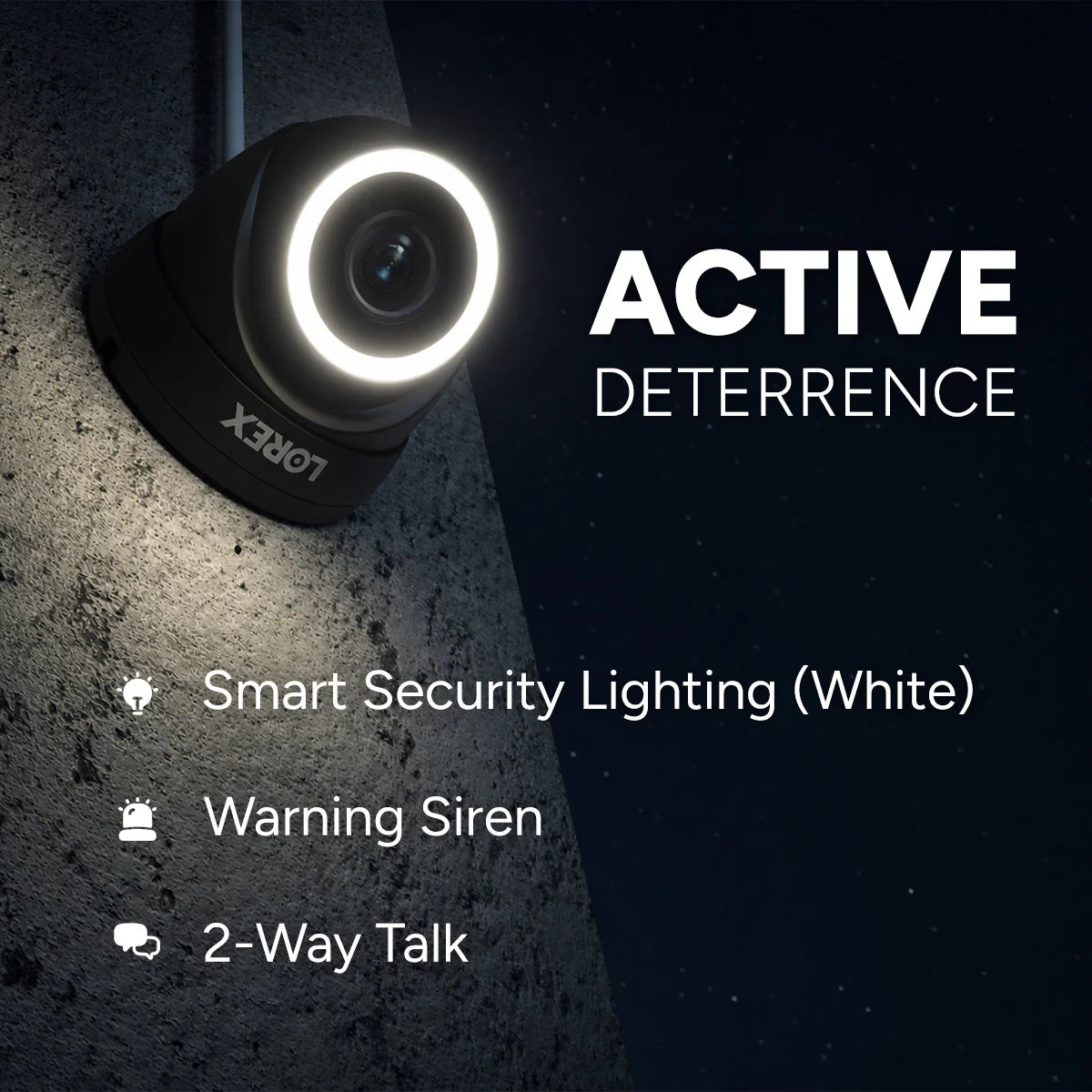

Deter Unwanted Activity – White security light and siren
-
Smarter Security – Person and vehicle detection
-

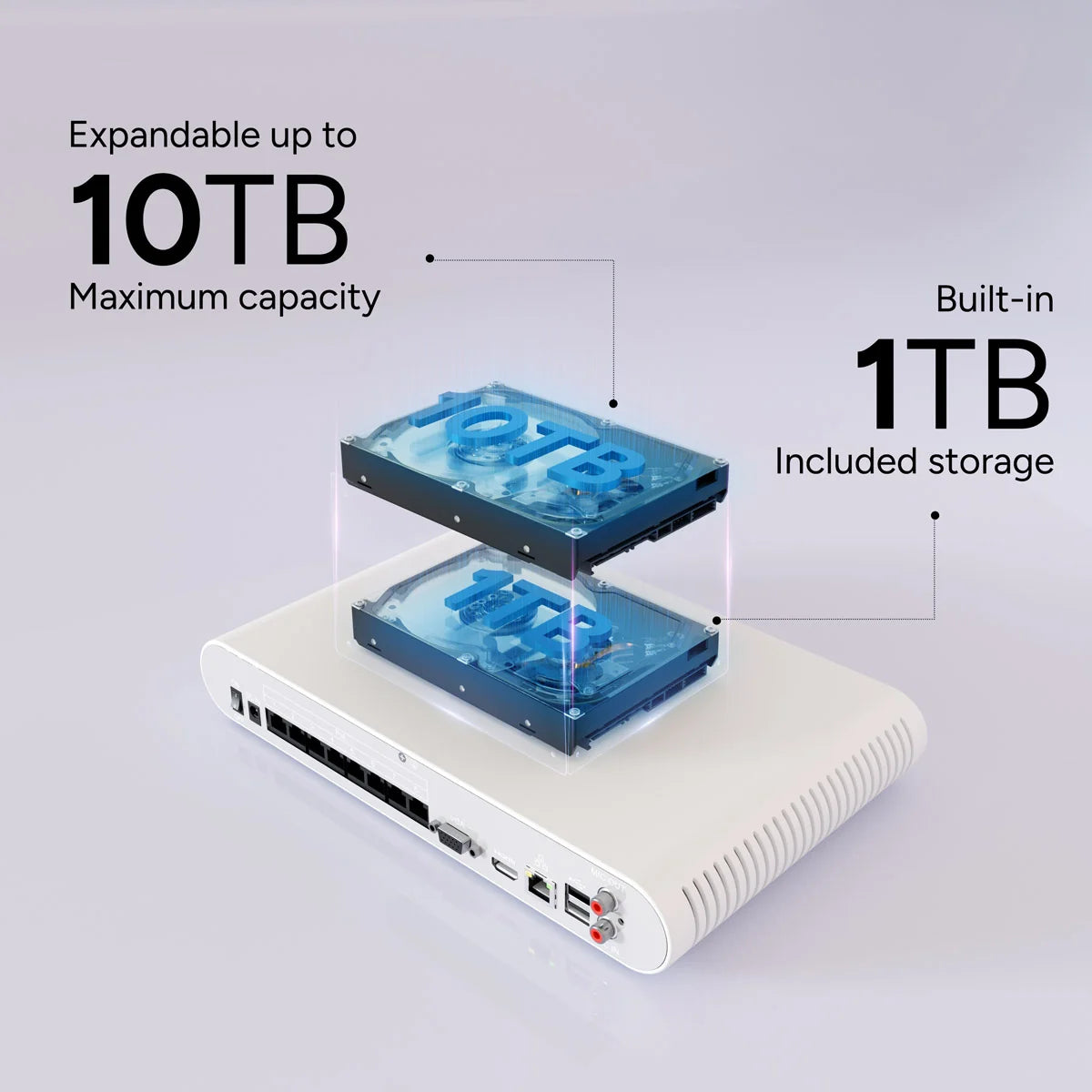

Keep More Video – 1TB included, expandable up to 10TB
-
Stay Connected – Remote viewing and alerts with Lorex Connect

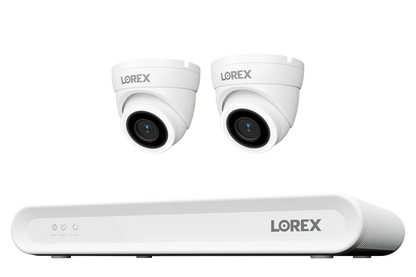

4K Wired Network Video Recorder
Product Specifications
Operating Temperature
Humidity
Packaging Information
RN301A
Package Type
Package Dimensions
(W × D × H)
Package Weight
Package Cube
Package Contents
Disclaimers:
14° F to 131° F (-10° C to 55° C)
10~90% RH
6-95529-06396-6
Brown Box
20.24× 9.96 × 4.17 in
(514.10 ×252.98 × 105.92 mm)
4.66 lbs (2.11 kg)
0.49 ft³ (0.0139 m³)
4K Wired NVR, Ethernet Cable, HDMI
V3 4K Turret
Lorex Connect V3 4K PoE Turret Camera with Smart AI Detection
Product Specifications
Camera & Imaging
Video Transmission
Technology
Image Sensor
Lens Type
IP
1/2.7” CMOS
Fixed 2.8 mm, F1.6
Network & Integration
Ethernet Interface
ONVIF
Network Protocols
RJ45 (10/100BASE-T)
Supported
TCP/IP, HTTP, DHCP, DNS, DDNS,
RTP/RTSP, SMTP, NTP, UPnP, SNMP,
HTTPS, FTP
Effective Pixels
Resolution / Frame Rate
Field of View (FoV)
3840 (H) × 2160 (V)
4K (8 MP) @ 15 fps
Diagonal: 126°
Minimum Focusing Distance 6.6 ft (2 m)
Wide Dynamic Range (WDR) Supported
Electronic Shutter Speed
White Balance
Video & Audio
Video Compression
Audio
2-Way Talk
Speaker Output
1/5 – 1/20,000 s (DWDR ON / OFF)
Auto / Daylight / Cloudy / Tungsten /
Sunset / Night
H.265 / H.264
Built-in Microphone and Speaker
Supported (full-duplex)
81 dB @ 2 ft (0.6 m)
Night Vision & Active Deterrence
Infrared (IR) Night Vision
Range
Color Night Vision
Smart Security Lighting
Deterrence Light
AI Detection & Smart Features
Smart Motion Detection
Storage & Power
Local Storage
Power Supply
Maximum Power
Consumption
Series Family: V
Series Line: V3
Up to 82 ft (25 m) in total darkness
Supported
Yes, White Color
Yes
Person and Vehicle Detection
MicroSD Card Slot (up to 256 GB)*
PoE (Power over Ethernet, IEEE
802.3af) / 12 V DC
9.5 W
SKU: CN301A-1TW-AE1, CN301A-1TB-AE1
Physical & Environmental
Housing Material
Operating Temperature
Operating Humidity
Environmental Rating
Camera Dimensions
(D × H)
Camera Weight
Metal-4°F / -20°C to 122°F / 50°C
≤ 90% RH

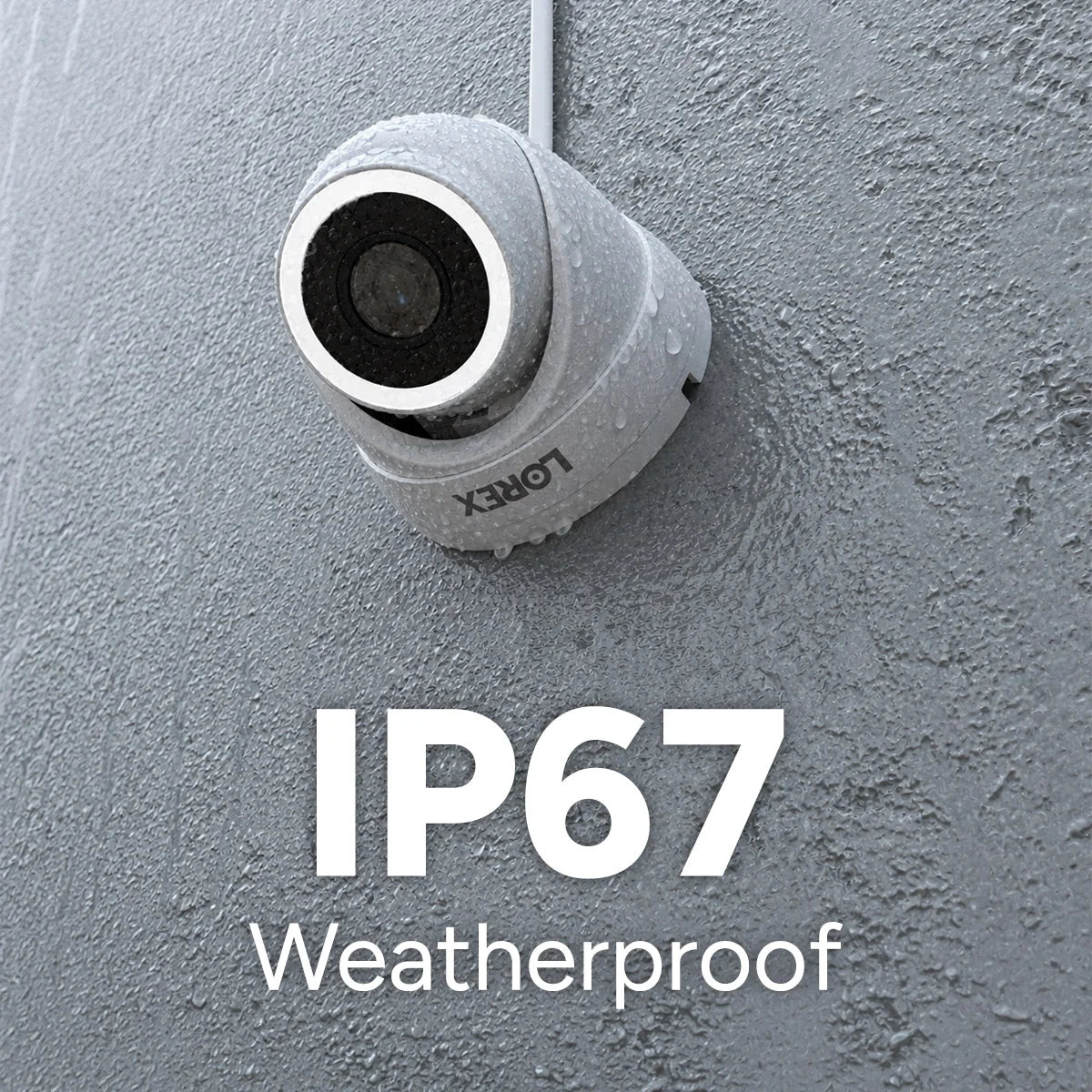

IP67 (Indoor / Outdoor Use)
3.94 × 3.15 in (100.04 × 80.01 mm)
0.85 lbs (0.39 kg)
Lorex Corporation
10440 Little Patuxent Parkway, Ste, 300,
Columbia, MD 21044, United States
© 2026 Lorex Corporation
As our product is subject to continuous improvement, Lorex Technology & subsidiaries reserve the right to modify
product design, specifications & prices without notice and without incurring any obligation. E&OE.
020420265-1
V3 4K Turret
Lorex Connect V3 4K PoE Turret Camera with Smart AI Detection
Product Specifications
Packaging Information
CN301A-1TW-AB1 (White)
CN301A-1TB-AB1 (Black)
Package Type
Package Dimensions
(W × D × H)
Package Weight
Package Cube
Package Contents
Disclaimers:
UPC: 6-95529-06399-7
UPC: 6-95529-06400-0
Brown Box
6.81 × 6.46 × 3.62 in (172.97 × 164.08
× 91.95)
0.44 lbs (0.20 kg)
0.09 ft ³ (0.025 m³)
• 4K Wired PoE Turret Camera
• Mounting Hardware (Template,
Bracket, 3 × Anchors and
Screws)
• Weather-Resistant RJ45 Cable
Cap (Gland)
Damage
Loss
Theft
