Key Features
-
Protect Around the Clock – Continuous 4K recording
-

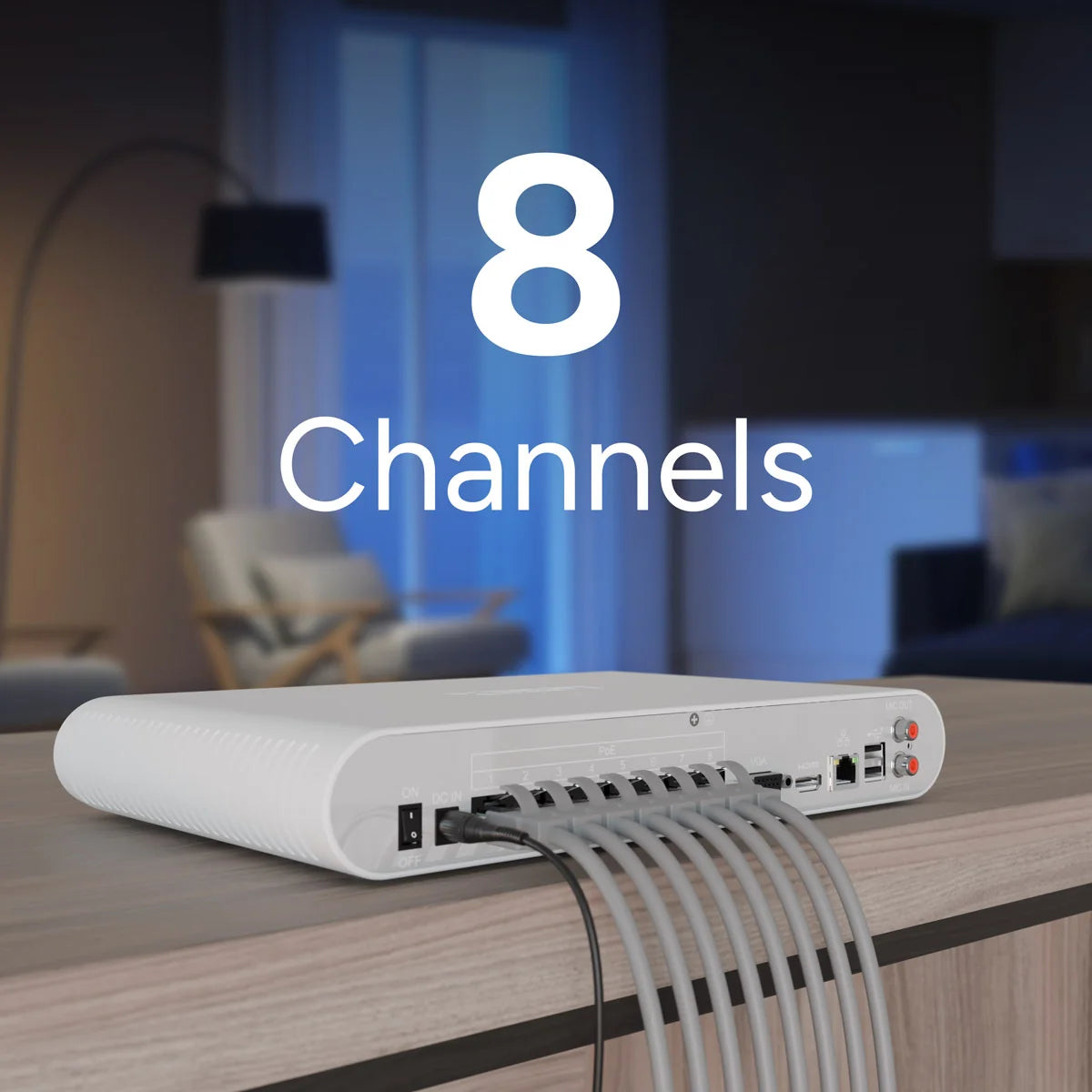

Monitor Key Areas – Connect up to 8 cameras
-

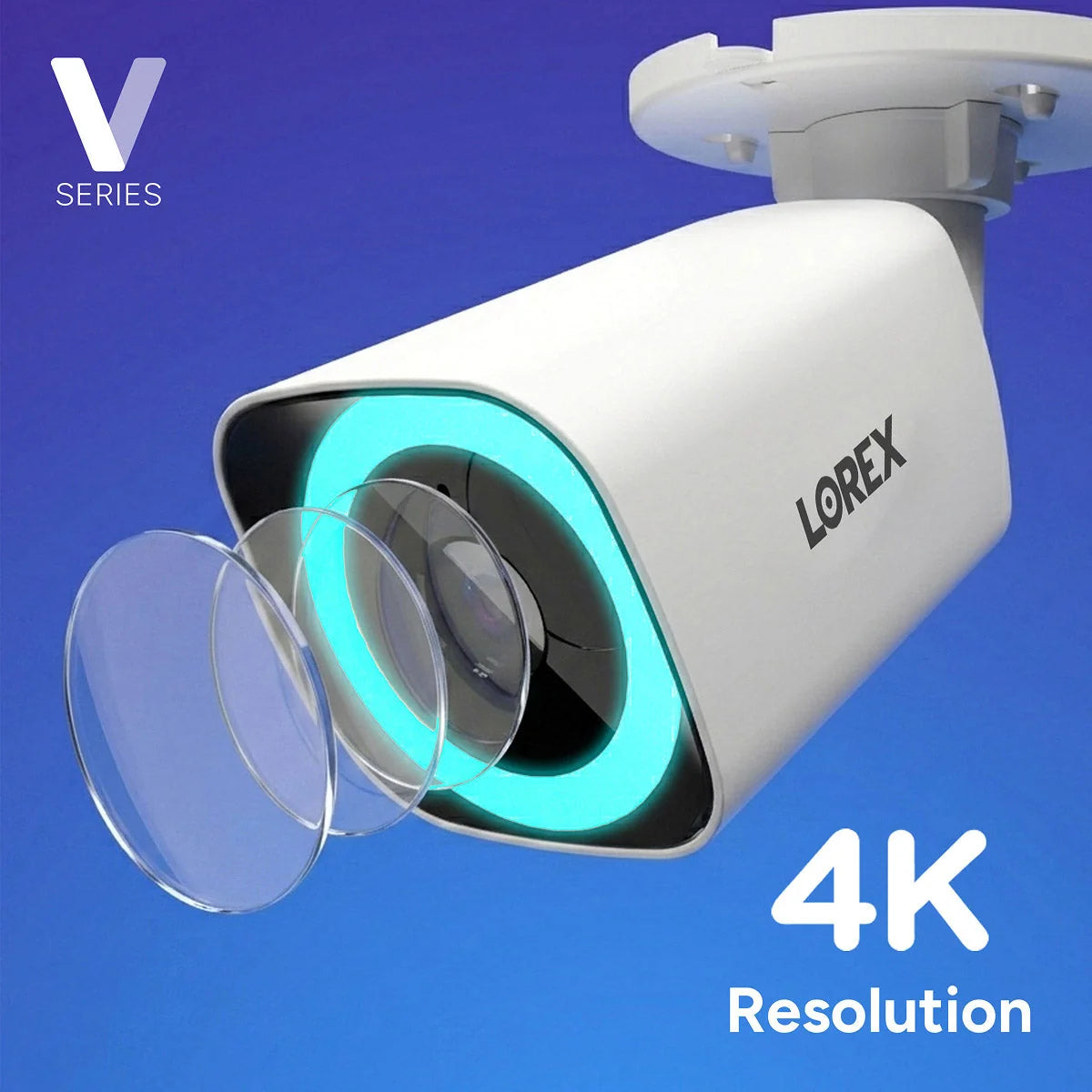

See Every Detail – 4K video at 15 FPS
-

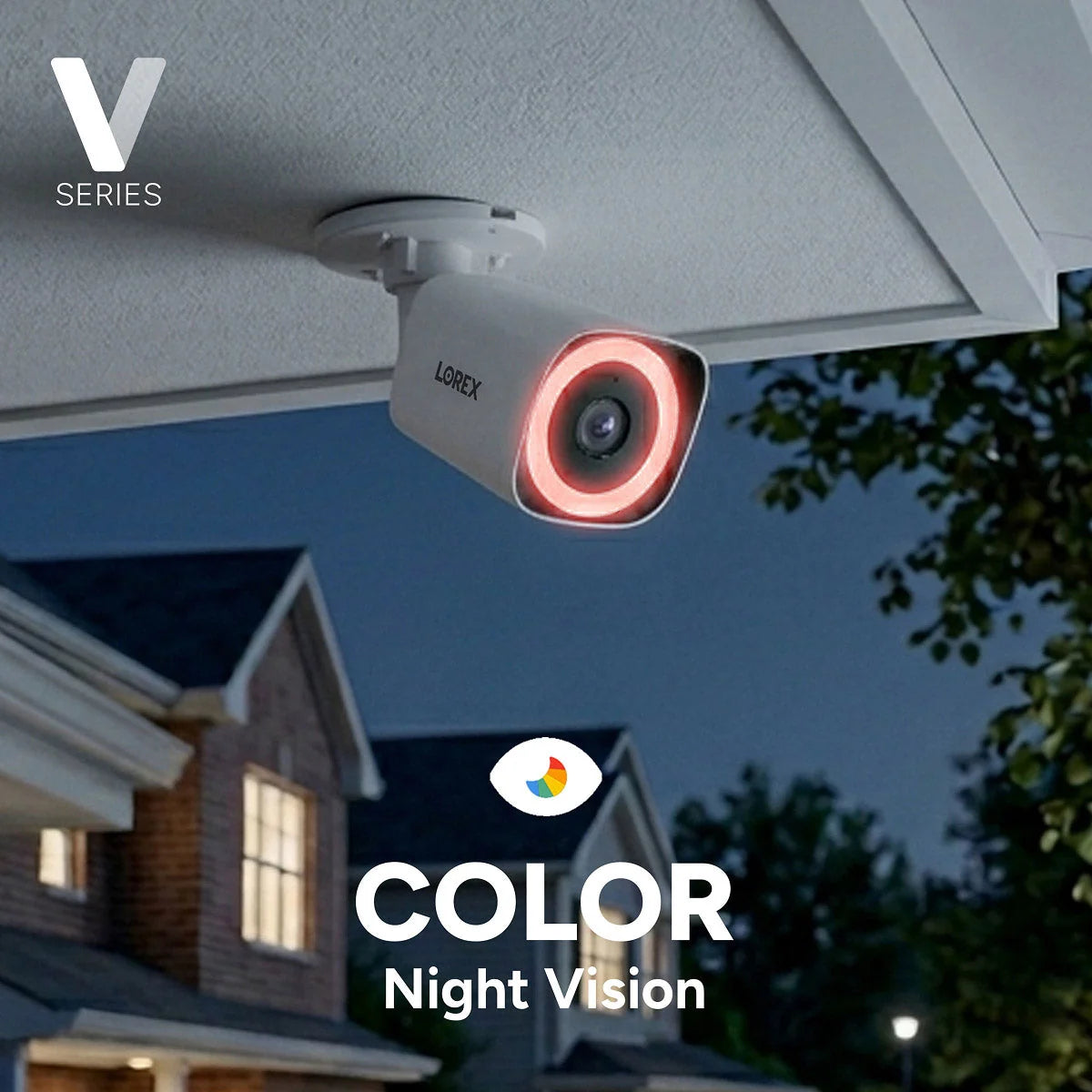

See More at Night – Color Night Vision plus IR in total darkness
-
Deter Unwanted Activity – Color security lighting and siren
-

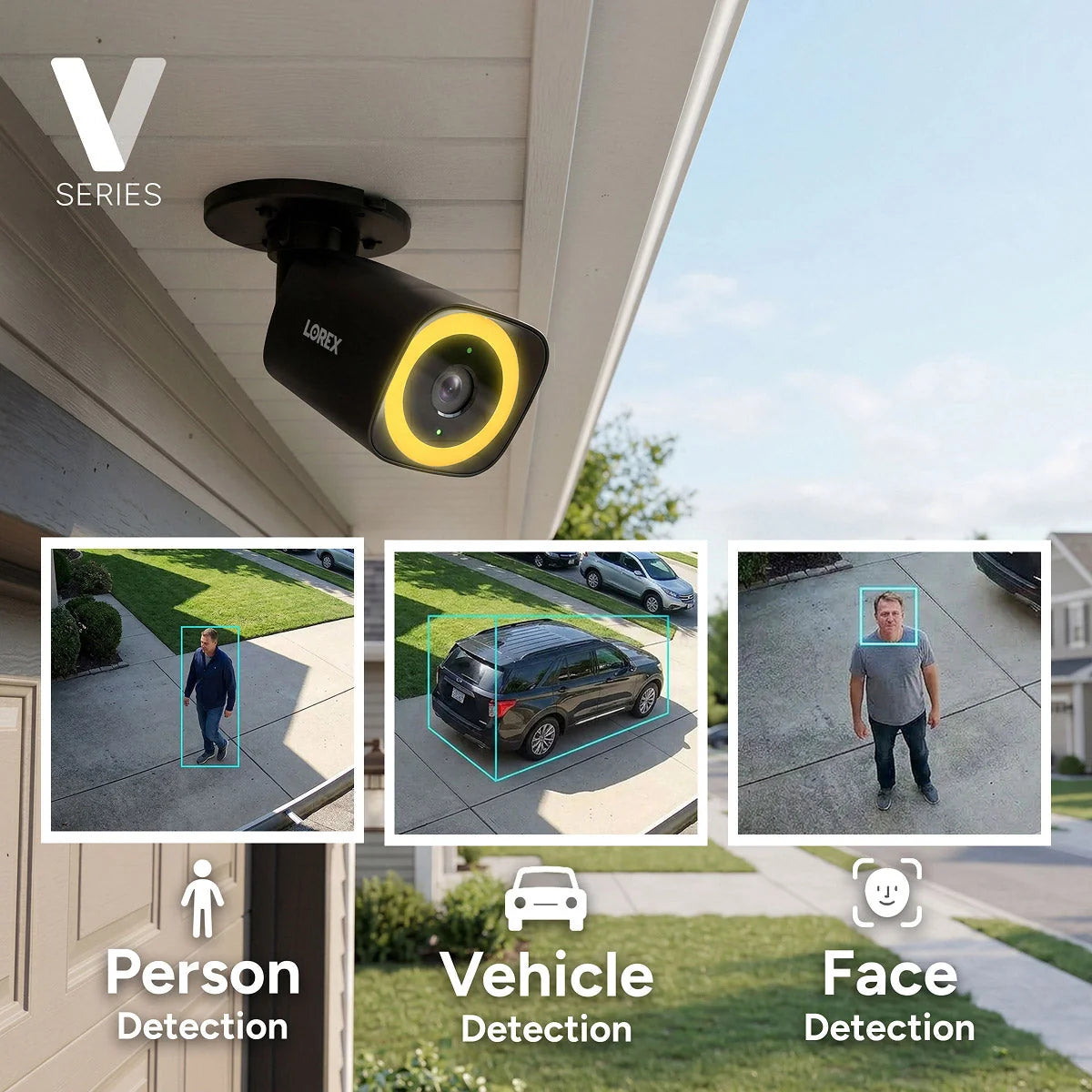

Smarter Security – AI detection of people, vehicles, faces, and key incidents
-

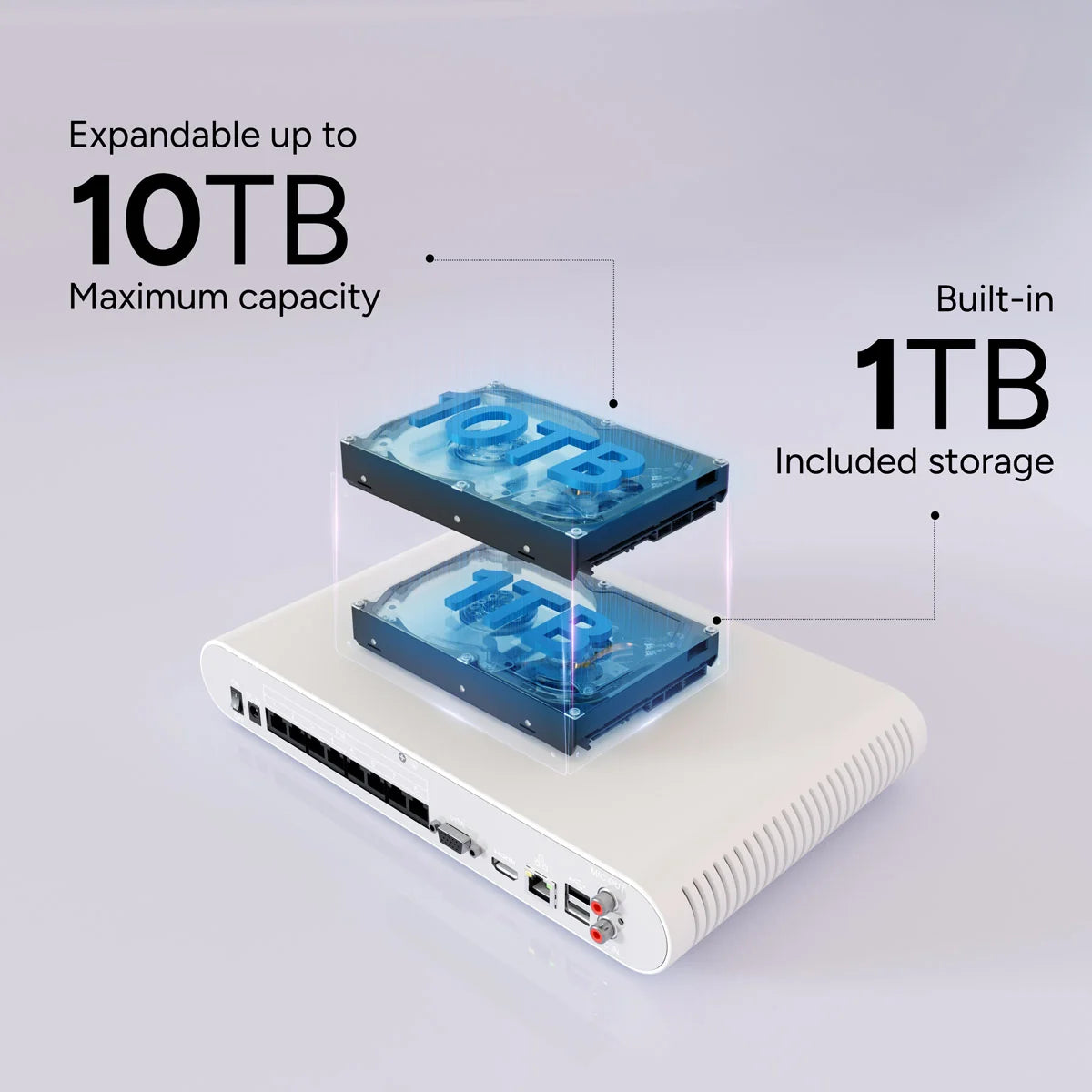

Keep More Video – 1TB included, expandable up to 10TB
-
Stay Connected – Remote viewing and alerts with Lorex Connect
Product Specifications
General
Video Transmission
Technology
IP
Channels 8 Channels
Inputs & Outputs
Video Inputs 8 × PoE (Power over Ethernet)
Video Outputs 1 × HDMI, 1 × VGA
Audio Input Format 1 × RCA
Display
Maximum Display Resolution Up to 4K Ultra HD (3840 × 2160 pixels)
HDMI Output Resolutions 3840 × 2160, 2560 × 1440, 1920 × 1080,
1440 × 900, 1280 × 1024, 1280 × 720,
1024 × 768
VGA Output Resolutions 1920 × 1080, 1440 × 900, 1280 × 1024,
1280 × 720, 1024 × 768
Live Display Modes 1, 4, 8 view split
On-Screen Display (OSD) On/Off
System Navigation USB Mouse
Recording
Supported Recording
Resolutions
8 MP (3840 × 2160), 5 MP (2592 × 1944),
3 MP (2048 × 1536 pixels), 2 MP (1920 ×
1080 pixels), 1.3 MP (1280 × 960), 1 MP
(1280 × 720)
Video Compression H.264 / H.265
Recording Modes Continuous, Motion Detection, and AI
Motion Detection (per channel)
Playback
Simultaneous Playback Up to 8 Channels (Synchronized)
Playback Speed Options Fast Forward/Rewind: 2×, 4×, 8×, 16×
Slow Motion: 1/2×, 1/4×, 1/8×, 1/16×
Search Options By Time/Date, All Motion Events, or
Smart Motion Detection (Person and
Vehicle)
Storage & Backup
HDD Bay 1 Bay
Maximum HDD Capacity Up to 10 TB
Backup Media USB Flash Drive
AI Detection & Smart Features
Adjustable Motion
Detection Sensitivity Levels
1–8
AI Motion Detection
Support
Supported, for Person & Vehicle,
Perimeter Intrusion,
and Smart Search (playback) Support
Pedestrian & Vehicle, Perimeter
Intrusion, Line
Crossing
Active Deterrence Supported
Smart Search Supported
Connectivity
Mobile Viewing Lorex Connect App
(iOS and Android)
Event Notifications Supported
Email Notifications Supported
Network Interface 10/100 Base-TX (RJ45)
Network Bit Rate 320 Mbps
USB Ports Back: 2 × USB 2.0
Firmware Upgrade Network, USB
Supported Languages English, French and Spanish
DDNS Optional
Security
Password Reset Supported
Power
Power Supply 1.8 A
PoE Power Output Maximum 25.5 W per port, 57 W total
Power Consumption
(Excluding HDD)
6 W
Physical & Environmental
QuietTek (Fanless Design) Supported
Product Weight 2.602 lbs (1.18 kg)
Product Dimensions
(W × D × H)
12.24 × 7.57 × 1.91 in
(310.90 × 192.28 × 48.51 mm)
