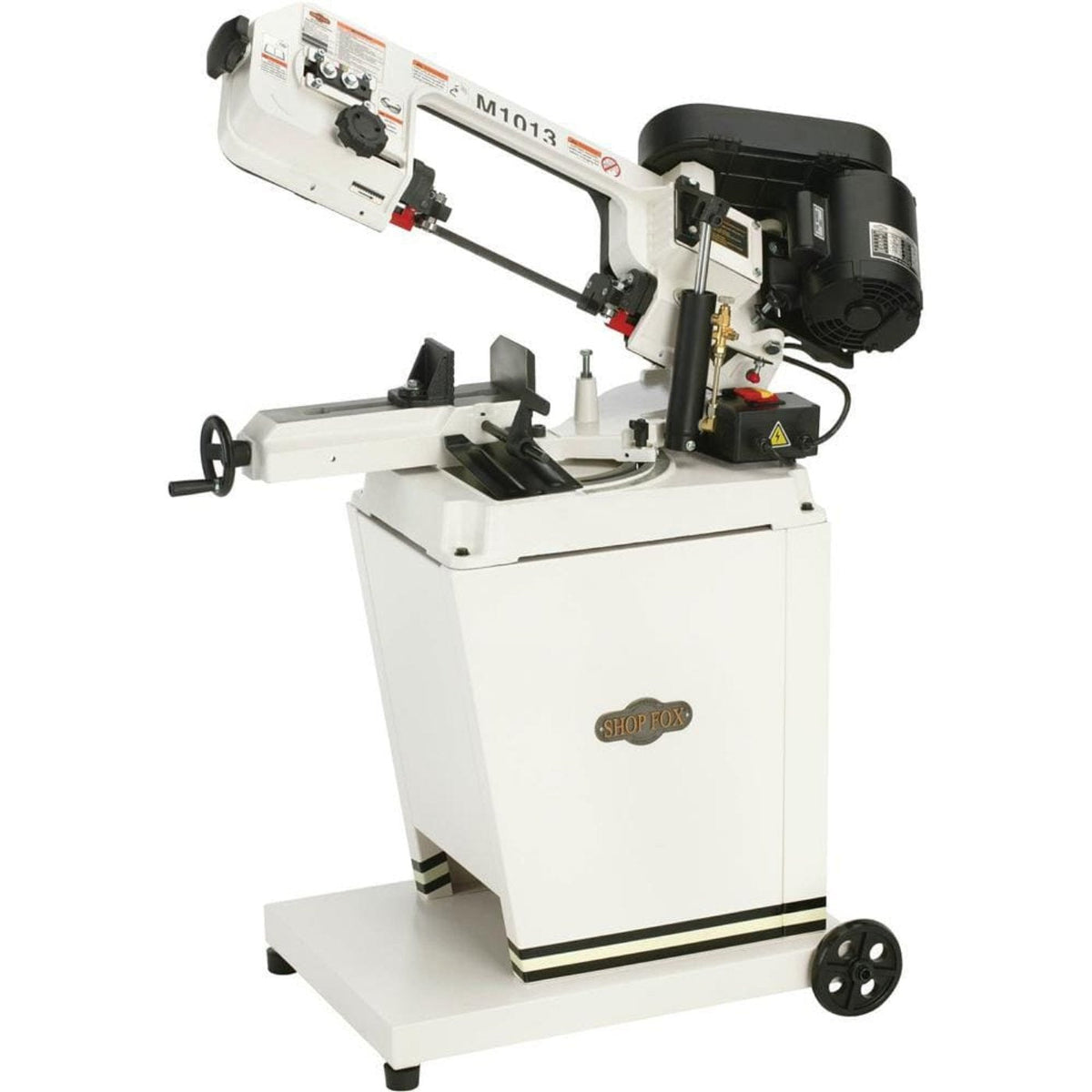

M1013 5" x 6" Metal Cutting Bandsaw

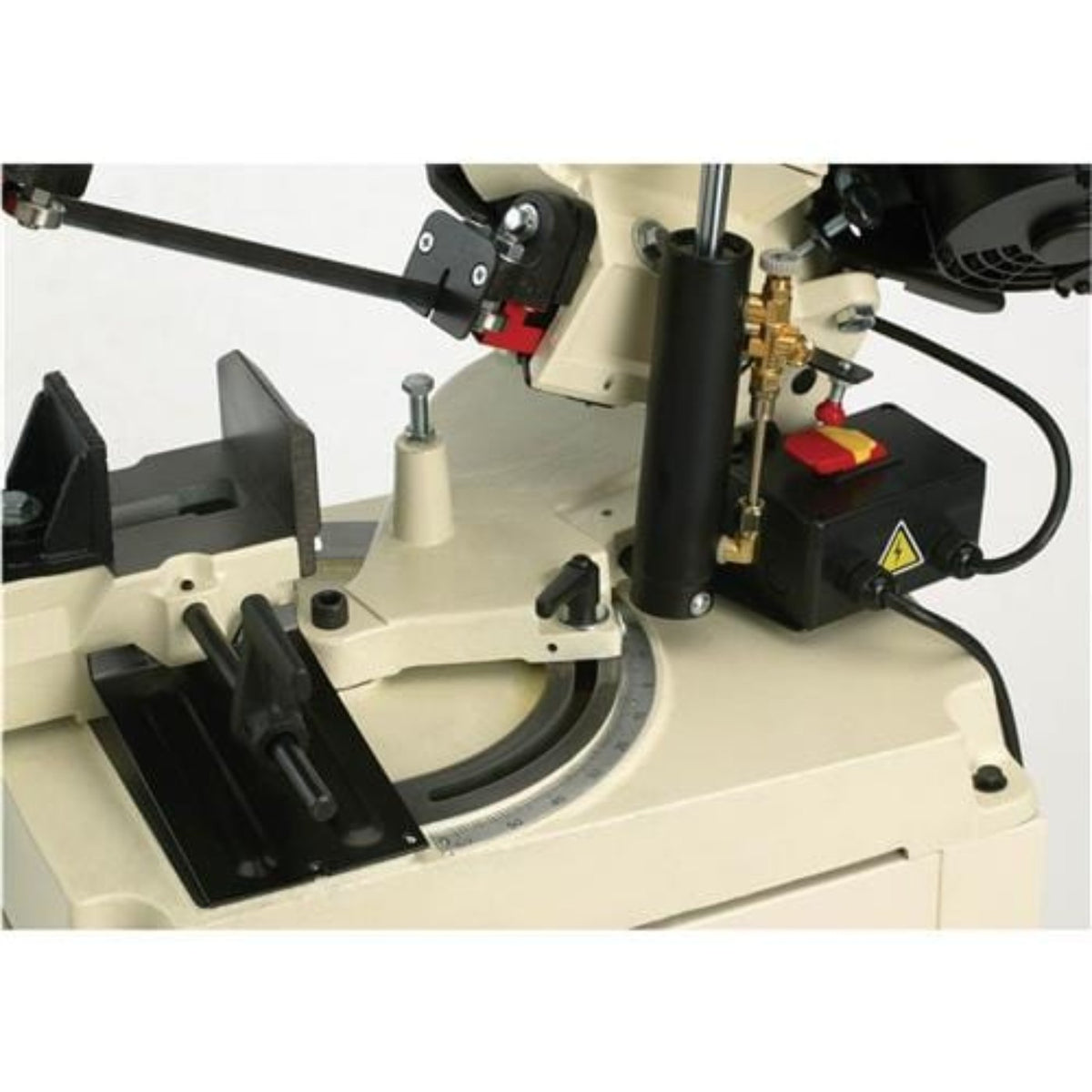

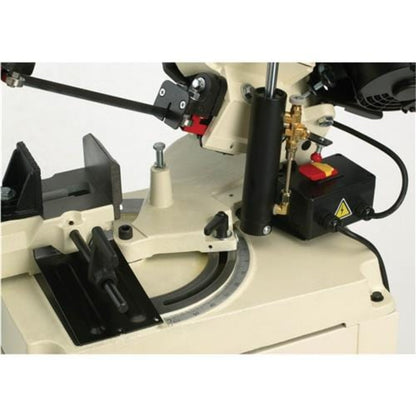

A bandsaw is a must for any metal shop. The M1013 has three speeds, an automatic shut-off, ball-bearing blade guides, and many more important performance features. As an added bonus, it has a swiveling headstock, so there is no fussing with establishing the cut angle at the vise! Just set the workpiece length, swivel the headstock to an angle between -45° to +60°, and make the cut.
Specifications
- Motor: 1/2 HP, 110V/220V, prewired 110V, single-phase, 1725 RPM, 9.4A/4.5A, 60Hz

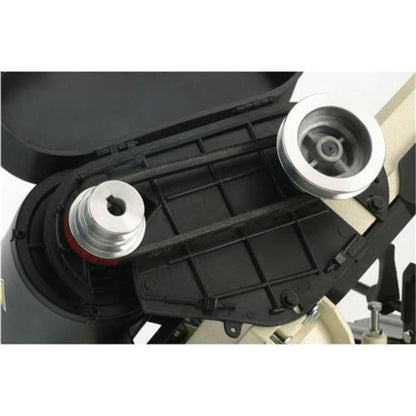

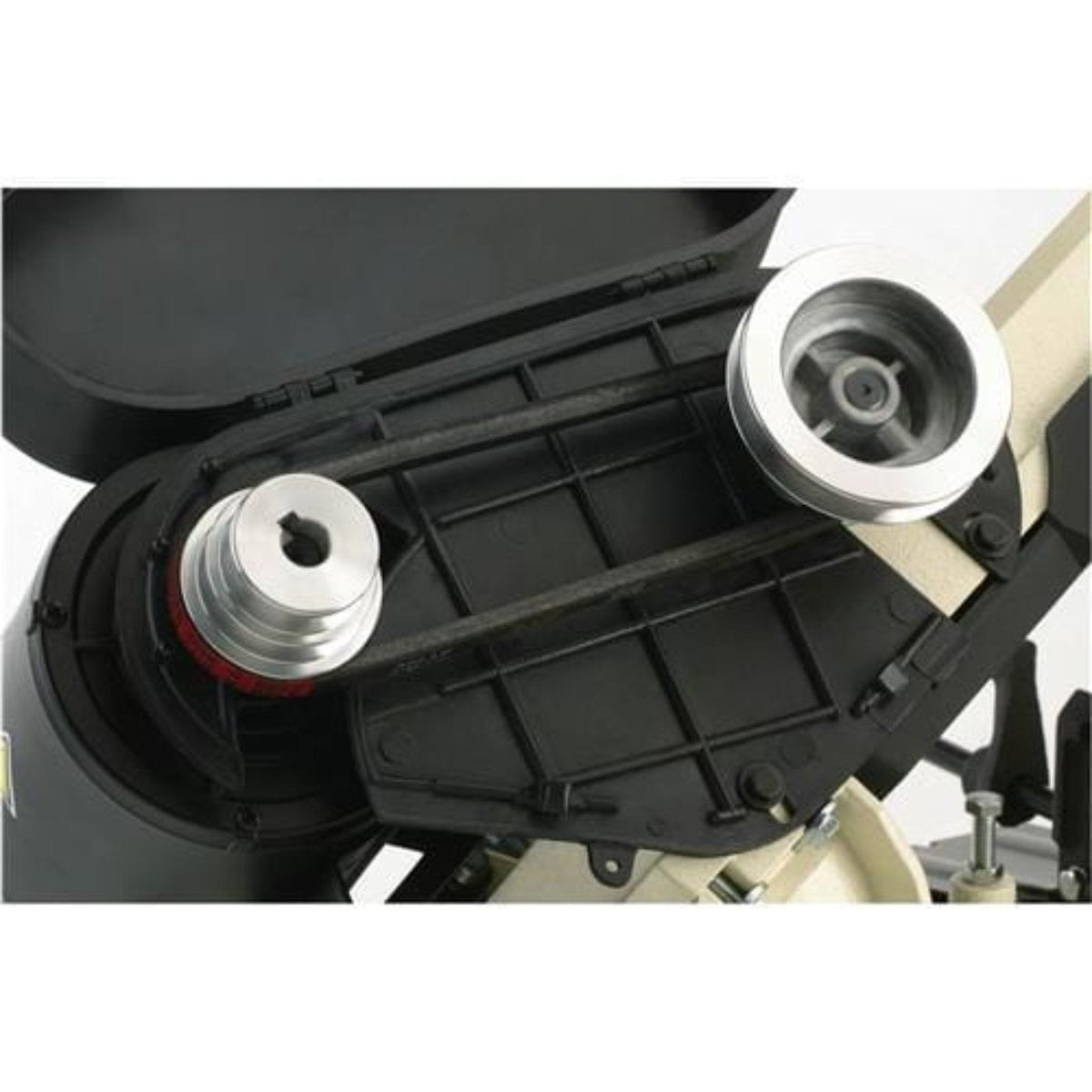

- Drive: V-belt
- Transmission: sealed worm gear
- Max. capacity rectangular @ 90°: 5' x 6'
- Max. capacity round @ 90°: 5'
- Max. capacity rectangular @ ±45°: 2-15/16' x 3-3/4'
- Max. capacity round @ ±45°: 3-3/4'
- Max. capacity rectangular @ +60°: 1-3/4' x 2-3/16'
- Max. capacity round @ +60°: 1-3/4'
- Blade speeds: 80, 120, 200 FPM
- Floor to table height: 29'
- Overall width: 23-3/8'
- Overall length: 39'
- Overall table: 4-1/2' x 12'
- Angular cuts: -45° to +60°
- Blade size: 64-1/2' x 1/2'

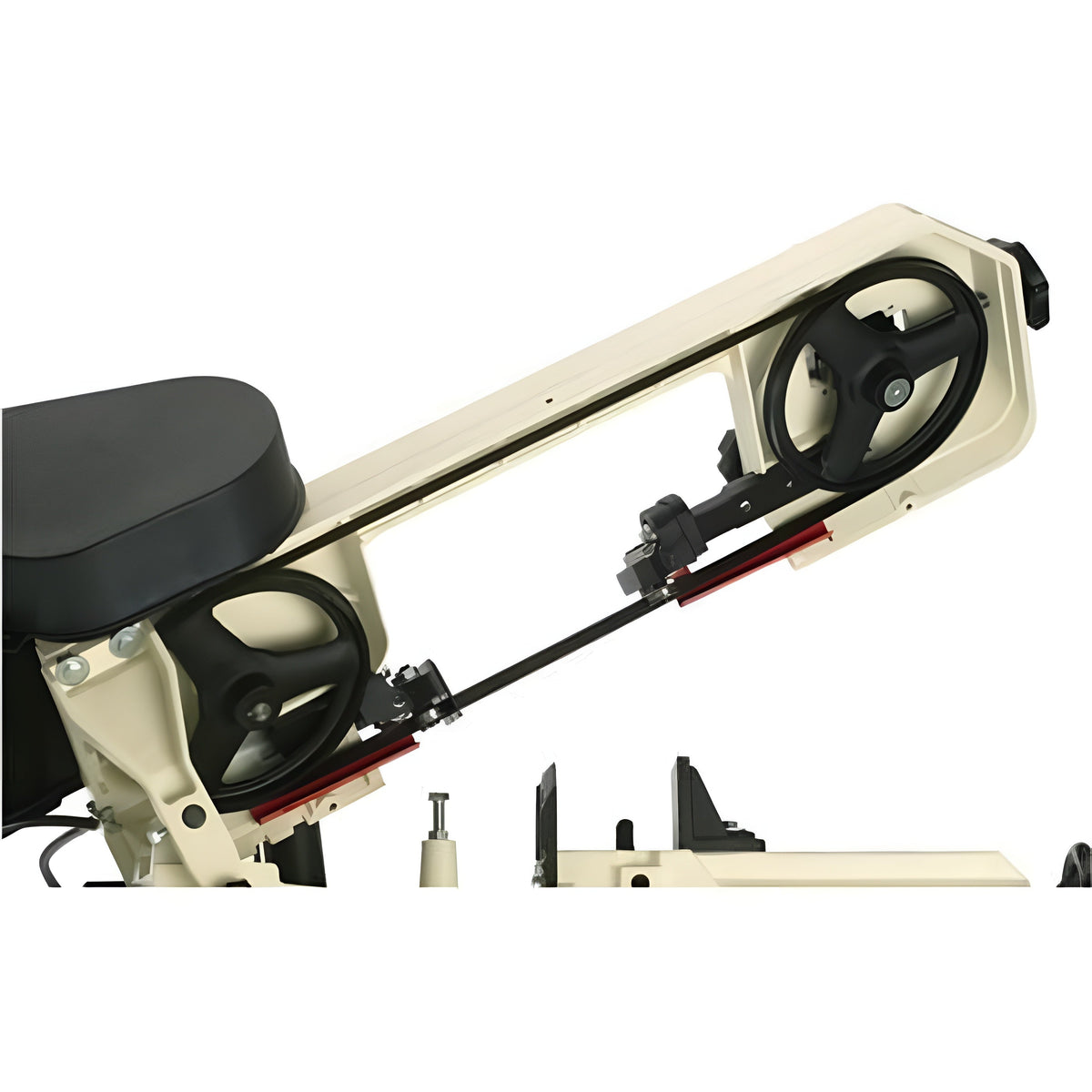

- All ball-bearing drive wheel and blade guides
- Approximate shipping weight: 176 lbs.
- Overall height: horizontal 42-1/2'; vertical 54-3/4'
- Footprint: 26-1/2' x 20-1/2'
What Our Experts Think
The M1013 5" x 6" Metal Cutting Bandsaw is a top choice for precise and efficient metal cutting. Here's why it's highly rated:
-
Versatile Cutting Capacity: Capable of cutting up to 5" x 6" in size, perfect for various metalworking projects.
-
Adjustable Cutting Angles: Features a swiveling head for mitre cuts from 0° to 60°.
-
Powerful Motor: 1/2 HP motor ensures smooth and consistent cutting performance.
-
Heavy-Duty Construction: Built with a solid frame for durability and long-lasting use.
-
User-Friendly: Simple operation with a manual feed system and easy blade adjustments.
-
Efficient Chip Removal: Equipped with a coolant system to keep the blade and material cool for cleaner cuts.
Q&A
Q: What is the M1013 Metal Cutting Bandsaw used for?
A: The M1013 is designed for cutting metal materials such as steel, aluminum, and other metals with precision and ease.
Q: What is the cutting capacity?
A: It can cut up to 5" in diameter round stock and 6" x 6" in rectangular stock, making it versatile for various metalworking projects.
Q: What type of motor does it have?
A: The bandsaw is equipped with a 1/3 HP motor, providing consistent power for efficient metal cutting.
Q: Is it easy to adjust for different cuts?
A: Yes, it offers an adjustable angle for cutting, allowing for a range of angles from 0° to 45° for accurate bevel cuts.
Q: Does it have a coolant system?
A: Yes, the saw features a coolant system to prolong blade life and improve cutting performance.
Q: How easy is it to move and position?
A: The bandsaw comes with a built-in stand and is designed for stable use while being portable enough for workshop environments.
Q: What safety features does it have?
A: It includes safety features such as a blade guard and emergency stop button to ensure safe operation.
Q: What is the weight of the bandsaw?
A: The M1013 weighs approximately 95 lbs, providing a sturdy base without compromising mobility.
Q: Who is this bandsaw suitable for?
A: Ideal for hobbyists, small fabrication shops, and DIY metalworkers who need a compact and reliable metal cutting solution.
Q: Does it come with a warranty?
A: Yes, it includes a 1-year warranty for added peace of mind.
Maintenance Tips
-
Blade Care: Inspect and replace dull or damaged blades to ensure precise cuts.
-
Blade Tension: Check and adjust blade tension regularly to prevent slippage and uneven wear.
-
Guide Alignment: Ensure blade guides are properly aligned for accurate cutting and reduced vibration.
-
Lubrication: Lubricate moving parts as per the manual to minimize wear and tear.
-
Chip Removal: Clean the blade and machine bed of metal shavings after each use to prevent buildup.
-
Motor Check: Inspect the motor for unusual noise or overheating, and address promptly.
