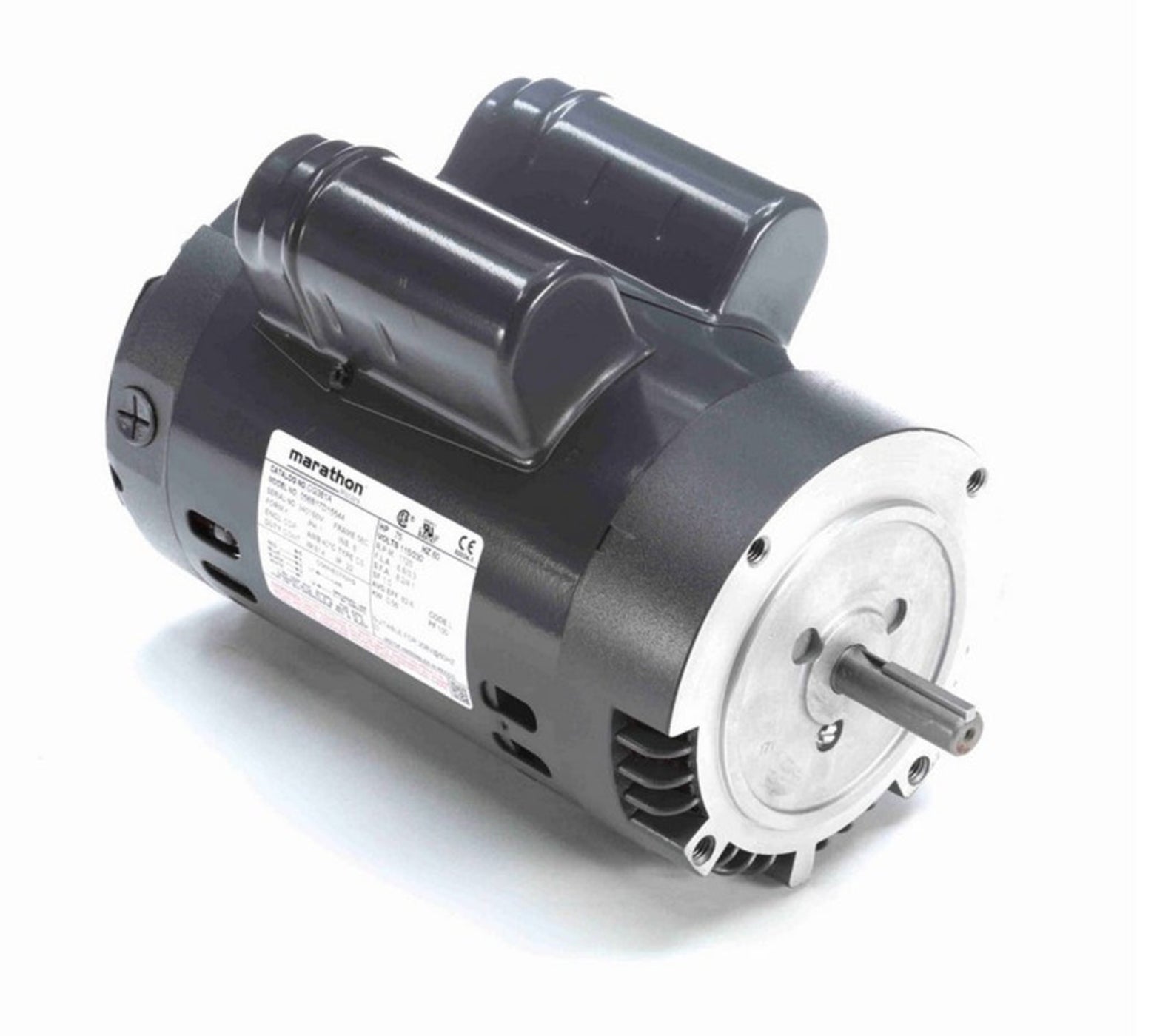

Marathon Motors General Purpose Motor 3/4 HP NEMA 56C - MCG361B
The Marathon Motors MCG361B is a three-quarter horsepower general purpose motor. This motor operates at speeds of 1725 or 1800 RPM and is ideal for a range of applications. It has a NEMA 56C frame and features a keyed shaft with sizes of five-eighths inch diameter by one and seven-eighths inch length. It works with power supplies of 115/208-230 or 115/230 volts, drawing a current of 6.2 amps at 60Hz.
This motor is suitable for various setups requiring reliable performance. Its versatile mounting options and durable construction make it a suitable choice for many environments.
- Horsepower: 3/4 HP
- Speed: 1725 or 1800 RPM
- Enclosure: Open Drip Proof (ODP)
-
Manufacturer Part Number: MCG361B
-
Horsepower: 3/4 HP
Specifications
-
Speed: 1725 RPM or 1800 RPM
-
Frame Type: NEMA 56C
-
Input Voltage: 115/208-230 volts
-
Input Current: 6.2/3.4-3.1 amps
-
Frequency: 60Hz
-
Service Factor: 1.25
-
Enclosure: Open Drip Proof
-
Mounting Type: C-face
-
Shaft Type: Keyed
-
Shaft Dimensions: 5/8 inch diameter x 1 7/8 inch length
-
Rotation: Selective CCW
-
Bearing Type: Ball bearings
-
Insulation Class: Class B
-
Overload Protection: None
-
Reversible: Yes
-
C-Dimension: 12.31
-
Face Mounting: 4 threaded bolt holes, 5 7/8 inches center to center on the shaft
What Our Experts Think
-
Reliable 3/4 HP motor designed for general-purpose industrial applications.
-
NEMA 56C frame ensures easy compatibility with standard equipment.
-
Efficient operation reduces energy costs and improves performance.
-
Durable construction provides long-lasting, maintenance-friendly use.
-
Trusted Marathon Motors quality for consistent, dependable performance.
Q&A
-
Q: What applications is this motor suitable for?
A: Ideal for pumps, fans, conveyors, and other industrial machinery.
-
Q: Is it energy efficient?
A: Yes, designed to provide reliable power while minimizing energy use.
-
Q: What is the frame type?
A: NEMA 56C for standard mounting compatibility.
Maintenance Tips
-
Regularly inspect and clean to prevent dust and debris buildup.
-
Lubricate bearings according to manufacturer recommendations.
-
Monitor voltage and current to avoid overload.
-
Ensure proper ventilation to prevent overheating.
-
Schedule routine professional maintenance for optimal performance.
