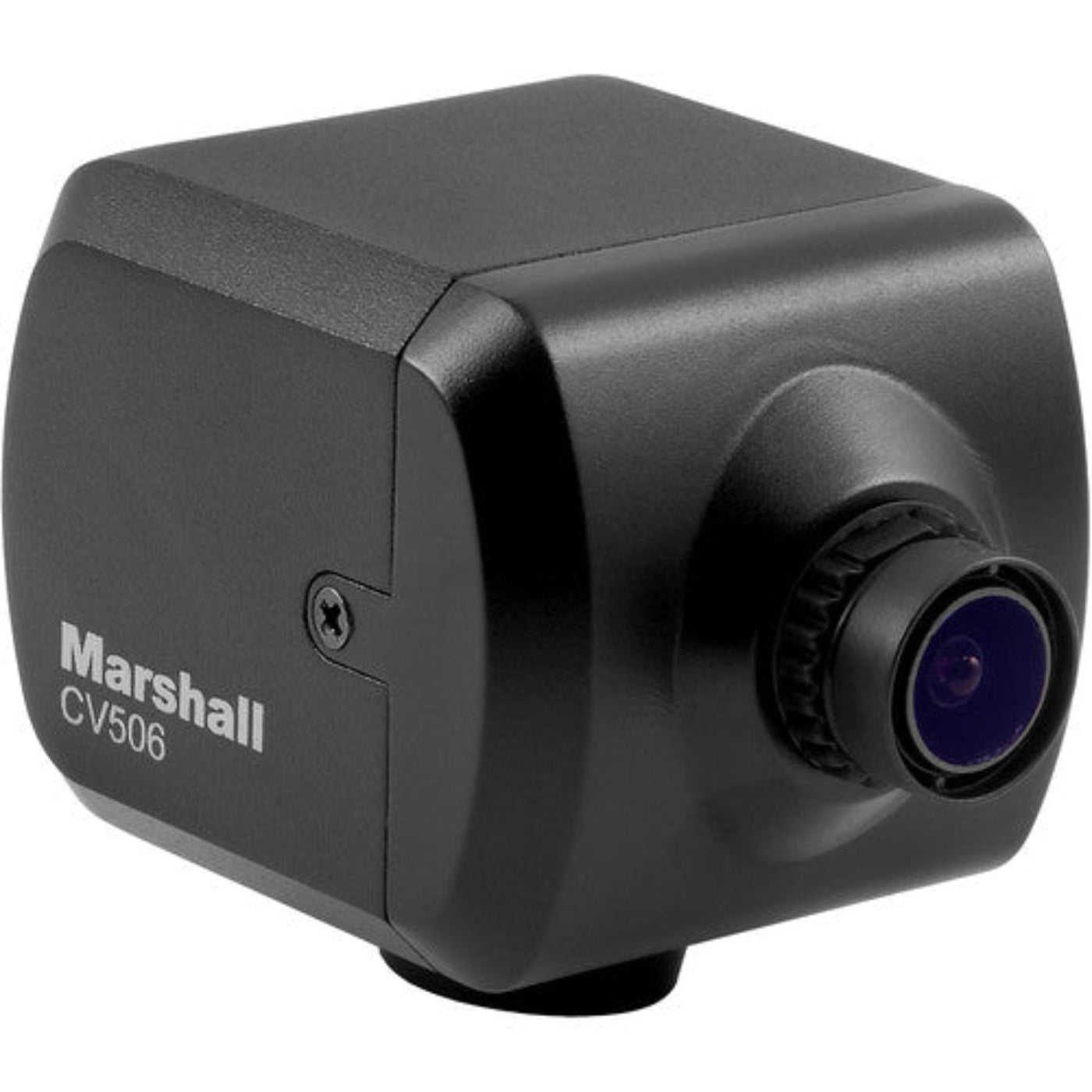

The compact and versatile Marshall Electronics CV506 Mini HD Camera captures at progressive frame rates up to 60p, as well as interlaced, making it suitable for use in live broadcast productions, courtrooms, corporate videos, government assemblies, sportscasts, newscasts, reality television, concerts, and houses of worship. It features a 2.5MP CMOS sensor, with 1920 x 1080 resolution and outputs 3G/HD-SDI as well as HDMI. It features an M12 lens mount and comes with a 3.6mm lens. Image tools include Digital Noise Reduction, Auto White Balance, and digital zoom.
Features specific to surveillance include motion detection and privacy mask, allowing you to have the camera trigger if it detects motion in a specific area, as well as being able to mask off an area of the image from surveillance. Audio is handled by the breakout cable that lets you connect a mic- or line-level input device. The breakout cable also features an integrated joystick control for accessing and setting menu items via the on-screen menu display. In addition, you can also control the camera via RS-485 control protocol.

Lens

A removable M12 mounted 3.6mm lens with a 72° angle of view is included with the camera. You can swap out the lens for almost any other Marshall M12 mount lens

• M12 Mount with Removable 3.6mm Lens

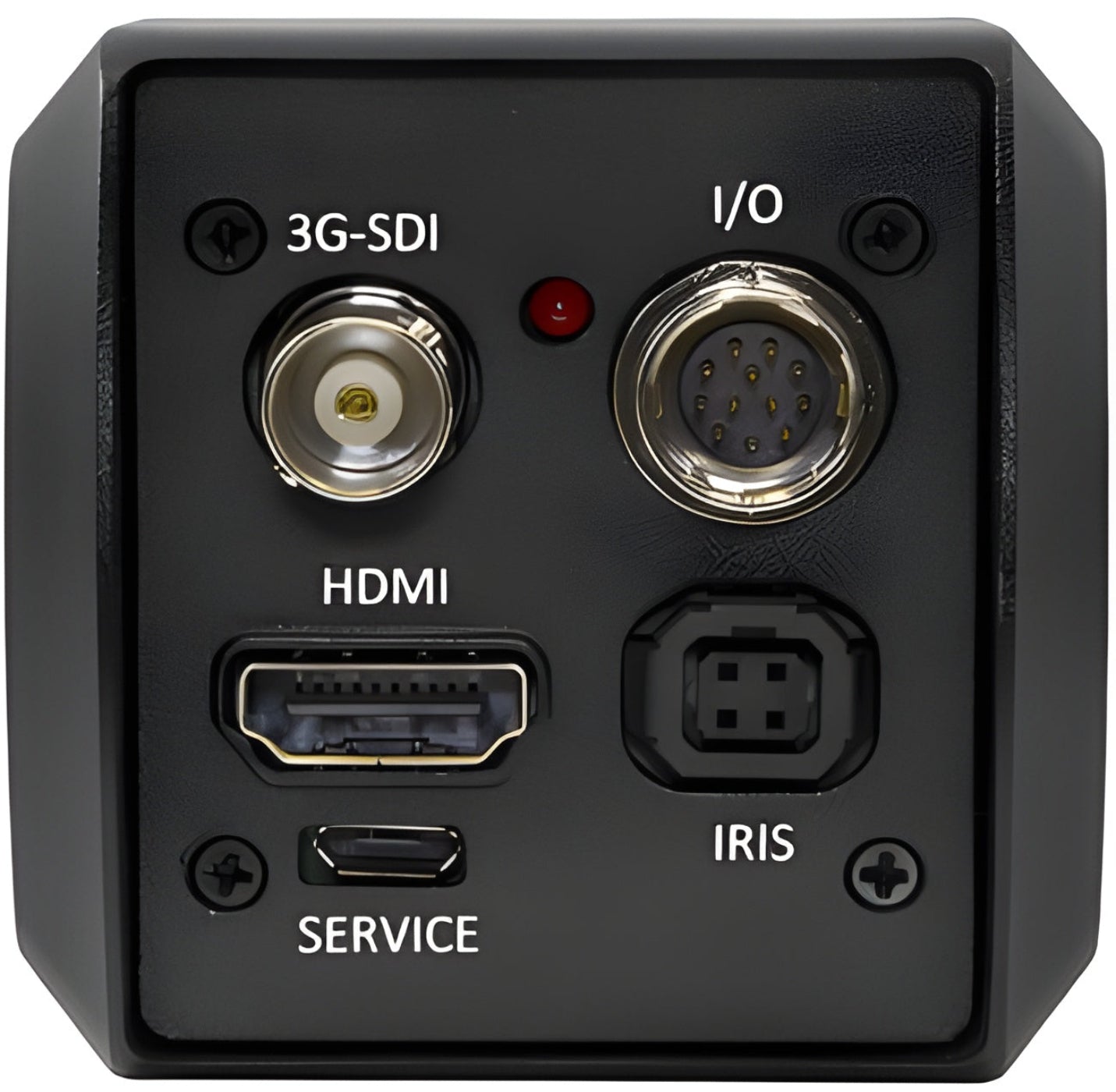

• 3G/HD-SDI & HDMI Outputs

• 1/2.8" 2.5MP CMOS Sensor

• Progressive & Interlaced Frame Rates

• 1080p

Features

Image Control

• Lens Shading: Corrects inconsistent brightness level in the image

• Contrast: Adjusts the image contrast level

• Brightness: Adjusts the image brightness level

• Saturation: Adjusts the image saturation level

• Hue: Adjusts the image hue level

• Edge Enhance: Adjusts the image sharpness level

• Auto Saturate: Decreases saturation automatically when noise scene is detected

• Auto Edge: Adjusts line sharpness level automatically

• Black / White Level: Adjusts the image black level value

• Gamma Correct: Adjusts the image output gamma level

• DNR: Reduces video noise at low ambient light. Select the DNR level from Off, Low, Middle, and High using the Left or Right button

AE Control
Auto: Adjusts the exposure level automatically. Detailed fine tuning options are available under this menu

• Shut Fix: Provides more detailed shutter speed options. All other controls are tuned for the selected shutter speed

• AGC Fix: Provides more detailed gain option. All other controls are tuned for the selected gain value.

• Manual: Adjusts the exposure level manually
• Shutter: Speed can be set at auto or manual (1/30~1/10,000)

• Iris Speed: Electronic iris speed can be controlled, for DC iris lens only (0~5)

• AGC: Electronic iris speed can be controlled, for DC iris lens only (0~5)

• AGC Max: Used to set maximum gain value to control the video noise caused by Auto Gain Control (Off, Low, Middle, High, DMIN, DMID, DMAX)

• Sens Up: Controls the digital slow shutter to allow extra light into the camera and adjust the picture quality (Off, x2~x10)

• AE Bright: Select this to adjust auto exposure brightness levels (0~10)

• Lens Mode: Lens setting will be optimized for selected environment, for DC iris lens only

• FLK Control: Provides a proper image sensor frequency to match the power frequency in order to minimize video flicker

Digital Tools

• DZoom: Digitally zoom the video by the desired ratio

• Defog: This feature will help increase visibility in extreme weather conditions, such as fog, rain, or in a very strong luminous intensity

• DIS: This feature enables digital image stabilization

• Backlight: Adjusts backlight compensation by choosing either BLC HLM from this menu

• Binning: Enable or disable pixel binning

• Defect Pixel: Advanced defective pixel correction menu

• Disp Function: Display effects such as freeze mirror, rotation, and style can be applied from this menu

• WDR: This feature enables user to view both object and background more clearly when background is too bright

• Flicker Detect: Adjust the image sensor frequency to match the power frequency

• Privacy: Mask an area you want to hide on the screen by applying the privacy zones

What Our Experts Think

• Full HD 1080p Resolution – Captures crisp, high-quality video at up to 60fps.
• 3G/HD-SDI & HDMI Outputs – Provides flexible connectivity for professional workflows.
• Ultra-Compact & Rugged Design – Ideal for tight spaces, POV shots, and discreet installations.
• Low-Light Optimization – Features wide dynamic range and advanced noise reduction for clear imaging.
• Interchangeable M12 Lenses – Allows customizable field of view for various applications.
• Remote Adjustments – Control exposure, white balance, and more via RS485 or OSD menu.
• Perfect for Live Production & Broadcast – Great for sports, concerts, reality TV, and cinematic applications.

Q&A

Q: What is the Marshall Electronics CV506 Miniature Full-HD Camera?
A: The Marshall CV506 is a compact Full-HD camera with 3G/HD-SDI and HDMI outputs, designed for broadcast, live production, sports, and POV (point-of-view) applications.

Q: What resolution and frame rates does it support?
A: It captures Full HD 1080p, 1080i, and 720p video at frame rates up to 60fps, delivering crisp and detailed visuals.

Q: What type of connectivity does it offer?
A: The CV506 includes both 3G/HD-SDI and HDMI outputs, allowing for flexible integration into professional video workflows.

Q: Is the camera remotely controllable?
A: Yes, it supports RS-485 control and an on-screen display (OSD) menu, enabling adjustments to exposure, white balance, and other image settings.

Maintenance Tips

• Keep the Lens Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
• Protect Connectors – Use high-quality SDI/HDMI cables and avoid excessive plugging/unplugging.
• Update Firmware – Check Marshall Electronics’ website for the latest firmware to ensure optimal performance.
• Prevent Overheating – Ensure proper airflow and avoid prolonged exposure to heat sources.
• Secure Mounting – Use stable mounts to prevent vibrations and movement during operation.
• Inspect Cables & Ports – Regularly check for frayed cables or loose connections that may affect signal quality.
• Handle with Care – Avoid dropping or subjecting the camera to strong impacts.
• Store Properly – When not in use, keep the camera in a dry, cool place away from moisture and dust.
