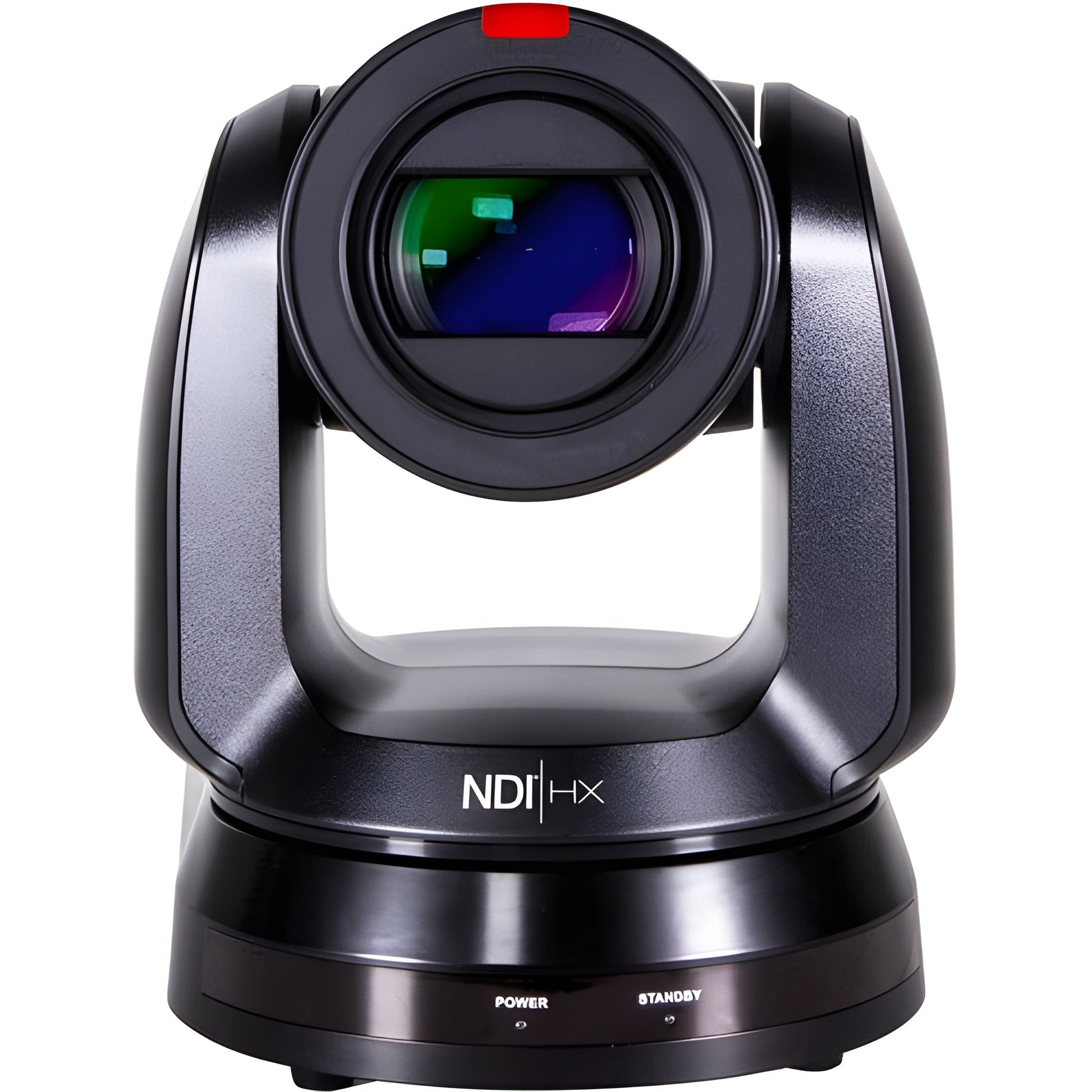

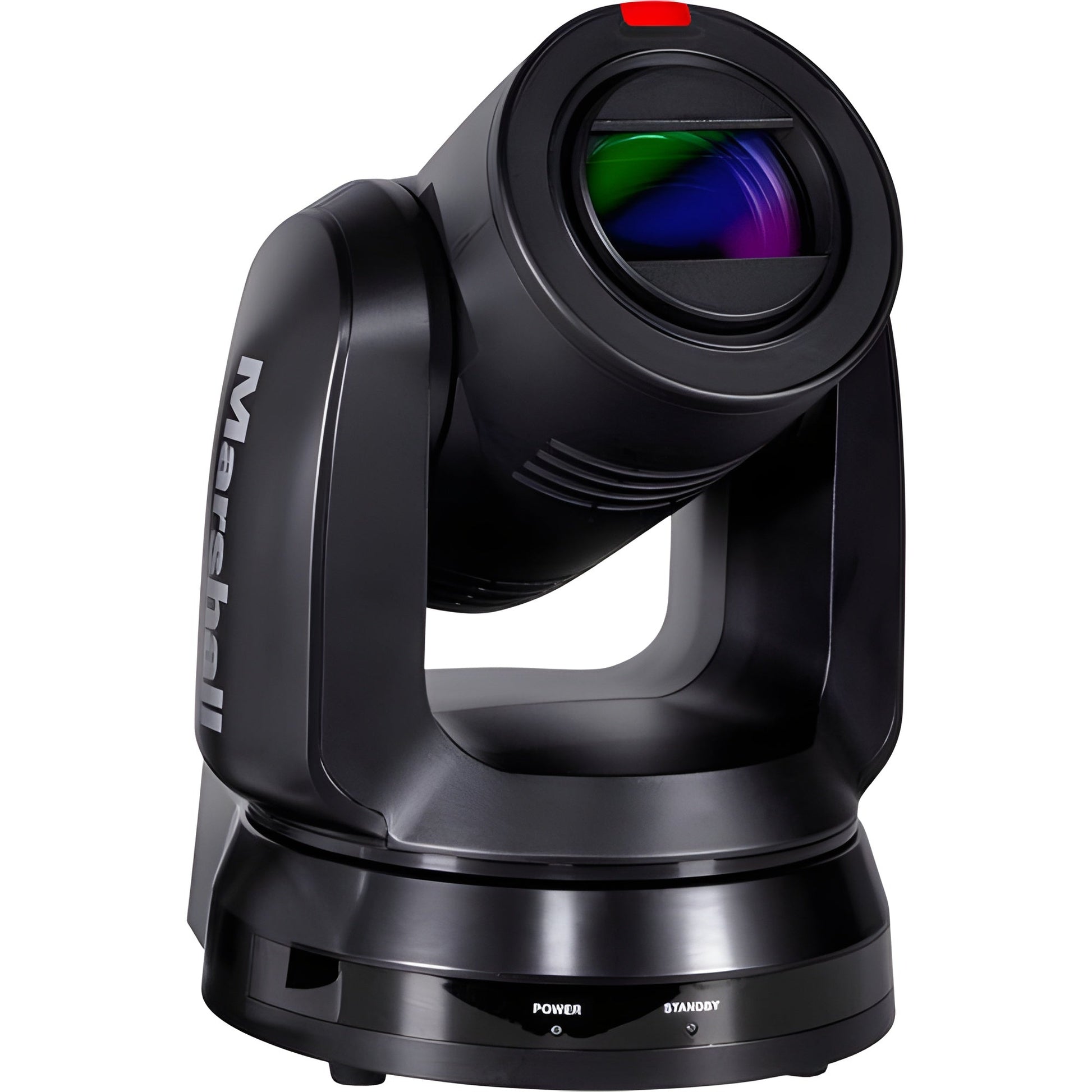

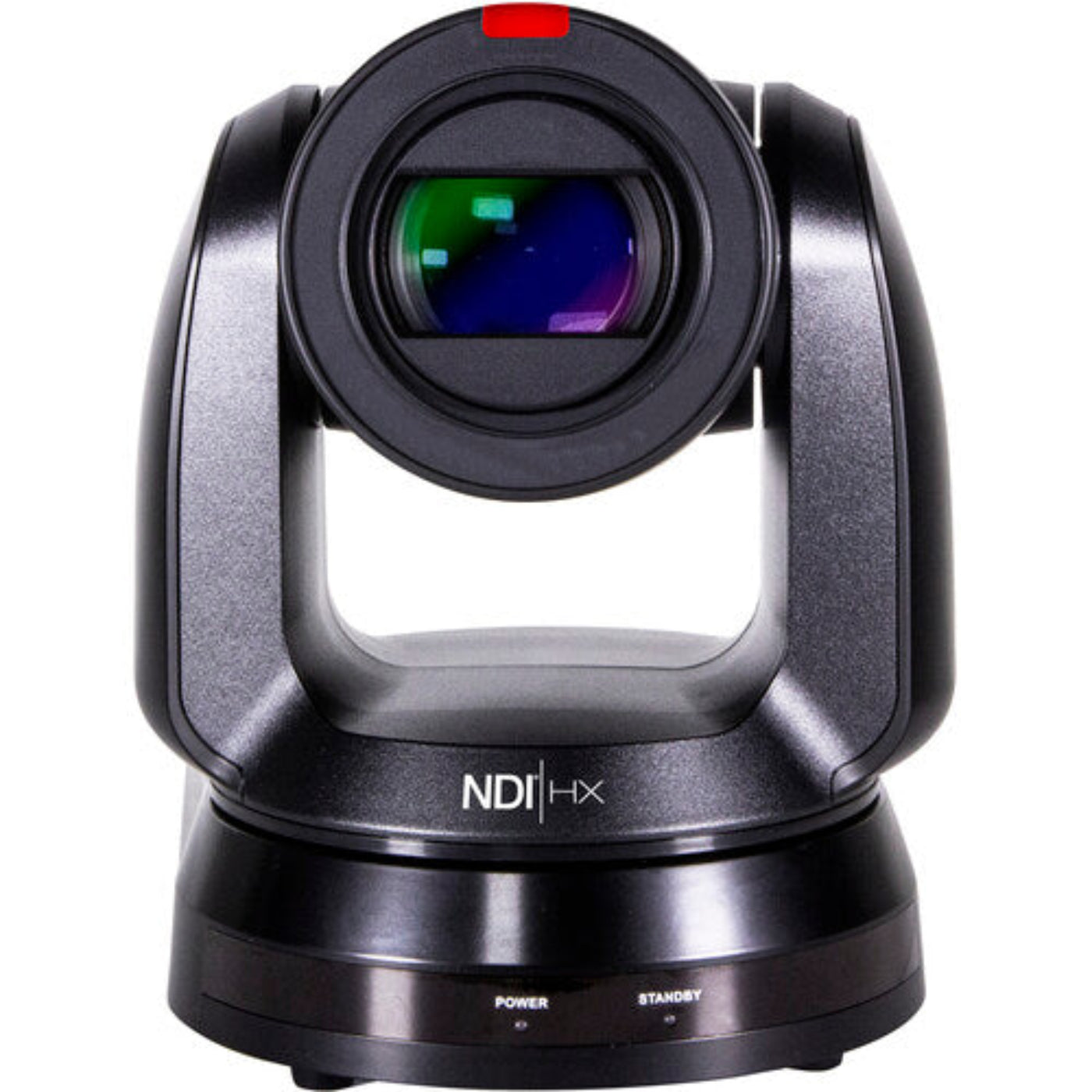

Marshall Electronics CV730-NDIB UHD 4K Broadcast PTZ Camera with NDI|HX - CV730NDIB

Marshall Electronics CV730-NDIB UHD 4K Broadcast PTZ Camera with NDI|HX - CV730NDIB

Marshall CV730-NDIB highlights a 30x optical zoom block and convenient multiple 12GSDI and HDMI outputs with NDI®|HX2. and amazingly clear UHD images up to 3840x2160p at 60fps. NDI®|HX2. provides low latency, excellent quality, frame-accurate video, and audio in real time to IP workflows. NDI® Tools opens the capability to incorporate more video devices and applications into your production workflow. CV730-NDIB is the first UHD60 PTZ camera with NDI®|HX2..

Best of Class

Featuring 12GSDI, HDMI2.0, and NDI®|HX2. from a professional level 8.5MP 1/1.8" UHD sensor and smooth synchronous movements. CV730-NDIB is the first to deliver UHD60 performance with NDI®|HX2. ease-of-use delivering crystal-clear images up to 3840x2160p at 60fps. NDI®|HX2. provides Video, Audio, Control, Tally and Power over one Ethernet cable for remote broadcast-style adjust & match settings control.

Flexible Zoom Range

Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances.

Ease of Use

Install one-cable to camera with NDI®|HX2. for all functions, simple connect to any Ethernet port - THAT'S IT - or use Ethernet for PoE++/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.

Professional Broadcast Performance

Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. CV730-NDIB constitutes the World's first NDI®|HX2. PTZ camera with Ultra-HD video quality at 60fps.

Features

• Video Resolution up to UHD 4K60

• 8.5MP 1/1.8" Sony Sensor

• 6.5 to 202mm Lens, 30x Optical Zoom

• 12G-SDI, HDMI 2.0, and NDI|HX Outputs

• 65° AoV, PoE, Tally Support

• RS-232 & RS-422 Serial Control

• 340° Pan, 120° Tilt

• VISCA and Pelco-D Protocol Support

• IR Remote Included

• 8.5 Megapixel UHD Sensor (1/1.8")

• 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV

• 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)

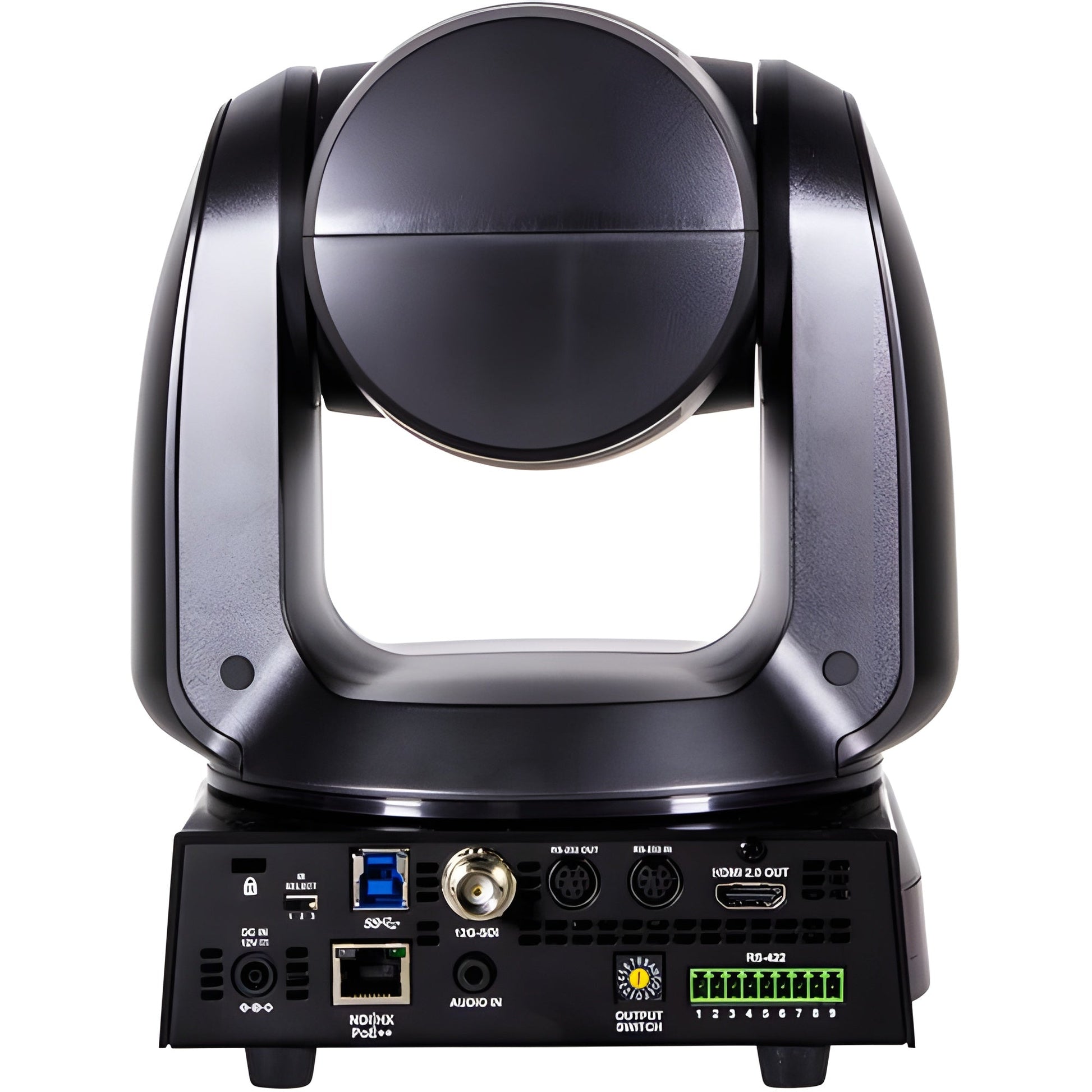

• 12G/6G/3G-SDI, HDMI2.0, USB3.0 and NDI®|HX2. simultaneous outputs

• 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p

• 59.94, 50, 29.97, 25fps options up to 4K60 and HD60

What Our Experts Think

• UHD 4K Resolution: Captures stunning, high-detail images for professional broadcast and live-streaming applications.
• NDI|HX, 12G-SDI, HDMI & IP Output: Multiple connectivity options for seamless integration into any workflow.
• 30x Optical Zoom: Smooth, high-quality zoom for close-up shots without loss of detail.
• Smooth & Precise PTZ Control: Fast, accurate pan, tilt, and zoom functionality for dynamic productions.
• Low-Light Performance: Advanced sensor technology ensures clear images even in challenging lighting conditions.
• Compact & Professional Design: Ideal for studios, houses of worship, remote productions, and live events.

Q&A

Q: What is the Marshall CV730-NDIB?
A: A UHD 4K PTZ camera with NDI|HX support, offering professional-quality video for broadcast and live streaming.

Q: Who is this camera for?
A: Perfect for broadcasters, live streamers, corporate events, houses of worship, and educational institutions.

Q: What video outputs are available?
A: It supports NDI|HX, 12G-SDI, HDMI, and IP streaming for maximum flexibility.

Q: What zoom capabilities does it have?
A: Features a 30x optical zoom for capturing crisp, detailed images from a distance.

Q: Can it be controlled remotely?
A: Yes, it supports control via IP, NDI, RS-232, and RS-422 for seamless operation.

Q: What makes it stand out?
A: High-quality 4K video, advanced NDI|HX support, and professional-grade PTZ functionality.

Maintenance Tips

• Lens Cleaning – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
• Firmware Updates – Keep firmware up to date for optimal performance and new features.
• Check Connections – Secure power, NDI|HX, SDI, and HDMI cables to prevent signal loss.
• Ventilation & Cooling – Ensure proper airflow around the camera to prevent overheating.
• Gentle Handling – Avoid physical impact and use a sturdy mount to prevent damage.
• Power Surge Protection – Use a surge protector to safeguard against voltage spikes.
• Test PTZ Functions – Regularly check pan, tilt, and zoom movements to ensure smooth operation.
