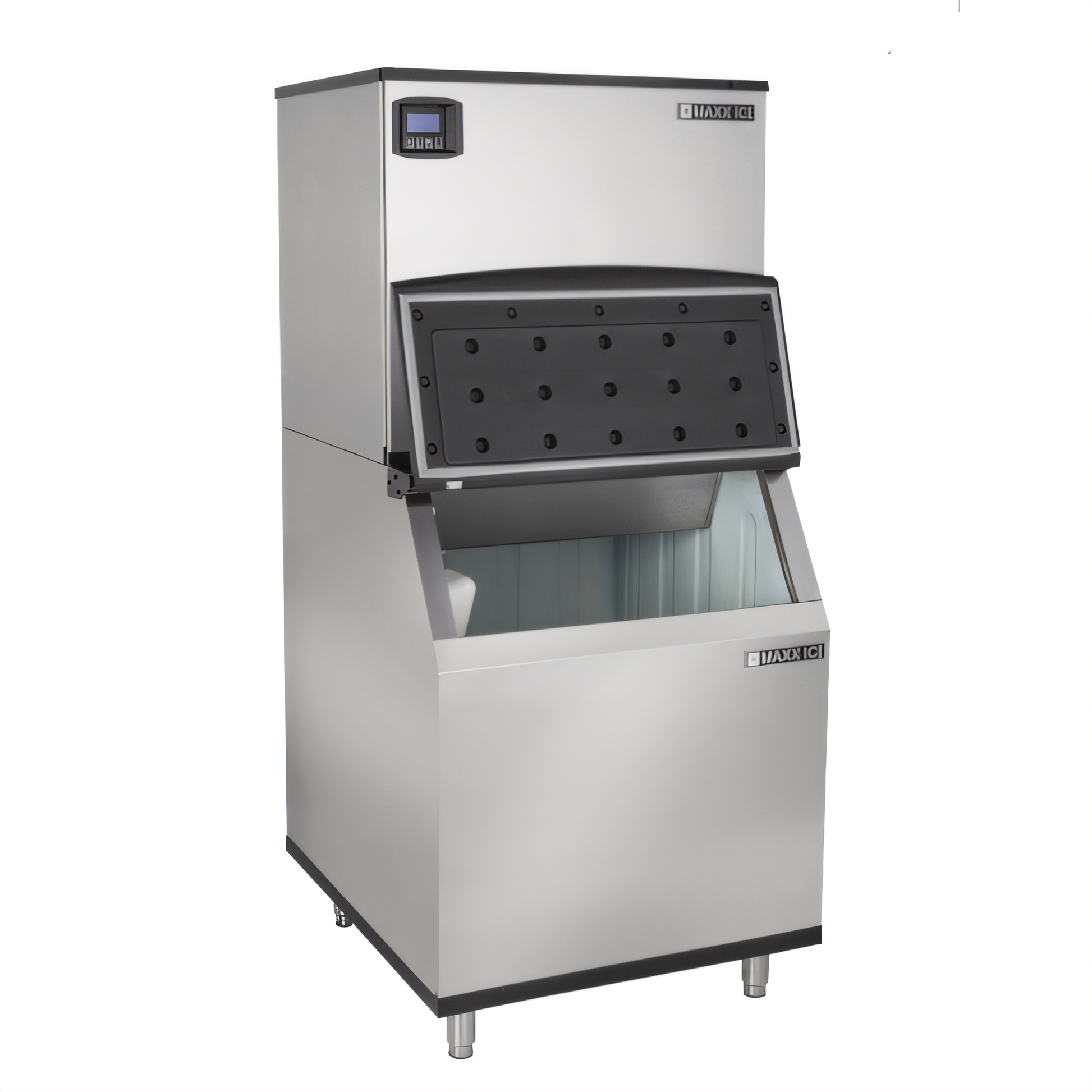

Maxximum MIM370N-B580N Maxx Ice Ice Machines
Maxx Ice Intelligent Series Modular Ice Machine, 60"W, cube-style (full dice), air-cooled, self-contained condenser, digital, approximately 373 lb. production/24 hours, slab cube ice type, stainless steel with black trim, and Storage Bin, 60"W, 580 lbs, R404a refrigerant, NSF, cULus Classified, CE, ENERGY STAR
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Height |
71.0 in |
| Width |
60.0 in |
| Depth |
58.6 in |
| Shipping Weight |
308.0 lbs |
| Bin Storage Capacity |
500 - 599 lb bin capacity |
| Cube Type |
Full size/dice |
| Production per 24 hr |
301 - 400 lb (approx. 137 - 181 kg) |
| Finish |
Stainless steel |
| Specifications |
Maxx Ice Intelligent Series Modular Ice Machine, 60"W, cube-style (full dice), air-cooled, self-contained condenser, digital, approximately 373 lb production/24 hours, slab cube ice type, stainless steel with black trim, and Storage Bin, 60"W, 580 lbs, R404a refrigerant, NSF, cULus Classified, CE, ENERGY STAR |
Documents
What our Experts Think
-
High Ice Production: Delivers up to 373 lbs of full-dice ice per day, meeting the needs of high-demand environments like restaurants and hotels.
-
Energy and Water Efficiency: Consumes up to 40% less water and produces ice up to 20% faster than similar units, reducing operational costs.
-
Durable Construction: Features a stainless steel exterior with black trim, ensuring longevity and a professional appearance.
-
User-Friendly Controls: Equipped with an intuitive digital controller that displays machine status and temperature, simplifying operation and monitoring.
-
Easy Maintenance: The hinged front panel design allows for easy access, cleaning, and servicing, ensuring consistent performance.
-
Stackable Design: Can be stacked with an adapter to increase ice production in high-volume kitchens, offering flexibility in ice production capacity.
Q&A
Q: What type of ice does the Maxximum MIM370N-B580N produce?
A: The Maxximum MIM370N-B580N produces full-dice ice cubes measuring 0.875" x 0.875" x 1", ideal for beverages and food display.
Q: What is the daily ice production capacity?
A: It produces up to 373 lbs (169 kg) of ice per day under optimal conditions (70°F air and 50°F water).
Q: Is the MIM370N-B580N energy-efficient?
A: Yes, it's Energy Star rated, consuming up to 40% less water and producing ice up to 20% faster than similar units.
Q: What are the installation requirements?
A: The MIM370N-B580N requires a gravity drain line and a 115V electrical connection. A 2-inch clearance from the wall is recommended for proper ventilation.
Q: Is the MIM370N-B580N easy to maintain?
A: Yes, it features a hinged front panel for easy access, automatic cleaning cycle, and bin overflow prevention.
Maintenance Tips
-
Preparation: Remove any ice from the evaporator and storage bin.
-
Cleaning Solution: Add 8 oz of nickel-safe ice machine cleaner to the water tank.
-
Cleaning Cycle: Initiate the automatic cleaning cycle by pressing the "Clean" button.
-
Rinsing: After the cleaning cycle, drain the dirty water and repeat the cleaning cycle three times without adding cleaning solution to thoroughly rinse the system.
-
Sanitization: Prepare a sanitizing solution of 1 oz of household bleach mixed with 2 gallons of hot water. Wipe down the water tank and inside the ice storage bin with a clean cloth
