A Steam Room In One Package, Indulge Yourself In A State Of Complete Relaxation And Tranquility.

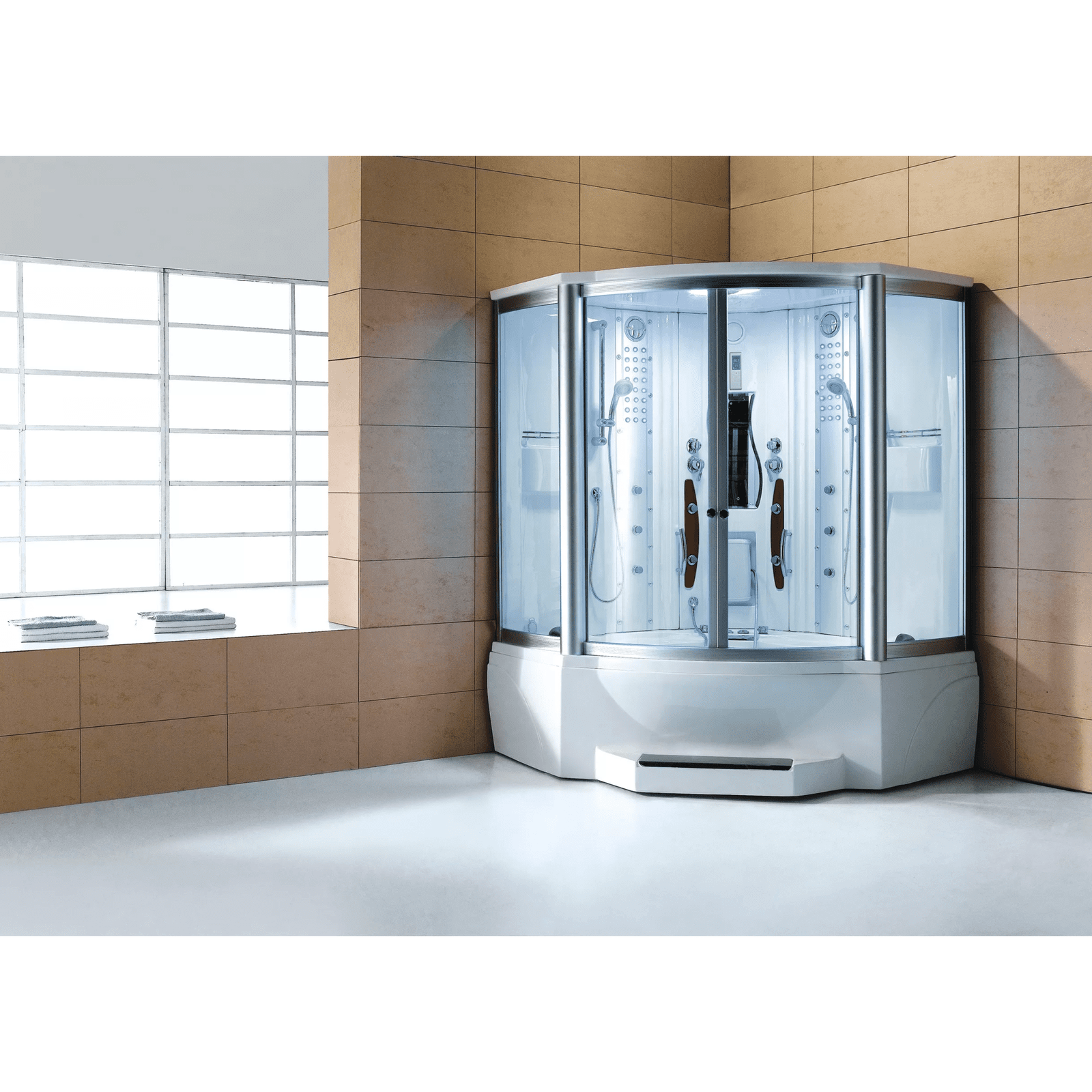

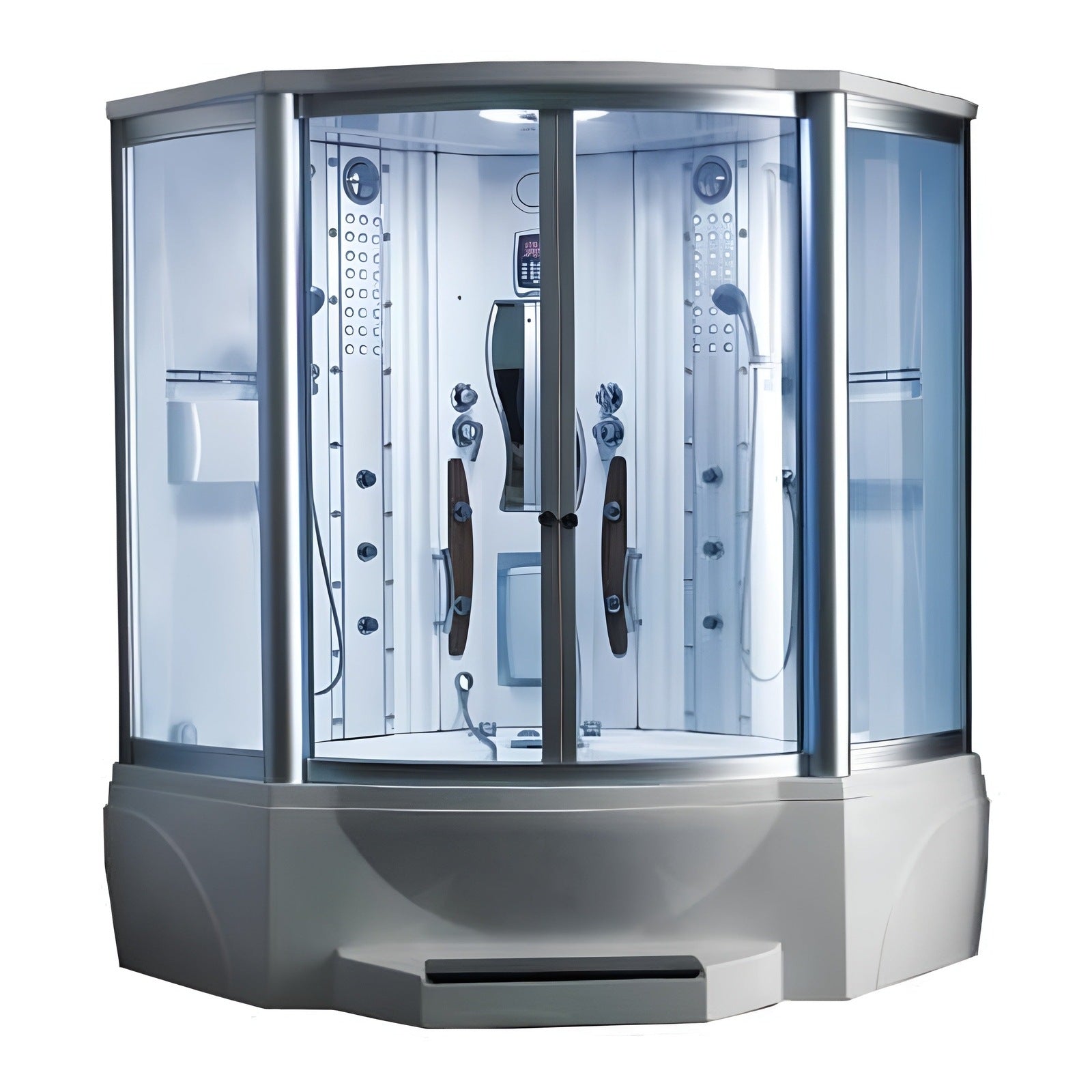

The Mesa 608A combination steam shower with jetted tub is one of our most popular combination steam showers. Featuring 10 acupuncture jets, 10 whirlpool jets, and a 3KW high-efficiency steam engine, the 608A steam bath gives you the therapies of a massage tub and steam room in one package. Indulge yourself in a state of complete relaxation and tranquility.

View the Mesa Steam Shower Jetted Tub Combination - WS-608A Features below:

• Includes A Flexible Drain Hose. This means putting your drain anywhere you want!

• 63" x 63" x 85"

  (Add 2" for ventilation exhaust pipe)

• ETL Certified (220V)

• Electrical requirements (1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.

• Electrical requirements (1) 220v with a 20amp dual pole breaker GFCI Breaker for the heat pump

• 3KW High Output Steam Engine

• The frame is aluminum and the tub is acrylic

• Adjustable Temperature and Time Control.

• Acupuncture Massage

• Programmable LCD control panel

• Oversized Rainfall Shower Head

• Sliding Glass Doors

• Storage Shelves

• Towel rack

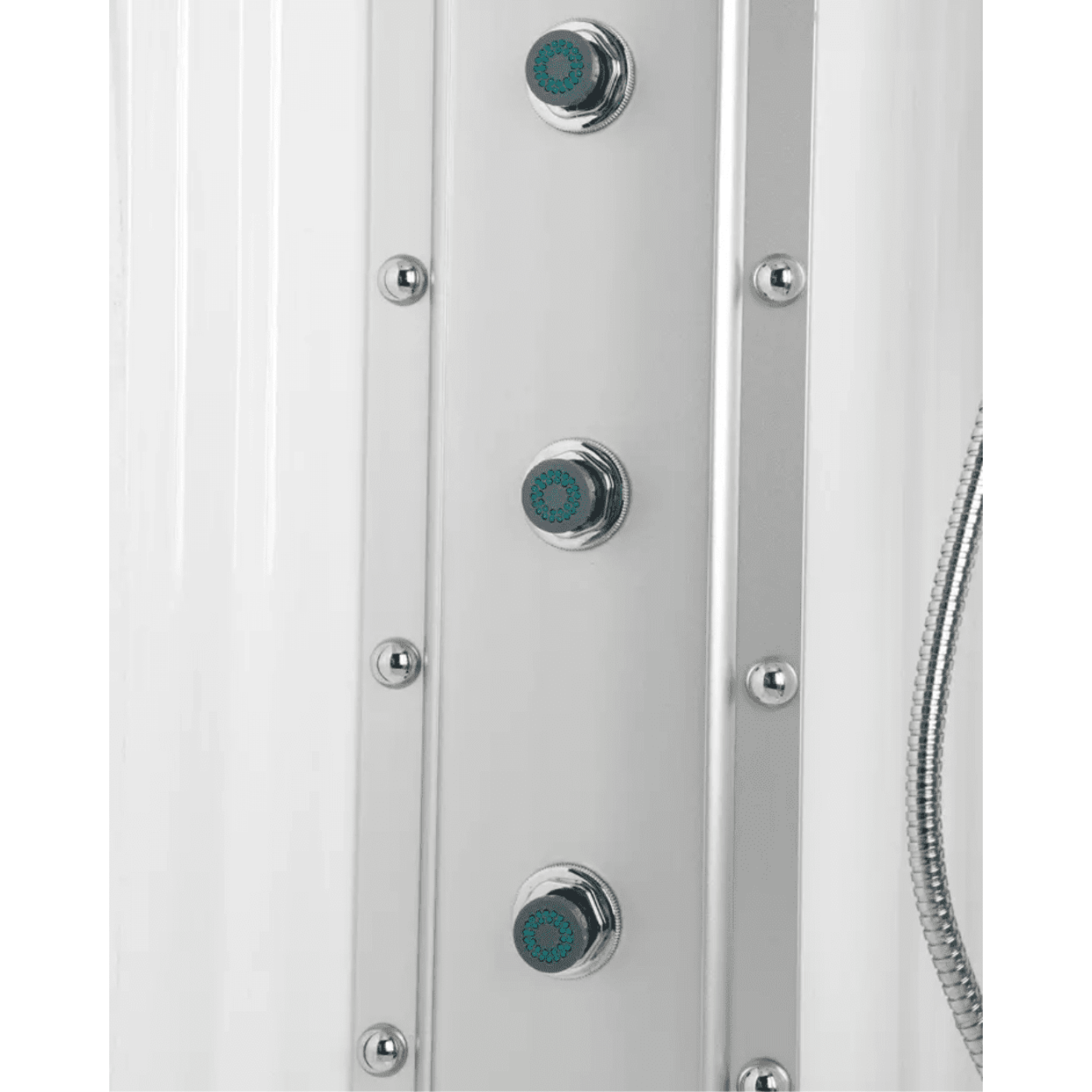

• 10 Acupuncture Body Jets

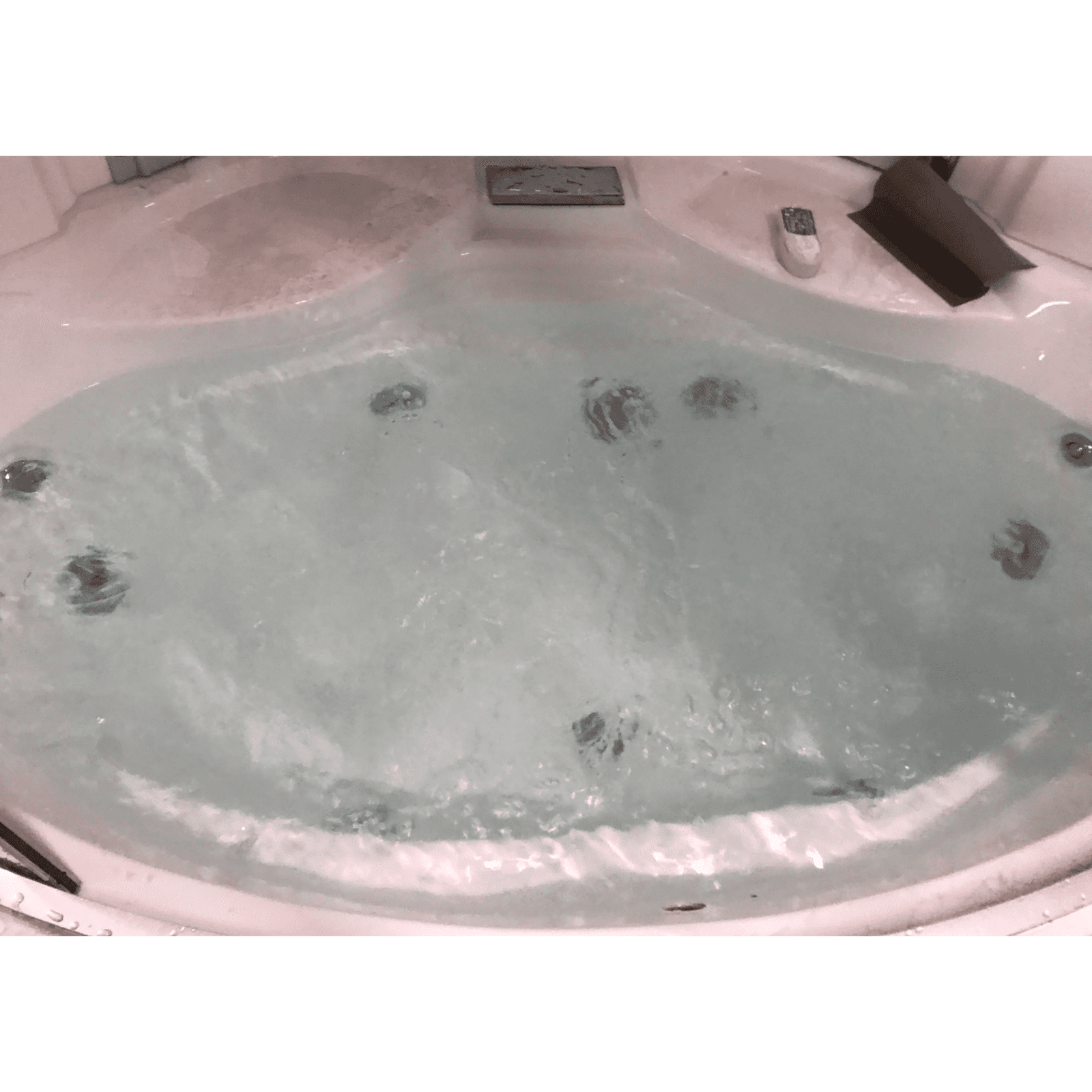

• 10 Whirlpool Jets

• 2 Handheld Shower Wands

• FM Radio Built-In

• Ozone Sterilization System

• Foot Massager

Steam Shower Features

• CD Connection

• Overhead Light

• Ventilation Fan

• Digital Timer and Temperature Control

• Storage Shelves

• Built-in Seating Above

• Fluorescent Blue Mood Lighting

• 65 Gallon Capacity

Installation Guide

Specs Guide

Warranty

All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.

Does the unit come in one piece or in panels?

All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.

Can I fit the parts through a standard doorway?

Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".

What type of Electrical Connection and Breaker will I need?

(1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.

I would like to place it on the second floor, will there be a weight problem?

The unit is about 500 lbs.+water and your weight, and that is definitely a case-by-case type question. Please consult your contractor based on the weights we have provided.

How many HOT/COLD Connections are required?

Regardless of the number of showerheads, all units have one hot/cold connection.

Where is the HOT/COLD Connection located?

The connection is located behind the shower hot/cold controls which differs per unit. Normally the hot/cold is about 30" from the the floor on the back of the unit. Flex hoses are included for easy hook ups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.

Where is the steam generator located?

The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up an room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.

Do I need an access panel?

The steam showers are designed to be free standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
