Micro Matic USA Pro-Line Back Bar Coolers - MBB94-E

Micro Matic USA  Pro-Line Back Bar Coolers - MBB94-E

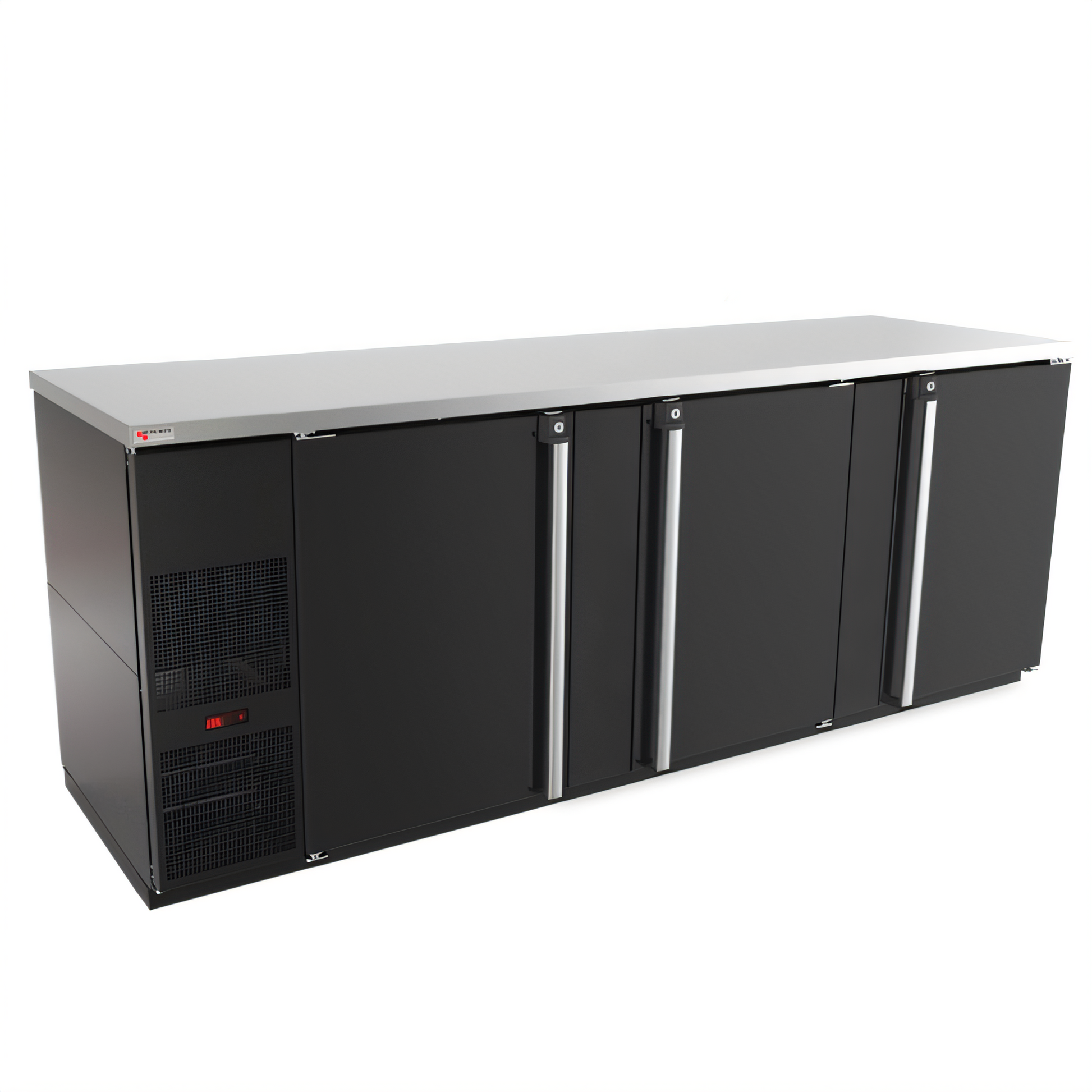

Pro-Line™ E-Series™ Refrigerated Back Bar Cabinet, three-section, 95-1/2"W, self-contained refrigeration, (39.2) cu ft. interior capacity, (3) solid hinged doors with locks, (2) flat shelves & (4) divider shelves, adjustable digital thermostat, interior lighting, front ventilated, automatic condensate evaporator, stainless steel interior walls & floor, stainless steel top, black vinyl steel exterior, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 3.0 amps, 8' cord, NEMA 5-15P, cETLus, ETL-Sanitation

Specifications

Documents

• Cutsheet
• Owner's manual

What Our Experts Think

• High-Capacity Storage: With 39.2 cu. ft. of interior space, this three-section cooler holds up to five 1/2-barrel kegs or over 1,000 cans, ideal for high-volume environments.

• Durable Construction: Features a black vinyl-coated steel exterior and stainless steel interior for long-lasting use and easy cleaning.

• Reliable Cooling: The 1/3 HP self-contained refrigeration system with R290 refrigerant keeps beverages consistently between 34°F and 38°F.

• User-Friendly Operation: Includes a digital thermostat, bright LED lighting, and an automatic condensate evaporator for reduced maintenance.

• Secure Storage: Three solid hinged doors with locks offer added security for high-value stock.

• Certified Efficiency: ETL-sanitation and cETLus certified for energy-efficient, food-safe operation.

Q&A

Q: What is the Micro Matic MBB94-E?
A: The MBB94-E is a commercial-grade, high-capacity back bar cooler designed to store and chill a large volume of beverages, ideal for high-traffic bars, restaurants, and venues.

Q: What is the storage capacity of the MBB94-E?
A: It offers 39.2 cubic feet of storage, holding up to five 1/2 barrel kegs or 1,092 12 oz cans.

Q: What are the exterior and interior dimensions?
A: Exterior: 95.5" W x 29.5" D x 36.88" H.
Interior: 79.625" W x 21.875" D x 29.5" H.

Q: What materials and finishes are used?
A: It features a black vinyl exterior, heavy-duty stainless steel top, and reinforced stainless steel interior floor for durability and easy cleaning.

Q: What kind of doors does it have?
A: It includes three solid, self-closing hinged doors, each lockable for security.

Q: Does the unit include shelving?
A: Yes, it comes with six adjustable shelves—two flat and four with rails—for flexible storage configurations.

Q: What are the cooling and temperature features?
A: The MBB94-E maintains 36–38°F using a balanced forced-air refrigeration system and features a digital thermostat for precise control.

Q: What type of refrigerant and compressor does it use?
A: It uses R134a refrigerant with a 1/3 HP compressor for reliable cooling performance.

Q: What are the power requirements?
A: 115V, 60Hz, single phase; 6.5 amps; NEMA 5-15P plug.

Q: Is this model energy-efficient?
A: Yes, it is ENERGY STAR certified for reduced operating costs and environmental impact.

Q: Is the MBB94-E easy to maintain?
A: It includes an automatic condensate evaporator and front ventilation for easy installation and minimal upkeep.

Maintenance Tips

• Clean Condenser Coils Monthly – Prevent overheating and ensure efficient cooling.

• Check Door Gaskets Weekly – Replace if cracked or loose to maintain temperature.

• Wipe Interior Surfaces Regularly – Use mild detergent; avoid abrasive cleaners.

• Defrost as Needed – If ice buildup occurs, unplug and allow to defrost fully.

• Inspect Fans and Vents – Ensure unobstructed airflow for consistent performance.

• Monitor Temperature Daily – Keep within 33–38°F for optimal beverage storage.

• Schedule Annual Professional Servicing – Maintain peak efficiency and extend lifespan.
