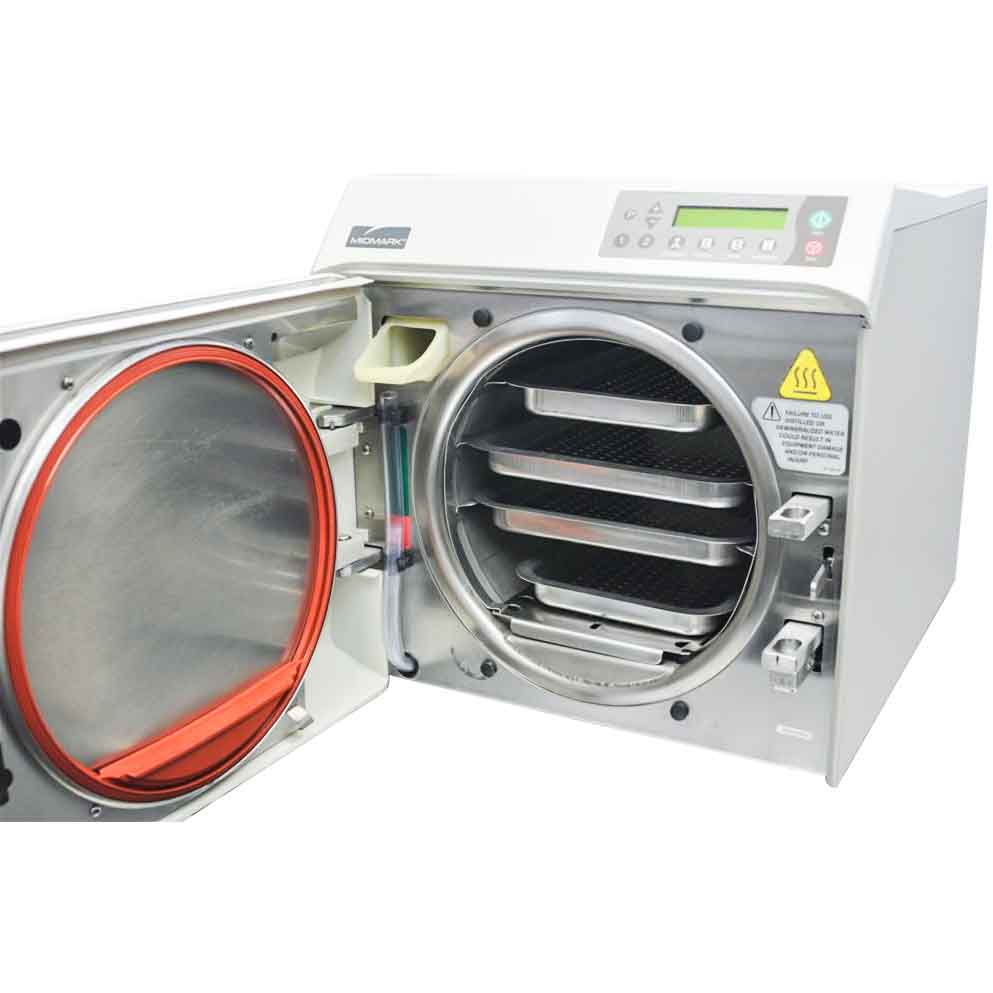

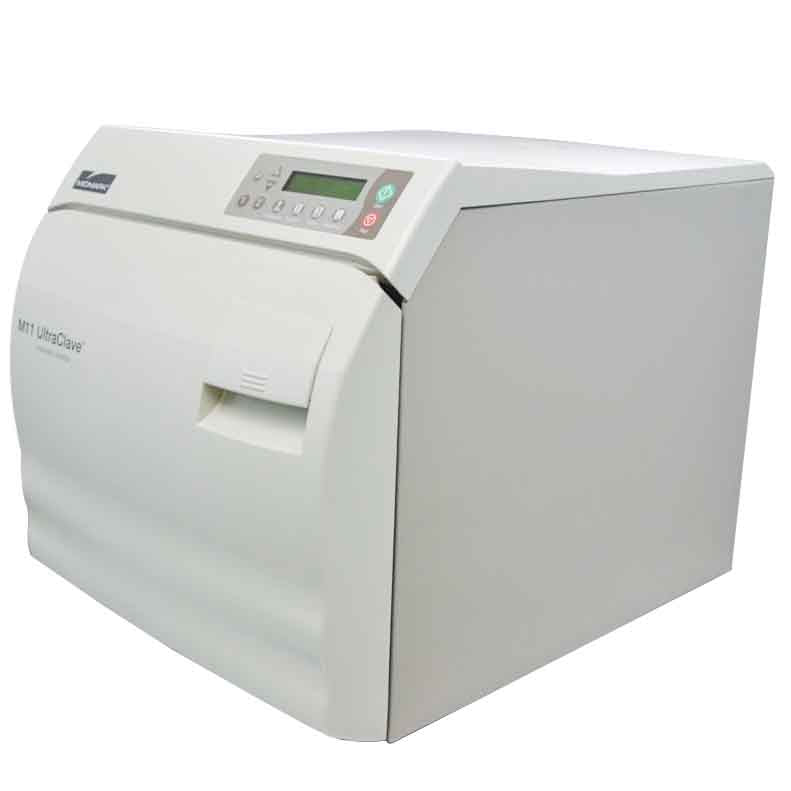

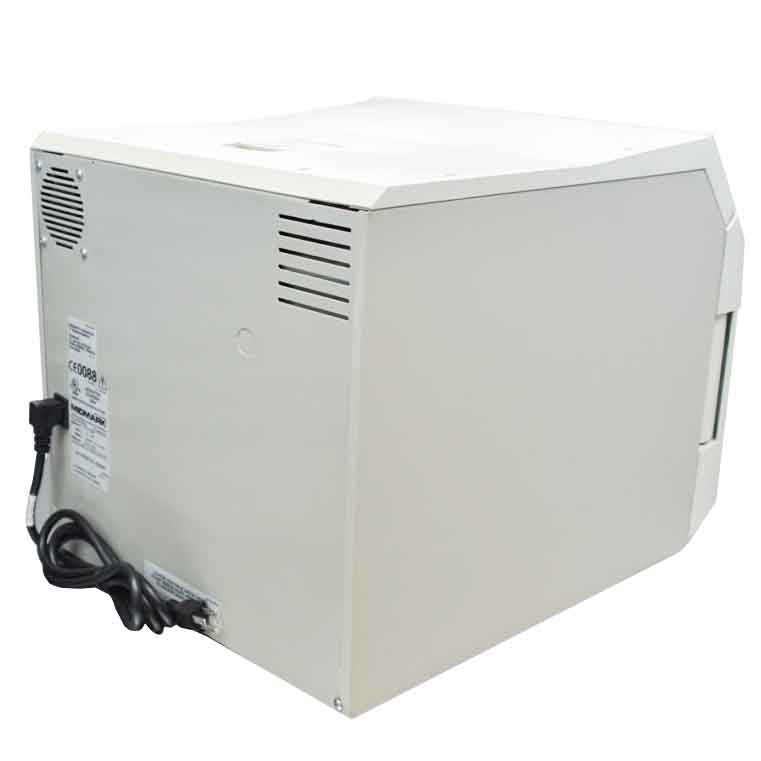

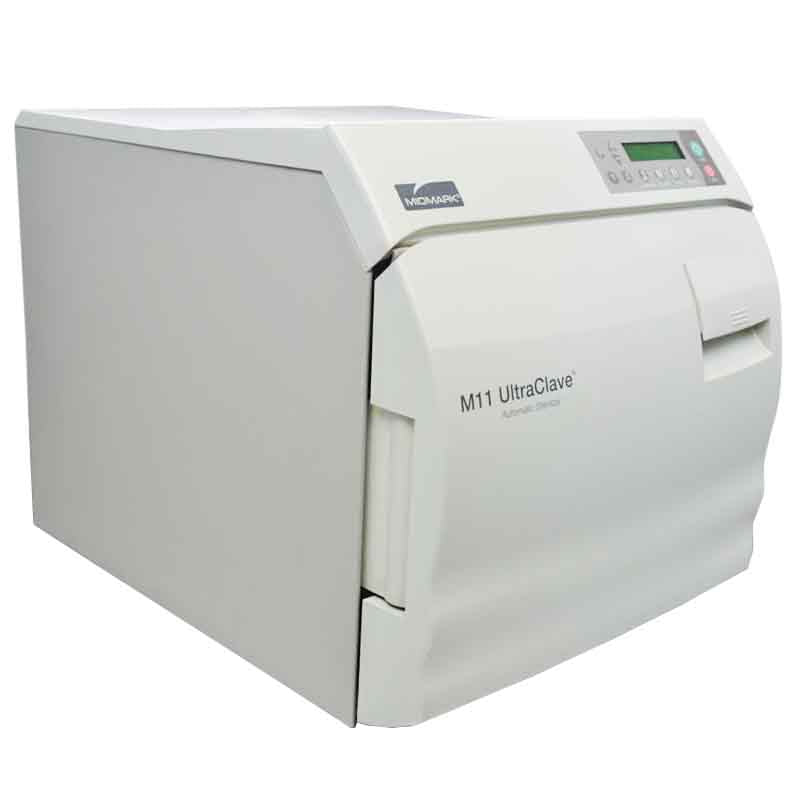

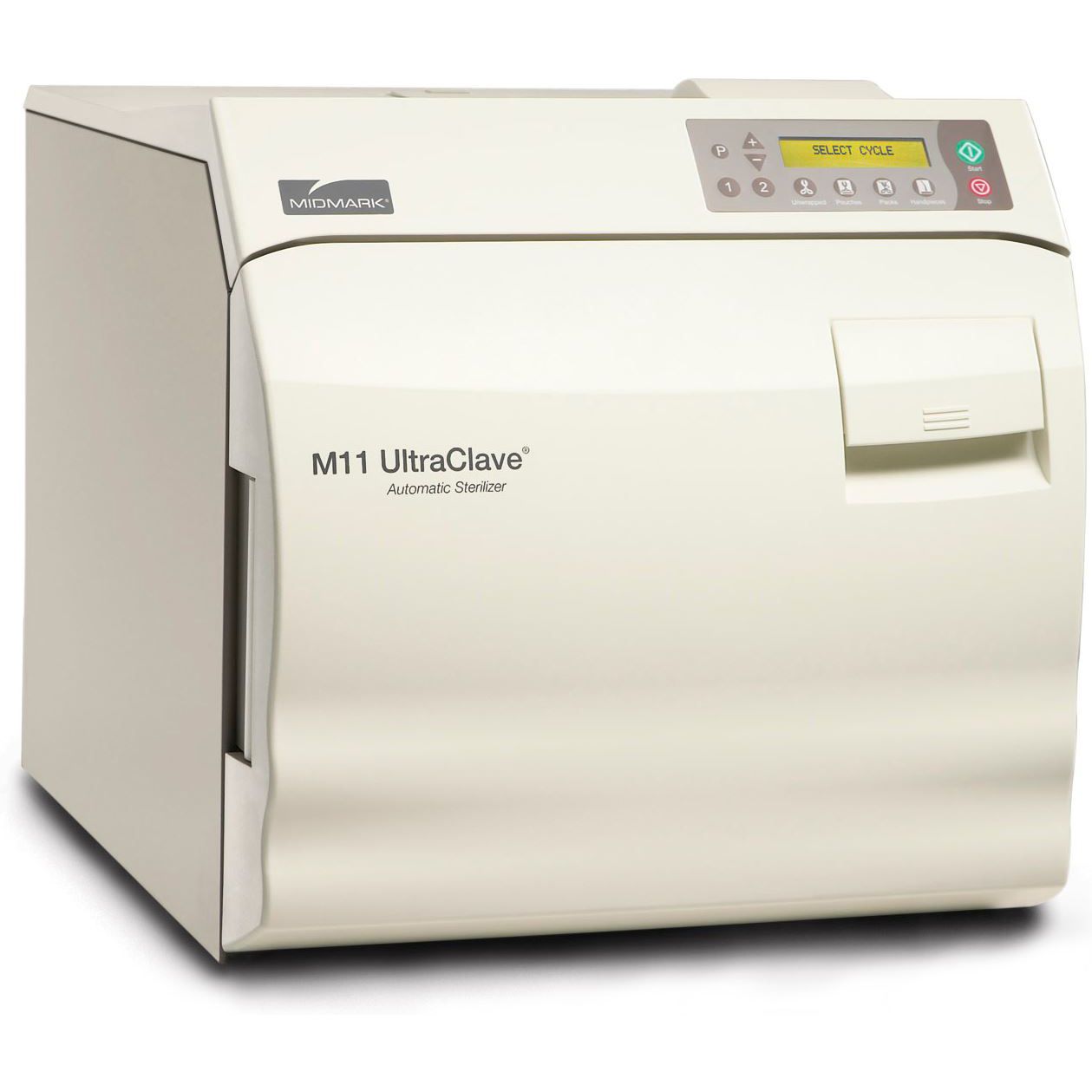

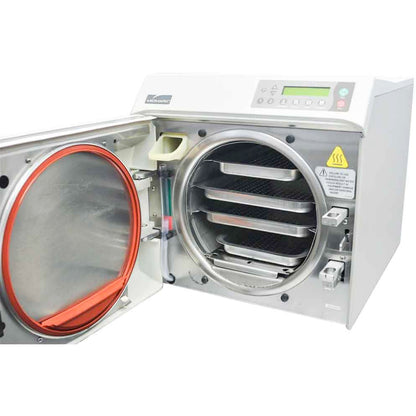

The Midmark M11 UltraClave Automatic Sterilizer includes four instrument trays, a stainless steel tray rack, power cord, and a new pre-installed PM (preventative maintenance) kit which includes a new gasket and filters. This unit is fully calibrated to manufacturer specifications, passes spore testing, and has undergone a complete flush of the system.
Warranty: 90 Days - Parts and Labor.

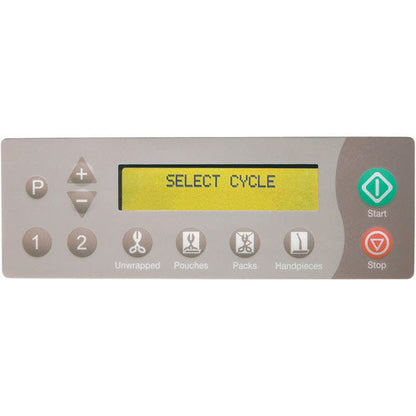

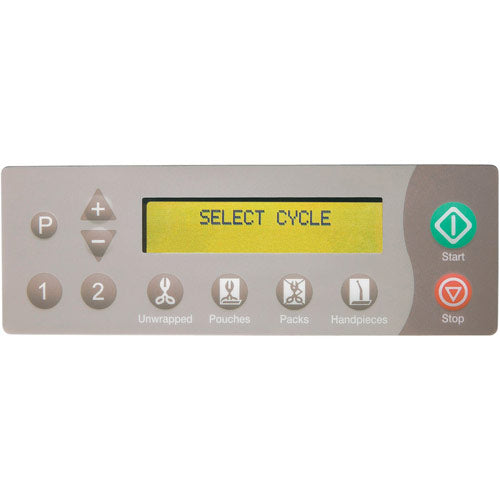

The M11 is the largest member of the Midmark family of autoclaves. Its unique 11" x 18" chamber gives it the distinction of having the largest sterilizing capacity of any standard countertop sterilizer on the market, making it perfect for larger packs and instruments. The steam pressure sterilizer features an intuitive LCD display and simple prompts that help you easily select the cycle you need, whether for unwrapped items, pouches, packs, or handpieces. Once the sterilization cycle is complete, the door automatically opens quietly to dissipate the steam and provide fast, efficient drying of your instruments.
With the emergence of many aggressive, infectious organisms, there is an ever-increasing need for efficient, effective instrument processing in your practice.
This product is primarily used in dental settings, such as a dental office.
Features
Midmark M11 UltraClave Automatic Sterilizer Features
- Largest capacity of any standard tabletop autoclave.
- Reliable and effective infection control assurance.
- Patented automatic-opening door for efficient, safe instrument drying.
-
Air Removal System:

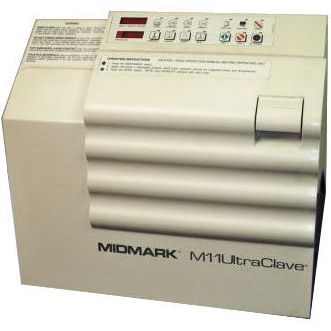

- 1st Generation: Diaphragm Bellow System.
- 2nd Generation/Current Model: Steam-Flush Pressure Pulse Air Removal System ensures proper steam penetration.
- Self program controls enable you to create different cycle parameters to meet specific instrument processing needs.
- Pre-programmed controls for convenience.
- Maximum space utilization and a complementary design for your sterilization area.
Specifications
Midmark M11 UltraClave Automatic Sterilizer Specifications
-
Dimensions: 23.8" (L) x 17.8" (W) x 17.8" (H) (60.5 cm x 45.2 cm x 45.2 cm).
-
Minimum Countertop Area: 21" (D) x 17.8" (W) (53.3 cm x 45.2 cm).
-
Chamber Dimensions: 11" (Diameter) x 18" (Depth) (28 cm x 45.7 cm).
-
Chamber Volume: 6.5 gallons (24.6 liters) usable volume.
-
Trays:
- Two Large: 9" (W) x 15" (L) x 1.1" (D) (22.9 cm x 38 cm x 2.9 cm).
- Two Small: 6.6" (W) x 15" (L) x 1.1" (D) (16.8 cm x 38 cm x 2.9 cm).
-
Weight:
- Unit Weight: 99 lb (44.9 kg).
-
Shipping Weight:
- 1st Generation: 105 lb (48 kg).
- 2nd Generation: 131 lb (59.4 kg).
-
Water Reservoir Capacity: 1.4 gallons (5.3 liters).
-
Electrical Requirements: 115 VAC, 50/60 Hz, 15 Amps, Single Phase.
-
Chamber Pressure:
- At 270 °F (132 °C): 215 kPa (31 psi).
- Safety Valve Setting: 276 kPa (40 psi).
- ASME certified.
| Pre-Programmed Cycle
|
Sterilization Temperature
|
Hot Cycle Time (Fill, Heat-up, and Vent)
|
Sterilization Time
|
Dry Time
|
Total Hot Cycle Time without Dry
|
Total Hot Cycle Time with Dry
|
|
Unwrapped
|
270 °F (132 °C)
|
15 minutes
|
3 minutes
|
30 minutes
|
18 minutes
|
48 minutes
|
|
Pouches
|
270 °F (132 °C)
|
17 minutes
|
5 minutes
|
30 minutes
|
22 minutes
|
52 minutes
|
|
Packs/Low Temp
|
250 °F (121 °C)
|
14 minutes
|
30 minutes
|
30 minutes
|
44 minutes
|
74 minutes
|
|
Handpieces
|
270 °F (132 °C)
|
16 minutes
|
6 minutes
|
30 minutes
|
22 minutes
|
52 minutes
|
Configurations
Midmark M11 UltraClave Automatic Sterilizer Configurations
-
#MFI-MMK-M11-020R-PREVIOUS: MPN #M11-005. 1st Generation Autoclaves include M11-001, M11-002, M11-003, M11-004, M11-005, and M11-006.
-
#MFI-MMK-M11-020R: 2nd Generation.
Accessories
Midmark M11 UltraClave Automatic Sterilizer Accessories
The following accessories are compatible and commonly purchased with the M11 UltraClave Automatic Sterilizer:
-
#MFI-MMK-9A155001: Midmark M9/M11 Thermal Printer - First Generation (Compatible with #MFI-MMK-M11-020R-PREVIOUS).
-
#MFI-MMK-9A259001: Midmark M9/M11 Thermal Printer - Second Generation (Compatible with #MFI-MMK-M11-020R).
-
#002-0371-00: M9/M11 Printer Refill Kit.
-
Speed-Clean Chamber Cleaner:
- #002-0396-00: Single Bottle.
- #002-0396-05: Case of 12.
-
#9A215001: M11 Horizontal Cassette Rack.
-
#9A215002: M11 Vertical Cassette Rack.
-
#9A226001: M9/M11 Sterilizer Pouch Rack.
-
#9A307001: Tray and Cassette Removal Tool.
Literature
Midmark M11 UltraClave Automatic Sterilizer Literature
Midmark Dental Instrument Processing Brochure
Midmark Dental Automatic Sterilizers Brochure
Midmark M9/M11 Troubleshooting/Testing/Repair Guide
Midmark M9/M9D/M11/M11D -001 thru -019 Sterilizers Sevice Manual Previous Models
Midmark M9-020, M9-021, M9-022, M9D-022, M11-020, M11-021, M11-022 Self-Contained Steam Sterilizer User Guide - 2nd Gen
