Star Industries Mini Root & Grapple Buckets

Star Industries Mini Root & Grapple Buckets

by Star Industries
SKU 170-MI-44
Save up to 6% Save 6%
$2,385.00
$2,296.99 - $2,417.00
$2,385.00
$2,241.99
$2,159.99 - $2,271.99
$2,241.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

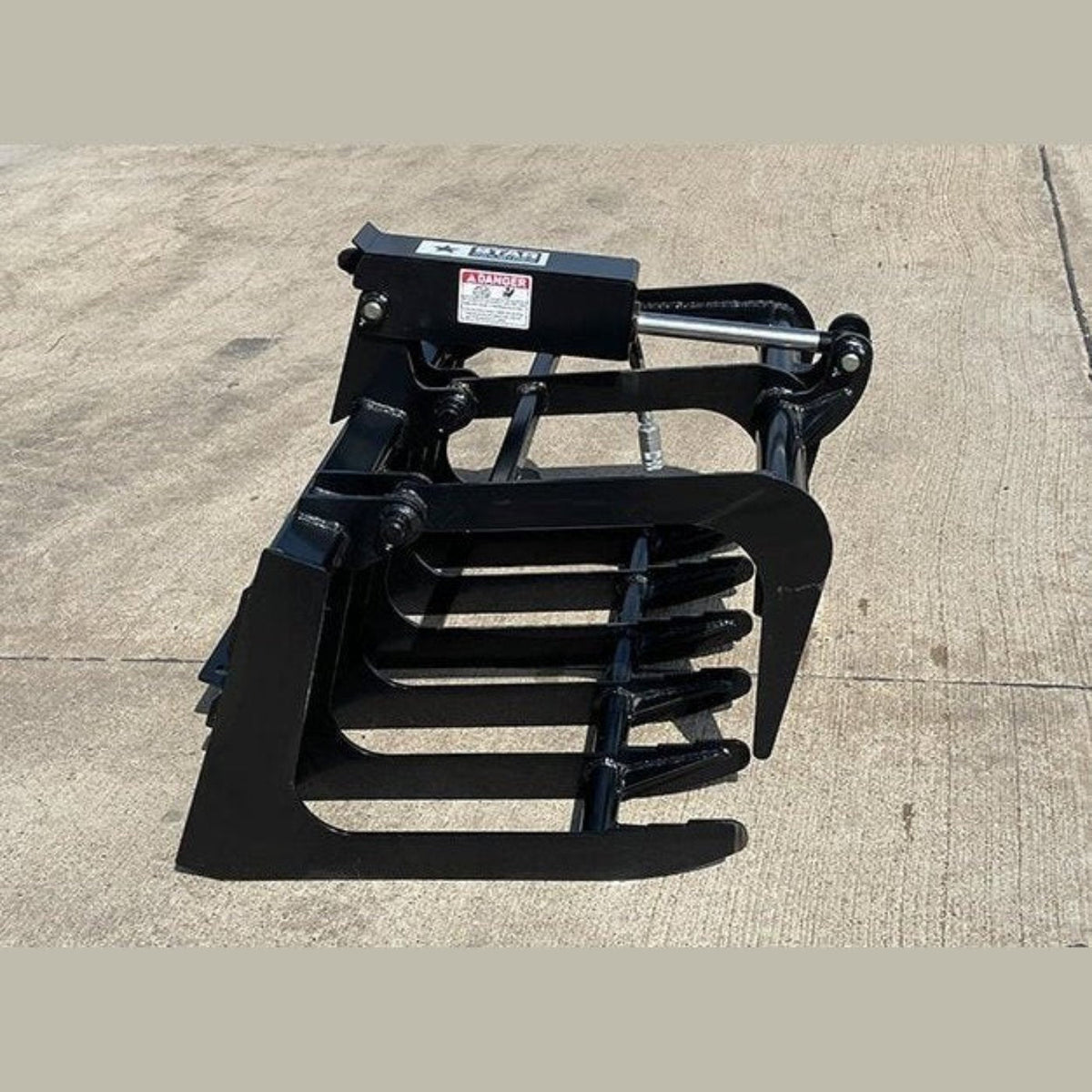

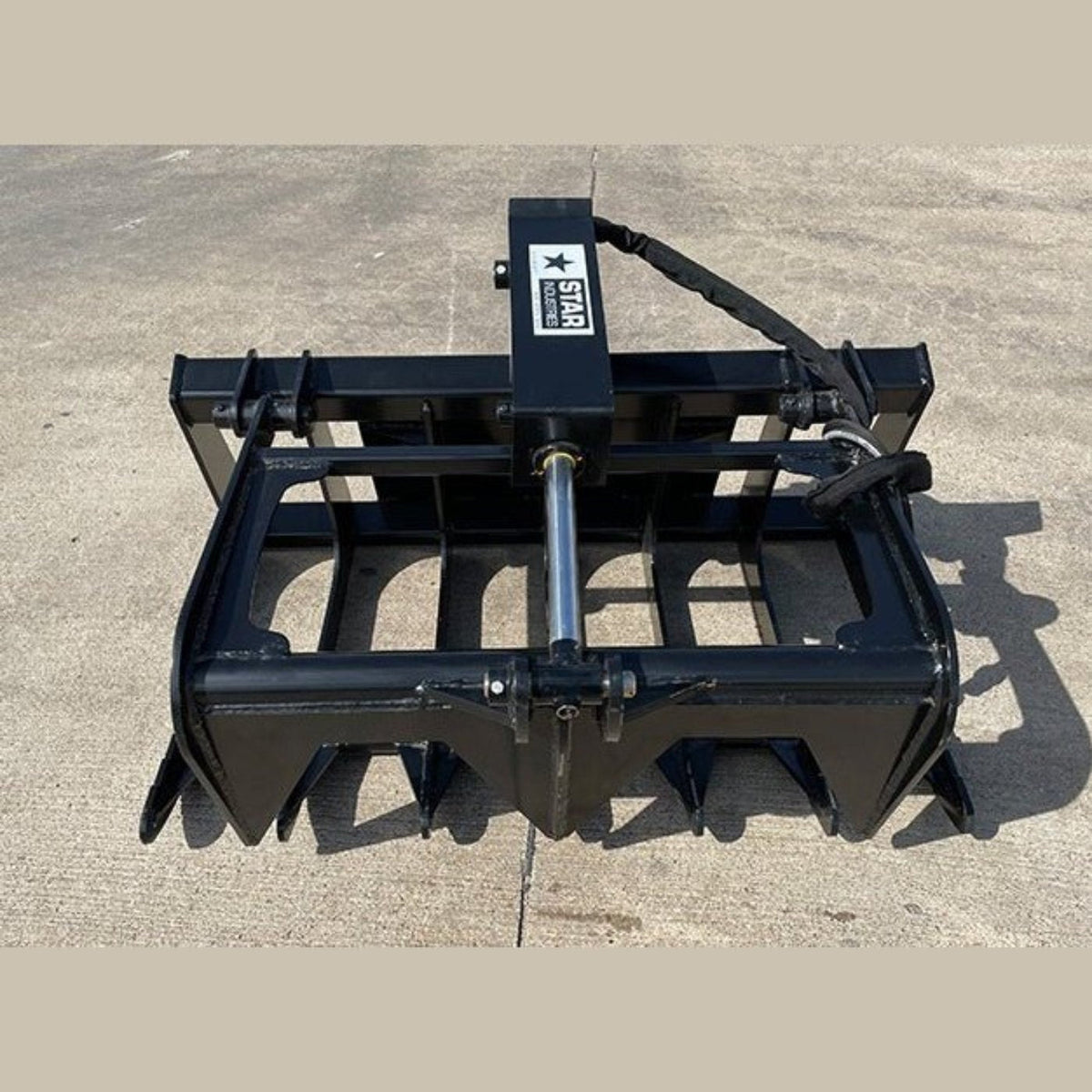

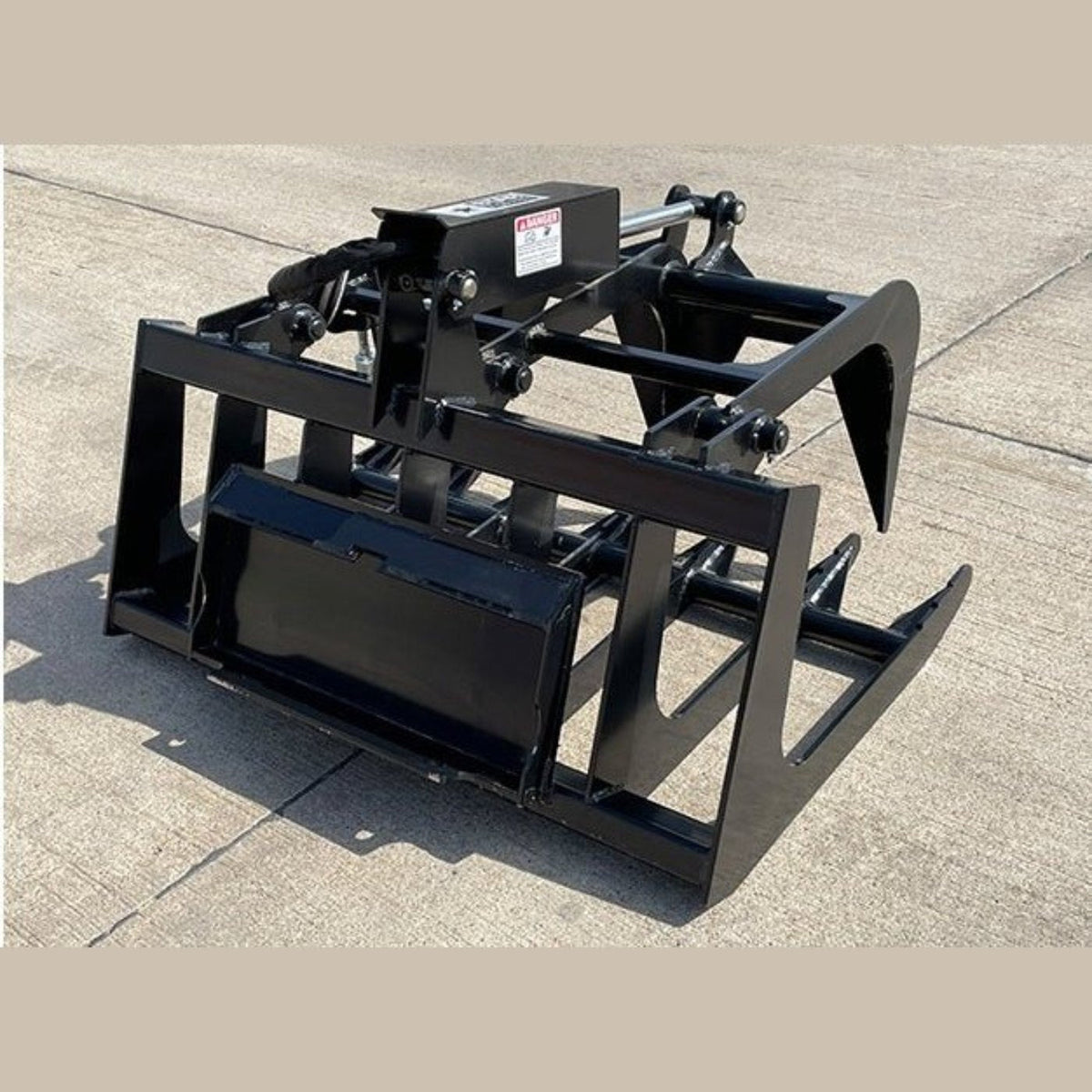

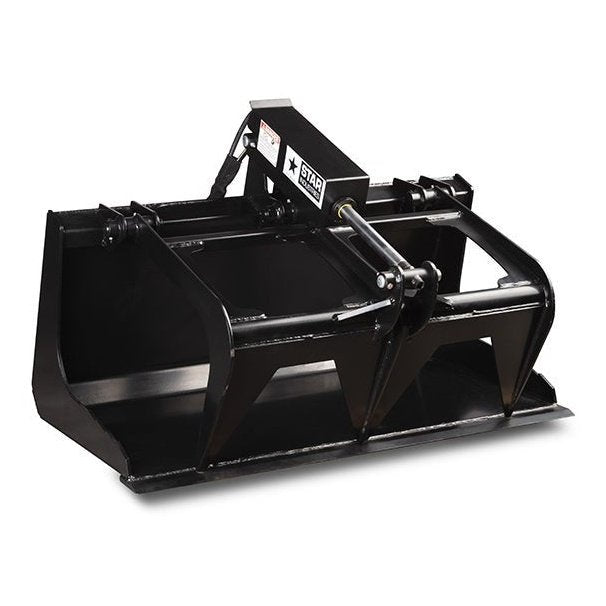

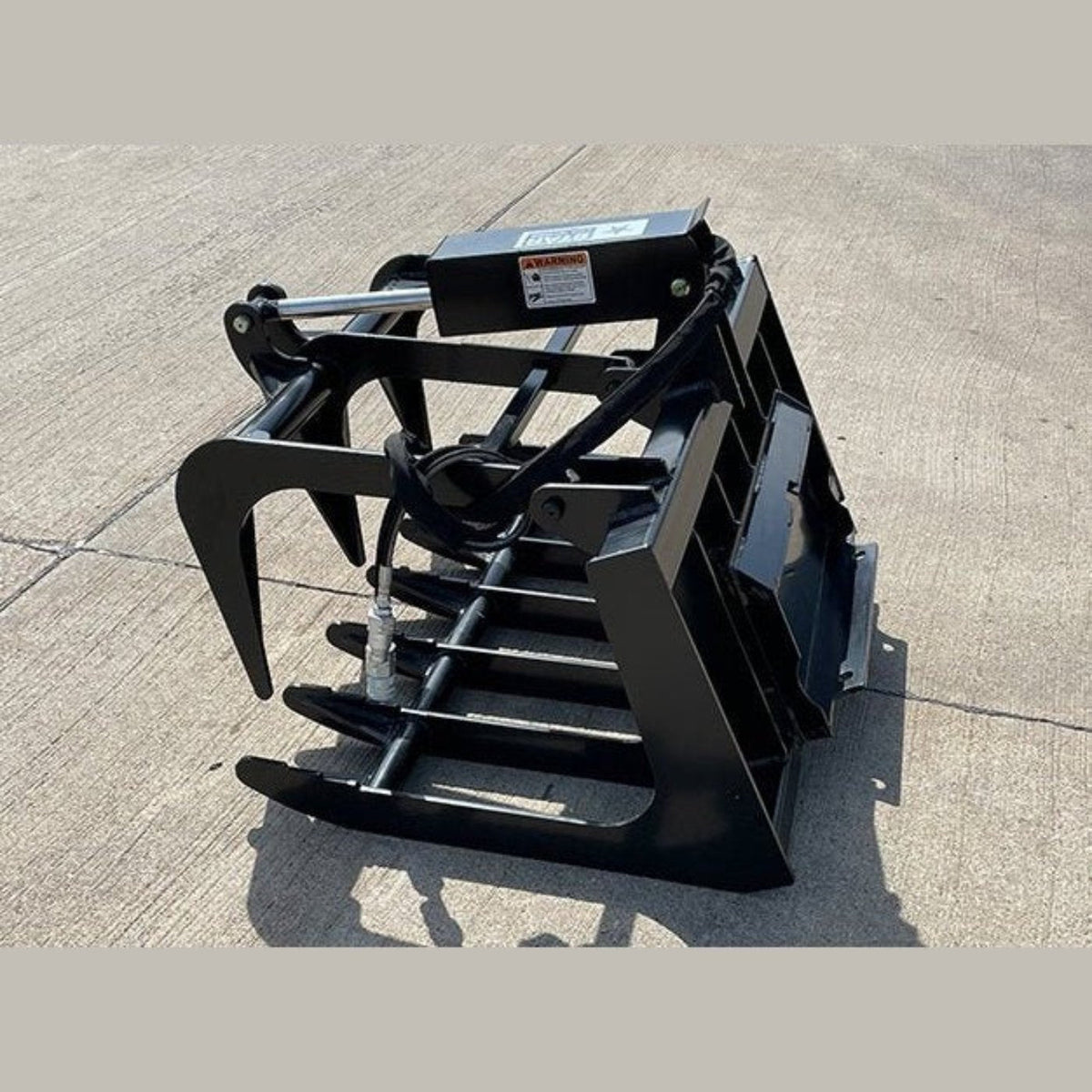

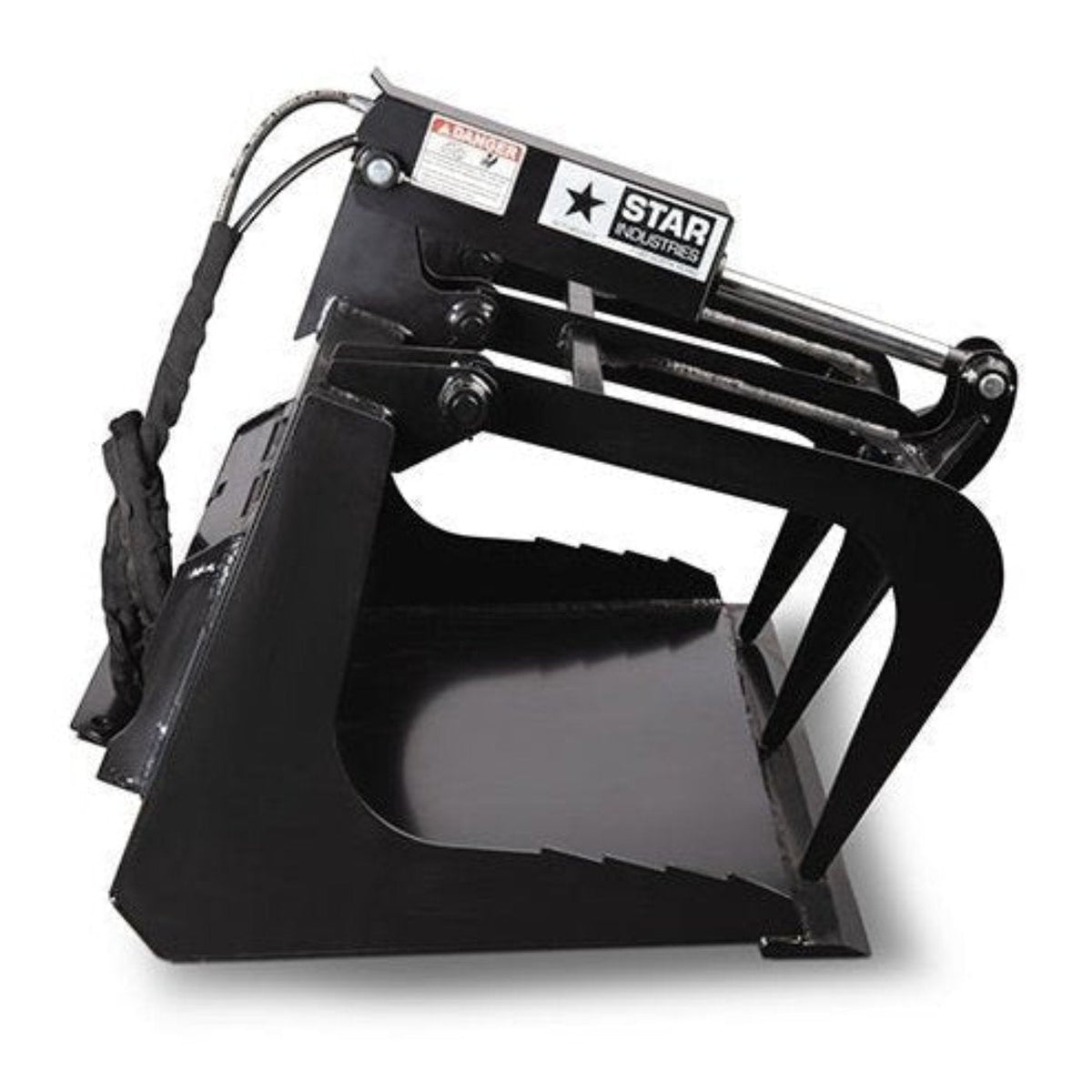

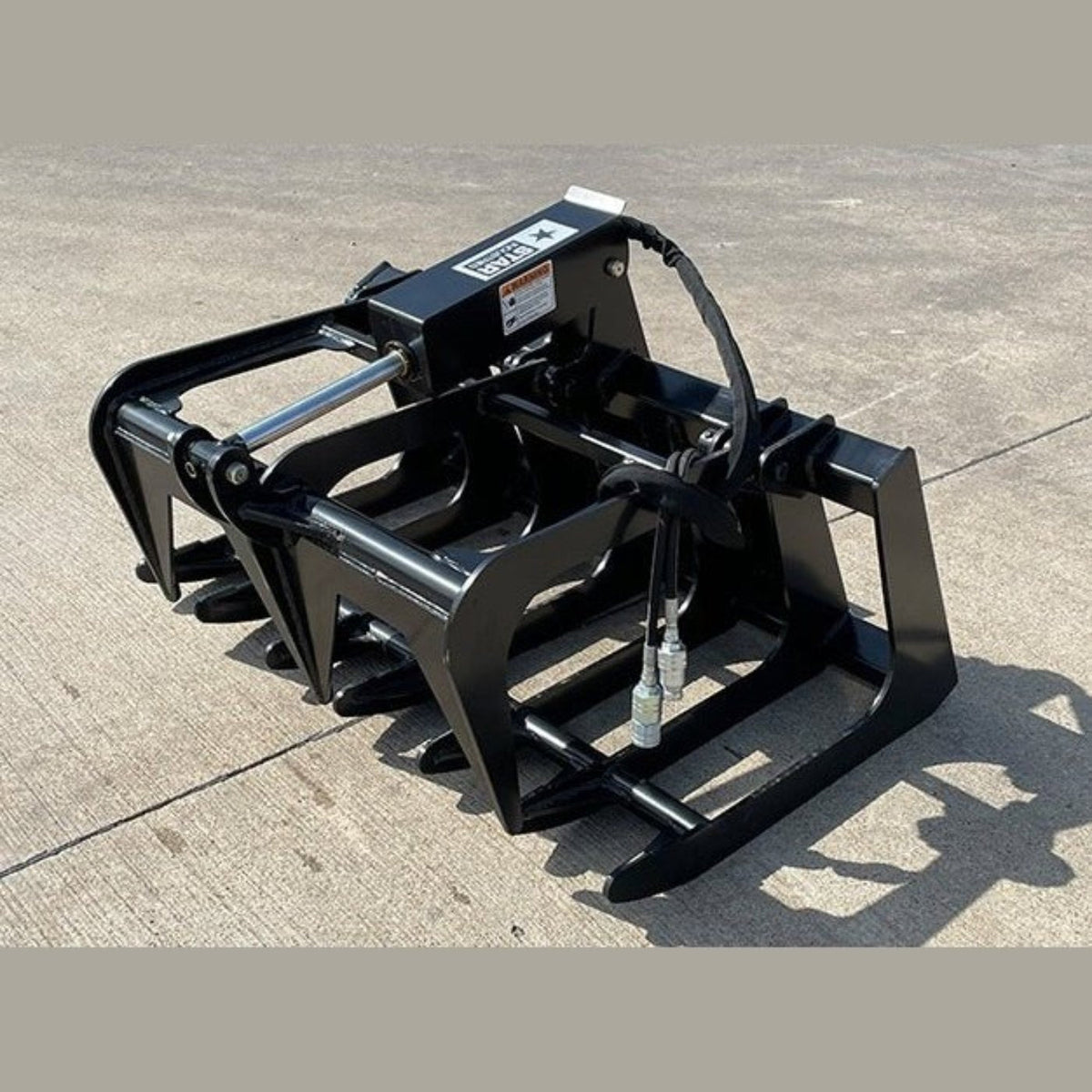

Move bulky, hard-to-handle materials like brush and logs easily with a Star Industries Mini Root Grapple or Grapple Bucket.

The Mini Root Grapple Bucket from Star Industries is designed with a sturdy bottom to ensure maximum containment of debris during loading. Its wide opening allows for a full load, making it the ideal attachment for cleaning up large rocks and trash, as dirt easily sifts out.

  • Made for Dingo, Ditchwitch, Vermeer, Boxer, Ramrod and Bobcat Mini Skid-Steers
  • Protective sleeves on all hydraulic lines

Mini Root Grapple

Model 170-MI-44 170-MIBC-44
Fits Dingo, Ditchwitch, Vermeer, Boxer and Ramrod Bobcat
Empty Weight 245 lbs 245 lbs

Mini Grapple Bucket

Model 175-MI-44 175-MIBC-44
Fits Dingo, Ditchwitch, Vermeer, Boxer and Ramrod Bobcat
Empty Weight 263 lbs 263 lbs

Specifications

Measurements Grapple Bucket Root Grapple
Width 44” O.D. 44” O.D.
Hyd. Cylinder 2” Bore by 10” Stroke 2” Bore by 10” Stroke
Grapple Tines 5/16” thick 5/16” thick
Grapple Max Opening 30” 30”
Overall Depth 35 ¾” 35 ½”
Overall Height 27 ¾” 26”
Bucket Height 21” 20”
Bucket Depth 26 3/8” Does not apply
Pivot Pins 1” DIA: Grease fittings on all pivot points 1” DIA: Grease fittings on all pivot points
Hyd. Hoses Protective sleeves on all hydraulic lines Protective sleeves on all hydraulic lines
Hyd. Quick-Disconnects Flat face couplers included Flat face couplers included
