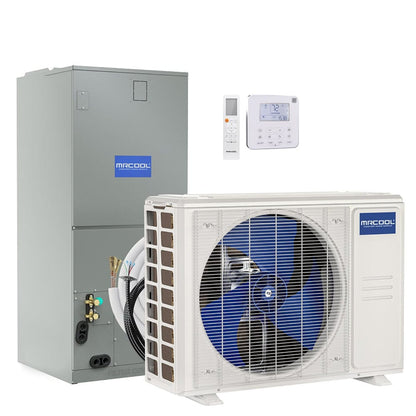

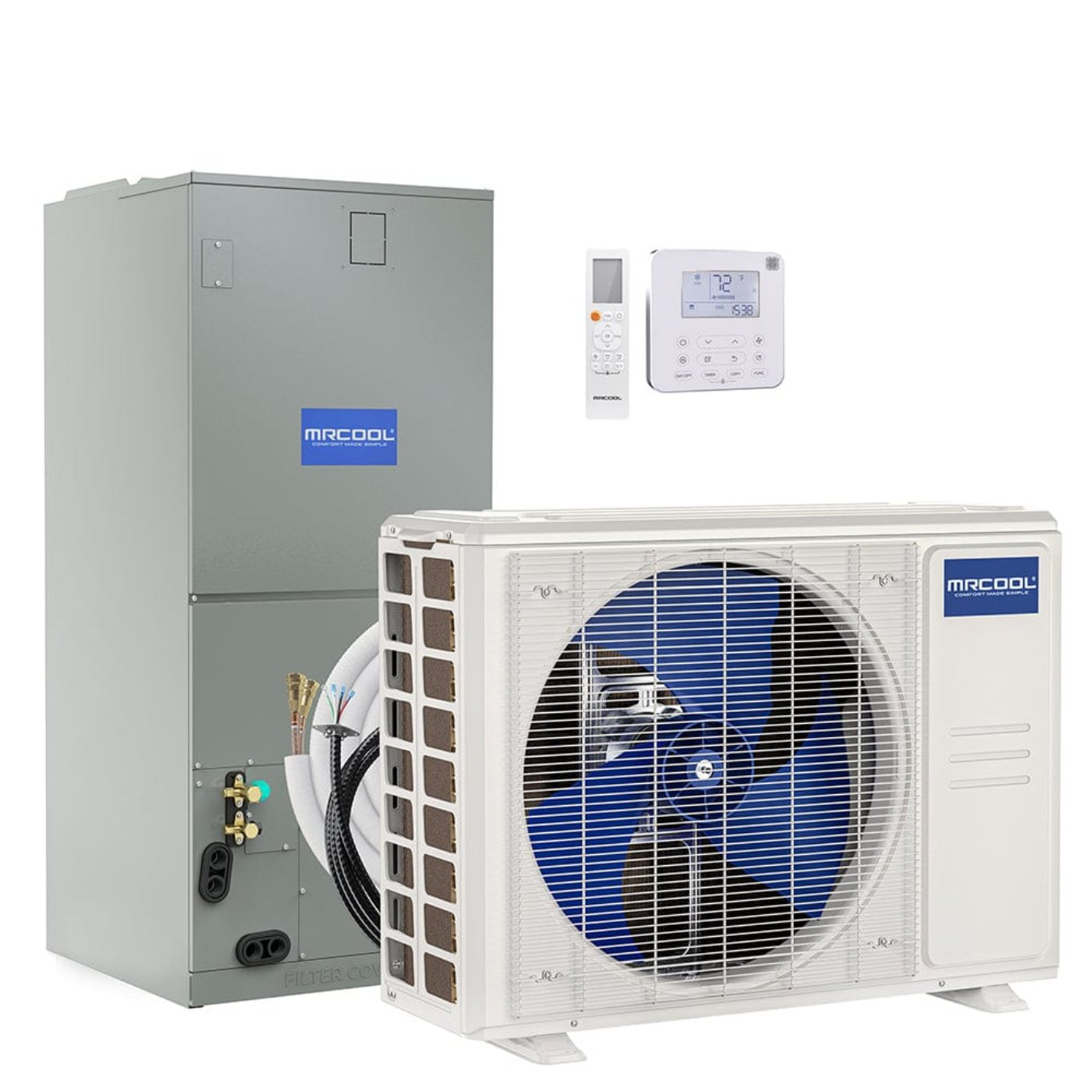

MRCOOL 18K BTU 22 SEER Ducted Air Handler and Condenser, 25 ft. Pre-Charged Line Set - CENTRAL-18-HP-230-25

by MRCOOL
SKU CENTRAL-18-HP-230-25
Save 19% Save 19%
Original price $3,595.00
Original price $3,595.00 - Original price $3,595.00
Original price $3,595.00
Current price $2,896.00
$2,896.00 - $2,896.00
Current price $2,896.00
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

Don’t let discomfort get you down. Instead, let the MRCOOL 18k BTU up to 22 SEER Central Ducted DC Inverter Heat Pump System improve the way you enjoy your time at home by making it the exact temperature you want. This affordable system heats or cools around 750 square feet, making it a perfect choice for providing efficient and effective comfort. This system also comes with a 25 foot MRCOOL pre-charged line set that essentially just needs to be plugged into the air handler and condenser. This cuts your HVAC technician’s installation time significantly, so you’re saving both time and money!

The multi-position air handler, which can accommodate upflow, downflow, horizontal left and horizontal right ductwork needs, combined with the highly efficient condenser is a pairing that will ensure ultimate comfort and reduce your bills as soon as it’s installed.

The self-diagnostics of this system will allow you to identify error codes on the air handler or the thermostat. This variable speed unit will keep your bills low and your home’s air clean with filters. You’ll be covered in the unlikely event that something goes wrong if you register your system for the 10 year parts and service warranty. Choose this MRCOOL 18k BTU 22 SEER Central Ducted DC Inverter Heat Pump System for comfort exactly how you deserve it.

See Features below:

  • High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.

  • Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.

  • Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!

  • Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.

  • 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.

  • Optional heating kit available

  • R-410A environmentally friendly refrigerant

Condenser Dimensions 35.04"W x 13.46"D x 26.50"H
Condenser Weight 94.36 lbs
Air Handler Dimensions 21.02"W x 17.52"D x 45"H
Air Handler Weight 106.48 lbs
SEER 22
EER 12.5
HSPF hspf4/hspf5: 11/9
CFM 576.47/529.41/494.12
Cooling Capacity 18,000 BTU
Heating Capacity 18,000 BTU
Voltage Requires a minimum of 208-230V/60HZ/30A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 30
Min Circuit Ampacity 18
Color Gray
Rate Load 0.76
Zone Capacity 1
Coverage Area 750 square feet
Refrigerant Type R410A
Refrigerant Volume 56.44 oz
Decibel Rating 39.5/38.5/35.5
Decibel Rating Low 35.5
Decibel Rating High 39.5
Air Flow Direction Multi-position
Min Ambient Cool -13F~122F
Min Ambient Heat -13F~75.2F
Lineset Included Yes
Lineset Length 25ft
Liquid Line Size 1/4in
Suction Line Size 1/2in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 810/720
Filter Type Replaceable
Auxiliary Heater Included No
Auxiliary Heater Available Yes
Auxiliary Heater Sizes 5kw, 8kw, 10kw
Adjustable Thermostat Yes
Modes Fan Only
Sleep
Auto Cool
Includes Remote
Battery
App Compatibility No
Certificates AHRI
Warranty 10 years parts and labor

Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
