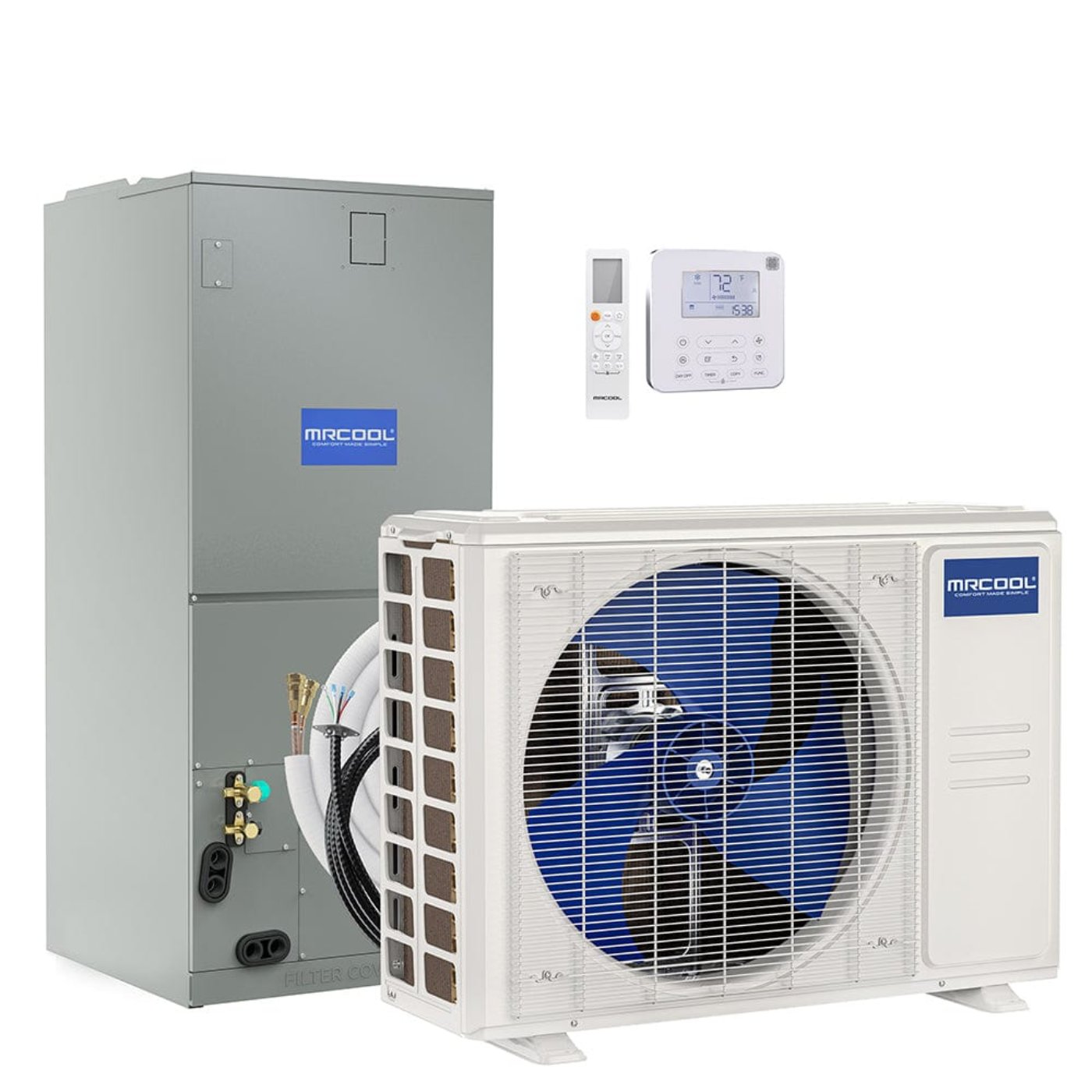

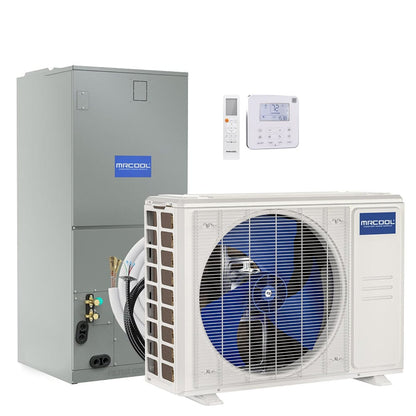

MRCOOL 24K BTU 19.2 SEER Ducted Air Handler and Condenser with 25 ft. Pre-Charged Line Set, CENTRAL-24-HP-230-25

by MRCOOL
SKU CENTRAL-24-HP-230-25
Save 5% Save 5%
Original price $3,215.80
Original price $3,215.80 - Original price $3,215.80
Original price $3,215.80
Current price $3,055.99
$3,055.99 - $3,055.99
Current price $3,055.99
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

Nothing feels better than ultimate comfort all the time, so why not invest in the affordable MRCOOL 24k BTU up to 19.2 SEER Central Ducted DC Inverter Heat Pump System? With this system, you’ll enjoy a simpler installation and absolute climate control throughout around 1,000 square feet of your home. Installing this system is easy, because it comes with a 25 foot pre-charged MRCOOL line set, which essentially just needs to be plugged into the air handler and the condenser. Time is money, and you’ll be saving both because of the line set in this system. This air handler is multi-position, meaning it can support upflow, downflow, horizontal left and horizontal right airflow needs.

The variable condenser in this system is so efficient, you’ll find yourself saving money in no time. Identify error codes on the thermostat or on the handler’s panel. In case something goes wrong, you’ll be completely covered by a 10 year parts and service warranty. For comfort exactly how you want it, get this MRCOOL 24k BTU 19.2 SEER Central Ducted DC Inverter Heat Pump System.

Key Features:

  • High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.

  • Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.

  • Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!

  • Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.

  • 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.

  • Optional heating kit available

  • R-410A environmentally friendly refrigerant

Condenser Dimensions 37.24"W x 16.14"D x 31.89"H
Condenser Weight 125.22 lbs
Air Handler Dimensions 21.02"W x 17.52"D x 45"H
Air Handler Weight 106.48 lbs
SEER 19.2
EER 12.5
HSPF hspf4/hspf5: 10/8.5
CFM 752.94/682.35/611.76
Cooling Capacity 24,000 BTU
Heating Capacity 24,000 BTU
Voltage Requires a minimum of 208-230V/60HZ/35A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 35
Min Circuit Ampacity 22
Color Gray
Rate Load 0.6
Zone Capacity 1
Coverage Area 1,000 square feet
Refrigerant Type R410A
Refrigerant Volume 81.13 oz
Decibel Rating 43.0/41.5/38.0
Decibel Rating Low 38
Decibel Rating High 43
Air Flow Direction Multi-position
Min Ambient Cool -13F~122F
Min Ambient Heat -13~75.2F
Lineset Included Yes
Lineset Length 25ft
Liquid Line Size 3/8 in
Suction Line Size 5/8in
Compressor Motor Type Twin-Rotary
Condenser Fan Motor RPM 850/750/700
Filter Type Replaceable
Auxiliary Heater Included No
Auxiliary Heater Available Yes
Auxiliary Heater Sizes 5kw, 8kw,10kw, 15kw
Adjustable Thermostat Yes
Modes Fan
Sleep
Auto Cool
Includes Remote
Battery
App Compatibility No
Certificates AHRI
Warranty 10 years parts and labor

Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; can be delayed for reasons beyond our control. You can always contact us to know the exact time once you placed an order with us. Have a look at our
