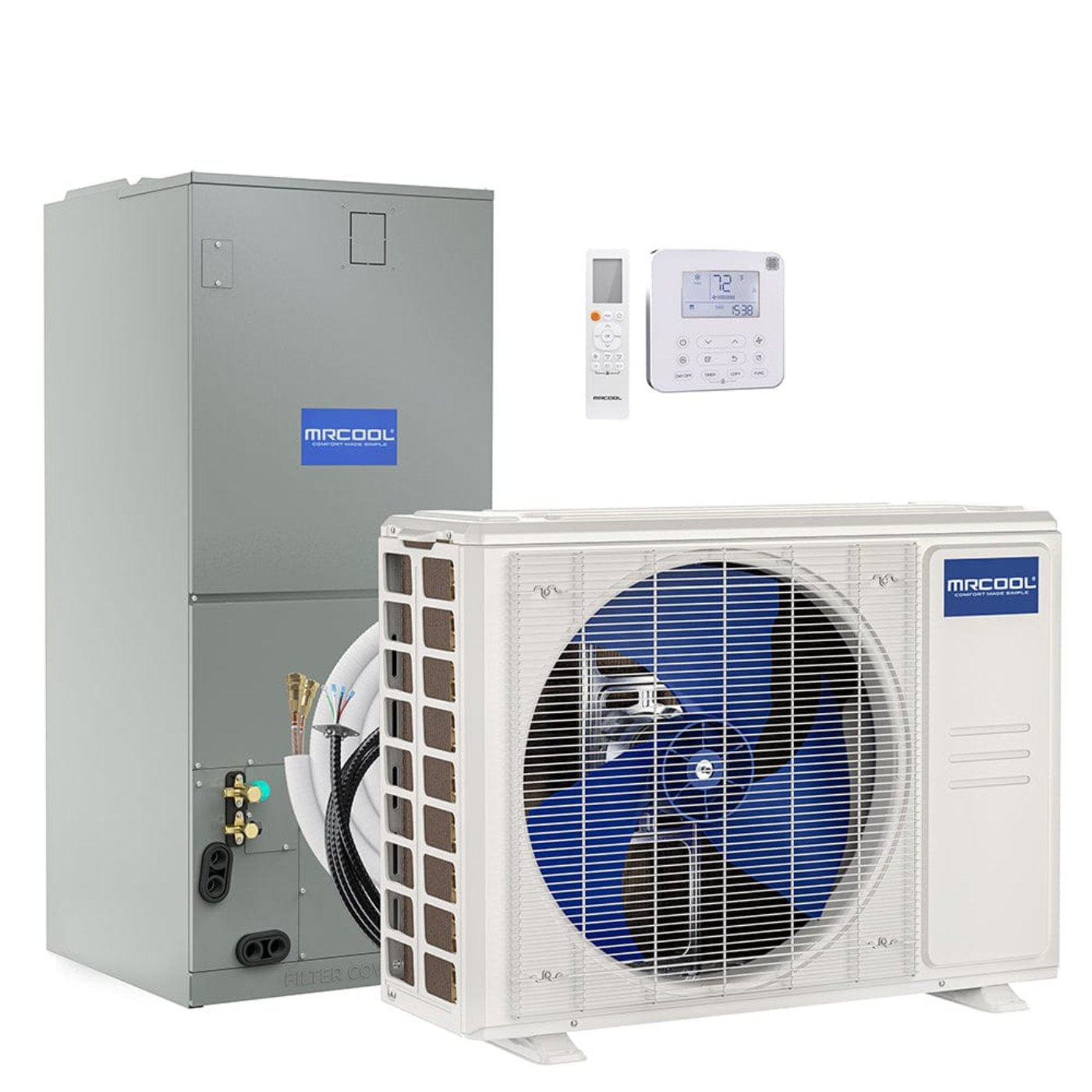

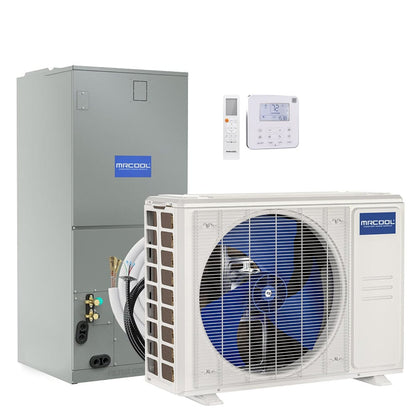

This MRCOOL 36k BTU up to 18 SEER Central Ducted DC Inverter Heat Pump System will be one of the best decisions that you could make for your comfort, as it’ll help you save money and time, all while increasing your comfort! Take your comfort to the next level as you enjoy the temperature you deserve throughout 1,500 square feet. The affordable multi-position air handler can accommodate upflow, downflow, horizontal left and horizontal right airflow configurations. This system includes the MrCool® No-Vac® Quick Connect® 15 foot line set. This system’s variable speed condenser is able to keep energy consumption low and comfort levels high.
You can identify any error codes on the handler’s panel or on the thermostat. You’ll be breathing clean thanks to the use of filters, making for a pure and comfortable living environment. This system is protected by a 10 year parts warranty and a 10 year service warranty. Trust in this MRCOOL 36k BTU 18 SEER Central Ducted DC Inverter Heat Pump System to bring you the comfort you crave and save you money.
High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.
Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!
Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.
Optional heating kit available
R-410A environmentally friendly refrigerant
|Condenser Dimensions||37.24"W x 16.14"D x 31.89"H|
|Condenser Weight||151.68 lbs|
|Air Handler Dimensions||21.02"W x 21.02"D x 49.02"H|
|Air Handler Weight||129.63 lbs|
|Cooling Capacity||36,000 BTU|
|Heating Capacity||36,000 BTU|
|Voltage||Requires a minimum of 208-230V/60HZ/40A (please check your home meets this electrical requirement prior to purchase)|
|Max Fuse Breaker||40|
|Min Circuit Ampacity||24|
|Coverage Area||1,500 Square Feet|
|Refrigerant Volume||130.51 oz|
|Decibel Rating Low||41.3|
|Decibel Rating High||46.8|
|Air Flow Direction||Multi-position|
|Min Ambient Cool||5~122F|
|Min Ambient Heat||5~75.2F|
|Lineset Included||Yes - 15 foot lineset included
|Liquid Line Size||3/8 in|
|Suction Line Size||3/4in|
|Compressor Motor Type||Rotary|
|Condenser Fan Motor RPM||1150/1050/900/850|
|Auxiliary Heater Included||No|
|Auxiliary Heater Available||Yes|
|Auxiliary Heater Sizes||5kw,8kw,10kw, 15kw, 20kw|
|Warranty||10 years parts and labor|
