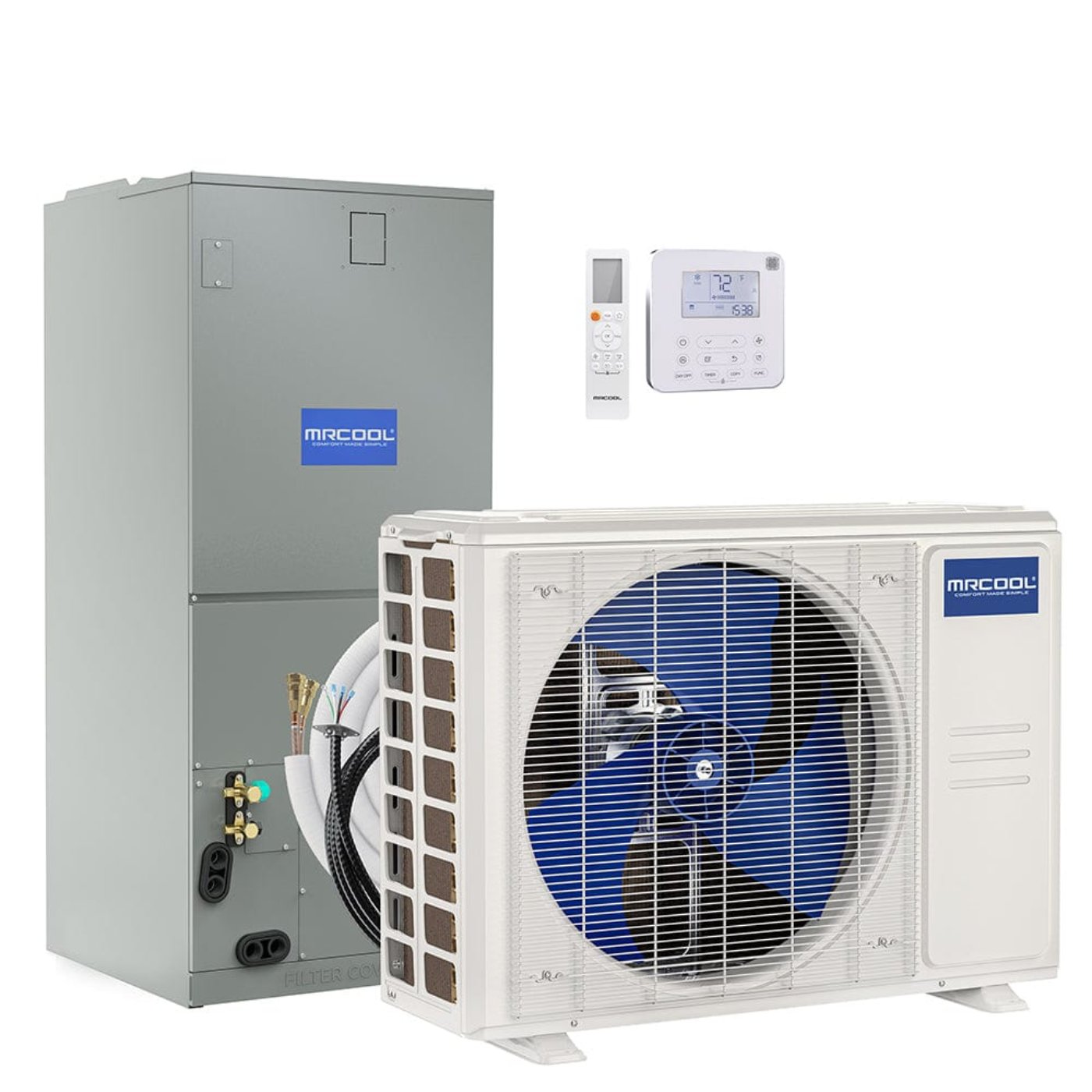

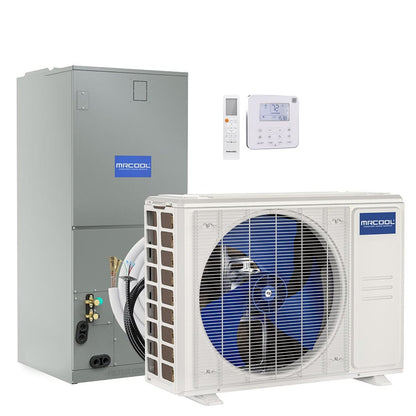

MRCOOL 36K BTU 18 SEER Ducted Air Handler, Condenser, 50 Ft. Lineset, CENTRAL-36-HP-230-50

by MRCOOL
SKU CENTRAL-36-HP-230-50
Save 27% Save 27%
Original price $5,615.00
Original price $5,615.00 - Original price $5,615.00
Original price $5,615.00
Current price $4,122.00
$4,122.00 - $4,122.00
Current price $4,122.00
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

This MRCOOL 36k BTU up to 18 SEER Central Ducted DC Inverter Heat Pump System will be one of the best decisions that you could make for your comfort, as it’ll help you save money and time, all while increasing your comfort! Take your comfort to the next level as you enjoy the temperature you deserve throughout 1,500 square feet. The affordable multi-position air handler can accommodate upflow, downflow, horizontal left and horizontal right airflow configurations. This system includes the MrCool® No-Vac® Quick Connect® 50 foot line set. This system’s variable speed condenser is able to keep energy consumption low and comfort levels high.

You can identify any error codes on the handler’s panel or on the thermostat. You’ll be breathing clean thanks to the use of filters, making for a pure and comfortable living environment. This system is protected by a 10 year parts warranty and a 10 year service warranty. Trust in this MRCOOL 36k BTU 18 SEER Central Ducted DC Inverter Heat Pump System to bring you the comfort you crave and save you money.

Key Features:

  • High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.

  • Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.

  • Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!

  • Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.

  • 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.

  • Optional heating kit available

  • R-410A environmentally friendly refrigerant

    Condenser Dimensions 37.24"W x 16.14"D x 31.89"H
    Condenser Weight 151.68 lbs
    Air Handler Dimensions 21.02"W x 21.02"D x 49.02"H
    Air Handler Weight 129.63 lbs
    SEER 18
    EER 10.4
    HSPF hspf4/hspf5: 9.1/7.1
    CFM 1082.35/970.59/864.71
    Cooling Capacity 36,000 BTU
    Heating Capacity 36,000 BTU
    Voltage Requires a minimum of 208-230V/60HZ/40A (please check your home meets this electrical requirement prior to purchase)
    Phase 1
    Cycle 60 Hz
    Max Fuse Breaker 40
    Min Circuit Ampacity 24
    Color Gray
    Rate Load 1.48
    Zone Capacity 1
    Coverage Area 1,500 Square Feet
    Refrigerant Type R410A
    Refrigerant Volume 130.51 oz
    Decibel Rating 46.8/44/41.3
    Decibel Rating Low 41.3
    Decibel Rating High 46.8
    Air Flow Direction Multi-position
    Min Ambient Cool 5~122F
    Min Ambient Heat 5~75.2F
    Lineset Included Yes - 50 foot lineset included
    Liquid Line Size 3/8 in
    Suction Line Size 3/4in
    Compressor Motor Type Rotary
    Condenser Fan Motor RPM 1150/1050/900/850
    Filter Type Replaceable
    Auxiliary Heater Included No
    Auxiliary Heater Available Yes
    Auxiliary Heater Sizes 5kw,8kw,10kw, 15kw, 20kw
    Adjustable Thermostat Yes
    Modes Fan
    Sleep
    Auto Cool
    Includes Remote
    Battery
    App Compatibility No
    Certificates AHRI
    Warranty 10 years parts and labor

    Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
