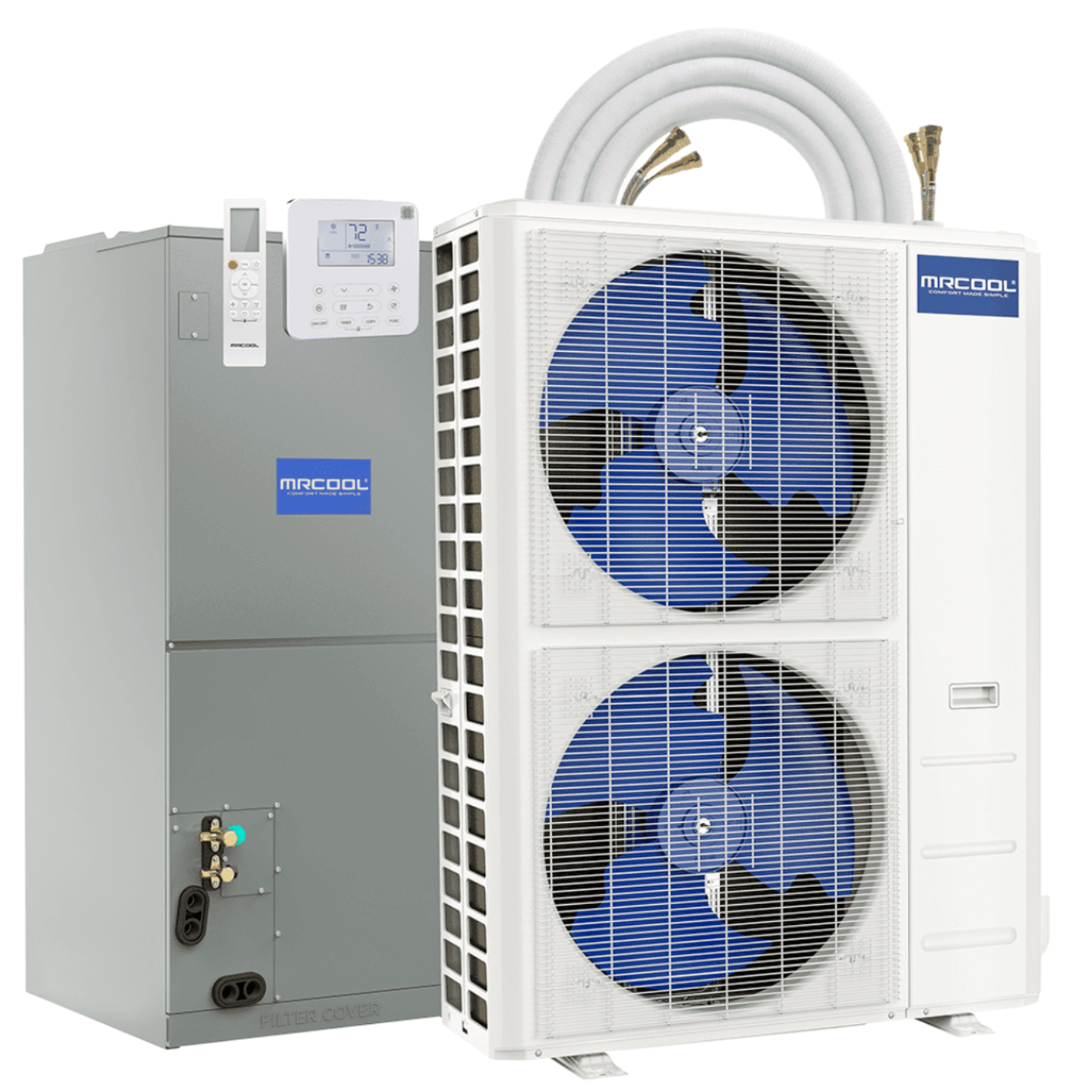

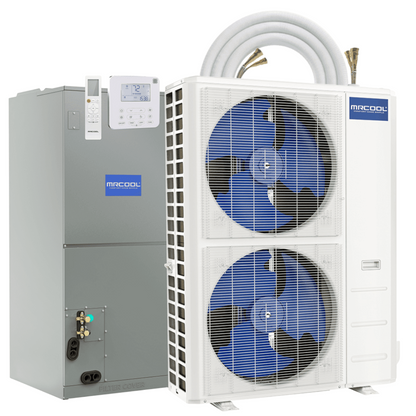

MRCOOL 48K BTU 17.3 SEER Central Ducted Air Handler, Condenser, 25 Foot Lineset, CENTRAL-48-HP-230-25

MRCOOL 48K BTU 17.3 SEER Central Ducted Air Handler, Condenser, 25 Foot Lineset, CENTRAL-48-HP-230-25

by MRCOOL
SKU CENTRAL-48-HP-230-25
Save 5% Save 5%
$4,544.00
$4,544.00 - $4,544.00
$4,544.00
$4,316.99
$4,316.99 - $4,316.99
$4,316.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

Making yourself at home can be almost impossible if you don’t have a reliable home comfort unit. Luckily, you can put this affordable MRCOOL 48k BTU up to 17.3 SEER Central Ducted DC Inverter Heat Pump System in your home and enjoy instant comfort and savings. This system can cover around 2,000 square feet of your home, so every inch can be filled with crisp, clean, comforting air. You’ll be happy to learn that the air handler is multi-position, so it can be installed in an upflow, downflow, horizontal left or right configuration. This system is equipped with the MrCool® No-Vac® Quick Connect® 25 foot line set.

The variable speed condenser is one of the reasons why this system is as efficient as it is, so you can enjoy comfort without increasing your bills. Identify error codes on the thermostat or on the panel on the handler. The 10 year parts warranty and 10 year service warranty help greatly in the unlikely case that something goes wrong. Put the MRCOOL 48k BTU 17.3 SEER Central Ducted DC Inverter Heat Pump System in your home and feel instant comfort results.

Key Features:

  • High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.

  • Multi-Positional. The unit is compatible with upflow, counterflow and horizontal configurations.

  • Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!

  • Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.

  • 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.

  • Optional heating kit available

  • R-410A environmentally friendly refrigerant

    Condenser Dimensions 37.48"W x 16.34"D x 52.48"H
    Condenser Weight 217.59 lbs
    Air Handler Dimensions 21.02"W x 21.02"D x 49.02"H
    Air Handler Weight 132.50 lbs
    SEER 17.3
    EER 9.3
    HSPF hspf4/hspf5: 10/8.2
    CFM 1282.35/1094.12/905.88
    Cooling Capacity 47,000 BTU
    Heating Capacity 55,000 BTU
    Voltage Requires a minimum of 208-230V/60HZ/34A (please check your home meets this electrical requirement prior to purchase)
    Phase 1
    Cycle 60 Hz
    Max Fuse Breaker 50
    Min Circuit Ampacity 34
    Color Gray
    Rate Load 2.4
    Zone Capacity 1
    Coverage Area 2,000 square feet
    Refrigerant Type R410A
    Refrigerant Volume 165.79 oz
    Decibel Rating 53/50/46
    Decibel Rating Low 46
    Decibel Rating High 53
    Air Flow Direction Multi-position
    Min Ambient Cool 5~122F
    Min Ambient Heat 5~75.2F
    Lineset Included Yes - includes 25 foot lineset
    Liquid Line Size 3/8 in
    Suction Line Size 3/4in
    Compressor Motor Type Rotary
    Condenser Fan Motor RPM 850/750/650
    Filter Type Replaceable
    Auxiliary Heater Included No
    Auxiliary Heater Available Yes
    Auxiliary Heater Sizes 8kw,10kw,15kw, 20kw
    Adjustable Thermostat Yes
    Modes Fan
    Sleep
    Auto Cool
    Includes Remote
    Battery
    App Compatibility No
    Certificates AHRI
    Warranty 10 years parts and labor



    Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; can be delayed for reasons beyond our control. You can always contact us to know the exact time once you placed an order with us. Have a look at our
