MRCOOL DIY 18K BTU Ductless Mini Split Heat Pump Complete System, Energy Star, 4th Gen, DIY-18-HP-WM-230C25

by MRCOOL
SKU DIY-18-HP-WM-230C25
Save 10% Save 10%
Original price $2,156.00
Original price $2,156.00 - Original price $2,156.00
Original price $2,156.00
Current price $1,940.99
$1,940.99 - $1,940.99
Current price $1,940.99
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

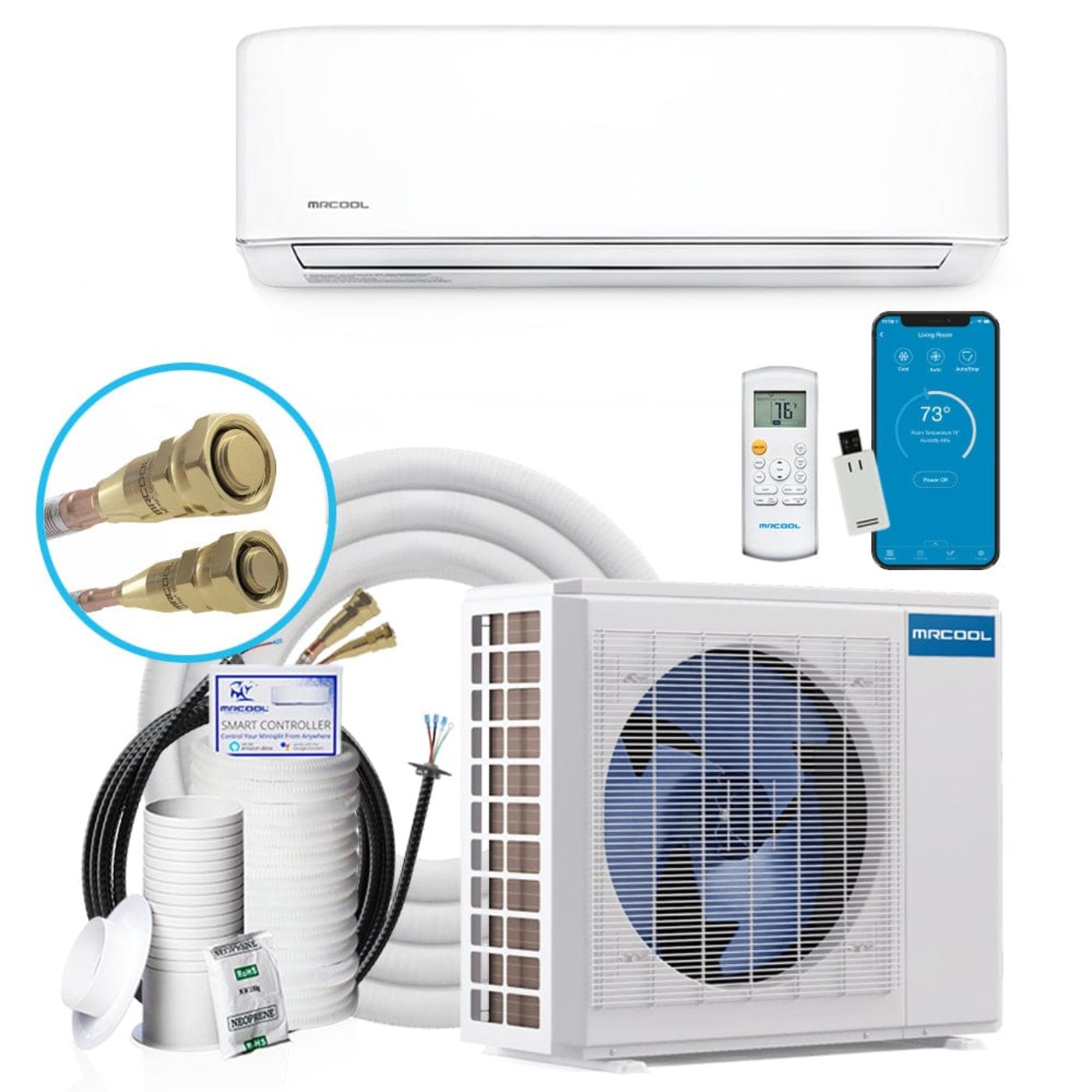

The MRCOOL 4th Generation DIY 18K BTU, 22 SEER Ductless Heat Pump system offers a complete solution to your home’s heating and cooling needs. This powerful single-zone system has the capability of heating and cooling an area up to 750 sq. ft. It comes complete with a 18K condenser, 18K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant.

This system can heat & cool an area up to 750 sq. ft and is capable of an Energy Star certified, 22 SEER efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged 25 ft. line set, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP.

It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MRCOOL system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MRCOOL stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.

Key Features:

  • Up to 22 SEER

  • Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion

  • Variable-speed DC inverter compressor technology cuts operating costs

  • R-410A environmentally friendly refrigerant

  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Condenser Dimensions 35.04"W x 13.46"D x 26.50"H
Condenser Weight 94.36 lbs
Air Handler Dimensions 42.52"W x 8.90"D x 13.19"H
Air Handler Weight 34.61 lbs
SEER 22
EER
12.5
COP 47
3.74
HSPF hspf4/hspf5 : 11.5/9
CFM 465.29/361.76/304.12
Tonnage 1.5
Cooling Capacity 18,000 BTU
Heating Capacity 18,000 BTU
Voltage Requires a minimum of 208-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 30 A
Min Circuit Ampacity 18 A
Color White
Rate Load 0.25 A
Max Coverage Area Up to 750 sqft
Zone Capacity 1
Refrigerant Type R-410A
Refrigerant Volume 56.44 oz
Decibel Rating 44.5/37/31
Decibel Rating Low 31 dBA
Decibel Rating High 44.5 dBA
Oscillation 4-W
Inverter Yes
Min Ambient Cool -13F - 122F
Min Ambient Heat -13F - 75F
Line Set Length 25ft
Max Lineset Length 98.42 ft
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 810/720
Blower Motor RPM 1120/950/700
Auxiliary Heater Available No
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications UL Listed
Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI
