MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM218HPW00C07

Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

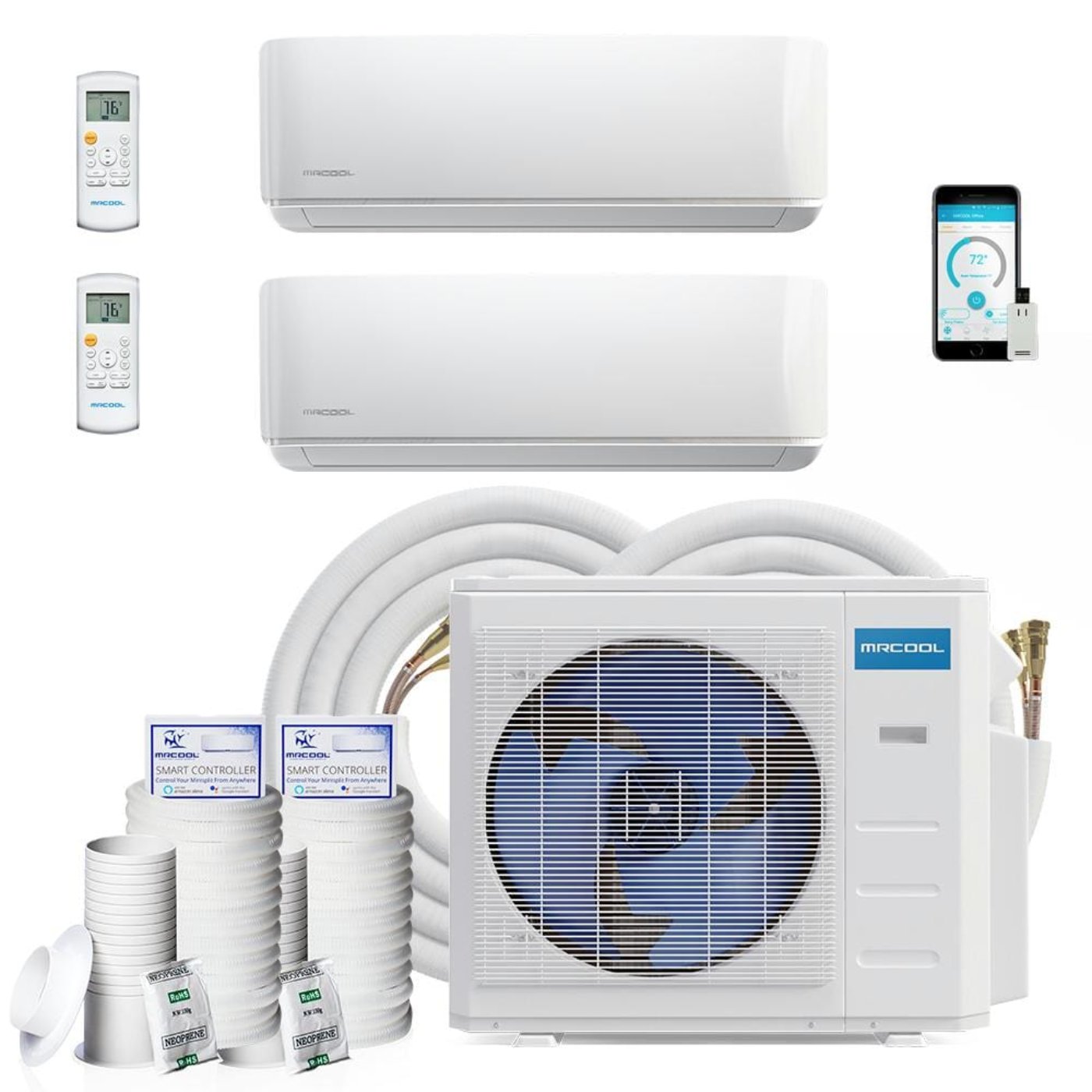

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat two different rooms. You'll be sent: DIY 18,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler, two Remotes, and two 25 ft. Installation Kits. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

Key Features:


Condenser

• Energy Efficient. This 2 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21 SEER efficiency rating.

• Works In All Environments. The ability to heat even when temperatures drop to -13°F.

• Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

Air Handler, 9K BTU, Quantity 2

• Large Coverage Area. Handler covers an area up to 375 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Line Set 25 ft., Quantity 2



• This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

• Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.

• DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Additional Line Sets & Coupler If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

Condenser
Product Dimensions	35.04"W x 13.46"D   x 26.50"H
Cooling Capacity	18,000 BTU
Heating Capacity	19,000 BTU
Zone Capacity	2
Cool Mode - Outdoor Operating Temperature   Range	5F ~ 122F
Heat Mode - Outdoor Operating Temperature   Range	-13F ~ 75.2F
SEER	21
EER	12.5
Voltage	Requires a minimum of 208V-230V/60HZ/18-25A   (please check your home meets this electrical requirement prior to purchase)
Registered Warranty	7 Years Replacement on Condenser, 5 Years   Parts
Air Handler 9K BTU
Product Dimensions	31.57"W x 7.44"D   x 11.69"H
Mount Type	Wall
Cooling Capacity	9,000 BTU
Heating Capacity	9,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto - auto selects from Cool, Heat or   Fan-Only
	Dry - dehumidify
	Cool
	Heat
	Fan Only
	Quiet
	Sleep
Line Set
Length	25 Feet
Liquid Line Size	1/4"
Suction Line Size	1/2"

• MRCOOL DIY Multi-Zone 2-Zone Condenser, 4th Gen Series, DIY-MULTI2-18HP230C

• MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x2)

• MRCOOL 25ft 1/4 x 1/2 Lineset for IY 9K, 12K & 18K Indoor, DIY25-1412 (x2)

• Product Brochure

• Installation Manual
