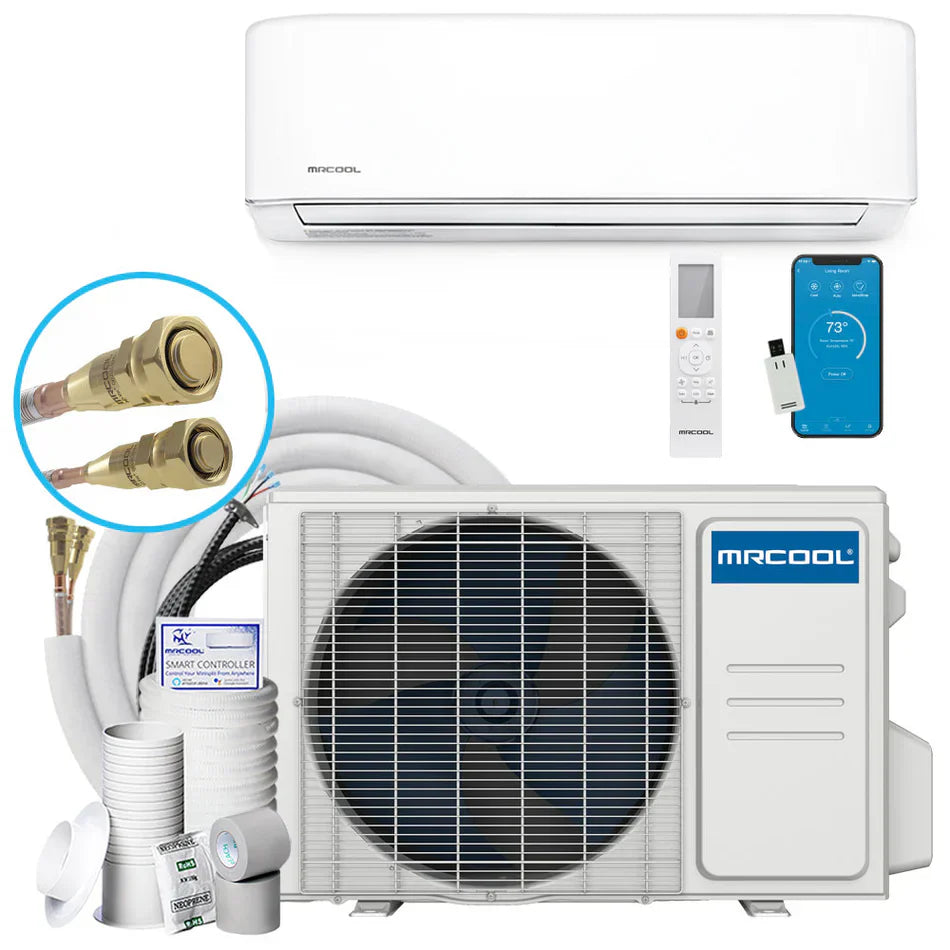

Olympus ES 18,000 BTU 1.5-Ton 1-Zone 23.5 SEER Ductless Mini-Split AC and Heat Pump with 18K & 25ft Line -230V
With an updated SEER of up to 22.6, the MRCOOL Olympus ENERGY STAR Series ductless mini-split heat pump and air handler system is an ENERGY STAR certified heat and air solution. This system is designed to be installed by an HVAC professional and will prove to be both effective and affordable. It is packed with features, modes and functions, such as timer mode, auto swing, sleep mode and auto restart. Combining efficiency and technology, this system features a WiFi control module that you can count on to provide easier setup, better functionality and the ability to control the system with the SmartHVAC app, your Amazon Alexa or Google Assistant.
Highlights
- Installation by a licensed professional required where applicable
- 7-year compressor, 5-year parts and 1-year remote warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
-
ENERGY STAR certified
Specifications
Dimensions
|
Air handler depth (in.)
|
9.41
|
Air handler height (in.)
|
12.56
|
|
Air handler width (in.)
|
37.99
|
Condenser depth (in.)
|
13.6
|
|
Condenser height (in.)
|
26.50
|
Condenser width (in.)
|
35.04
|
Details
|
Air direction/circulation
|
1-way
|
Air Handler BTU
|
18000 BTU
|
|
Air handler weight (lb.)
|
27.12
|
Amperage (A)
|
30 A
|
|
BTU Cooling Rating
|
18000 BTU
|
BTU Heat Rating
|
18000 BTU
|
|
Color Family
|
White
|
Color/Finish
|
white
|
|
Condenser weight (lb.)
|
94.36
|
Coverage Area (sq. ft.)
|
750
|
|
Decibel (Sound) Rating
|
43 dBA
|
Decibel Rating
|
43 dBA
|
|
Filter Type
|
Replaceable
|
Included
|
Heater, Mounting Hardware, Remote Control, Self-diagnostic tools
|
|

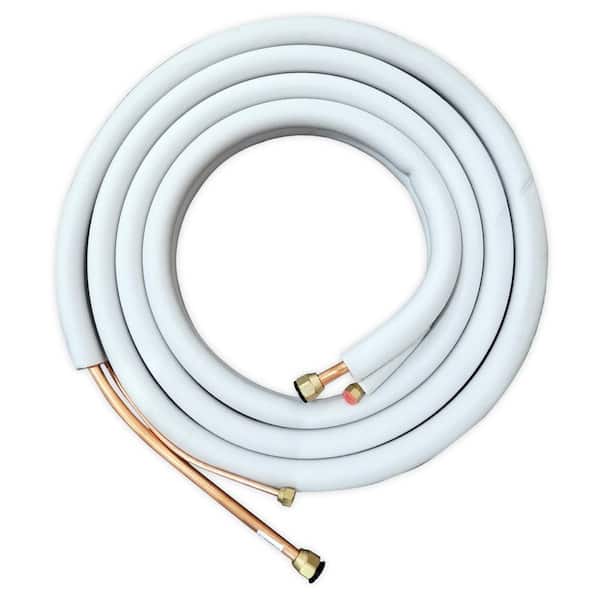

Line Set Length (Ft.)
|
25 ft
|
Mini Split Features
|
Alexa Compatible, Auto cool, Automatic shutoff, Bluetooth, Defrost, Ductless, Fan only option, Google Assistant Compatible, Mobile App, Overload protection, Sleep setting, Wifi
|
|
Minimum Outdoor Temperature (F)
|
5
|
Mount Location
|
Wall Mount
|
|
Number of cool settings
|
4
|
Number of Fan Speeds
|
Variable
|
|
Number of Tons
|
1.5 ton
|
Pack Size
|
2
|
|
Power Options
|
Hardwired
|
Remote Access
|
Remote Access
|
|
Requires Hub?
|
No Hub Required
|
Returnable
|
90-Day
|
|
Smart Home
|
Smart Home Enabled
|
Smart Home Protocol
|
Wi-Fi
|
|
Voice Control Hub Required
|
No Hub Required for Voice Control
|
Voltage (v)
|
208/230v
|
|
Wattage (watts)
|
Not Measured
|
Works With
|
Alexa, Alexa, Google, Google Assistant
|
|
Zone Capacity
|
1 Zone
|
Manual
What Our Experts Think
-
Superior Energy Efficiency: With a 23.5 SEER rating, this MRCOOL Olympus model provides exceptional cooling and heating while minimizing energy costs.
-
Powerful Performance: The 18,000 BTU capacity is ideal for cooling or heating medium-sized rooms, offering consistent comfort year-round.
-
Quiet & Comfortable: Low-noise operation ensures a tranquil indoor environment, perfect for bedrooms, living rooms, or offices.
-
Easy Installation: Comes with an 18K & 25ft line, simplifying installation and reducing the need for professional help.
-
Eco-Friendly & Cost-Effective: Energy Star certified, it provides sustainable and cost-effective climate control while keeping your home or office comfortable
Q&
Q: What is the cooling and heating capacity of the MRCOOL Olympus ES Mini Split?
A: It provides 18,000 BTU, perfect for cooling and heating medium-sized rooms or spaces.
Q: What is the SEER rating of this system?
A: The system has an impressive 23.5 SEER rating, ensuring excellent energy efficiency.
Q: Is this unit both an air conditioner and a heat pump?
A: Yes, it functions as both an air conditioner for cooling and a heat pump for heating.
Q: What is the tonnage of the MRCOOL Olympus ES Mini Split?
A: It is a 1.5-ton unit, suitable for smaller to medium-sized rooms.
Q: Does this mini split come with an installation kit?
A: Yes, it includes an 18K unit and a 25 ft. line set for easy installation.
Q: Is the system Energy Star certified?
A: Yes, this unit is Energy Star certified, ensuring efficient performance and cost savings on energy bills.
Q: Can I install this system myself?
A: Yes, it is designed for DIY installation, with clear instructions for easy setup
Maintenance Tips
-
Clean Filters Regularly: Clean or replace the filters every 1-2 months to maintain airflow and prevent dust buildup that can strain the system.
-
Inspect and Clean Coils: Check the evaporator and condenser coils periodically, cleaning them from dirt and debris to keep performance at its peak.
-
Monitor Refrigerant Levels: Ensure the refrigerant is at the recommended level for effective cooling and heating performance.
-
Clear Outdoor Unit: Keep the outdoor unit free from debris, leaves, and dirt to ensure proper airflow and prevent system overheating.
-
Check Ducts and Seals: Inspect ductwork for leaks and ensure seals are tight to improve energy efficiency and airflow.
-
Clean the Drip Tray: Empty and clean the drip tray periodically to prevent mold, mildew, and unpleasant odors.
-
Schedule Annual Professional Maintenance: Arrange for a professional technician to inspect the system annually, ensuring all components are in good condition and operating efficiently.
