PaintLine Interior Door Spray & Dry Series (PSDRID)

PaintLine Interior Door Spray & Dry Series (PSDRID)

Paint or refinish interior doors quickly and easily with the Interior Door Spray & Dry Series (PSDRID). Single operators are now able to paint multiple, full-size, interior doors in a confined space.

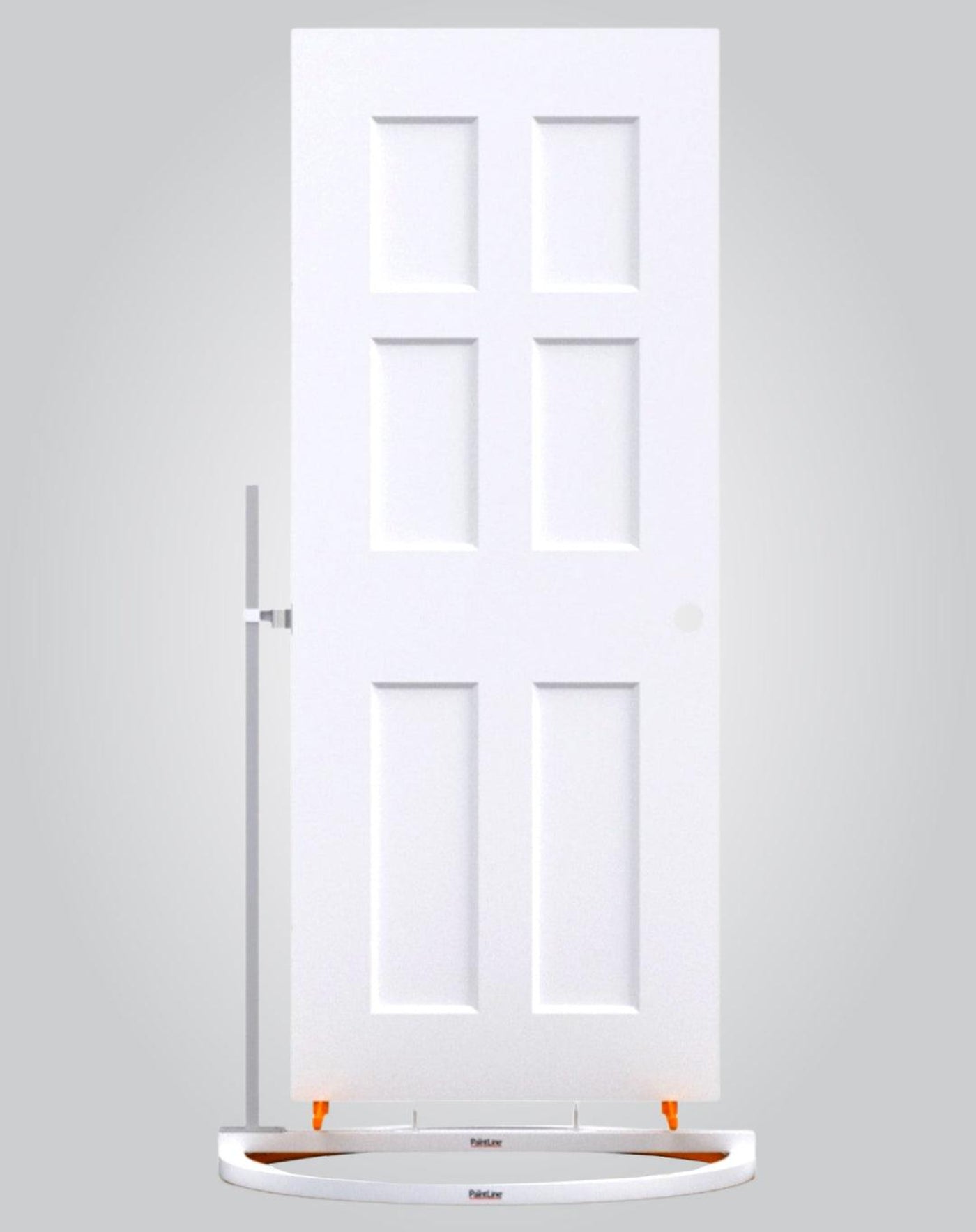

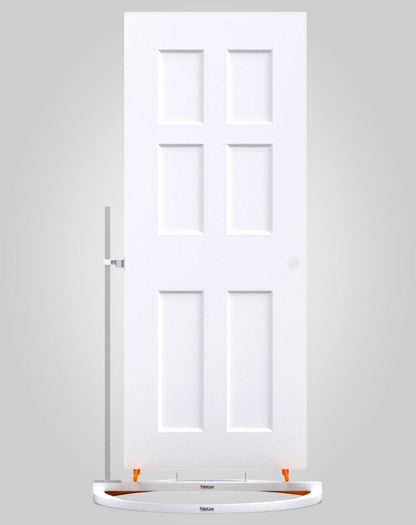

Doors rotate on a foot-operated turntable as they rest on spikes to expose the bottom-edge and allow spraying of all sides of the door from a stationary position. Custom VClips attach at the hinge pocket to not only stabilize the door, but also lift a wet door to move to the drying area.  Heavy duty plastic bases attach to the bottom of the door with wood screws to enable the door to stand on its own and to nest closely with other doors of various widths and heights minimizing drying space. The PSDRID includes components for 20 interior doors (with additional 10 door add-on packages), which makes it perfect for most residential projects where all interior doors need to be finished or repainted. Additional components are available to expand the number of doors to suit your project.

When coupled with the new with XL Liners, you won’t need to cover the walls and ceiling - just spray inside the taller booth and eliminate worry about overspray.

Features

• Single operator
• Handles up to 20 doors with additional 10 door add-on package for larger jobs
• Minimizes space required for spraying and drying
• Spray entire door from a stationary position
• Works with various widths and heights of doors*
• Works with hollow or solid core doors
• Door contact point is only ½" by 1 ½" at the hinge pocket
• Portable for easy transport & storage with the included carry bag
• Eliminate the need to seal the entire room when spraying when coupled with our Portable Jobsite Spray Booth Extension and XL Liners (both sold separately)

• Minimal assembly required

Included

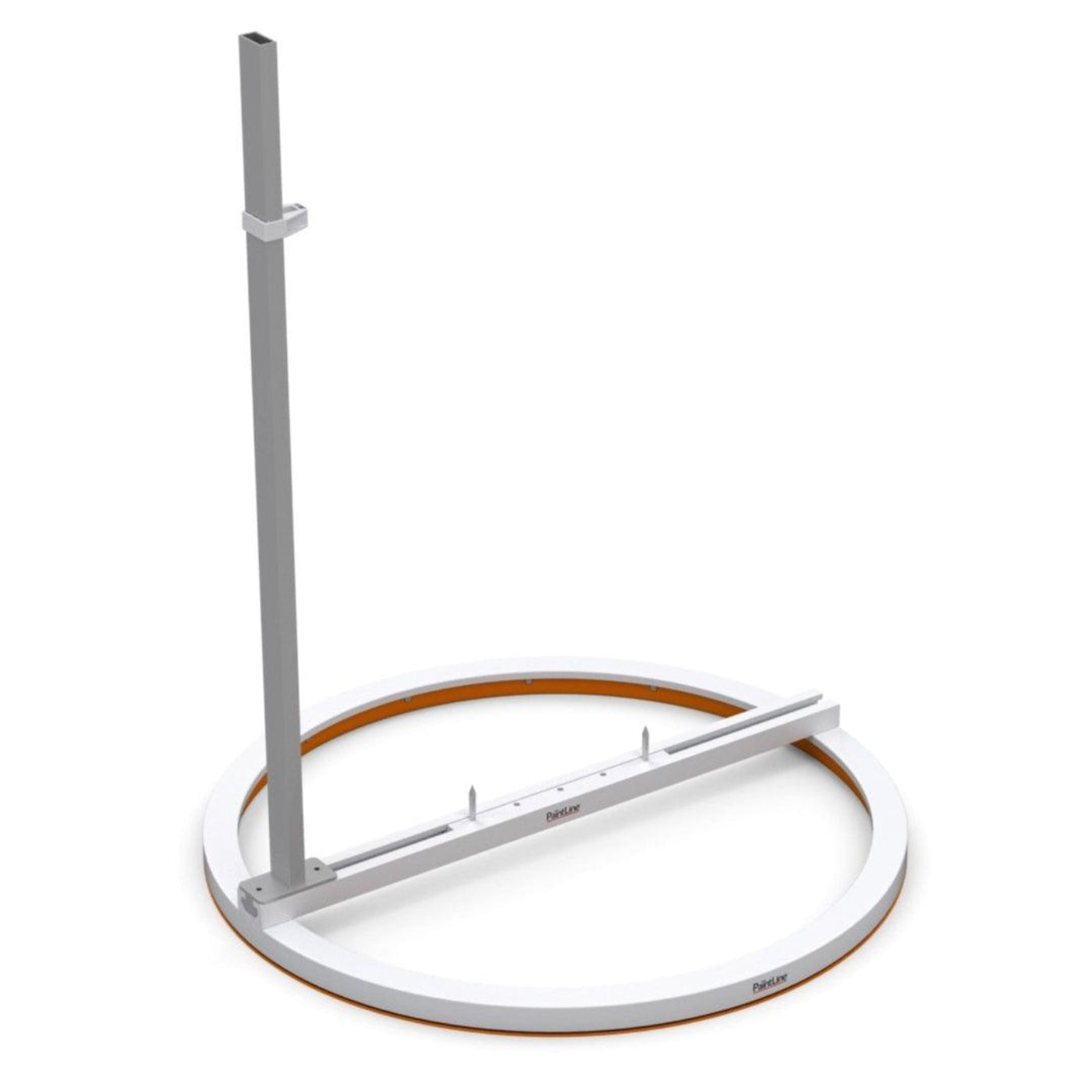

• Turntable and door support arm

• 20 VClips with wood screws
• 40 plastic door base supports with wood screws
• Hand grips for moving wet doors
• 1 overspray guard set
• 2 carry bags (1 for the turntable, 1 for the door base supports)

What our Experts Think

• Purpose-built interior door production system
  The PaintLine Interior Door Spray & Dry Series (PSDRID) is a specialized workflow system for spraying, rotating, and drying full-size interior doors in tight spaces.
• Single-operator efficiency design
  Built so one person can spray multiple doors from a fixed position while rotating each door on a foot-operated turntable, reducing movement and boosting speed.
• All-in-one spray + dry workflow
  Combines:
  • Door rotation (full 360° access)
  • Stable hinge-pocket clips for control
  • Base supports so doors can stand and nest tightly for drying
• High production capacity
  Standard kit supports up to 20 interior doors, with add-ons available for larger projects.
• Space-saving for jobsite or shop use
  Designed to allow multiple doors to be finished in a confined area, making it ideal for renovations where space is limited.
• Portable, modular system
  Breaks down into components with a carry bag, making it jobsite-friendly and easy to transport between projects.
• Works with full finishing ecosystems
  Often paired with PaintLine spray booths like the PJSB XL to create a controlled, low-overspray environment.


Q&A

Q: What is the PaintLine PSDRID system?
A: It is a portable interior door spray and drying system designed to let a single operator efficiently spray, rotate, and dry multiple full-size interior doors in a compact workspace.

Q: What is it used for?
A: It is used for spraying and finishing interior doors (paint or stain) while keeping them organized for drying without taking up large floor space or multiple rooms.

Q: How does it work?
A: Doors are mounted using VClips and base supports, then placed on a foot-operated rotating turntable so you can spray all sides from one stationary position.

Q: How many doors can it handle?
A: The standard kit supports up to 20 interior doors, with add-on kits available to increase capacity.

Q: What makes it different from traditional methods?
A: Instead of laying doors flat or leaning them against walls, it allows vertical rotation and controlled spacing, reducing dust contamination and saving space during drying.

Q: Is it portable?
A: Yes, it is designed to be breakdown-friendly and transportable, using carry bags and modular parts for jobsite or shop use.

Q: What types of doors does it support?
A: It works with most 28"–34" wide interior doors up to about 80" tall, including hollow and solid core doors.

Q: Does it help improve finish quality?
A: Yes, because doors can be sprayed evenly on all sides from one position, it reduces handling marks and improves consistency.

Q: Is it meant for professionals?
A: Yes, it is designed mainly for cabinet and trim painters, contractors, and production-level interior door refinishing.

Q: What is the main advantage?
A: It significantly increases efficiency by combining spraying + drying in one controlled, space-saving workflow system, reducing setup time and handling


Maintenance Tips

• Clean turntable daily: Remove overspray, dust, and dried finish from the rotating base so the foot-pedal spin stays smooth and consistent.
• Inspect VClips regularly: Check hinge pocket clips for wear, bending, or buildup to ensure doors stay secure during spraying and rotation.
• Keep base supports clean: Wipe plastic drying stands to prevent paint transfer or sticking on freshly sprayed doors.
• Check rotation mechanism: Ensure smooth, resistance-free spinning; clear any debris that may affect balance or motion.
• Avoid overspray buildup on components: Hardened paint can reduce grip precision and make door handling less stable.
• Tighten fasteners periodically: Verify all frame connections, especially on expansion or add-on kits, to maintain stability under load.
• Store VClips and accessories properly: Keep organized in designated containers to prevent loss and maintain workflow speed.
• Keep system dry after cleaning: Prevent moisture accumulation on metal parts to avoid corrosion and extend lifespan.
• Inspect load balance during use: Distribute doors evenly when staging or drying to avoid tipping or stress on supports.
