PCE Color Meter - CSM 2

PCE  Color Meter - CSM 2

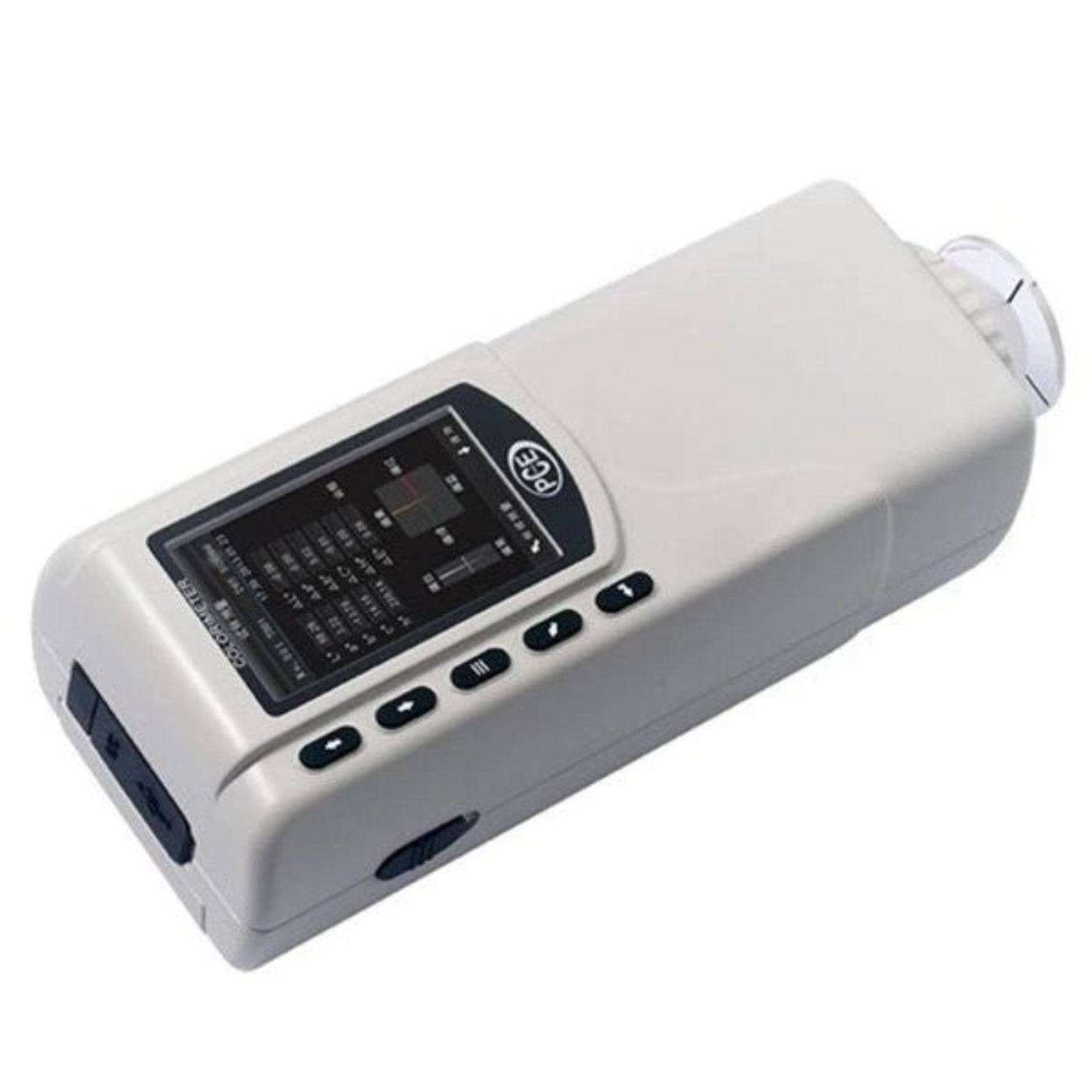

The PCE CSM 2 Color Meter is a versatile, multitasking device designed to measure the color spectrum of various objects. Light consists of a wide range of colors, not just pure white, black, or blue. When light illuminates an object, part of it is absorbed, and the rest is reflected. The reflected light is then detected by a sensor, which analyzes the wavelengths to accurately determine the color. Colorimeters are commonly used in quality control across various industries, especially those where color characteristics are critical. The PCE-CSM series colorimeters are specifically designed for industries where precise color measurement plays a significant role.

Whether it is dental technology, painting industries or for the production of plastic bags, the color meter PCE-CSM 2 is an ideal product for quality management and thus assures highest reliability, whenever it is important to assure a certain standard in optic quality. The colorimeter supports an ergonomic design and features a user-friendly menu navigation. It has a measuring aperture of 8 mm. The supported color spaces are CIEL*a*b*C*h, CIEL a*b*, and CIEXYZ.

This colorimeter is great for professional industries. Another advantage is that it supports a vertical justification. This means that the whole device does not need to be placed on the object to analyze it, but only the part with the sensor in it. The industrial perspective of it is that this method allows the measuring of damp objects, textiles and even food. The device is ideally suited for measurements of meat, bananas or tomatoes. Due to the software "CQCS3" that is included in the delivery, the measured data can be read out on a computer or laptop for a digital overview.

The L*a*b color space: You can see the color space L*a*b. This color space covers all colors that are visible with the naked eye. L=100 stands for white and L=0 for black. "a+" and "a-" or "b+" and "b-" stands for the color contrasts red, green, yellow and blue.

The menu of the Colorimeter contains all characteristics and settings that can be performed. There are basic settings like time, language, date, but also settings about the recording and the color spaces that shall be displayed by the device.

Features

• Rechargeable Lithium-Ion battery
• Autom. calibration of black-and-white contrast
• Continuous performance
• Designed for food industry
• Measures various colors
• Application on different surfaces
• Simplified user-interface
• Software included


What our Experts Think

• Professional Colour Measurement Made Simple – The PCE-CSM 2 provides accurate and consistent colour analysis for quality control, product development, and colour matching applications.
• Reliable Colour Consistency Control – Helps reduce batch-to-batch colour variations, ensuring products meet brand and customer expectations.
• Fast & Repeatable Measurements – Delivers dependable results that improve inspection efficiency and eliminate subjective visual assessments.
• Versatile Industry Applications – Ideal for plastics, paints, coatings, textiles, printing, packaging, automotive, and manufacturing environments.
• Portable & User-Friendly Design – Compact handheld construction allows convenient colour testing in laboratories, production facilities, and field inspections.

Q&A

Q: What is the PCE-CSM 2 Color Meter used for?
A: The PCE-CSM 2 is designed for accurate color measurement, color comparison, and quality control in manufacturing and laboratory environments.

Q: Can the PCE-CSM 2 measure color differences?
A: Yes. It evaluates color variations between samples and reference standards, helping ensure consistent product quality.

Q: Which industries commonly use the PCE-CSM 2?
A: It is widely used in plastics, paints, coatings, textiles, printing, packaging, automotive manufacturing, and quality assurance applications.

Q: Does the PCE-CSM 2 support standard color spaces?
A: Yes. The device measures colors using industry-standard color parameters for reliable and repeatable results.

Q: Can measurement data be stored and analyzed?
A: Yes. The meter supports data storage and transfer for reporting, documentation, and quality control analysis.

Q: Why choose the PCE-CSM 2 Color Meter?
A: It offers precise color measurement, easy operation, and dependable performance for professional color management and quality assurance tasks.

Maintenance Tips

• Calibrate the meter before each measurement session to maintain accurate and repeatable color readings.
• Keep the measurement aperture clean using a soft, lint-free cloth to prevent contamination.
• Protect the calibration plate from dust, fingerprints, scratches, and direct sunlight.
• Store the instrument in its protective case when not in use to prevent damage and dust buildup.
• Avoid exposure to extreme temperatures, humidity, and rapid environmental changes that can affect accuracy.
• Handle the device carefully and avoid drops, impacts, or excessive vibration.
• Maintain proper battery charge levels for reliable operation during field and laboratory use.
• Verify measurement accuracy periodically using known color standards or reference samples.
• Keep software and firmware updated when available to ensure optimal performance.
