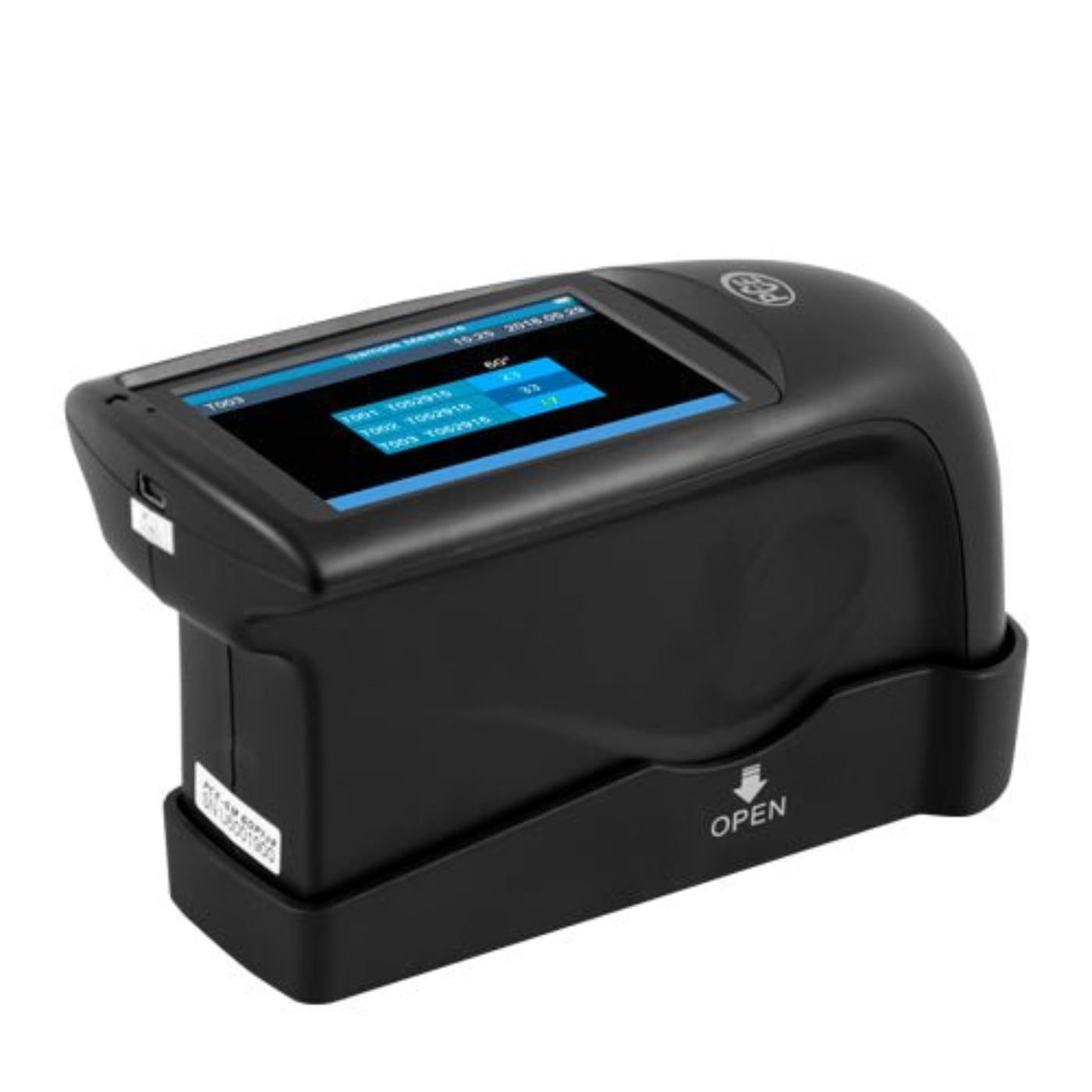

PCE Plus Gloss Meter - GM 60Plus

PCE  Plus Gloss Meter - GM 60Plus

The PCE GM 60 Plus Gloss Meter is a measuring device for the determination of gloss on different materials. Light is emitted by the device onto the part that is to be tested, a part of that light is absorbed by the surface, and the other part is reflected back. The reflected light is what's captured and measured by the gloss meter. The results are then clearly shown on the TFT display. This gloss meter is typically used in areas where it is essential that individual products always have the same appearance, texture and properties. In this way, complaints and associated costs are avoided. In addition, the external reputation of companies with consistent quality and consistent products is respected or improved.

Features

• 60° measuring geometry
• 3.5" TFT touchscreen display
• Built-in rechargeable battery
• Quick 0.5 second measuring time
• 0 - 200 GU gloss measurement range
• Measuring accuracy ±1.5 GU
• Self-calibration possible using included calibration plate
• Chromaticity fulfills CIE 1931 2° under a CIE illuminant C
• Reflective gloss measurement per ISO 2813, GB/T 9754, ASTM D523 and ASTM D2457 standards
• Light source: D65
• Wave length: 400-700 nm

Highlights

•  For non-stationary use
• Measurement up to 200 gloss points
• 60° Measurement geometry
• 3.5" TFT display
• Quick measuring time of 0.5 seconds
