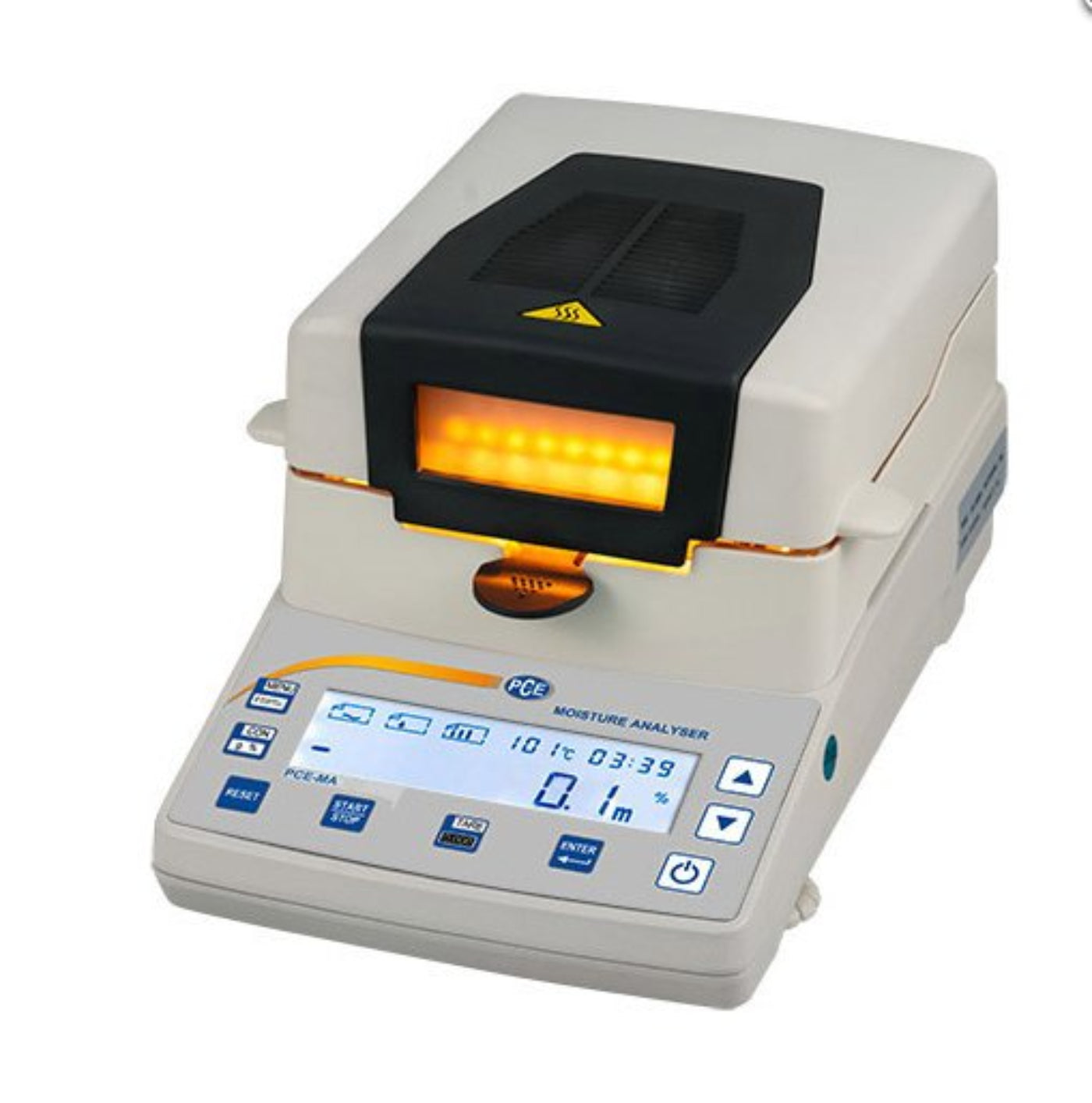

PCE Halogen Moisture Analyzer - MA 110

PCE  Halogen Moisture Analyzer - MA 110

The PCE MA 110 Halogen Moisture Analyzer functions on the gravimetric or loss on drying (LOD) principle. It uses the halogen method to dry the material sample. Moisture content is calculated based on the weight difference before and after the drying procedure. The moisture analyzer's halogen-heated drying chamber is suitable for the testing and analysis of materials such as wood, pellets, biomass, granules, feed, food products and pastes.

Thanks to an impressive resolution or readability of 0.01 g / 10 mg, the moisture analyzer can determine the smallest weight differences. The moisture analyzer also covers the full moisture content range, from 0 - 100%, with a moisture content resolution or readability of 0.1%. Measurement values are displayed clearly on the large, easy-to-read LCD screen.

The moisture analyzer features an adjustable drying time (1 - 99 minutes) and an adjustable drying temperature (+40  - +199 °C). Up to 16 different drying profiles or programs can be stored to the memory of the moisture analyzer, ensuring a controlled, repeatable testing process for accurate results time after time. Calibration of the moisture analyzer can be performed at any time using the automatic calibration function and the included 100 g weight.

Features

• Weighing range: 0.01 g - 110 g
• Weighing resolution or readability: 0.01 g / 10 mg
• Moisture content measuring range: 0 - 100%
• Moisture content resolution or readability: 0.1%
• Adjustable drying time and temperature
• Memory stores up to 16 drying profiles
• RS-232 interface or port
• Automatic calibration function
• 100 g calibration weight included
• Large, easy-to-read LCD screen
• 9 membrane keys for user-friendly operation
• Halogen-heated drying chamber
• For analysis of wood, pellets, biomass, granules, feed, food products and paste

Highlights

• Gravimetric or loss on drying (LOD) moisture analyzer
• halogen-heated drying chamber
• 110 g weighing capacity
• 0.01 g weighing resolution
• 0 -100% moisture content measuring range
• 0.1% moisture content resolution

What our Experts Think

• Fast & Accurate Moisture Determination – The PCE-MA 110 uses halogen heating technology to deliver precise moisture content measurements in a wide range of materials.
• Ideal for Quality Control Laboratories – Perfect for food processing, agriculture, pharmaceuticals, chemicals, and manufacturing applications where moisture levels are critical.
• Efficient Testing Process – Provides rapid analysis compared to traditional drying methods, helping improve productivity and decision-making.
• Reliable & Repeatable Results – Ensures consistent moisture measurements to support product quality, process control, and regulatory compliance.
• User-Friendly Operation – Features an intuitive design that simplifies routine moisture testing for both laboratory and production environments.

Q&A

Q: What is the PCE-MA 110 Halogen Moisture Analyzer used for?
A: The PCE-MA 110 is designed to determine moisture content quickly and accurately in a wide range of materials for quality control and laboratory testing.

Q: Which materials can be tested with the PCE-MA 110?
A: It is suitable for food products, agricultural materials, chemicals, pharmaceuticals, plastics, and other moisture-sensitive samples.

Q: How does the halogen moisture analyzer work?
A: It uses halogen heating technology to dry samples rapidly while continuously measuring weight loss to calculate moisture content.

Q: Is the PCE-MA 110 suitable for laboratory and production environments?
A: Yes. It is ideal for quality assurance laboratories, manufacturing facilities, and research applications requiring reliable moisture analysis.

Q: Can test results be stored and reviewed?
A: Yes. The analyzer supports data recording for quality documentation, process control, and compliance reporting.

Q: Why choose the PCE-MA 110 Halogen Moisture Analyzer?
A: It delivers fast, accurate moisture measurements, efficient halogen heating, and dependable performance for professional testing applications.

Maintenance Tips

• Clean the sample chamber and weighing pan regularly to prevent residue buildup and ensure accurate moisture measurements.
• Remove sample residues immediately after testing to avoid contamination between analyses.
• Keep the halogen heating element free from dust and debris for consistent heating performance.
• Calibrate the balance periodically using certified calibration weights for reliable results.
• Store in a clean, dry environment away from vibration, humidity, and extreme temperatures.
• Handle the weighing pan and accessories carefully to prevent damage and measurement errors.
• Avoid overloading the weighing system beyond the specified capacity.
• Keep ventilation openings unobstructed to maintain proper airflow and instrument performance.
• Inspect power connections regularly and use a stable power source.
