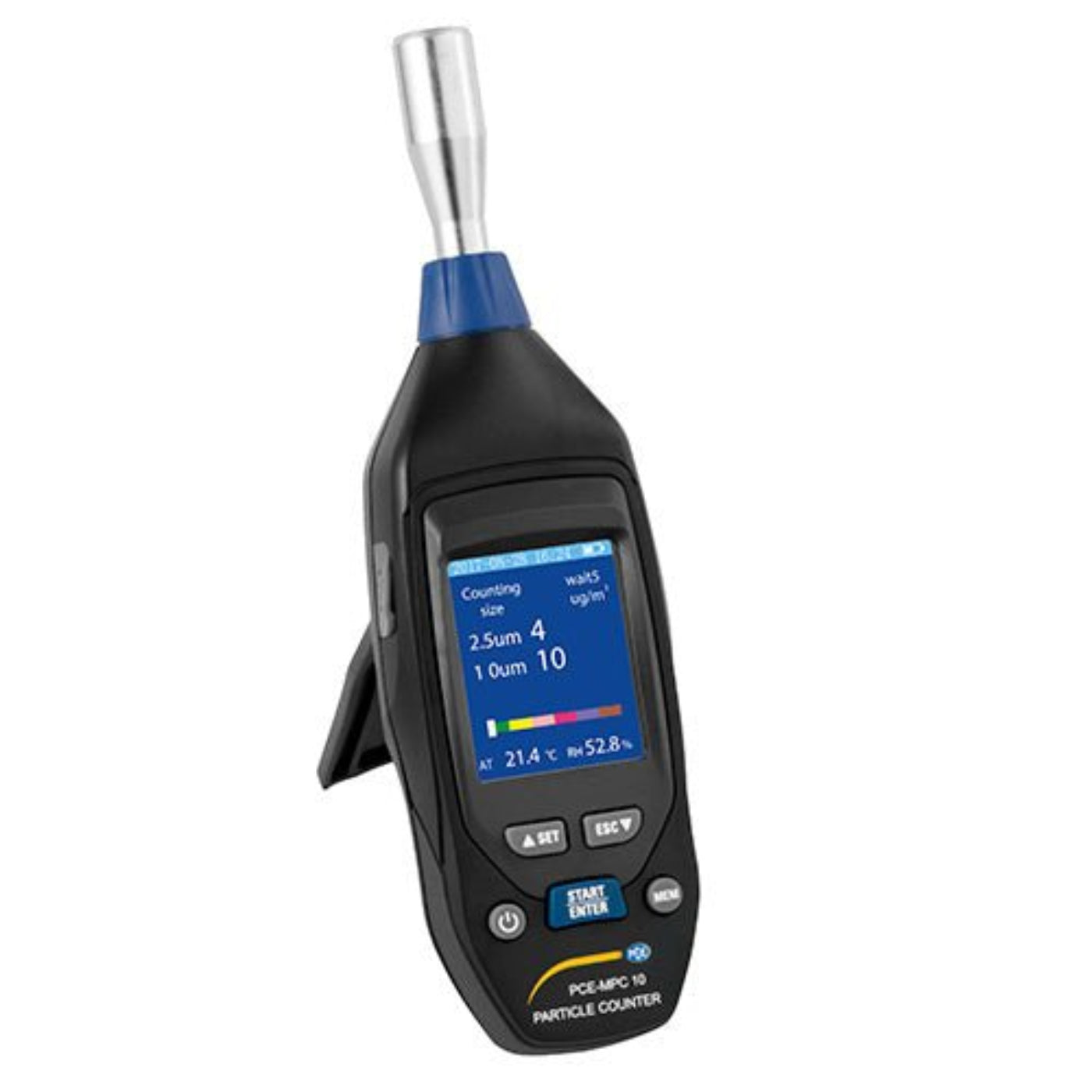

PCE Particle Counter Air Sampler - MPC 10

PCE  Particle Counter Air Sampler - MPC 10

The PCE MPC 10 Particle Counter Air Sampler is a portable device designed to monitor particulate matter (PM) concentrations in the air. Ideal for indoor air quality (IAQ) assessments, it also measures air temperature and relative humidity (RH). Powered by either a rechargeable battery or USB port, the USB port is also used for charging the battery. The device continues to take measurements while charging, ensuring uninterrupted IAQ monitoring. Featuring an integrated data logger, it offers adjustable sampling times of 30 seconds, 1 minute, 2 minutes, or 5 minutes, and can store up to 5,000 date-and-time-stamped data sets in its internal memory.

The particle counter displays all measurements simultaneously on the device's 2" full-color LCD screen. Temperature units can be shown in either degrees Celsius (°C) or Fahrenheit (°F). A scale below the measured values provides a visual warning via a band of colors increasing from green (safe) to violet (extreme danger). This visual color-coding system makes it easy to recognize when PM concentration levels become dangerous, allowing for quick action.

When inhaled, PM 2.5 and PM 10 particles can settle deep into the lungs and result in damaging health effects. Since the PCE-MPC 10 particle counter monitors PM 2.5 and PM 10 particles, the device has many practical health and safety applications. Heating, ventilation and air conditioning (HVAC) technicians use PM 2.5 and PM 10 particle counters for HVAC system performance and filtration audits. In addition, industrial hygienists and workplace safety professionals rely on PM 2.5 and PM 10 particle counters when evaluating occupational health and safety risks related to hazardous and combustible dust.

Features

• Particulate matter (PM) channels: PM 2.5, PM 10
• Particle sizes (in micrometers): 2.5 µm, 10 µm
• Temperature measuring range: 0 - +50 °C / +32 - +122 °F
• Humidity measuring range: 0 - 100 % RH
• 2" full-color LCD with user-friendly graphics
• 220 x 176 pixel display resolution
• Displays temperature in degrees Celsius (°C) or Fahrenheit (°F)
• Powered by rechargeable battery or AC power (via USB port)
• Portable handheld design for indoor air quality (IAQ) monitoring in the field and on the go
• Includes a stand for attaching to the thread on the back of the device
• Features an internal memory for storing up to 5000 data sets
• Saved data is stamped with the time and date
• Takes measurements even while the battery is charging
• Integrated data logger with adjustable sampling time: 30 seconds, 1 minute, 2 minutes or 5 minutes
• Programmable alarm and automatic power-off battery-saving functionality

Highlights:

• Portable
• Handheld
• Particle counter for monitoring particulate matter (PM) concentrations in the air.
• 2.5 µm and 10 µm particle sizes.
• Measures air temperature and relative humidity.
• Internal memory stores up to 5000 date-and-time-stamped data sets.
• Integrated data logger with adjustable sampling time.
