PCE Clamp Meter (With Current Clamps) - PA 8300

PCE  Clamp Meter (With Current Clamps) - PA 8300

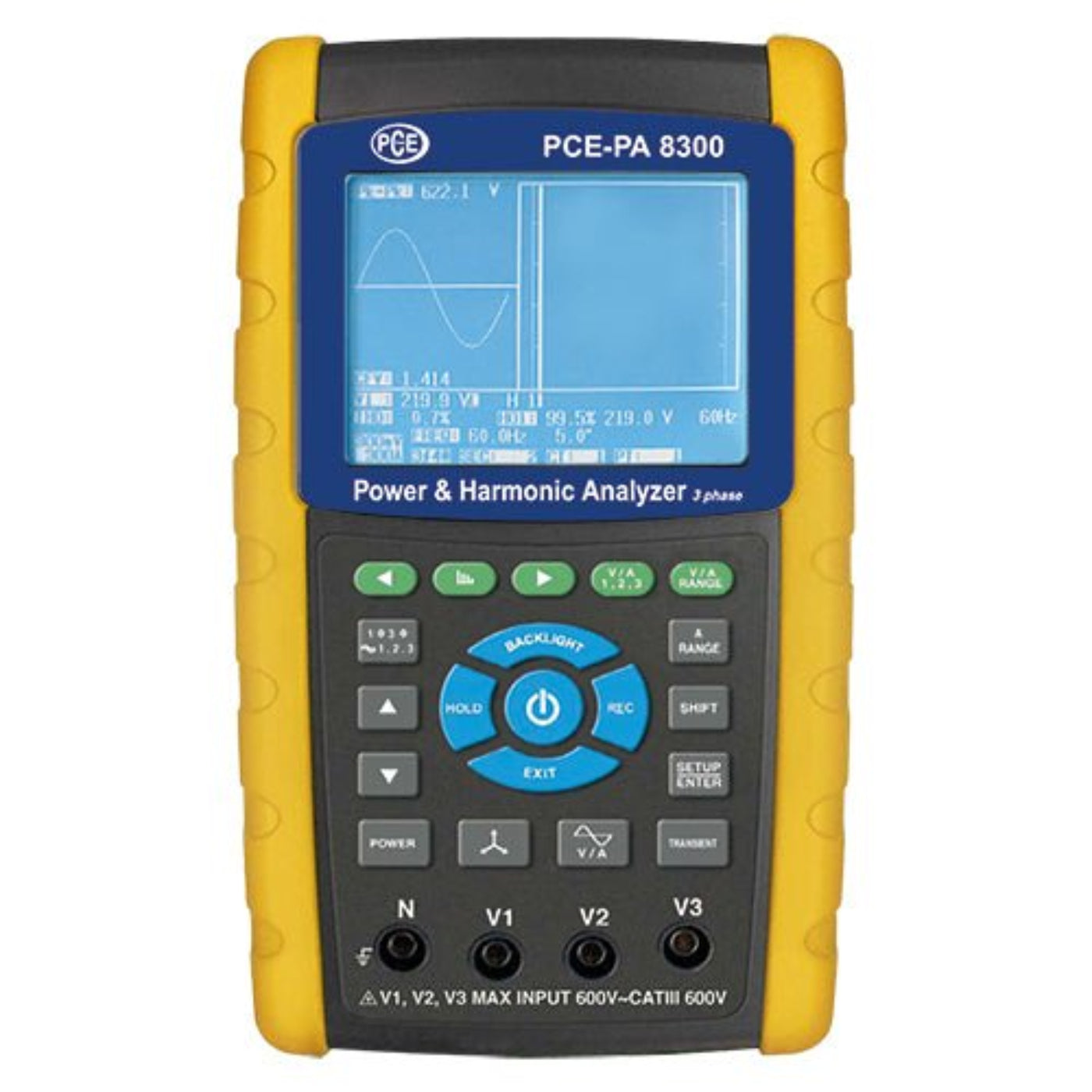

The PCE PA 8300 1 Clamp Meter (with current clamps) is designed with a sturdy enclosure, SD card memory, and an LCD graphic display. It offers measurements for apparent, effective, and reactive power. This user-friendly clamp meter is perfect for conducting power and harmonics analysis, as well as measuring network capacity.

Features

• Voltage measurement range of 10 V ... 600 V AC
• Current measurement range of 20 A ... 1200 A AC
• Performance measurement range of 0 kW ... 9.999 MW (VA/VAR)
• Simultaneous display of harmonics and waveform
• Graphic Phasor diagram
• Captures transients including dip, swell, and outage
• SD card memory
• LCD graphic display
• Durable enclosure
• Compatibility with various manufacturers' power clamps
• Adjustable back-up interval, allowing for long-term data collection
• Auto-setting of measurement range (AC V)
• Power efficiency, delay angle, and frequency measurement
• Apparent, effective, and reactive power measurement
• Harmonic spectrum measurement up to the 50th order

Highlights

• 3-phase
• 3 current clamps
• LCD graphic display
• SD card memory
