Sdr Motorsports Polaris RZR Pro R 4 (25-26) FB-V2 Cage - 750603

Sdr Motorsports Polaris RZR Pro R 4 (25-26) FB-V2 Cage - 750603

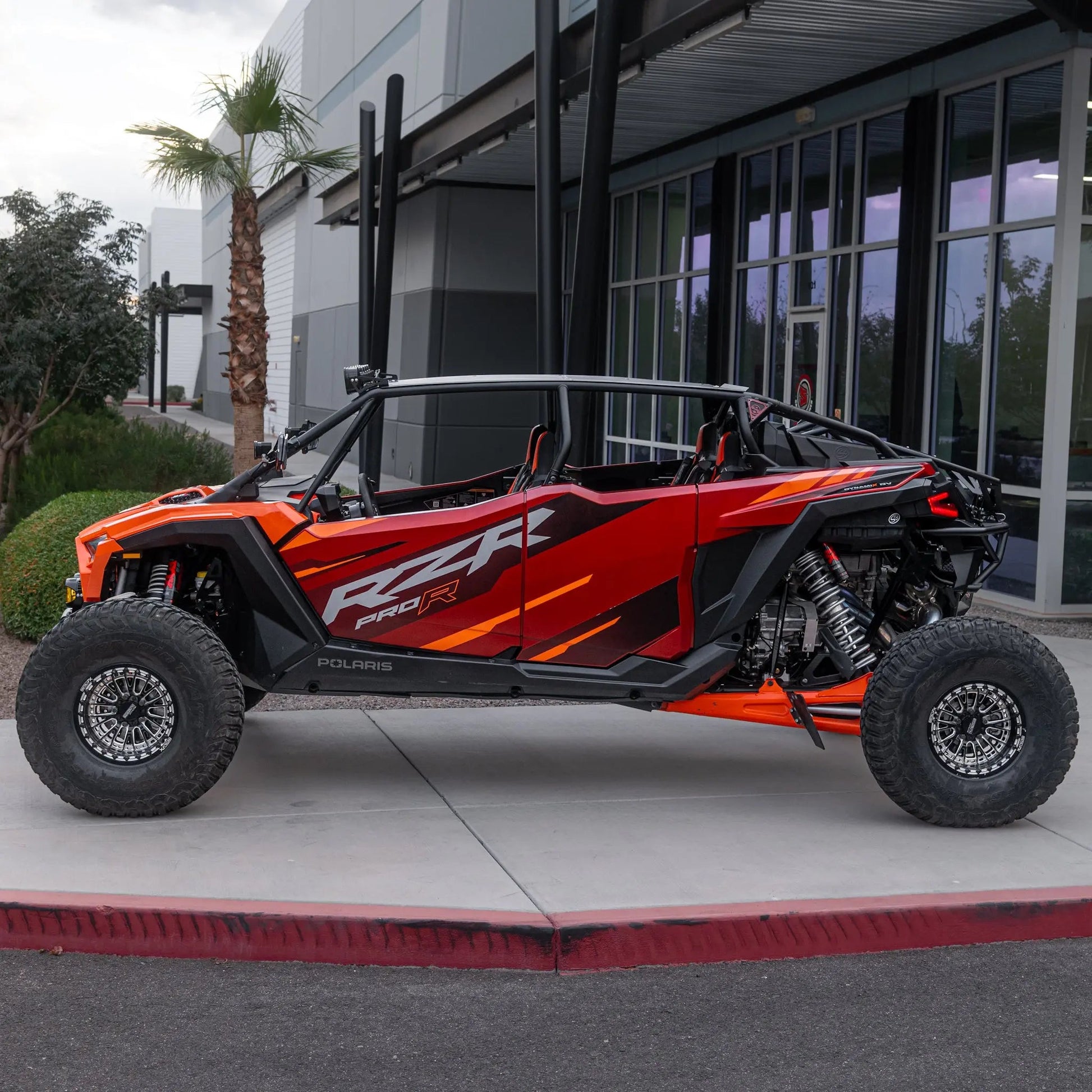

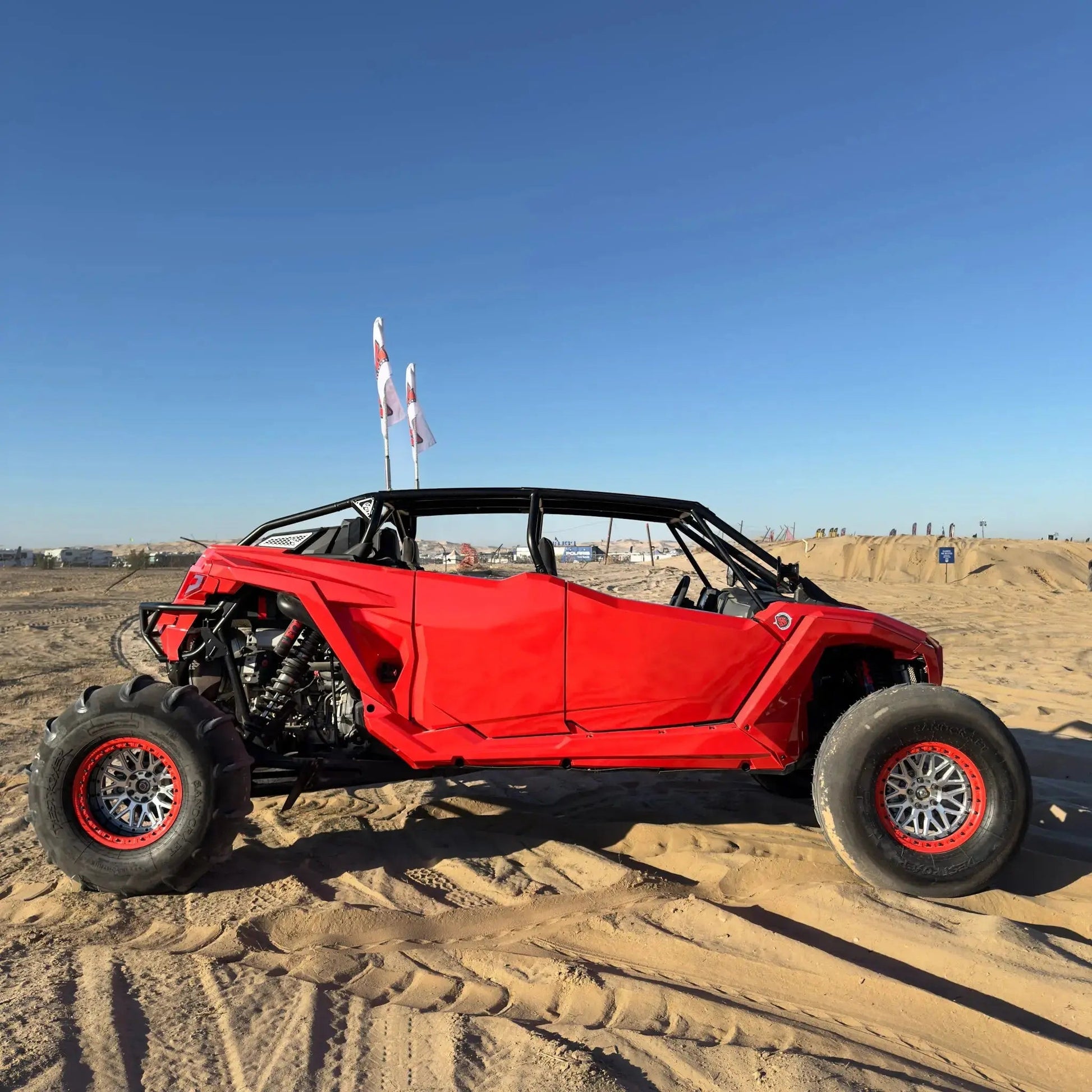

We re-designed every aspect of the cage to maximize forward visibility and safety throughout the structure.

The new FB-V2 cage is built with 1-3/4 X .120 Wall DOM tubing with 1.5 X .095 Support tubing and laser cut .125 sheet metal bracing in all the correct spots.

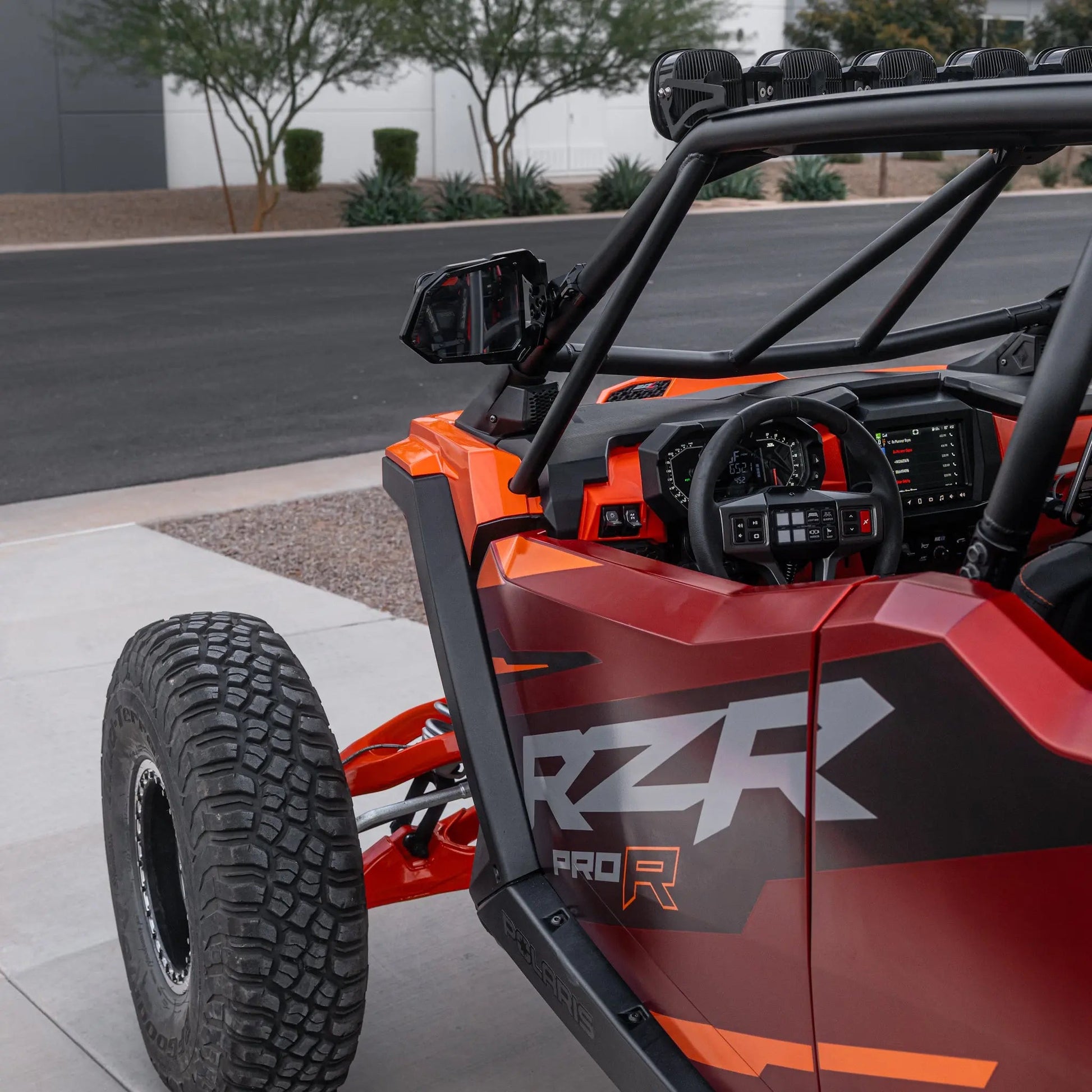

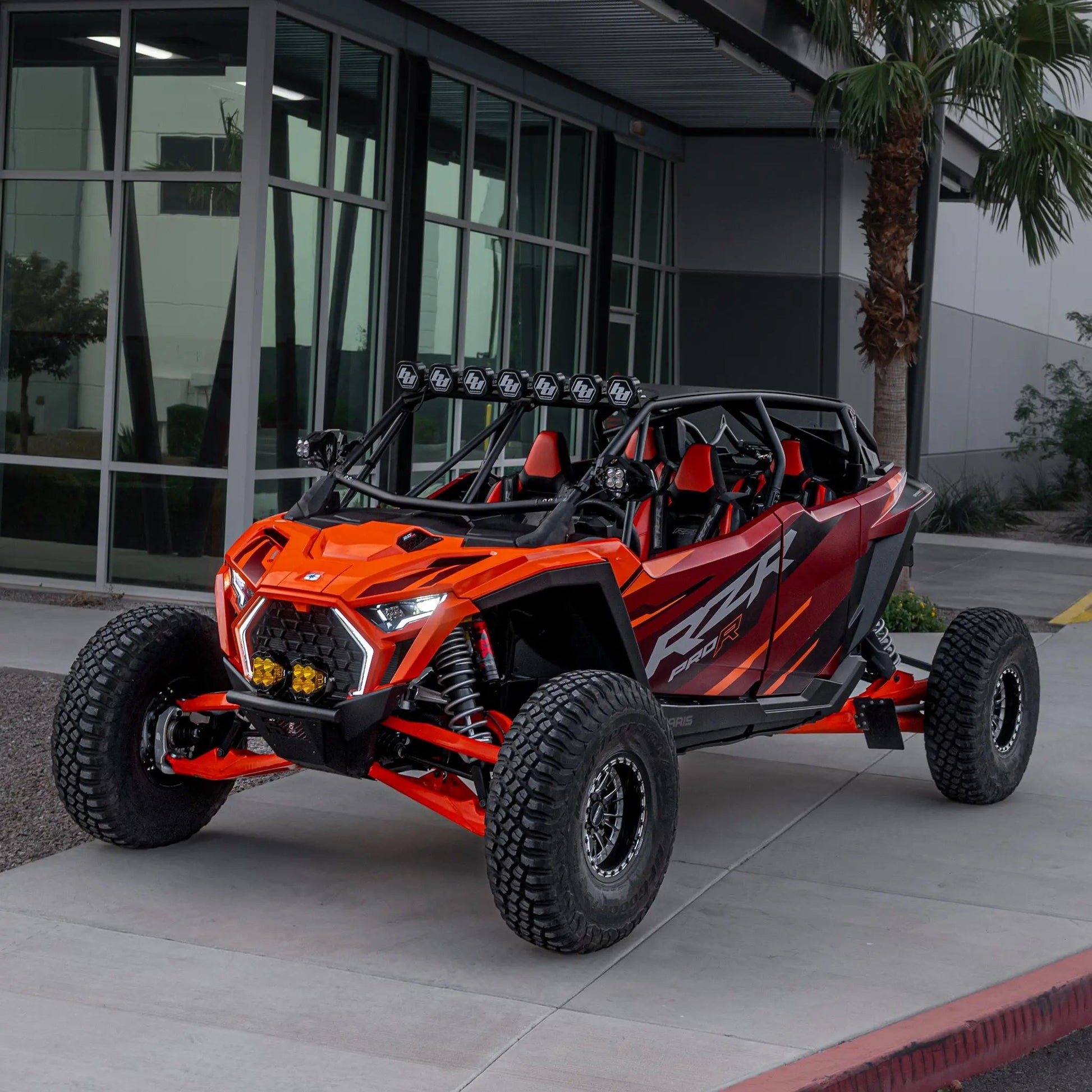

 To maximize visibility and enhance the profile we leaned the A-Pillar back 5 degrees and placed the top crossbar as high up in the bend as possible. This keeps front visibility the same as our taller Sport cage with a 3-1/2 inch lower front roof line.

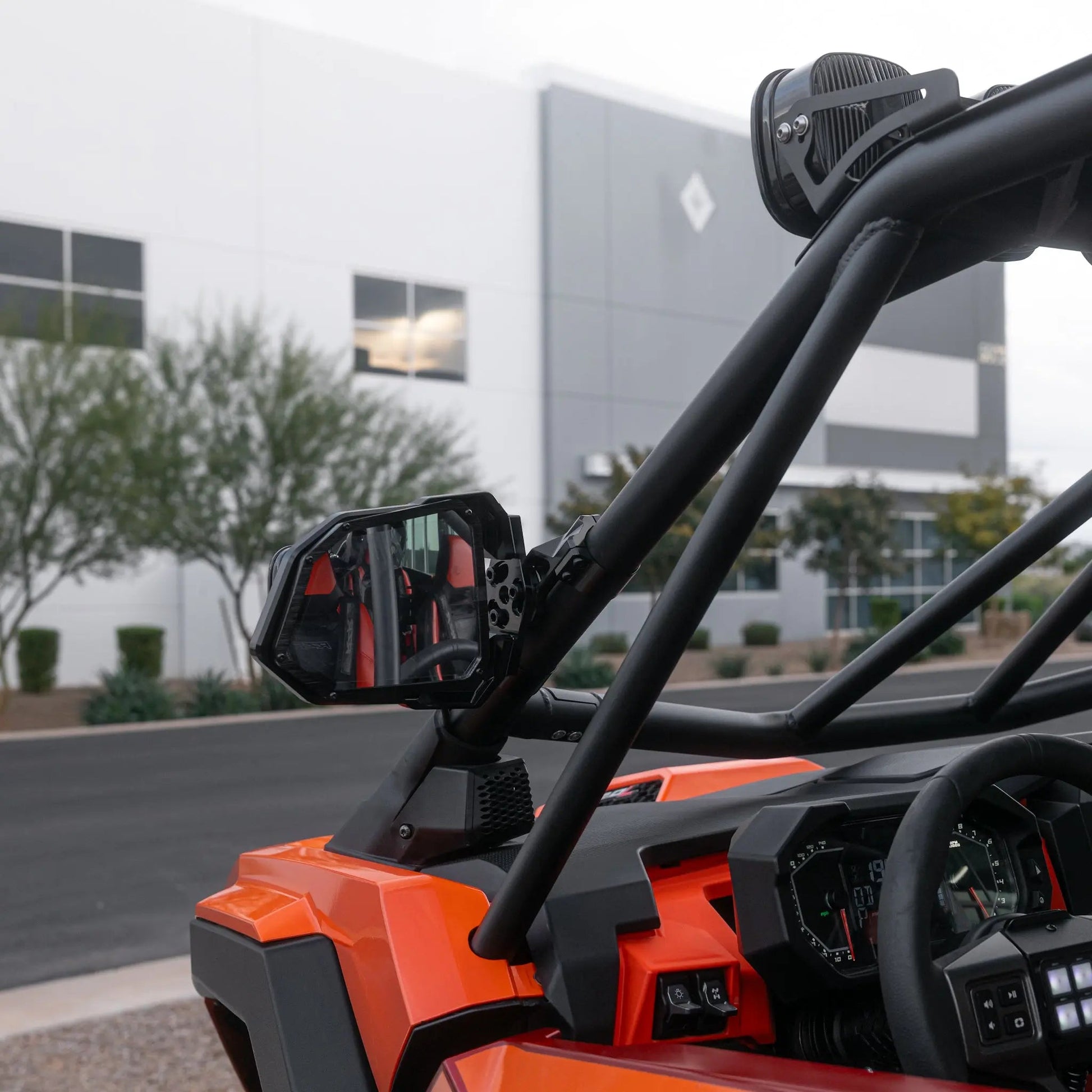

Now that we had the A-Pillar where we wanted it, we tackled the A-2 pillar. This is a new design feature for us and we wanted to make sure we gave it our level of detail and style. The purpose of this tube is to support the A-Pillar and tie it back into the chassis. Polaris engineers did us a solid by beefing up the chassis under the dash and providing the proper structure to tie the cage back into. By utilizing this mounting point we were able to create a seamless and strong A-2 Pillar support that looks clean and is completely out of the way of your feet and ankles. A template is provided to eliminate guesswork and make cutting the fender easy and straightforward.

next up we moved the B-Pillar more vertical to even out the distance to the A and C pillars. A subtle difference, but it really cleans up the lines and adds strength and rigidity in a rollover. We also moved the b-pillar support tube to the inside providing a unique grab handle location for getting in and out of the car and again adding support to the upper structure.

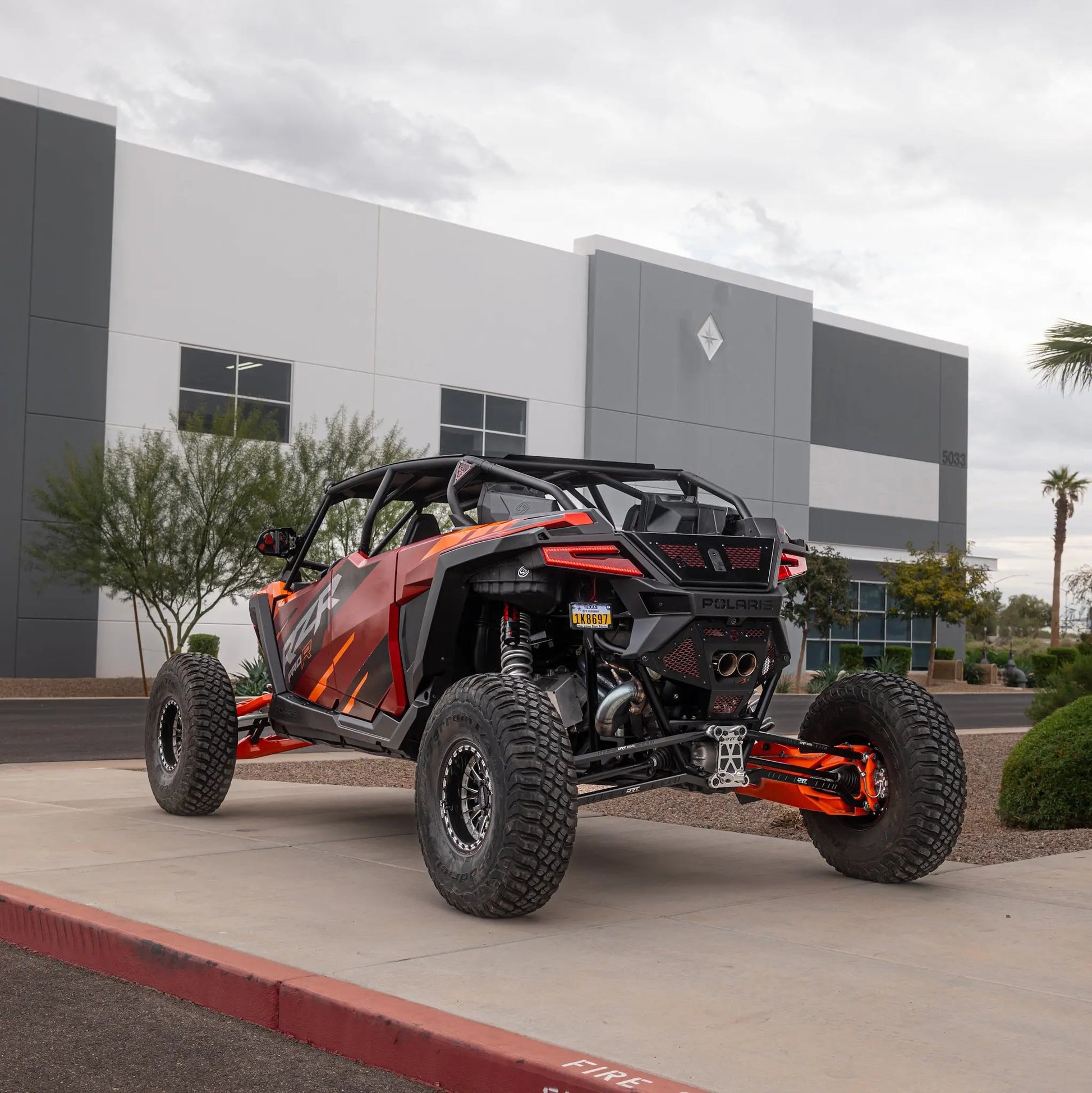

moving to the back, we again brought the C-Pillar more vertical for even distance from the B-Pillar and to create a proper triangle structure at one of the most critical points on the cage. Adding in rear v-bar support tubes and multiple sheet metal corner gussets throughout the roof structure gives this cage superior strength and design over the competition.

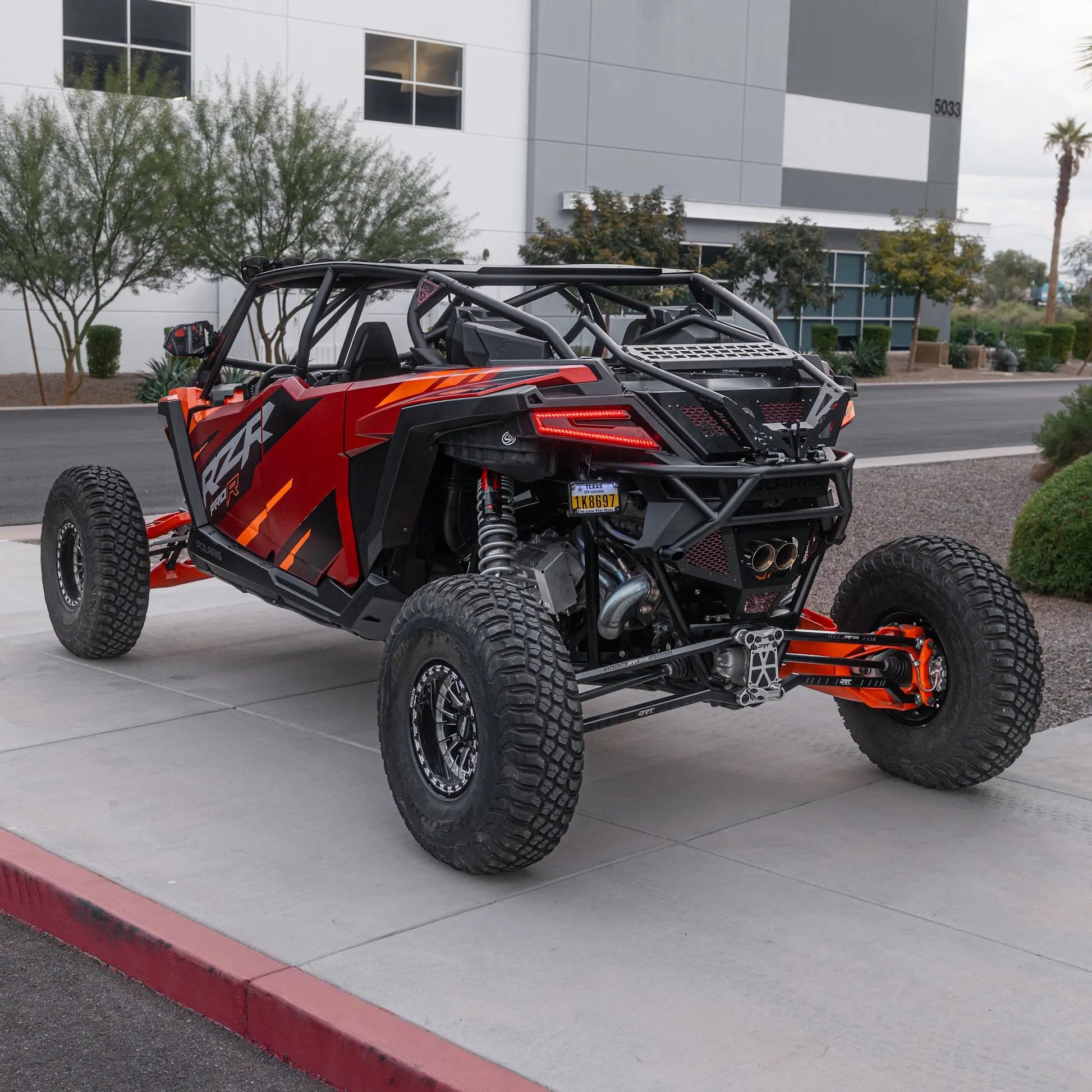

To finish things off we re-designed the rear down tube to follow the rear plastics as close as possible with a double bend design that finishes off clean.

As with all SDR cages, they are Built from 1.75 DOM steel tubing. Each tube is CNC cut and bent in house using state of the art equipment ensuring the quality, fit, and finish you have come to expect from SDR Motorsports products. Every cage is then fit and welded to perfection in our industry leading modular cage fixtures usually only seen in Trophy Truck fabrication shops by our talented team of welders.

Features

• Fits: 2025-2026 Polaris RZR Pro R-4 (4-Seater)
• Sleek new low profile Design
• 1.75" DOM Tube for superior strength
• CNC Cut and Bent Tubes for precise fit
• Aluminum Roof Panel included
• All Gusseting & Dual Whip Tabs included
• Works with stock doors
• Powder Coating - Choose from 3 available standard colors Gloss Black, Semi-Gloss Black, Textured Black, leave it raw, or contact us about any custom color you want

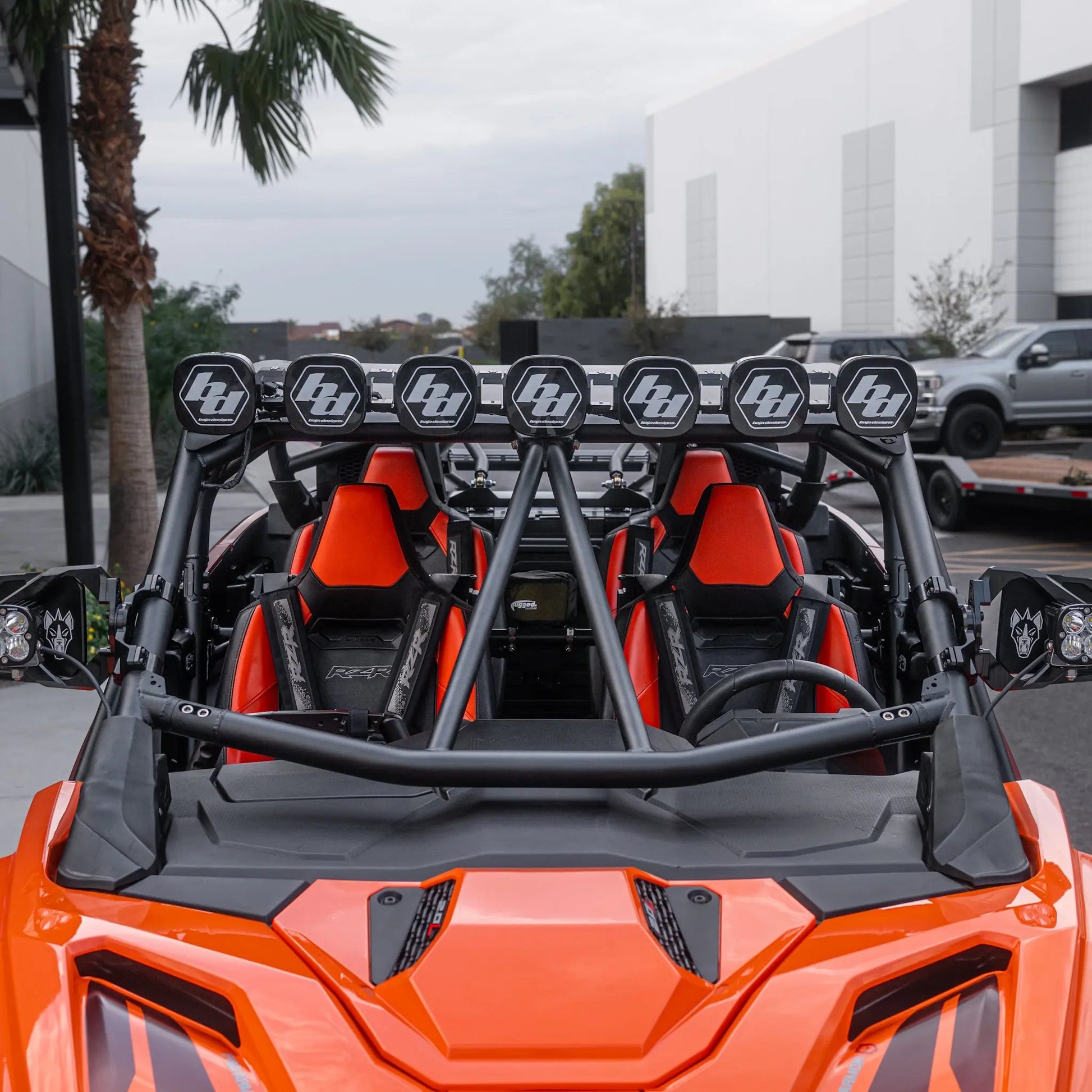

• Dash bar delete. We offer this cage without the dash/ v-bar option for maximum visibility.
• Windshield - Fully custom Automotive Glass Windshield to complete the dual sport look

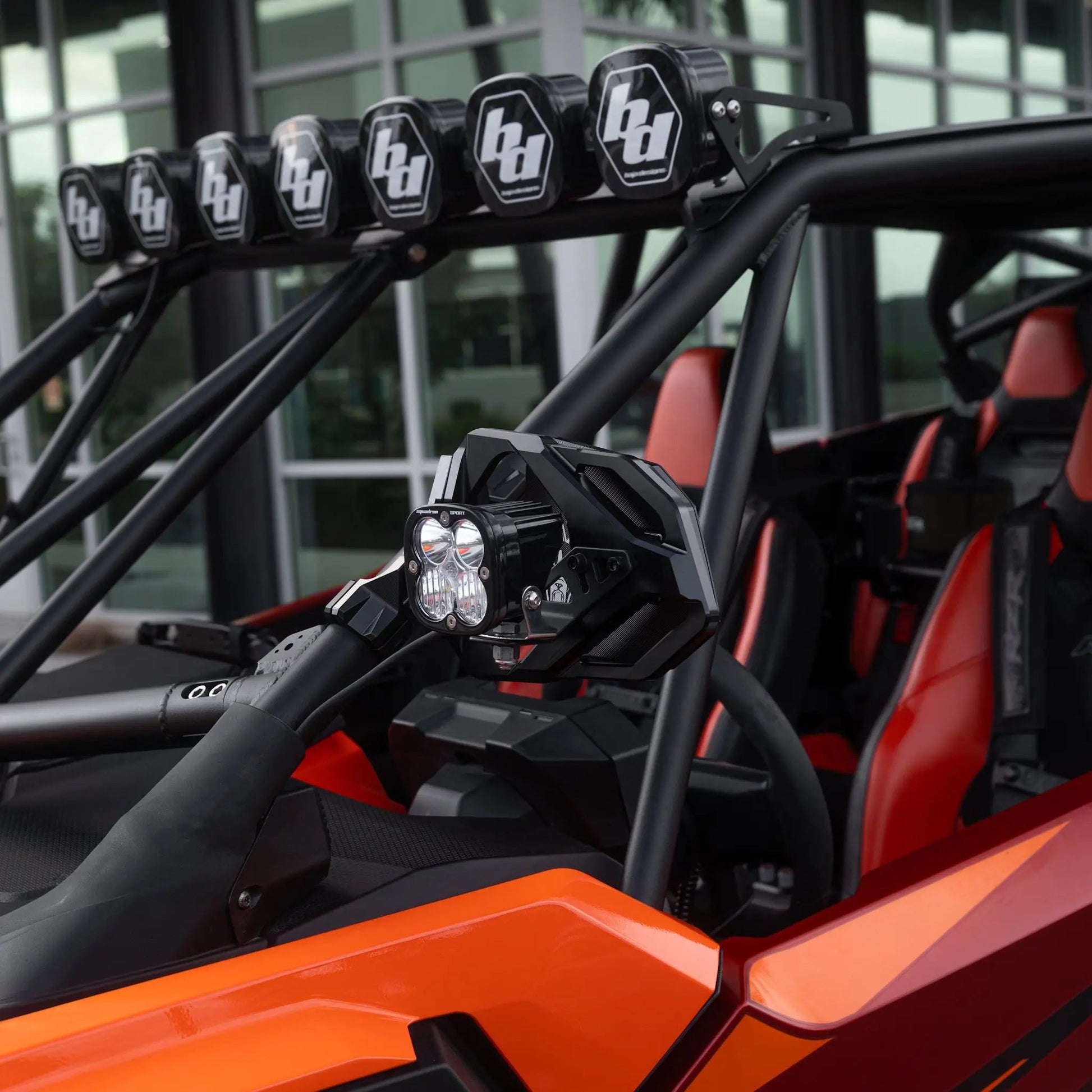

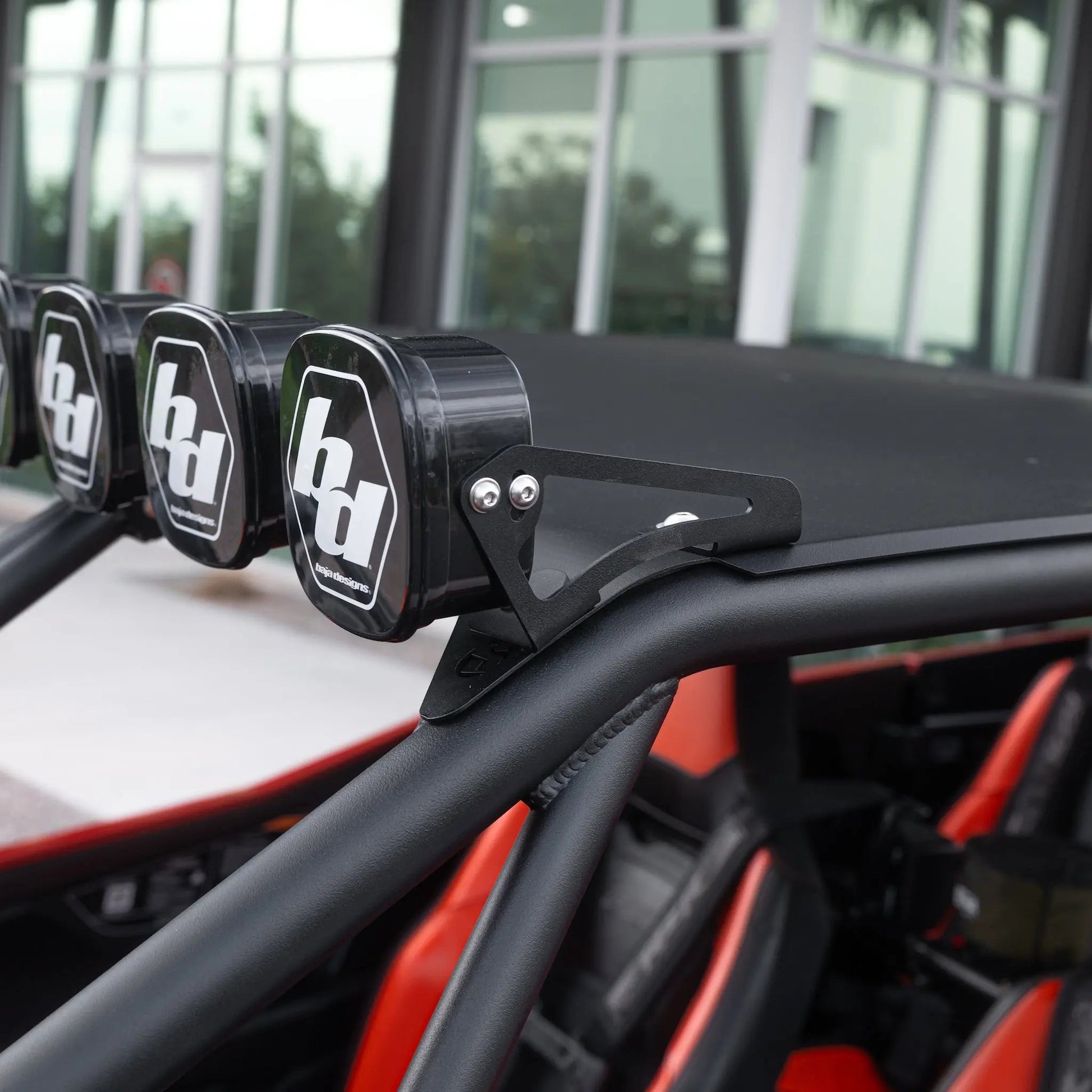

• Custom Light Bar Mounting - Choose from bolt on light bar mounts for most popular light bars from Baja design, KC Lights, and more


What our Experts Think

• Race-proven chassis upgrade: The SDR Motorsports Polaris RZR Pro R 4 FB-V2 Cage 750603 is engineered as a full replacement roll cage, delivering significantly improved structural integrity and rollover protection compared to stock setups.
• Heavy-duty DOM steel construction: Built from 1.75” x .120 wall DOM tubing with additional 1.5” support bracing and laser-cut gussets, giving it high rigidity under extreme off-road stress and repeated impacts.
• Low-profile FB-V2 design: Features a revised forward-leaning A-pillar and lowered roofline, improving forward visibility while maintaining strong roof support geometry for aggressive driving conditions.
• Reinforced multi-pillar structure: Redesigned A, B, and C-pillar alignment with optimized triangulation increases rollover strength while improving load distribution across the chassis.
• Factory-style integration: Designed for bolt-on fitment to 2025–2026 Polaris RZR Pro R 4 chassis mounting points, ensuring cleaner installation and OEM-like alignment with body panels and accessories.
• Fully adventure-ready package: Includes aluminum roof panel, whip tabs, and gusset reinforcement, making it ready for lights, safety flags, and long-distance desert or trail setups straight out of the box.
