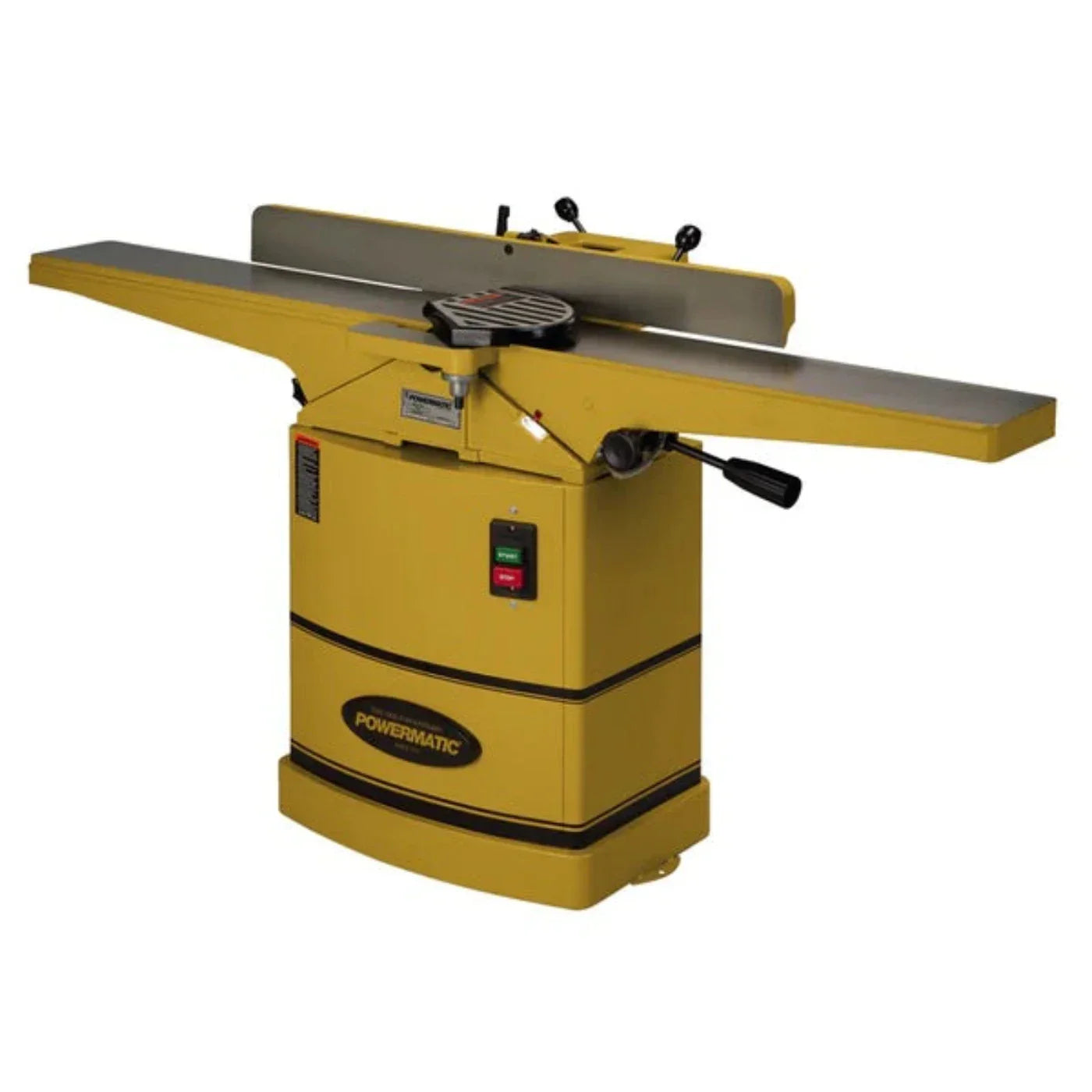

Powermatic 54HH 6" Helical Head Jointer

Creating flat, straight surfaces is crucial in the quest to build elegant projects. Virtually all forms of joinery and the tools that cut them depend on straight edges and square cuts. The Powermatic 54HH 6” Jointer makes it easy to achieve the high levels of accuracy you need in this always-crucial operation.

The 1 HP, 1Ph, 115/230V motor (pre-wired 115V) is factory-mounted within the base cabinet and can be converted to use 230V power should that be desirable. The motor is on a special mount within the base cabinet that allows the user to adjust belt tension should that become necessary. The base also contains the dust collection chute that evacuates debris from below the cutterhead. The chute guides that debris to the exterior 4” diameter port near the floor.

There are many cutterhead designs that carry the helical moniker, including simple straight blades broken into segments and dispersed around the cutterhead cylinder. However, despite the name, they retain many of the liabilities of the long blade designs. Powermatic incorporates the performance of a true segmented, shear-cutting helical head.

The helical cutterhead is so effective because its carbide inserts are arranged in spiral-shaped rows. The inserts have a 4” radius ground into them and are mounted so they approach the wood at a 14° angle. That creates a true shear cut that eliminates much of the impact and the resulting fiber disturbance other cutterhead designs deliver to the wood.

Because the inserts themselves and the seats into which they fit are so precisely machined, there is no adjustment or “fitting” necessary. Indexing or replacing an insert takes just seconds. Simply loosen its retaining screw, turn the insert to its new position and tighten the screw.

At 7-1/4” wide and 66” long, the cast iron Powermatic 54HH Jointer table is one of the longest available in this class and provides plenty of support for even large work pieces. The tables are precision-ground to insure flatness and each is mounted on dovetailed ways that keep them perfectly aligned through height changes.

The all cast iron 4” tall by 38” long fence system is, like the tables, precisely ground to assure straightness. The fence tilts up to 45° towards and away from the tables. Fully adjustable stops at 90° (vertical) and each 45° position make setup fast and help keep the 54HH accurate with minimal maintenance.

The Powermatic 54HH Jointer has been designed and built to make your wood straightening tasks easy and accurate. The heavy duty construction and materials mean that this machine will remain an important part of your woodworking shop for many years to come.

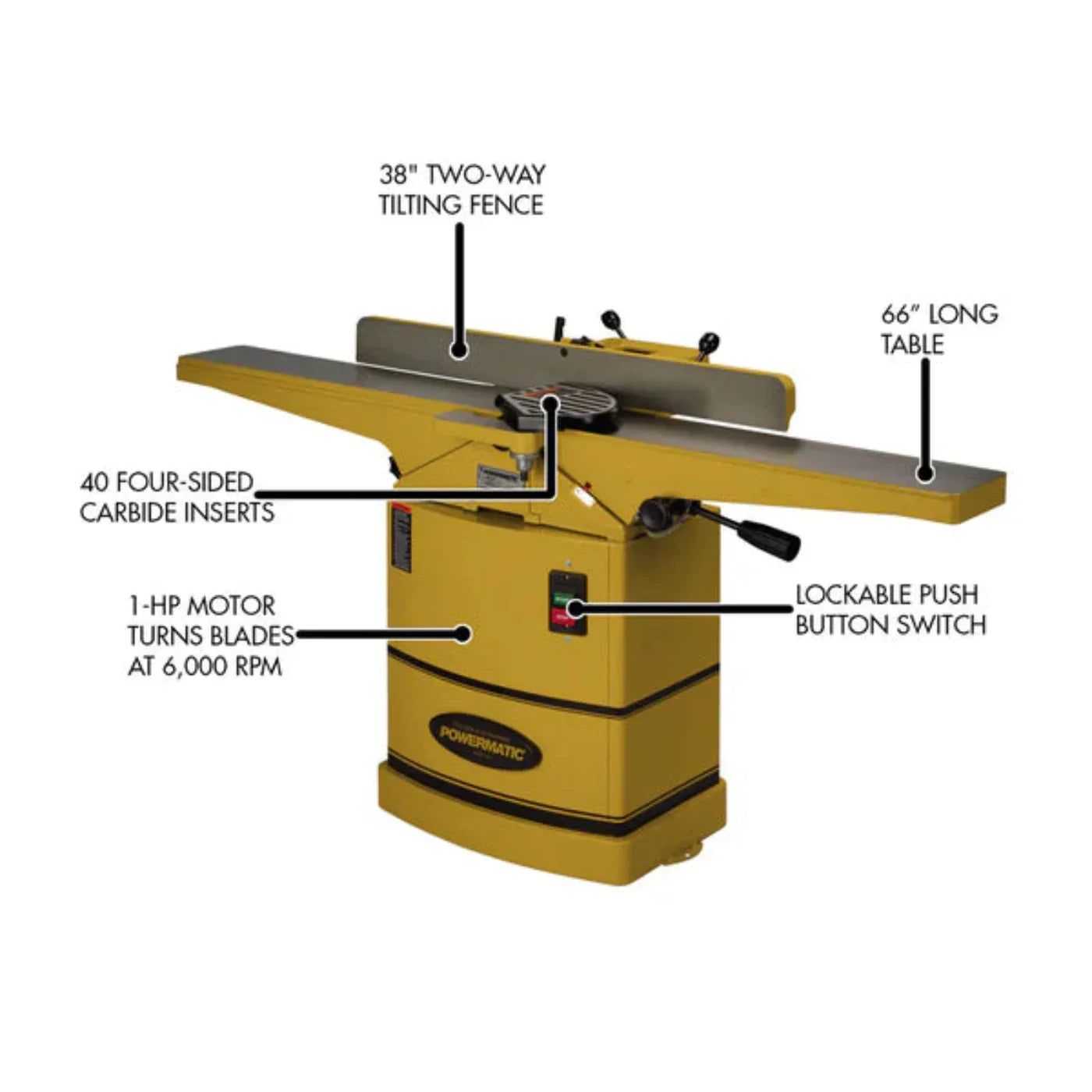

  • 66" long adjustable infeed and outfeed tables provide more working surface
  • Enlarged sheet metal stand provides a sturdy base
  • Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
  • Fence controls are center mounted for convenience
  • Durable carbide cutters combined with low impact, shear cutting action means the inserts have an extremely long life

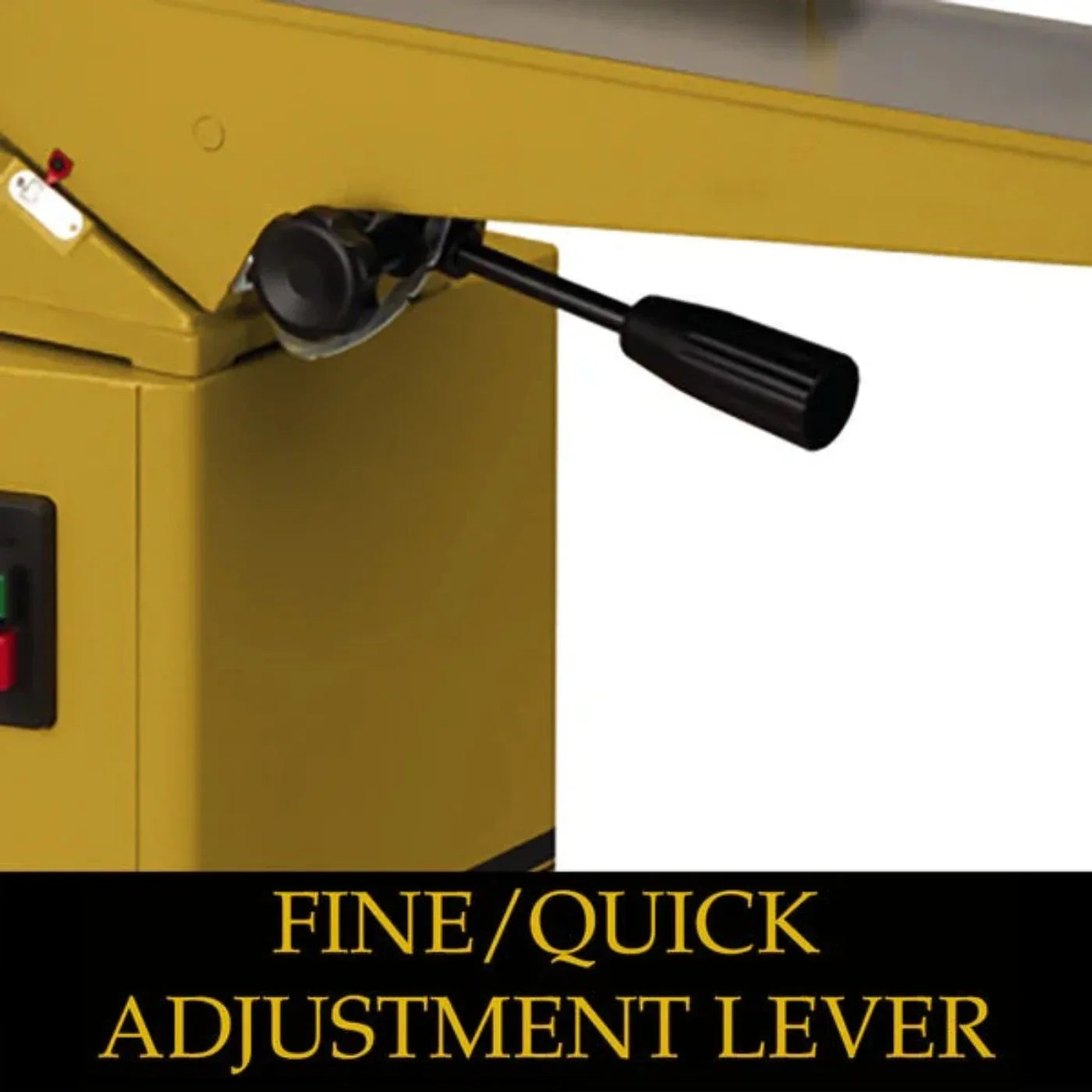

  • Fine/quick adjustment lever on infeed table for precision cuts
  • Outfeed table height can be adjusted via handwheel
  • Infeed table height adjusted using a unique lever system
  • Helical cutterhead with 40 four sided carbide inserts provides smoother, quieter cutting and finer finish than conventional systems
  • Push button switch is lockable to prevent accidental starting

Cutterhead Diameter 2-1/2"
Cutterhead Speed (RPM) 6,000
Cutting Capacity (W x D) 6 x 1/2"
Table Dimensions (L x W) 66" x 7-1/4"
Fence Dimensions (L x H) 38" x 4"
Dust Collection Minimum CFM Required (CFM) 450
Dust Port Outside Diameter 4"
Infeed Table Length 32-1/2"
Motor Amps 13/6.5
Motor Phase 1
Motor Power (HP) 1
Motor Voltage (V.) 115/230
Number of Knives 40
Prewired Voltage (V.) 115
Type of Cutterhead HELICAL



  • Helical Cutterhead: Features carbide inserts for smoother cuts, reduced noise, and longer tool life.
  • 6" Capacity: Perfect for smaller to medium-sized stock, providing precision and efficiency.
  • Powerful Performance: Delivers consistent results, even with hardwoods, thanks to a robust motor.
  • Durable Construction: Sturdy cast iron design reduces vibrations and enhances stability for cleaner cuts.
  • Precision Adjustment: Easy-to-use controls for adjusting the depth of cut and fence angle for accurate edge jointing.

Q: What is the Powermatic 54HH 6" Jointer (PM9-1791317K)?
A: A 6" helical head jointer with carbide inserts, offering smooth, precise jointing with reduced noise and minimal maintenance.

Q: What are its key features?
A: 6" cutting width, helical cutter head with carbide inserts for a smoother finish, quick set knives for easy setup, and cast iron construction for stability.

Q: Who is it ideal for?
A: Ideal for woodworkers and small shops seeking a high-performance, low-maintenance jointer for accurate edge jointing and smooth surfaces.

Q: Why choose this model?
A: The helical head reduces noise and extends cutter life, providing superior cut quality and minimal maintenance, making it perfect for professional-grade results

  • Inspect and Rotate Inserts: Regularly check the helical cutter inserts for wear; rotate or replace them as needed to maintain a clean, smooth cut.
  • Clean After Use: Remove dust, wood chips, and debris from the tables, cutterhead, and motor after each use.
  • Lubricate Moving Parts: Apply lubrication to the infeed and outfeed tables, fence, and other moving parts to ensure smooth operation.
  • Check Table Alignment: Ensure the infeed and outfeed tables are properly aligned for precise jointing.
  • Inspect Belt and Tension: Check the drive belt for wear and adjust its tension to prevent slipping and ensure proper power transfer.
  • Monitor Cutterhead Condition: Keep the cutterhead clean and ensure it rotates freely.
  • Dust Collection: Maintain the dust collection port and system to prevent clogs and ensure effective dust removal.
  • Electrical System: Verify proper voltage (230V) and inspect wiring and electrical components for any signs of wear or damage.
