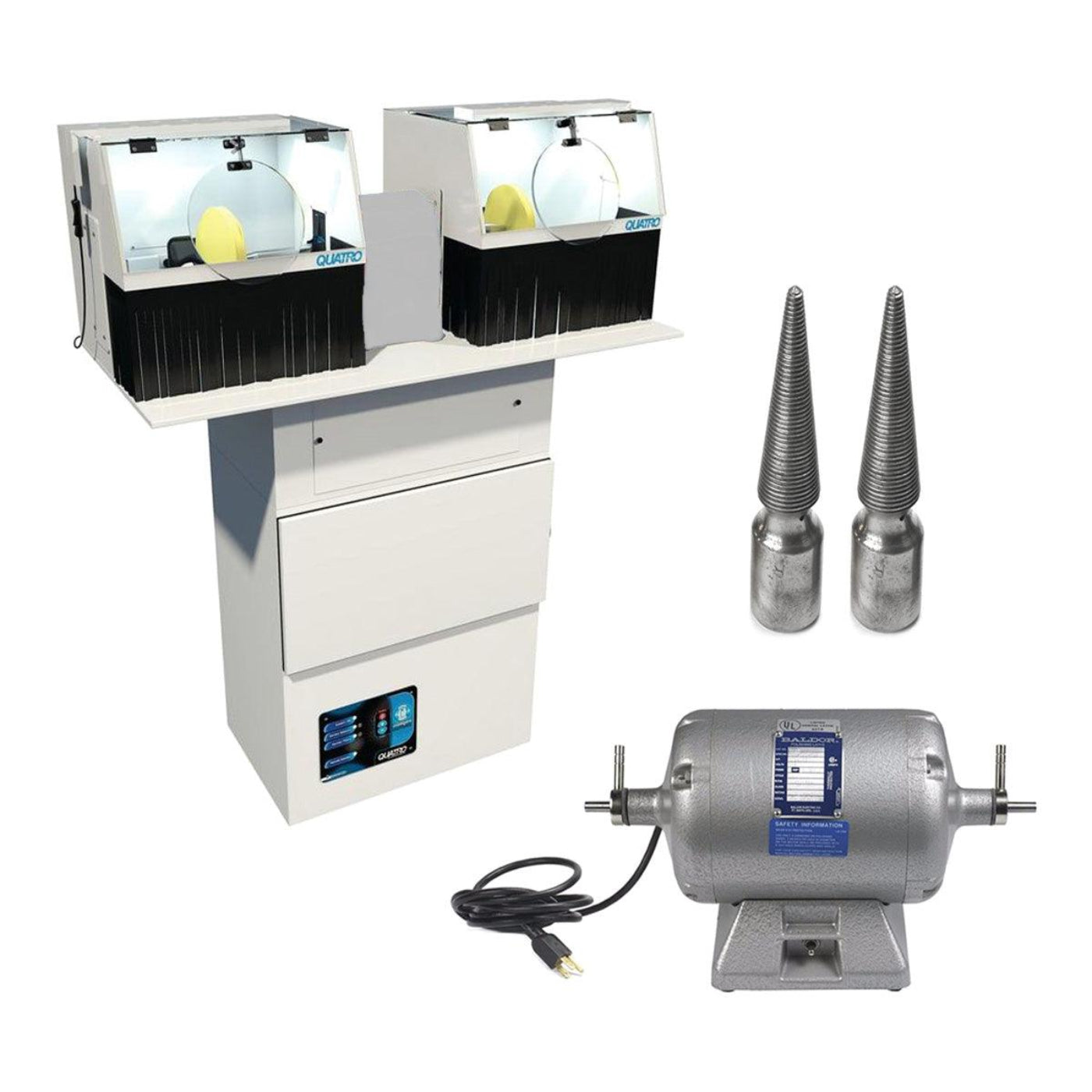

Quatro 1-0031-4007 Premium High Pressure SuperFlow Workstation With Baldor 353T 1/3 HP 2-Speed Polishing Motor - 147.6134
The Quatro 1-0031-4007 Premium High Pressure SuperFlow Workstation with Baldor 353T 1/3 HP 2-Speed Polishing Motor is a complete, heavy-duty polishing system engineered for professional jewelry shops with demanding all-day polishing workloads. Built on Quatro's Standard Standalone platform, the SuperFlow series introduces significant upgrades across airflow, suction, filtration, and usability — making it one of the most capable benchtop polishing workstations available for busy production environments.
The SuperFlow system is recommended for heavy-duty use — defined as more than 4 hours of continuous daily operation. At its core is a Premium High Pressure Brushless Suction Motor delivering 450–550 CFM of airflow, combined with a two-stage filtration system: three sealable AF149 first-stage filter bags and a second-stage F022 HEPA filter. A Pressure Indicator Alert notifies the operator when filters require changing, and a Variable Speed Motor Control provides precise control over the polishing motor.
The Automatic Start Valve System enables start/stop control from inside each hood and allows one hood to be shut off to concentrate suction to the other. Both fully enclosed ClearView Hoods feature bright LED illumination and flip-up magnification discs for enhanced visibility and containment of airborne particulates. Operation remains quiet at 59 dB(A).
This bundle ships complete with tapered spindles for both sides, a foot switch, and all filtration components needed for immediate setup.
Features
-
Premium High Pressure Brushless Suction Motor – increased airflow and suction over standard models
-
Pressure Indicator Alert – signals when filter replacement is needed
-
Variable Speed Motor Control for the polishing motor
-
Automatic Start Valve System – start/stop from inside each hood; single-hood shutoff for concentrated suction
-
Two fully enclosed ClearView Hoods with LED illumination and flip-up magnification discs
- Two-stage filtration: three sealable AF149 filter bags (Stage 1) and F022 HEPA filter (Stage 2)
- 50% more debris storage capacity compared to prior models
- New compact design with improved rear capture nozzle
- Remote On/Off switch included
- Quiet 59 dB(A) operation
- Baldor 353T 1/3 HP Heavy Duty 2-Speed Polishing Motor with right and left tapered spindles
- Quatro AA114 On/Off foot switch included
Specifications
| Suction Motor |
120V, 9.2A, 1/2 HP |
| Electrical |
120V, 1-Phase, 60Hz (240V available by special order) |
| Airflow |
450–550 CFM |
| Noise Level |
59 dB(A) |
| Buffing Motor |
Baldor 353T 1/3 HP, 2-Speed, Heavy Duty Polishing Motor |
| Spindles |
Tapered brass (left), tapered steel (right) |
What our Experts Think
-
Fully integrated production workstation: The SuperFlow Workstation with Baldor 353T motor is widely regarded as a complete heavy-duty polishing and dust extraction system designed for continuous jewelry manufacturing environments.
-
High-pressure suction performance: Engineers highlight its premium brushless suction motor delivering ~450–550 CFM, ensuring strong, consistent dust capture across dual enclosed ClearView hoods even under heavy polishing loads.
-
Built-in industrial polishing motor: Includes a Baldor 353T 1/3 HP, 2-speed motor, known for durability and stable torque output, making it suitable for long polishing sessions without overheating or performance drop.
-
Advanced 2-stage filtration system: Uses sealable bag pre-filtration + HEPA final stage, designed to capture heavy rouge, metal dust, and ultra-fine particulates while improving precious metal recovery efficiency.
-
Smart airflow control system: Features automatic start/stop valves and single-hood suction boost mode, allowing operators to concentrate airflow where it’s needed most for higher polishing efficiency.
-
Professional visibility & ergonomics: Dual ClearView hoods with LED lighting and flip-up magnification lenses improve precision work while fully containing airborne debris.
-
Built for heavy daily use: Rated for 4+ hours of continuous operation, making it a preferred solution for production shops, casting houses, and high-output jewelry studios.
-
Noise-optimized industrial design: Despite its power, system operation remains around ~59 dB(A), helping maintain a workable studio environment during extended use.
-
Best suited for production jewelers: Ideal for workshops that want a single “all-in-one” station combining polishing power, dust extraction, filtration, and debris recovery in one compact footprint.
Q&A
Q: What is the Quatro 1-0031-4007 Premium High Pressure SuperFlow Workstation with Baldor 353T Motor (147.6134) used for?
A: It is a heavy-duty professional dual-station polishing workstation with integrated dust extraction, designed for jewelry manufacturing, metal finishing, and continuous polishing operations.
Q: What makes the SuperFlow system different?
A: It combines a high-pressure brushless suction system (450–550 CFM) with enclosed ClearView hoods and advanced filtration, delivering strong dust control during high-volume polishing work.
Q: Does it include a polishing motor?
A: Yes, it comes with a Baldor 353T 1/3 HP 2-speed polishing motor, built for industrial-grade continuous operation.
Q: How many workstations does it support?
A: It is designed for two fully enclosed polishing stations, allowing simultaneous use by two operators.
Q: What is the airflow and suction performance?
A: The system delivers approximately 450–550 CFM of airflow, ensuring strong capture of polishing dust at both stations.
Q: What type of filtration does it use?
A: It uses a two-stage filtration system with sealable filter bags for heavy debris and a HEPA filter for fine particulate capture.
Q: Is it suitable for heavy daily use?
A: Yes, it is engineered for heavy-duty operation (4+ hours per day) in professional workshops and production environments.
Q: What voltage does it require?
A: It runs on standard 110–120V / 60Hz power, with 240V available by special order.
Q: How noisy is it?
A: It operates at approximately 59 dB(A), which is relatively quiet for its power level.
Q: What industries is it best for?
A: It is commonly used in jewelry manufacturing, polishing studios, casting cleanup, and precision metal finishing shops where dust control and visibility are critical.
Maintenance Tips
-
Clean cartridge & bag filters regularly: The SuperFlow system relies on multi-stage filtration—keep HEPA and sealable filter bags clear to maintain high suction (450–550 CFM).
-
Replace filters when pressure indicator alerts: The built-in pressure monitoring system signals when airflow is restricted—do not ignore it to avoid motor strain.
-
Empty debris collection frequently: Prevent heavy polishing dust buildup to protect airflow efficiency and internal components.
-
Maintain ClearView hoods: Keep hood interiors, LED lighting, and magnification lenses clean for safe visibility and dust containment.
-
Check automatic valve system: Ensure both hood valves open/close properly so suction is properly distributed between stations.
-
Inspect suction performance daily: Reduced airflow usually indicates clogged filters or restricted rear capture nozzles.
-
Clean Baldor 353T motor housing: Remove dust buildup from motor vents to prevent overheating and maintain stable 2-speed operation.
-
Check belts/spindles alignment: Ensure polishing spindles run smoothly with no vibration or misalignment.
-
Keep seals airtight: Verify filter doors and hood seals to prevent suction loss.
-
Avoid continuous overload: Designed for heavy-duty use, but still requires duty cycles to preserve motor and blower lifespan.
