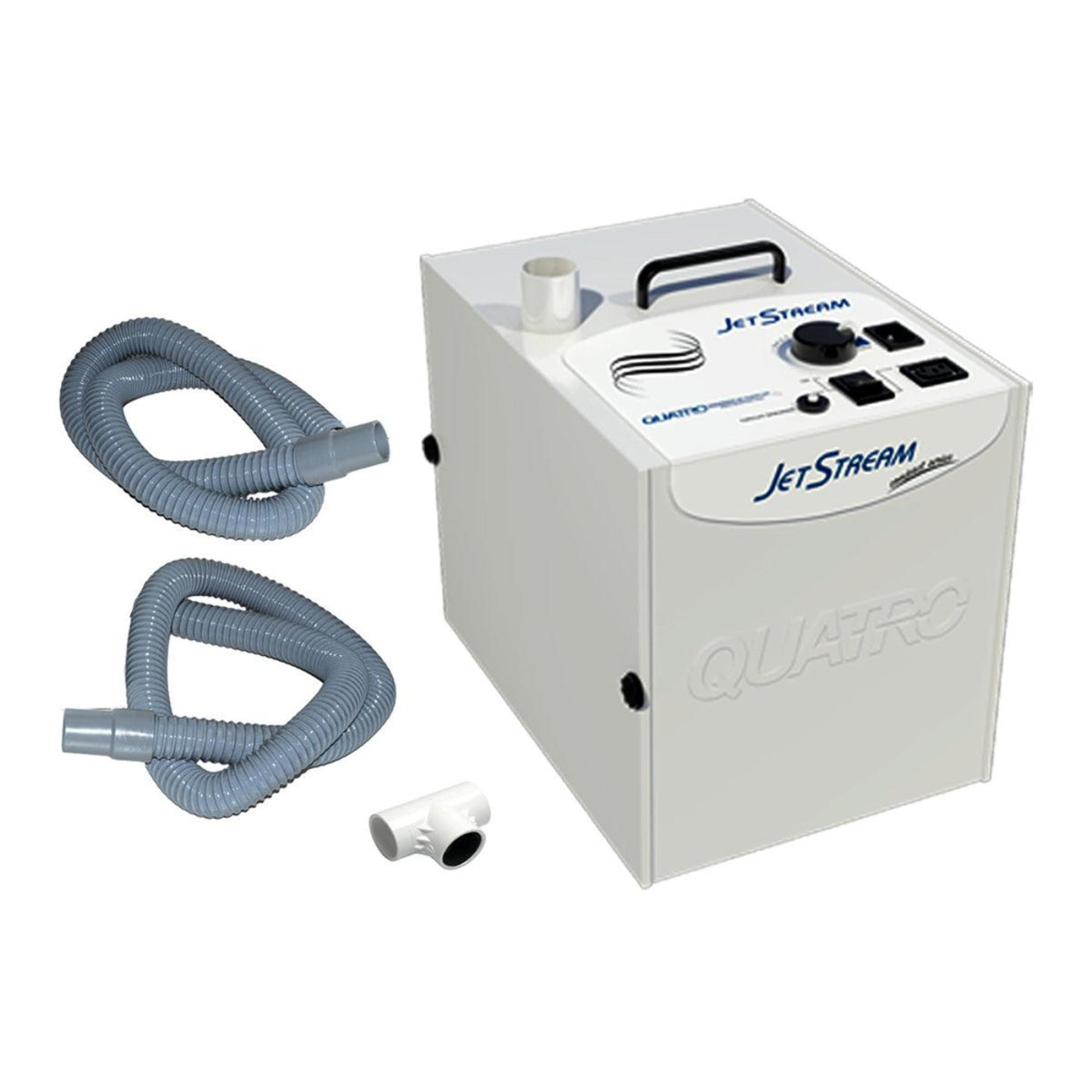

Quatro 1-0020-0102 Jet-Stream INFINITY Compact Dust Collector-110 Volt - 147.632
The Quatro Jet-Stream INFINITY Compact Dust Collector (Model 1-0020-0102) is the updated replacement for the Quatro JS-1402 Jet-Stream Compact Dust Collector. Engineered for professional jewelers, metalsmiths, and bench workers, this compact personal dust collector is designed to keep your breathing zone clean and free of fine particulate matter during polishing, grinding, stone setting, and other bench operations.
At the heart of this unit is the INFINITY motor, rated for 1,500โ2,000 hours of service life. The Jet-Stream operates at a quiet 55 dBA and delivers powerful suction at 141 CFM (240 mยณ/hour), driven by a 1 HP, 7-amp, 120V/60Hz brushless high-speed turbine motor. Variable speed suction lets you dial in a gentle stream for delicate stone setting or ramp up to full power for polishing and grinding applications.
The two-stage filtration system begins with an easy-access replaceable bag filter that captures larger particulates, followed by an OSHA-approved HEPA filter that removes particulate matter down to sub-micron levels. The high-quality filter bag included is designed to capture finer particulates than standard white filter bags. Loose stones or other small valuables accidentally drawn into the unit are easy to retrieve.
Features
- INFINITY motor rated for 1,500โ2,000 hours of use
- Two-stage filtration: replaceable bag filter + OSHA-approved HEPA filter
- Variable speed suction โ adjustable from gentle to full power
- Quiet operation at 55 dBA
- 141 CFM suction rating (240 mยณ/hour)
- Includes a "T" inlet for connecting two workstations simultaneously
- Includes two 4-foot, 1-1/2" diameter heavy-duty suction hoses
- Includes two 3" diameter adaptors
- Compatible with the Foredom BL-DCH polishing lathe for a complete dust collection system
- Replaces the Quatro JS-1402 Jet-Stream Compact Dust Collector
Specifications
| Model |
1-0020-0102 |
| Voltage |
110V / 60Hz |
| Motor Type |
Brush โ Whisper Quiet High Speed Turbine |
| Motor Draw |
7 Amps, 120V (1 HP) |
| Suction Rating |
141 CFM (240 mยณ/hour) |
| Noise Level |
55 dBA |
| Motor Life |
1,500โ2,000 hours |
| Height |
12-1/8" (308 mm) |
| Width |
10-1/8" (258 mm) |
| Depth |
14-1/4" (362 mm) |
| Hose Diameter |
1-1/2" |
What our Experts Think
-
Compact high-performance extraction: The Jet-Stream INFINITY Compact is widely regarded as a premium bench-level dust collection solution designed for precision workshop environments where air quality control is critical.
-
Strong, stable suction output: With approximately 141 CFM airflow, experts highlight its ability to maintain consistent suction for polishing, grinding, and stone-setting tasks without performance drop under normal bench load.
-
INFINITY motor durability advantage: The hybrid INFINITY turbine motor is engineered for extended service life (typically 1,500โ2,000 operating hours), making it a reliable choice for continuous studio use.
-
Professional 2-stage filtration system: Combines a replaceable first-stage bag filter with an OSHA-grade HEPA filter (99.97% efficiency), effectively capturing both visible debris and ultra-fine particulates.
-
Ultra-quiet bench operation: Running at roughly 55 dB, it is frequently praised for maintaining a low-noise workspace, suitable for shared or enclosed studios.
-
Dual-station capability: The built-in โTโ inlet allows two workstations to be connected simultaneously, improving workflow efficiency in small production environments.
-
Space-saving design: Compact footprint makes it ideal for tight bench layouts while still delivering industrial-level filtration performance.
Q&A
Q: What is the Quatro Jet-Stream INFINITY Compact Dust Collector used for?
A: It is a professional compact dust collection system designed to capture fine dust and debris from bench work such as polishing, grinding, stone setting, and other precision operations.
Q: What makes the INFINITY motor special?
A: The INFINITY motor is engineered for long service life (about 1,500โ2,000 hours) with strong, consistent suction performance for continuous professional use.
Q: What are the key performance specs?
A: It delivers approximately 141 CFM suction power with a quiet operation around 55 dBA, providing strong airflow while maintaining a low-noise workspace.
Q: Does it use a filtration system?
A: Yes, it uses a dual-stage system with a replaceable bag filter for larger particles and a HEPA filter that captures sub-micron dust for high air purity.
Q: Is it suitable for professional bench environments?
A: Yes, it is designed for jewelers, metalsmiths, dental labs, and other precision workspaces requiring reliable dust control.
Q: What voltage does it require?
A: It runs on standard 110V/60Hz power, making it compatible with most North American workshop setups.
Q: Can it handle multiple workstations?
A: Yes, it includes a โTโ inlet that allows connection to two workstations for improved workflow efficiency.
Q: Is it compact and easy to install?
A: Yes, it has a small footprint and is designed to sit easily at or near a bench for plug-and-play use in tight workspaces.
Maintenance Tips
-
Clean or replace filters regularly: Maintain HEPA/pre-filter performance to ensure strong, consistent airflow.
-
Empty dust container frequently: Prevent buildup that can reduce suction and strain the system.
-
Check suction performance: A drop in airflow usually signals a clogged filter or full dust chamber.
-
Inspect air intake & exhaust: Keep vents clear of dust and debris for proper cooling and airflow balance.
-
Secure all connections: Ensure hoses and fittings are tightly sealed to avoid air leakage.
-
Wipe exterior safely: Use a dry soft cloth; avoid liquid exposure near electrical parts.
-
Prevent overheating: Do not block ventilation openings during operation.
-
Routine inspection: Periodically check internal components for dust accumulation and wear.
-
Use within rated capacity: Avoid overloading the unit to extend motor and fan life.
